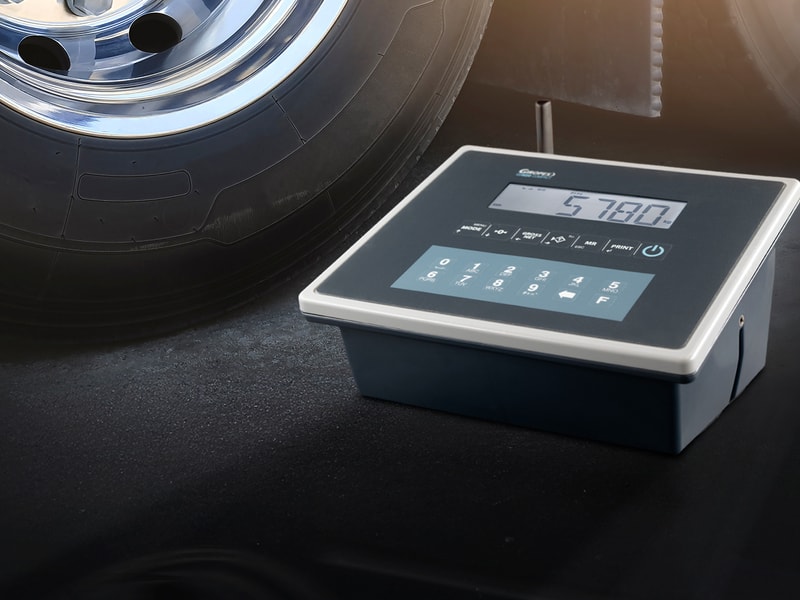

GI620 Compact-W Desktop Wireless Axle and Wheel Weighing Indicator

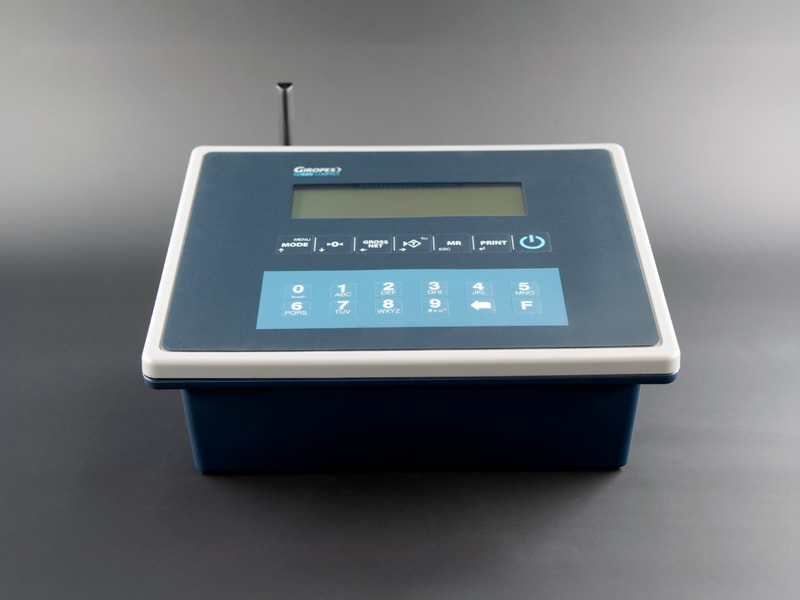

The GI620 Compact-W indicator is an extremely versatile, desktop measuring instrument specifically designed for space-saving environments, as well as for mobile and field applications. It provides outstanding performance during both static and dynamic measurements, making it ideal for wheel and axle weighing.
Key Features and Advantages
The GI620 Compact-W is the perfect fusion of portability and robust performance, which also meets the strictest metrological requirements.
Design and Portability
Due to its compact dimensions, the device can be ideally integrated into any restricted space, whether it is an office environment or a field installation. Its design facilitates easy transport and quick commissioning, which is crucial for tasks requiring mobility.
Metrological Approval and Accuracy
The GI620 guarantees reliable measurements:
- CE-M approval: Complies with OIML R-76 standard for static measurements.
- Dynamic Measurement: Has OIML R-134 jóváhagyással dinamikus mérésekhez, akár 5 km/h sebességig (a belső szoftver 10 km/h -ig teszi lehetővé a mérést, de a hivatalos tanúsítvány 5 km/h -ig érvényes, BPRG kerékmérő platformmal).
Advanced Functionality: Wheel and Axle Weighing
A készülék dedikált firmware -rel rendelkezik mind a kerék-, mind a tengelysúlyméréshez, rugalmasságot biztosítva a járművek súlyának meghatározásában.
Kerékmérési Mód
This mode only allows static measurement.
- Platformigény: A jármű kerekeinek számával megegyező számú platform szükséges.
- Channels: A maximum of 4 measuring channels can be handled.
- Number of platforms: When connected via cable, a maximum of 2 platforms per channel (without the center of gravity calculation function).
- Center of Gravity Calculation: Lehetővé teszi a jármű súlypontjának kiszámítását és nyomtatását 2, 3 vagy 4 platformos elrendezés esetén, koordináta vagy grafikus formában.
Tengelymérési Mód
A tengelysúlymérés végezhető statikus vagy dinamikus módban (max. 10 km/h, tanúsítottan 5 km/h -ig).
- Platformigény: Two platforms are required per axle, the sum of which determines the axle weight.
- Operation: Axle load measurement can be manual or automatic (in both static and dynamic systems).
Data Management and Memory
The GI620 offers extensive options for recording and managing measurement data:
- Internal Memory: Capable of storing up to 1000 measurement records.
- Custom Coding: Every measurement record can be associated with editable codes, which can contain customer or vehicle data.
- Time stamping: Integrated clock-calendar ensures accurate date and time setting.
Center of Gravity Calculation
Special function in wheel weighing mode:
- Capable of calculating and printing the center of gravity coordinates and graph for 2, 3, or 4 platform configurations.
- Displays the weight of individual platforms as well as the sum of active combinations during the measurement.
Connectivity and Integration
The GI620 provides flexible communication options for integration into existing systems:

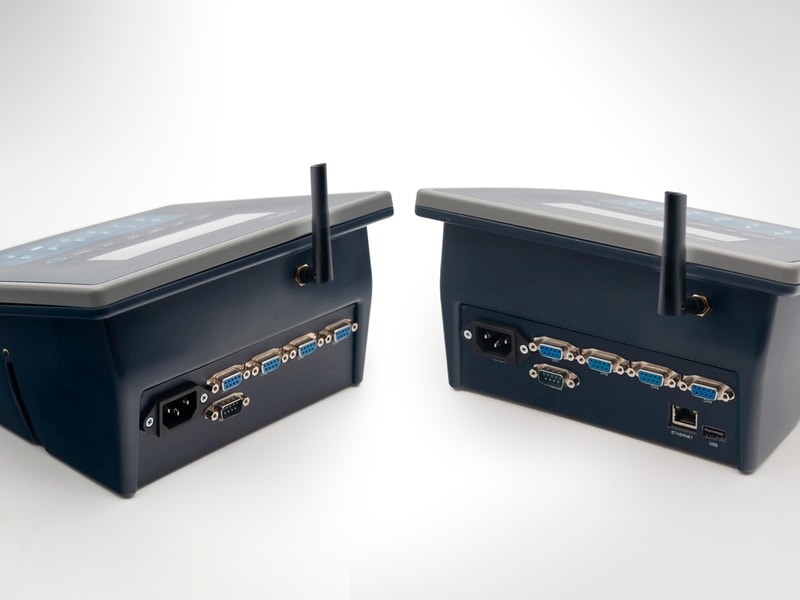

- Default: 4 RS232 input/output channels.
- Optional: USB and Ethernet ports for easy data upload and download, as well as network integration.
Software Support
An extensive software package is available for efficient management and analysis of measurements:
GesDynRoad Software
This software is ideal for traffic enforcement and ticketing systems, supporting static and dynamic measurements.
- Vehicle pre-selection, traffic statistics, and data management.
- Compatible with third-party hardware and software.
- Támogatja a súlypont kijelzést kerékmérési módban.
- Integrates all modules and manages access devices.
GI Manager Software
Configuration and display tool for GI620 indicators.
- Search and management of connected devices.
- Firmware download and creation of backups.
- Advanced configuration (metrological settings, communication, calibration).
- Bizonylat konfiguráció és újranyomás funkció.
- Real-time weight display.
- System requirements: Windows 8/10, 2GB RAM, 10GB storage.
Technical Specifications Summary
| Characteristic |
GI620 Compact-W |
| Display |
LCD, 6 digits, 27 mm high, 14 segments |
| Inputs |
4 measuring channels |
| Outputs |
1 x RS232 (standard), 1 x Ethernet + USB (optional) |
| Keyboard |
Alphanumeric (12 keys) and 7 function keys |
| Protection |
IP54 |
| Units of Measure |
kg |
| Ticket |
Fully configurable (via GiManager) |
| Certifications |
CE-M (OIML R-76 / OIML R-134) |
| Supported Firmwares |
Axle measurement / Wheel measurement (must be selected when ordering) |
| Languages |
Spanish, English, French, Italian, Portuguese, German |
| Tápellátás |
110-240V AC 50/60Hz |
| Battery (Optional) |
Rechargeable Lithium (7.4V-2.6Ah). Approx. 5 hours of operation with intensive use. |
| Dimensions (mm) |
237 x 201 x 124 |
| Weight (kg) |
4 |
| Operating Temperature |
Between -10ºC and +40ºC |
Funkció Összehasonlítás (Kerékmérés kontra Tengelymérés)
| Function |
Wheel measurement (*) |
Axle measurement (**) |
| Static or Dynamic Measurement |
Static Only |
Static or Dynamic |
| Tára minden platformon |
✔ |
✔ |
| Weight display per platform (for static axle weighing) |
✔ |
✖ |
| Display of axle weight |
✖ |
✔ |
| Total platform weight display (max. 4 channels for wheel weighing) |
✔ |
✖ |
| Display of total vehicle weight or vehicle+trailer weight |
✖ |
✔ |
| Date and time setting (calendar) |
✔ |
✔ |
| Weighing point calculation and printing (on 2, 3 or 4 platforms) |
✔ |
✖ |
| Coordinate or graphical display |
✔ |
✖ |
| Ticket print mode configuration (via GiManager) |
✔ |
✔ |
| Ticket reprint |
✔ |
✔ |
| List of measured vehicles |
✔ |
✔ |
| List of total weights |
✔ |
✔ |
* Valid only for static measurement.
** OIML R76 approval in static mode, with specific wheel and axle measuring platforms. OIML R134 approval in dynamic mode with the BPRG wheel measuring platform – speed max. 10 km/h, approved 5 km/h.
Available Models and Accessories
The GI620 Compact-W indicator is available in several configurations and can be expanded with several accessories to build the complete system:
GI620 COMPACT Models
- GI620 COMPACT vezeték nélküli ABS IP54 RS232 -vel: Basic configuration.
- GI620 COMPACT vezeték nélküli ABS IP54 RS232 -vel és Ethernet + USB -vel: With extended communication capabilities.
Optional Accessories
- ALIBI Memory: Data security solution.
- Extra Battery: To extend the operating time by 5 hours.
- GI400 R45 Weight Repeater: With 6-digit, 45 mm high display.
- P16 Weight Repeater: With high-density LED matrix display, with multiple functions (channel addition, truck weighing, axle weighing, remote control, signal light function).
- Printers:
- IMP 27 Matrix Printer (paper widths: 76, 69, 57 mm).
- IMP 28 Matrix Printer (paper width: 76.2 mm).
- IMP 29 Matrix Printer (paper widths: 57.5, 69.5, 76 mm).
- IMP27.4 Thermal Printer (paper width: 72 mm).
Firmware Selection
A megrendeléskor választható firmware -ek:
- Wheel Weighing Firmware (*)
- Axle Weighing Firmware (**)
Software Optional
- GImanager
- Gesdyn PRO
- Gesdyn WEB (web platform)
- Gesdyn CLOUD
Recommended Weighing Platforms (Related Products)
For precise weighing, the GI620 indicator can be perfectly paired with the manufacturer's portable platforms:
- PMS: 700 x 450 mm, anti-slip rubber base.
- PMR: 500 x 400 mm, anti-slip rubber base.
- PMT: 900 x 500 mm, anti-slip rubber base.
- BPRG: Low profile, portable wheel weighing platforms for static and/or dynamic weighing.
The GI620 Compact-W is a complete, flexible, and reliable solution for professional vehicle weighing tasks.
