A Consul 2.35 MKK típusú, kéthengeres, beépített emelőrendszer ideális megoldást nyújt személygépkocsik és a legtöbb kistehergépjármű (például VW T5) emeléséhez műhelyi környezetben. A 3500 kg teherbírású rendszer kiválóan alkalmas karosszéria munkákhoz és autópadok használatához, köszönhetően a stratégiailag kialakított munkahenger-távolságnak.
This model belongs to the Consul Twin Ram Inground Lifts category and is characterized by a reliable, durable design. Important note: Az emelő telepítéséhez kötelezően kombinálni kell a megfelelő alváz elemmel.
The Consul 2.35 MKK lift contains several design elements that guarantee safe and efficient operation:
Integrated Installation Cassette: The structure has an installation cassette equipped with a galvanized profile steel frame, which ensures a long service life and corrosion resistance.
Chrome-Plated Guide Cylinders: The hydraulic cylinders are fitted with hard-chrome-plated pistons, resulting in smooth running and minimal wear.
Electro-Hydraulic Drive: The drive unit is located externally to the lifting unit, which facilitates maintenance.
Mechanical Synchronization: Mechanical synchronization is achieved with the help of a yoke, which also functions as a safety device.
Hydraulic Synchronization During Lowering: A biztonságos és egyenletes ereszkedést állítható visszacsapó szelepek biztosítják.
Electronic Control: The system features electronic control and a built-in safety valve.
Excellent Protection: The unit belongs to protection class IP54, has GS certification, and complies with DIN EN 1493 and CE standards.
Utility Connection: Connection stub DN 100 to a KG pipe for cassette ventilation and the creation of the hydraulic line network.
Cassette Cover: The cassette cover is entirely galvanized.
The table below details the critical technical parameters of the Consul 2.35 MKK lift:
| Parameter | Value | Note |
|---|---|---|
| Item Number (SKU) | 567271 | |
| Manufacturer Number (HAN) | 9657 | |
| Category | Twin-Cylinder Inground Lifts | |
| Rated load capacity | 3,500 kg | For passenger cars and light commercial vehicles (e.g., T5) |
| Lifting height | ca. 1.990 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.3 kW | |
| Electrical Supply Voltage | 400 / 50 V / Hz | |
| Fuse Protection | 16 A slow-blow fuse | |
| Oil quantity | approx. 10 liters | |
| Distance between columns | 2,500 mm | Distance of the synchronizing element |
| Plunger diameter | 130 mm | |
| Operating pressure | 150 bar |
To maximize flexibility and meet specific requirements, the system can be extended with the following accessories (these must be ordered separately):
Consul Installation Cassette ex ante 2,500 mm: This cassette is ideal for versions with a 2,500 mm cylinder distance.
Consul Hydraulic Oil in a 5-liter container: HLP 22 quality hydraulic oil, suitable for all hydraulically driven Consul lifts. The required quantity depends on the type of lift.

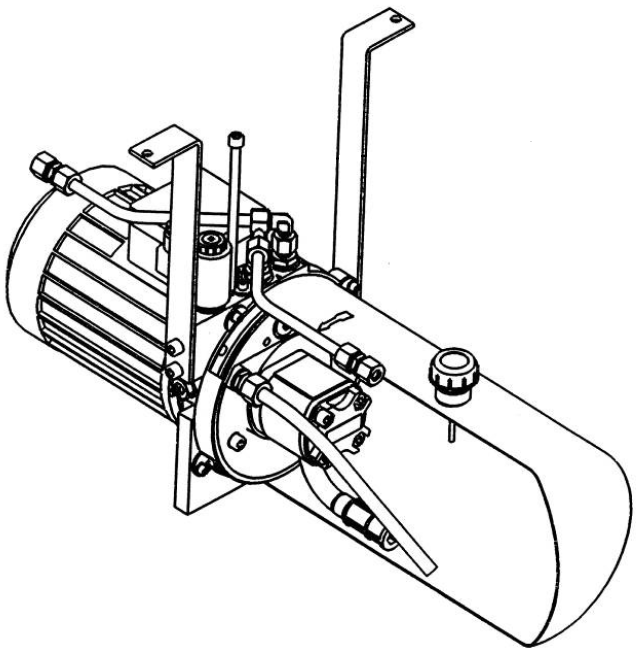

Surcharge: Drive unit inside the cassette: It is possible to place the hydraulic power unit inside the installation cassette, which provides a space-saving solution, often combined with a wall-mounted control.

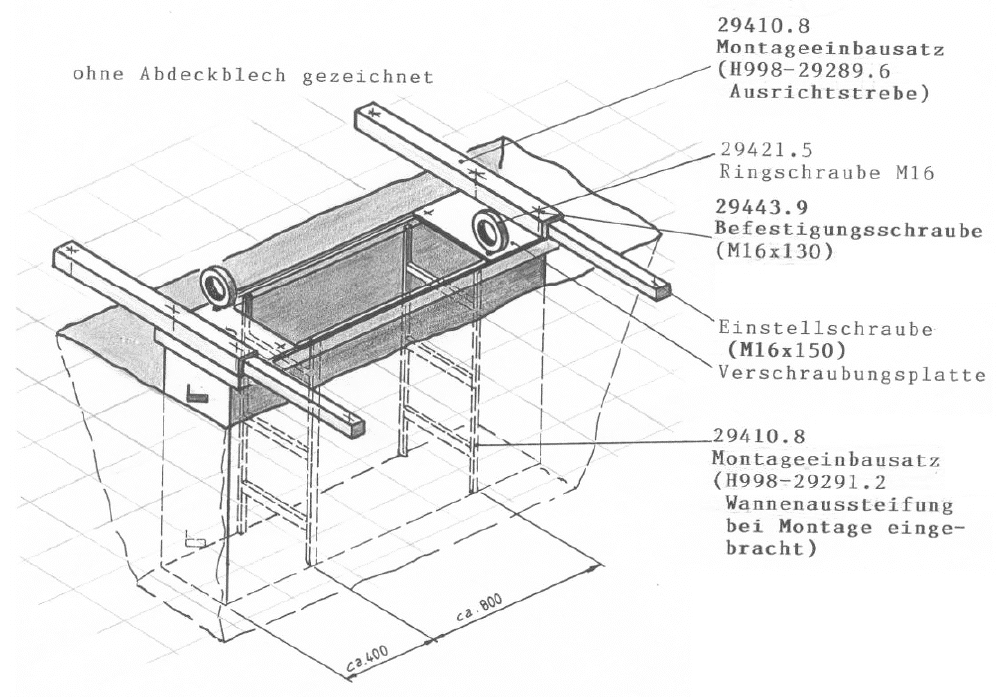

Consul Beépítő készlet: Contains the necessary accessory elements for installation.
Consul Control Unit according to OEM industrial standard: Special control unit that can be ordered according to OEM (manufacturer's) specifications (the OEM designation is required at the time of order).
Consul In-ground lifting unit for externally manufactured cassettes: If non-Consul manufactured installation cassettes are used (with a cylinder distance of 2,300 mm or 2,500 mm), this lifting unit ensures compatibility.
The Consul 2.35 MKK is a robust, precise, and safe lifting device that significantly increases the efficiency and workplace safety standards of workshops.
