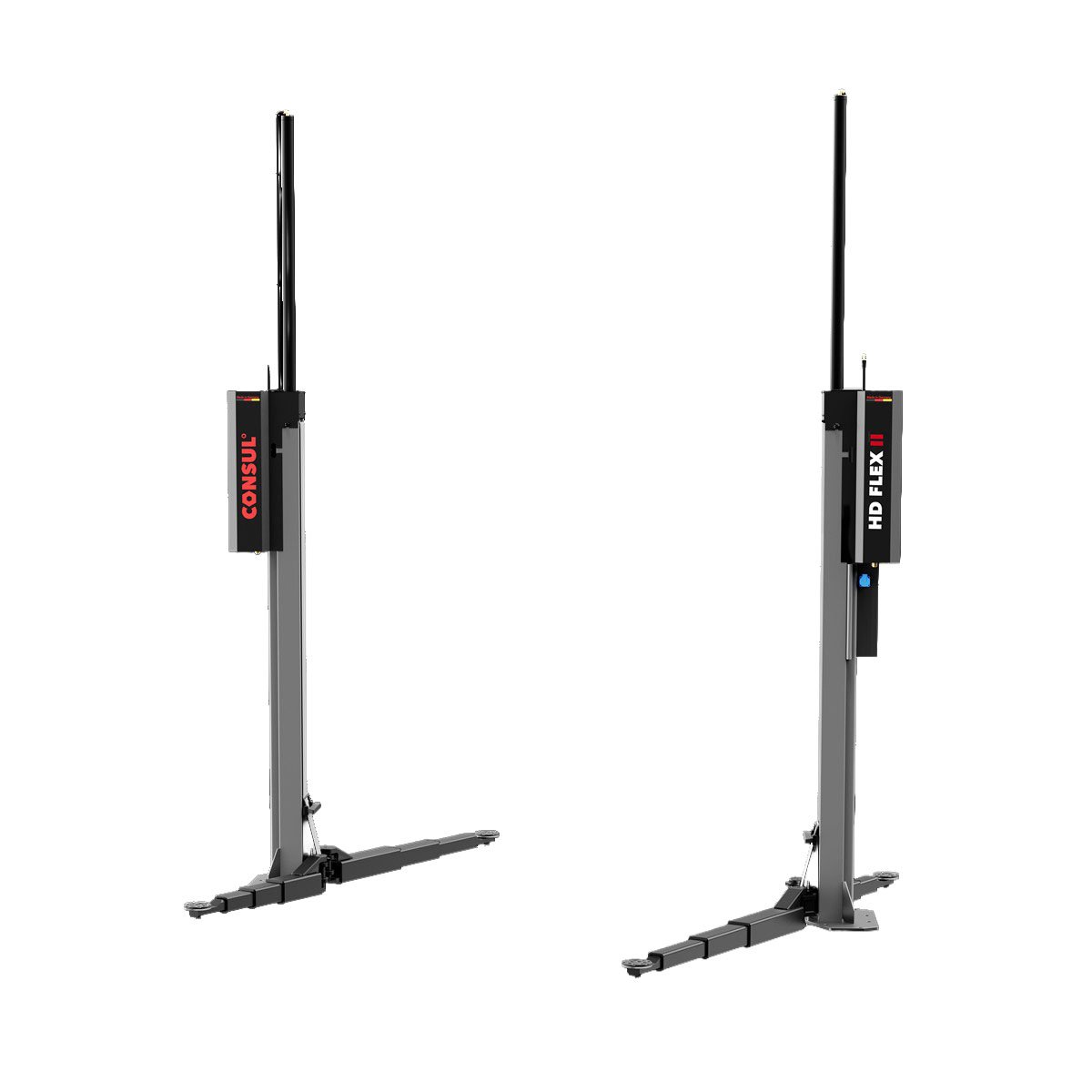

A Consul HD FLEX® Z240 Comfort kétoszlopos emelő a modern műhelyek számára ideális megoldás, amely ötvözi a nagy teherbírást, a helytakarékos kialakítást és a fejlett biztonsági funkciókat. A speciálisan eltolt oszlopok kialakítása lehetővé teszi a járművek ajtóinak problémamentes nyitását, még a hosszú ajtóval rendelkező modellek vagy a szűk helyen parkoló járművek esetében is. Ez az emelő rugalmasan kezeli a mikro gépjárművektől kezdve a hosszú ajtós autókon át egészen az SUV-kig és kistehergépjárművekig terjedő széles járműpalettát, 4000 kg-os maximális teherbírással.
The space-saving installation is ensured by the closely spaced, offset columns, which optimize the utilization of workshop space. As a member of the Z-Line Comfort series, this model focuses on user comfort and long-term reliability.
The HD FLEX® Z240 Comfort lift has several features that increase efficiency and safety during daily use:
Hydraulic System: No need for hydraulic hoses or steel cables, as the drive is provided by a high-pressure hydraulic system with two high-pressure cylinders. This minimizes maintenance requirements and potential failure points.
Column design: Special columns with a 30° offset and roller profile ensure stability and smooth travel.
Lifting arms: The sliding mechanism of the lift arms is extremely flexible:
Short arm extension range: approx. 534 – 977 mm (3-stage version).
Long arm extension range: approx. 752 – 1,516 mm (3-stage version).
Maintenance-Free Bearings: The lift carriage is equipped with 6 maintenance-free roller bearings, guaranteeing a long service life and minimal service requirements.
Control and Safety:
Softline pushbutton control: Intuitive and easy to operate.
Digital microprocessor control: Provides a high level of operational safety.
Automatic arm locking: With manually releasable function.
Lockable main switch: Complies with CE directives.
Acoustic foot protection: Prevents accidental injuries when lowering the vehicle.
Convenience Features:
Quick connectors for air supply on both sides.
Padded door bumper.
Full cladding of the inner parts of the column for a clean appearance and protection.
Low Entry Height: Under optimal floor conditions, the lowest entry heights can be achieved (with optional accessories).
The precise technical parameters of the Consul HD FLEX® Z240 Comfort lift ensure a professional working environment:
| Characteristic | Value | Note |
|---|---|---|
| Rated load capacity | 4.000 kg | Ideal for SUVs and light commercial vehicles |
| Lifting height | approx. 1,960 mm* | *Only available with optional accessories |
| Lifting/Lowering Time | approx. 25 seconds | Fast and efficient workflow |
| Lowest Free Height | approx. 85 mm** | **Under optimal floor conditions |
| Short arm reach | approx. 534 – 977 mm | 3-piece |
| Long arm reach | approx. 752 – 1,516 mm | 3-piece |
| Set-up width | approx. 3.400 mm | Space-saving design |
| Installation Height | approx. 4,050 mm | |
| Distance between columns | ca. 2.608 mm | |
| Drive-through width | approx. 2,277 mm | |
| Tápellátás | 400 V | 50 Hz |
| Drive Power | 2 x 2.2 kW | Powerful hydraulic drive |
| Fuse Protection | 20 A slow-blow | |
| Protection class | IP54 | Dust and splash-proof |
| Specifications | GS-approved, DIN EN 1493, CE-approved | Complies with European standards |
| SKU | 756809 | |
| HAN | 500505 | |
| Category | 2-Column Lifts |
The Consul Z Line Comfort series lifts are designed for durability and precision work. The hydraulic system and mechanical components are made of high-quality materials, ensuring the lift's long-term, problem-free operation. The columns, rotated by 30°, are not only aesthetic but also facilitate better access to the underside of vehicles.
For maximum flexibility, numerous accessories are available to further extend the lifting capabilities:
Second Control Unit: Külön tételként rendelhető második kezelőegység a „slave” oszlophoz, Softline nyomógombos vezérléssel és levegőcsatlakozással. Ez különösen hasznos lehet nagy műhelyekben, ahol a kezelő pozícióját optimalizálni kell.
Drive-on Ramps: Ramps available in a set (4 pcs) for easier vehicle positioning.
Lifting Supports with Turntables: Set of 4 supports with Ø 100 mm diameter (instead of the standard Ø 130 mm), ideal for special tasks.
Fixing Materials: Fixing set for Consul 3,500 kg capacity 2-post lifts, containing 12 M12 anchor bolts, threaded sleeves, and base plates.
Comfort Packages: Különböző csomagok, mint például a „Comfort Package ONE”, amely magában foglalhatja a 2. vezérlőegységet és ütve fúró tartót.
Diagnostic Software: Consul ConSoft diagnostic software for maintenance and diagnostics of 2-post lifts.
Limit Switches: Light grid-controlled or manually operated ceiling limit switches for maximum safety.
The Consul HD FLEX® Z240 Comfort lift is a robust, safe, and extremely flexible device that significantly increases the performance of any professional vehicle repair workshop.
