The Consul Premium EL® 2.50 LV two-post lift offers the highest level of reliability and robustness for forklift lifting tasks. This model is specifically designed for high load capacity, with a 5000 kg capacity making it an ideal choice for workshops where the safe and efficient lifting of heavy forklifts is essential. Consul's engineering precision and the use of quality materials guarantee a long service life and continuous, trouble-free operation.
This premium category lift incorporates several design elements that increase safety, usability, and ease of maintenance:
Superior Quality Mast Design: Specially rolled profile masts ensure exceptional structural rigidity and stability, even under maximum load.
Precise Carriage Guidance: The load-bearing carriages run on the track with 6 rollers, resulting in smooth movement with minimal friction.
Safety System: Bronze load-bearing and safety nuts guarantee mechanical locking. The built-in, collapsed load nut features a mechanical locking function that provides extra protection in case of power failure.
Acoustic Foot Protection: During operation, an acoustic signal warns of hazards, increasing personal safety.
Easy Maintenance: The oil dosing system ensures support lubrication, minimizing wear and extending the service life.
Intuitive Operation: The Softline push-button control protects against incorrect operation, enabling simple and safe operation.
Electronic Synchronization: Electronic synchronization between the lift masts ensures perfect parallelism during lifting and lowering.
Independent Main Switch: It is equipped with a separate main switch in accordance with CE directives, which can be locked if necessary.
Flexible Lifting Arms: Special, 3-piece, doubly extendable telescopic arms allow for optimal positioning for various sizes of forklifts.
Drive: Powered by two V-belt motors, equipped with thermal protection and an electric brake for maximum reliability.
Cable Length: The cables are sized for a maximum height of 4000 mm.
Optimal Floor Height: The lowest entry heights are achievable with optimal floor conditions.
The detailed technical parameters of the Consul Premium EL® 2.50 LV lift are as follows:
| Parameter | Value | Note |
|---|---|---|
| Rated load capacity | 5.000 kg | Ideal for heavy forklifts |
| Lifting height | approx. 1.750 mm | Optimal working height |
| Lifting/Lowering Time | approx. 45 seconds | Fast and efficient cycle time |
| Lower Clearance (above floor) | approx. 30 mm | Minimum Entry Height |
| Arm Extension Range | approx. 950 – 1,350 mm | 3-piece, telescopic arms |
| Set-up width | Custom | Configurable according to the installation environment |
| Installation Height | ca. 2.900 mm | Total height of the structure |
| Distance between columns | Custom | Configurable according to the installation environment |
| Drive-through width | Custom | Configurable according to the installation environment |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 2 x 5.0 kW | Powerful motors |
| Fuse Protection | 25 A slow-blow | Adequate circuit protection |
| Protection class | IP 54 | Dust and splash-proof |
| Approvals | GS-approved, DIN EN 1493, CE-approved | Compliant quality |
To increase the lifting capacity and flexibility, numerous accessory options are available:

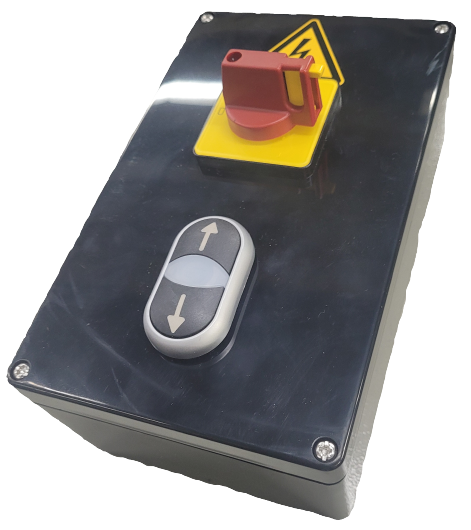

Consul 2 control box with factory installation (Surcharge)
It is possible to have a second control box factory installed, which increases workshop flexibility.
Consul 2 control box from 5.5 t (Optional)
Separate second control box mountable on the service column, with Softline push-button control and air connection. The type of lift must be specified when ordering.

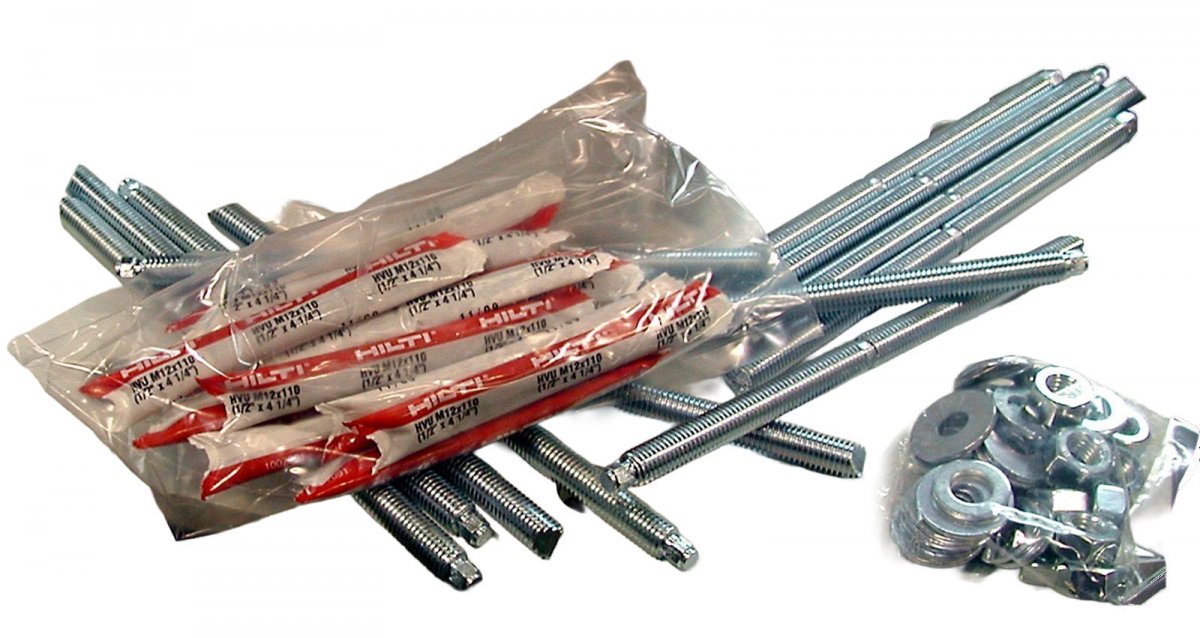

Consul Anchor Material up to 7,000 kg (Optional)
Anchor set suitable for all 7,000 kg capacity Consul two-post lifts. Contents: 12 pcs M16 anchor bolts, threaded rods, and washers. (Note: For 2.65 EL types, 2 sets must be ordered.)
Consul Base Plate Reinforcement Plates from 5.5 t (Optional)
Set of 2 for all 5,500 kg capacity Consul two-post lifts. Concrete thickness: 150 – 210 mm.
Consul Self-Supporting Base Frame, Symmetric (Optional)
Self-supporting base frame with symmetric design. Concrete thickness: 100-150 mm.
Consul Cable Bridge (Optional)
Cable bridge for all two-post and car trailer lifts (3 pieces to be ordered for trailer lifts).
Consul Cable Bridge Accessory (Optional)
Accessory elements for expanding the cable bridge.
Consul ConSoft Diagnostic Software (Optional)
Maintenance and diagnostic software for two-post lifts, which aids in troubleshooting and system optimization.
Consul Limit Switch with Light Grid (Optional)
Overhead limit switch with light grid integration for safe regulation of the maximum lifting height.
Consul Manual Limit Switch (Optional)
Manually operated ceiling limit switch.
Product identifiers:
SKU: 731695
HAN: 85569
Category: Logistics Vehicles
This Consul Premium EL® 2.50 LV forklift lift is the perfect combination of reliability, high load capacity, and advanced safety features, significantly increasing the efficiency of your service operations.
