Ez a részletes leírás a Consul 2-hengeres, beépíthető emelőhöz tartozó elfordítható karos alváz specifikációit és jellemzőit mutatja be, amelyet kifejezetten személygépjárművek és kistehergépjárművek (pl. T5 hosszú) emelésére terveztek, 3500 kg maximális teherbírással. Ez az alváz a 2.35 MKK típusú rendszerekhez ideális.
This high-quality, inground lift system provides the highest level of safety and flexibility during workshop operations. Consul's engineering precision guarantees a long service life and reliable operation.
This swivel arm chassis is excellently suited for serving modern vehicle fleets, especially for models with wider wheelbases and longer lengths.
Flexible Arms: The three-part, double-extension swivel arms provide exceptional flexibility for optimal positioning for various vehicle dimensions.
Fine Adjustment: A karok beállítása menetes orsóval történik, amely körülbelül 25 mm-es lökettel teszi lehetővé a precíz magasságkorrekciót a jármű alvázának pontos megtámasztásához.
Ideal Compatibility: Design optimized specifically for the 2.35 MKK system (likely a specific installation dimension or standard).
Compact Design: Mivel beépíthető rendszer, a padló síkjában marad, amikor nincs használatban, maximalizálva ezzel a műhely helykihasználását és a munkaterület biztonságát.
The table below summarizes the critical technical parameters of the product, which are essential for professional installation and operation.
| Characteristic | Value | Note |
|---|---|---|
| Nominal Load Capacity | 3 | For passenger cars and light commercial vehicles. |
| Lifting Height | ca. 2055 mm | Maximum lifting height measured from floor level. |
| Alvázmagasság | approx. 85 – 115 mm | The minimum distance between the floor and the lift structure in the rest position. |
| Long Arm Extension Range | approx. 640 – 1340 mm | The full extension range of the arms, which can be adjusted to the vehicle's wheelbase. |
| Distance between columns | 2300 mm | The distance between the centers of the two lifting cylinders. |
| Weight (approx.) | 450 kg | The approximate weight of the structural elements of the chassis. |
| SKU | 433441 | The product identifier for inventory management. |
| HAN | 9760 | Manufacturer's part number. |
| Category | Kéthengeres Beépíthető Emelők |
For maximum efficiency and adaptation to special vehicles, Consul offers a range of accessories compatible with this tilting arm lift (up to 3.5 tons capacity):

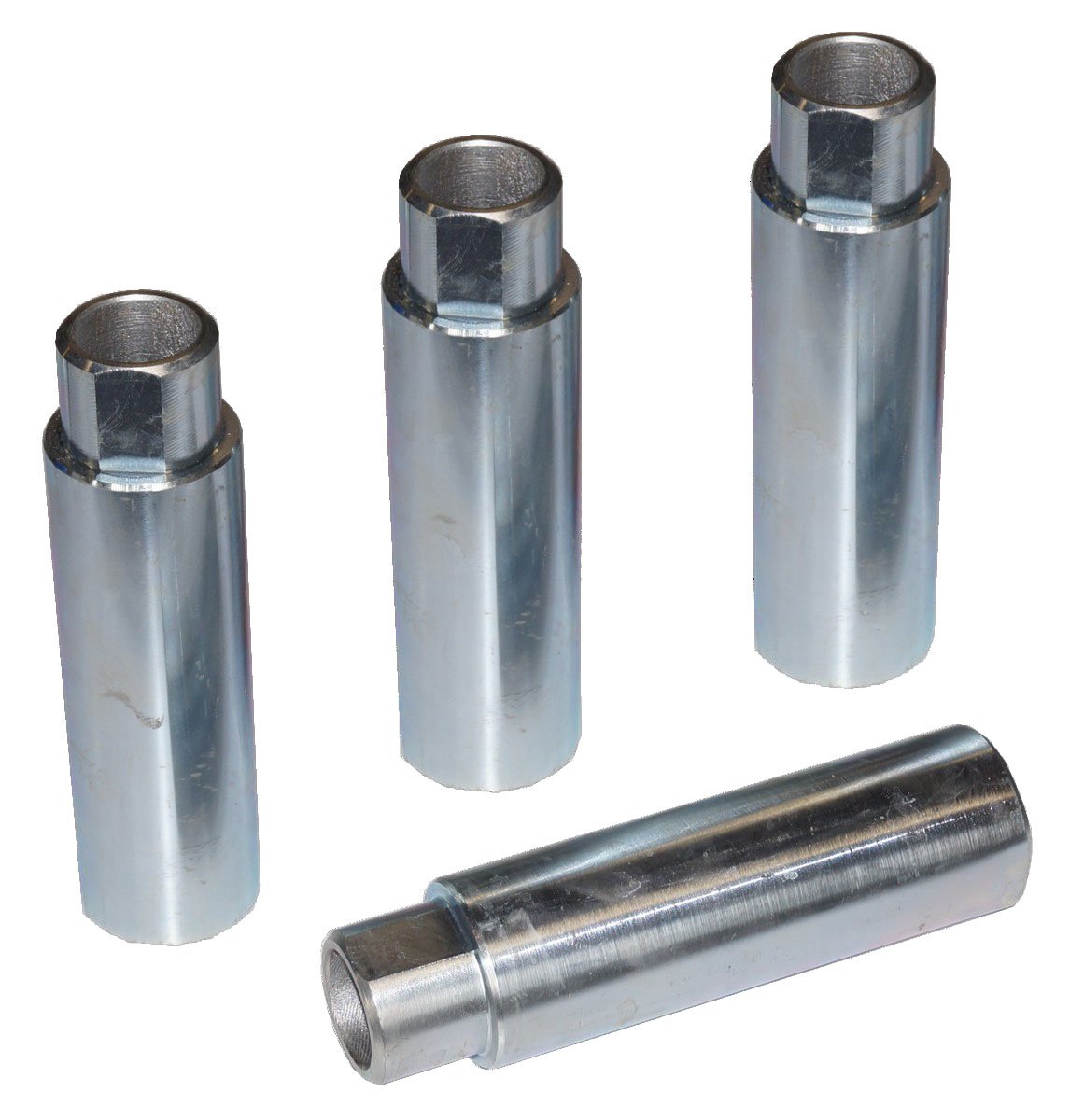

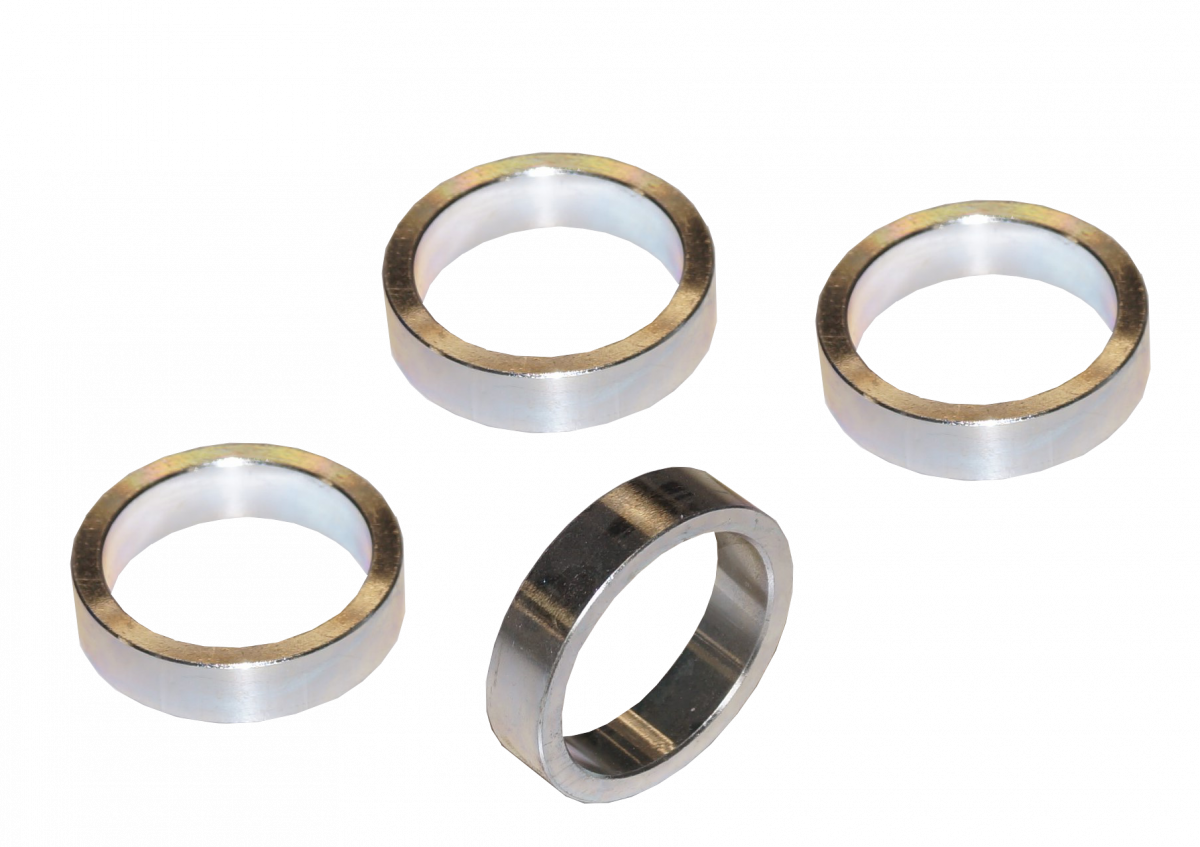

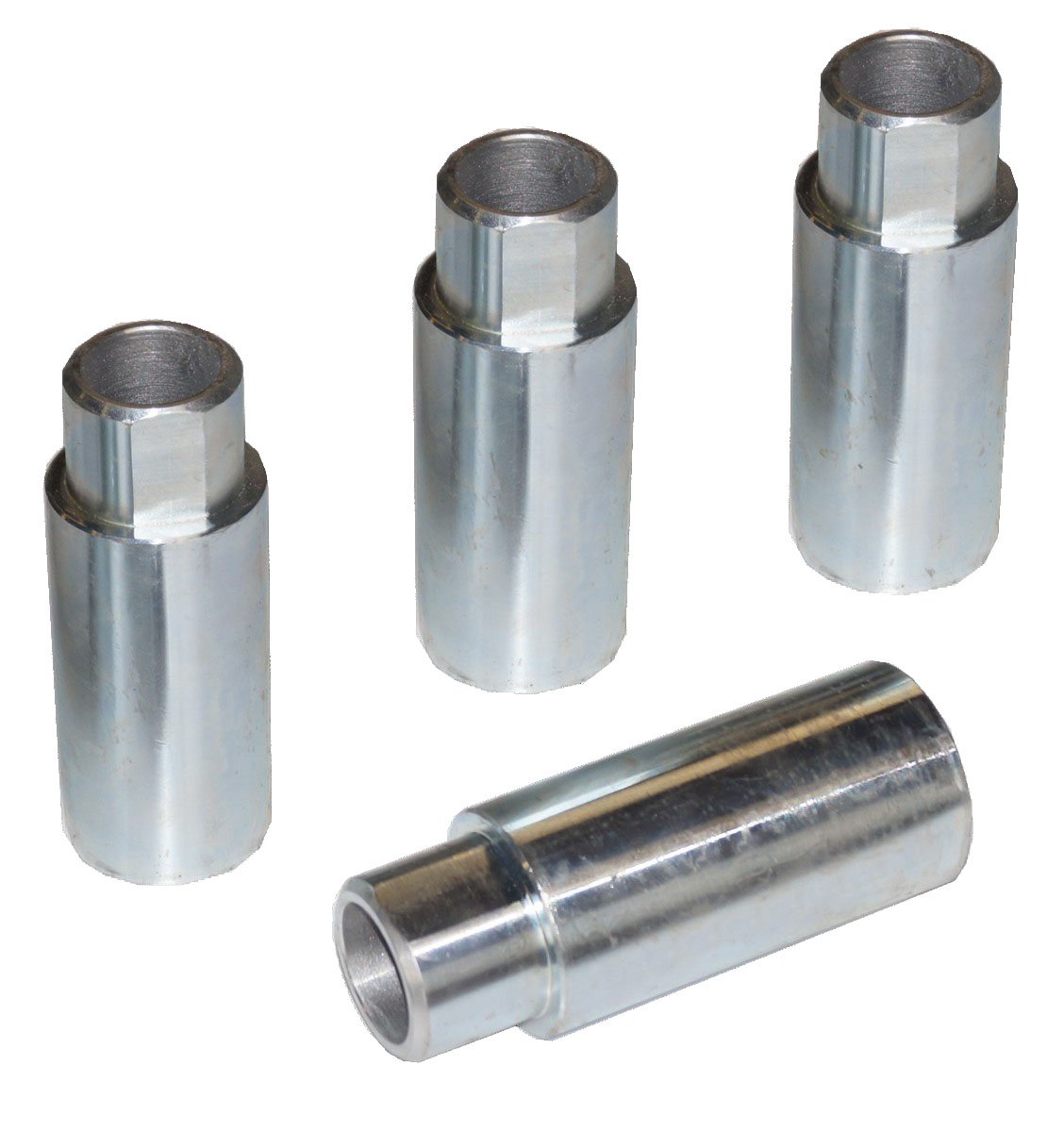

In cases of uneven chassis levels of different vehicles or specific lifting points, the use of spacers is essential for safe and stable support. These accessories include 4 pieces in 1 set.
Consul Spacer 100 mm: Ideal for larger corrections.
Consul Spacer 12 mm: For fine-tuning.
Consul Spacer 150 mm: For higher lifting points.
Consul Spacer 200 mm: For maximum height correction.
Consul Spacer 35 mm: For medium correction needs.
Consul Spacer 50 mm: For general use.
This Consul 2-cylinder tilting arm lift offers the perfect combination of reliability, precise adjustment capability, and high load capacity for modern automotive workshops.
