PMS Wheel Weighing Platforms – Portability and Precision
The PMS series wheel weighing platforms offer an excellent solution for the fast, accurate, and flexible weighing of vehicle axle and axle group weights. These portable measuring units combine robust design with modern technological requirements, ideal for both transport and industrial applications.
Key Features and Advantages
During the design of the PMS platforms, functionality and durability were the central focus, ensuring user-friendly operation and long service life.

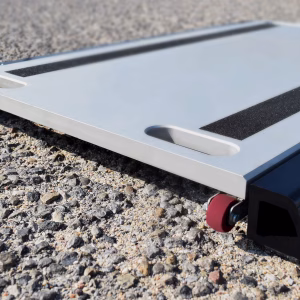

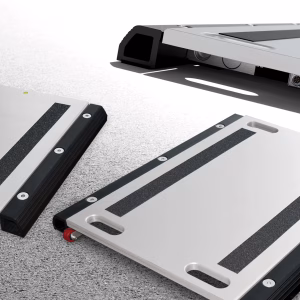

- Portability and Easy Handling: Thanks to the aluminum structure, the platforms are extremely light, weighing approximately 26 kg. With the help of the built-in four handles and two wheels, installation and transport between locations is child's play.
- Excellent Grip and Stability: The anti-slip rubber coating on the underside of the feet guarantees the stable fixing of the platforms on any surface, minimizing measurement errors.
- Durability and Protection: The platforms have an anodized silver finish, and with an IP68 protection rating they provide full protection against dust and water ingress, ensuring reliable operation even in extreme conditions.

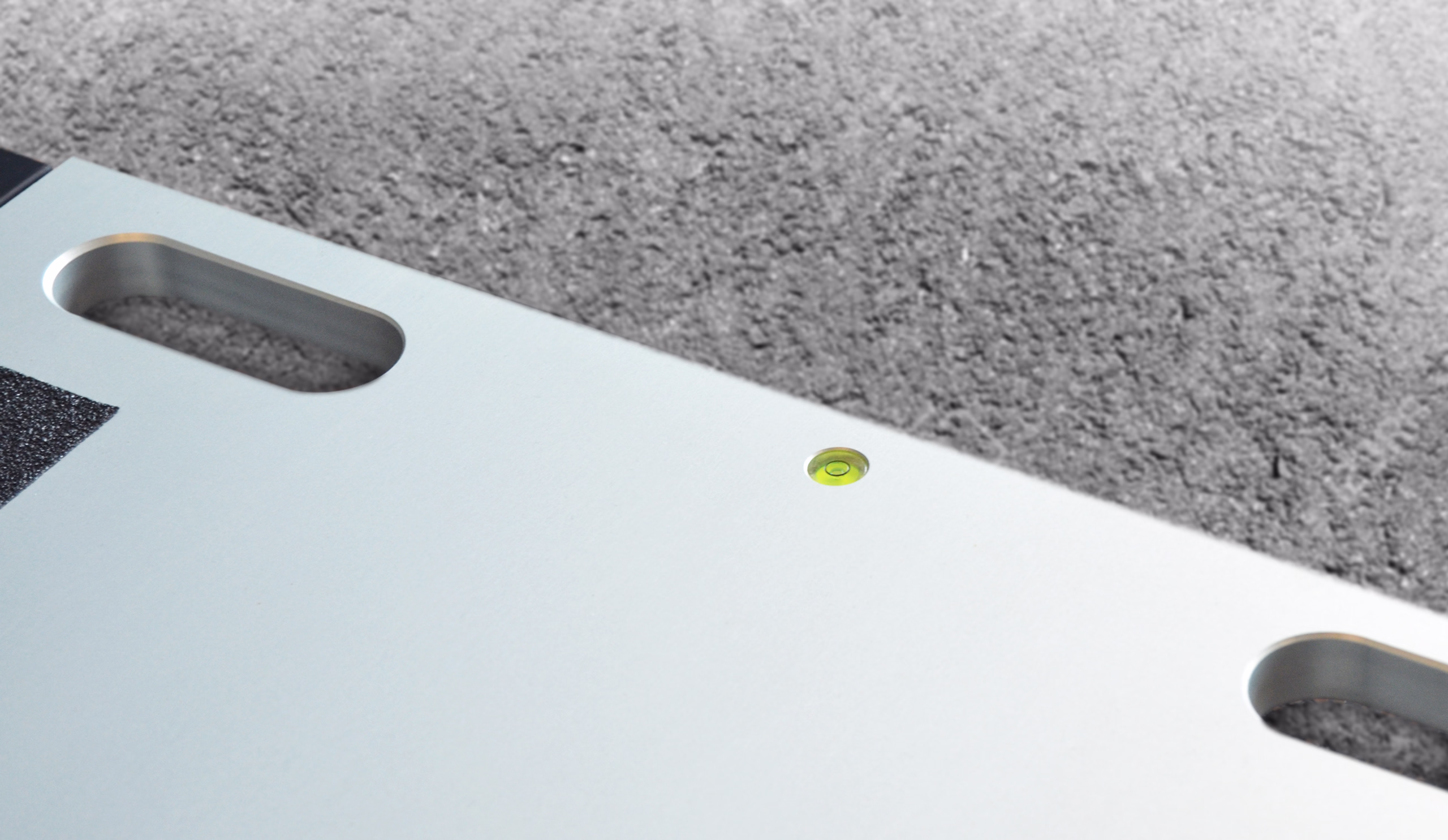

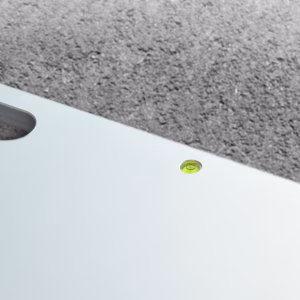

- Configuration: Elegant design that visually reflects high performance. The built-in spirit level aids quick and precise setup.

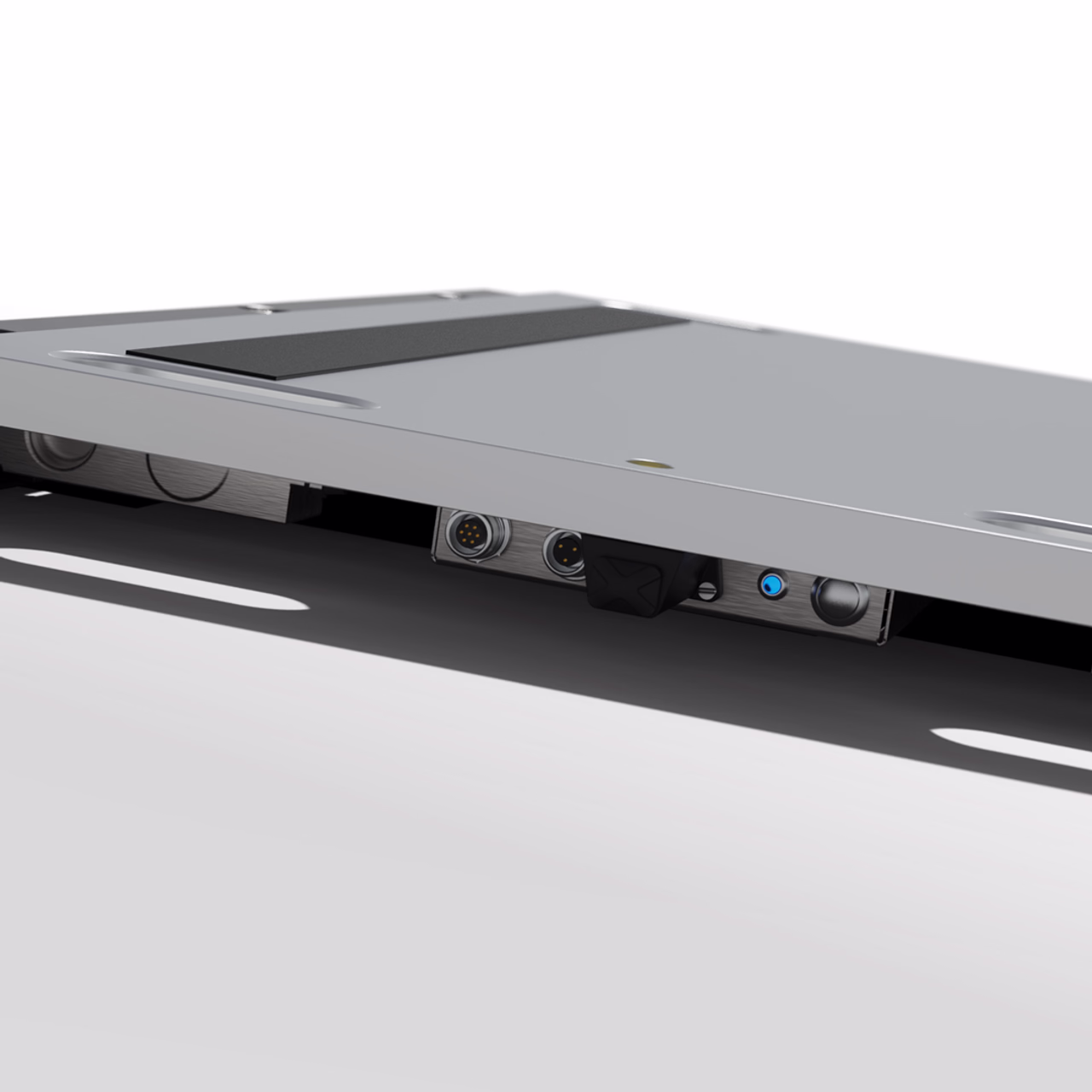

- Wired and Wireless Versions: A PMS platformok elérhetők vezetékes és vezeték nélküli kapcsolattal rendelkező változatokban is, rugalmasan alkalmazkodva a telepítési környezethez.
Technical Specifications
The PMS series is available in various capacities and sizes to meet different weighing requirements.
| Dimensions (mm) |
Capacity (kg) |
Resolution (kg) |
Approval |
| 700 x 450 |
6000 |
1 |
Yes |
| 700 x 450 |
10000 |
2 |
Yes |
| 700 x 450 |
15000 |
2 |
Yes |
| 700 x 450 |
6000 |
2 |
M |
| 700 x 450 |
10000 |
5 |
M |
| 700 x 450 |
12000 |
5 |
M |
Megjegyzés: A „M” jelölés a kereskedelmi (nem hivatalos) mérésekre vonatkozó felbontást jelzi, míg az „Igen” a hitelesített mérésekre vonatkozó specifikációkat tükrözi.
Main Functionalities and Software Integration
The PMS platforms offer a complete solution for weighing, complemented by optional software and displays.
Operating Modes
- Static Measurement: The platforms are suitable for weighing stationary vehicles.
- Dynamic Measurement: A megfelelő szoftverekkel (pl.: GIMANAGER) lehetőség van mozgó járművek tengelysúlyának mérésére is.
Software Compatibility
Several software options are available for processing and managing measurements:
- GESDYN: PC-based software, specifically optimized for managing the measurement of moving vehicles.
- GESTRUCK: Software for managing static weighing systems.
- GIMANAGER: Solution for managing the weighing of mobile vehicles.
Displays and Accessories
A suitable display unit is essential for measurement, which is also available in wired (GI620) and wireless (GI620-W) versions. The GI620-W display is especially recommended for dynamic measurements.
Testre szabhatóság és Kiegészítők
The PMS family offers a wide range of accessories that allow for the complete customization of the system to meet unique user requirements.
| Add-on |
Description |
Advantage |
| Beépítő Keretek |
A frame set consisting of two parts that allows PM series platforms to be sunken to ground level. |
Facilitates the driving up of vehicles onto the measuring surface. |
| Védőburkolatok |
A two-piece set for protecting the embedded platforms when they are not in use. |
Protects the platform from external damage and contamination. |

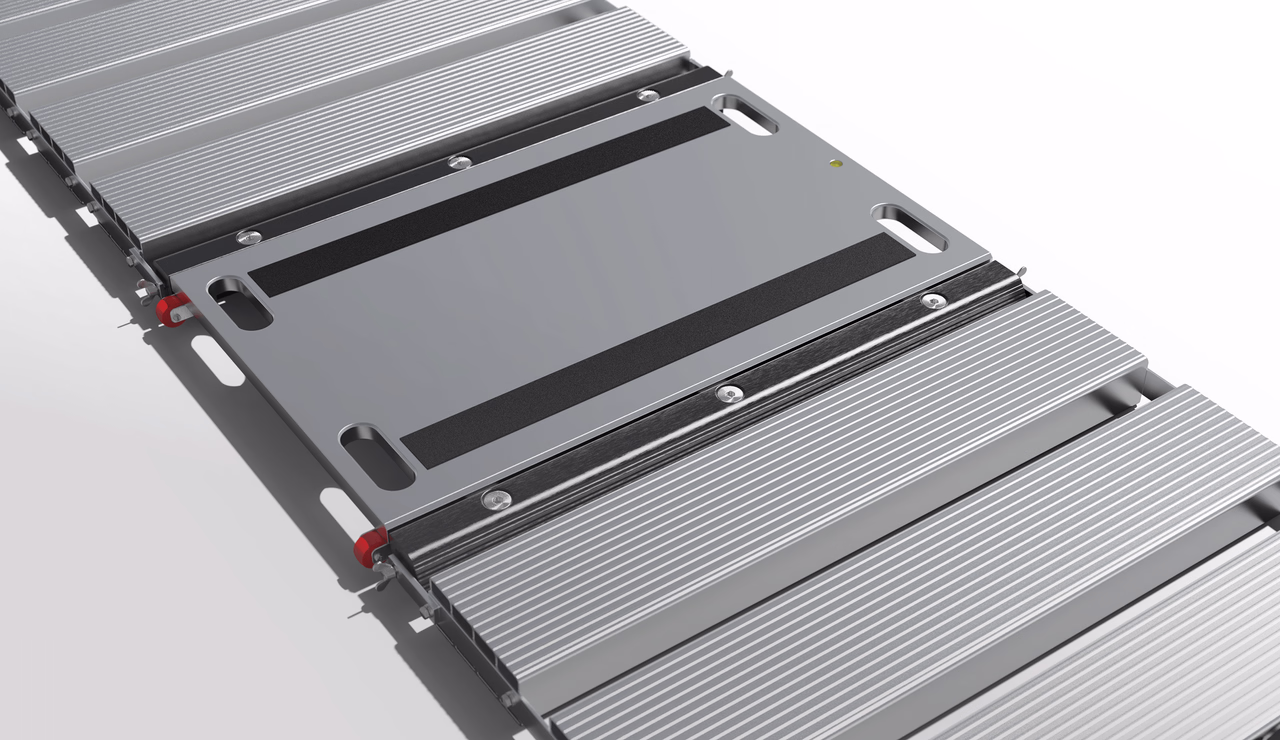

| Fém Szőnyegek |
Additional metal ramps that ensure better grip and stability during the drive-up. |
Increases the safety and lifespan of the platforms. |

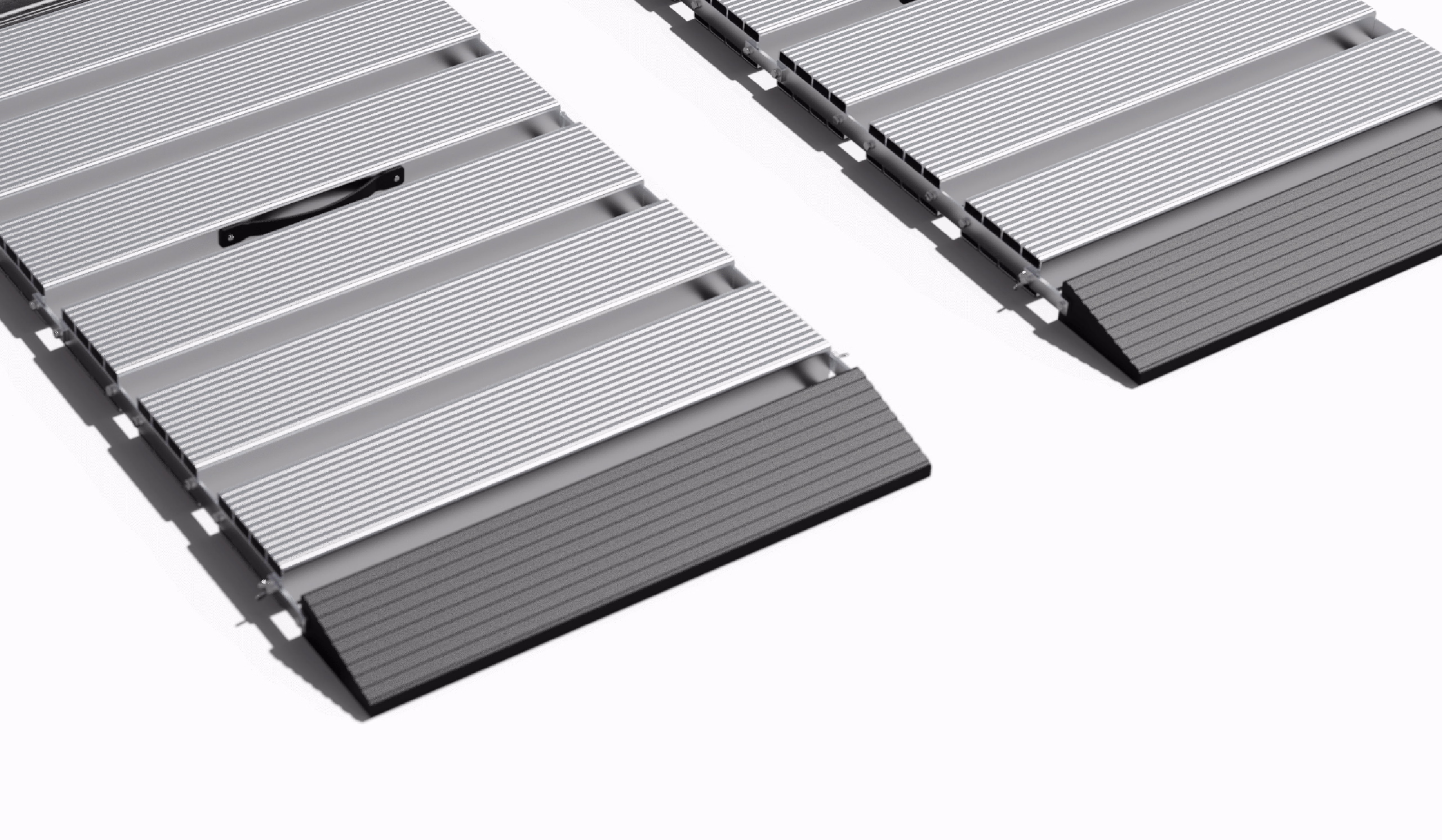

| Rámpák és Szőnyegek |
Different types of ramps and mats are available to meet various surface requirements. |
Maximum flexibility in the installation environment. |
Certification
The PMS platforms can optionally be
hitelesíthetők jogi mérésre. This feature can be essential for applications where the measurement result has legal or commercial consequences. Certification requires the use of leveling modules or professional installation of the platforms.
The Uniqueness of PMS Platforms
A gyártó filozófiája a folyamatos fejlesztésen és az ügyfélspecifikus megoldásokon alapul. A PMS platformok nem csupán standard mérőeszközök; a rendelkezésre álló kiegészítők és szoftverek révén képesek a legösszetettebb mérési feladatok sikeres megoldására, konkrét, testre szabott intézkedéseket biztosítva az ügyfelek számára.
A hordozhatóság, az IP68 védettség és a jogi mérésre való alkalmasság együttesen teszi a PMS sorozatot piacvezetővé a mobil tengelysúlymérési megoldások között.
