XPress 1000 SC | full set

XPress 1000 SC full set (700002SC). Wielander + Schill XSeries technology, for high-performance riveting, body repair.

Description

Additional information

XPress 1000 SC | Full Set (Full Set)

Part number: 700002SC

The XPress 1000 SC full set is an outstanding element of Wielander + Schill's professional riveting technology, specifically designed for riveting tasks on high-strength structural components. This complex package enables the removal and installation of self-piercing rivets (Self Piercing Rivets – SPR) removal and installation, as well as the blind rivets and blind rivet nuts professional installation.

This full set is an ideal choice for repair and maintenance jobs where maximum force, versatility, and precise control are required during the handling of modern vehicle body components.

Product Description and Key Features

The XPress 1000 SC system combines high-performance hydraulic technology with a user-friendly design. The set includes the drive unit, the short-stroke cylinder, various adapters, and the necessary accessories for operation, all supplied in a robust toolbox.

Main application areas:

SPR removal and installation: Effectively handles the latest generation of high-strength self-piercing rivets.
Installation of blind rivets: Different types of blind rivets can be installed quickly and safely using the included adapters.
Blind rivet nut installation: A special adapter ensures the securing of the thread-forming/rivet nut.

The system design guarantees high force transmission of 96 kN, while noise and vibration levels remain low, ensuring operator comfort and compliance with environmental regulations.

Technical Data

The table below details the technical parameters of the XPress 1000 SC full set (700002SC), reflecting the system's reliability and performance:

Parameter	Value	Note
Part number	700002SC	Full Set
Maximum pressure (PB max)	1000 bar	Maximum operating pressure of the hydraulic system
Force	96 kN	Maximum press/riveting force
Operating pressure	8 bar	Pneumatic operating pressure
Stroke	25 mm	Maximum stroke length of the hydraulic cylinder
Maximum oil volume	120 cm³	Oil quantity consumed by the system
Oil type	HLP 22 – HLP 36	Recommended hydraulic oil specification
Work window (Work window)	max. 140 x 240 mm	Maximum size achievable by the C-arms
Operating temperature	5 – 50 °C	Optimal Operating Range
Noise level (Sound pressure level)	70 dB(A)	Low noise emission
Vibration	< 2.5 m/s²	Minimal vibration for the user
Air quality	ISO 8573-1	Quality standard for the pneumatic system air
Materials	Alu, Aluminum, Plastic, Steel (Kunststoff, Steel)	Materials of the main components

Scope of Delivery

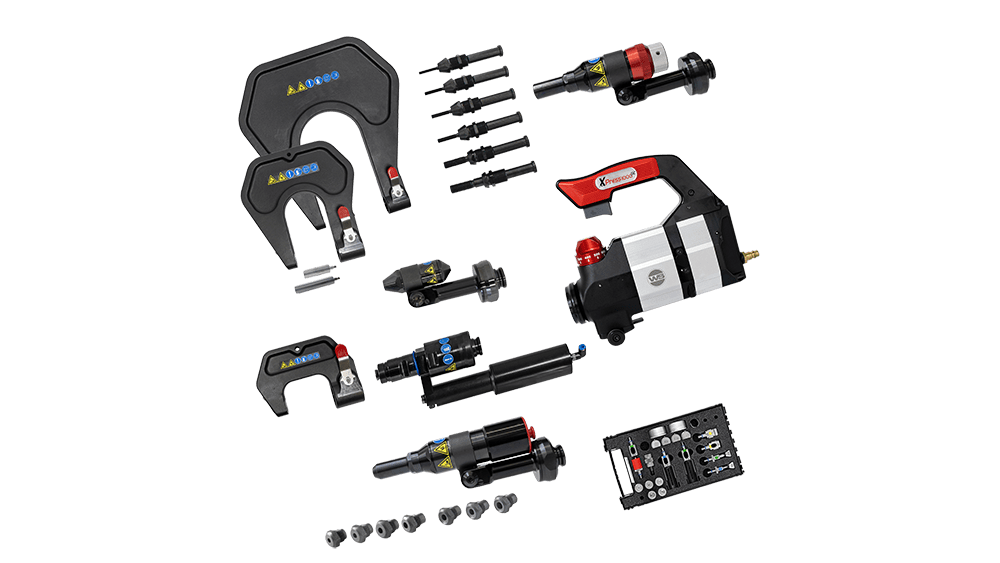

The XPress 1000 SC complete set (700002SC) offers a comprehensive solution, containing all necessary tools for versatile riveting tasks. The components are carefully selected and delivered in two toolboxes and one carrying case.

Elements of the 700002SC set:

Power unit:

1 stück 700090 PowerPack | XPress 1000 SC: The central hydraulic unit of the system.

Cylinder and C-Arms:

1 stück 700060 SSC 35/25 Short stroke cylinder: Short stroke cylinder for precise force transmission.
1 stück S700070 C-Arm GC 80/40: Basic C-arm for execution.
1 stück 700080SC C-Arms | 4-piece set (S700071+S700072): Auxiliary C-arm set for achieving different geometries.

Adapters (Rivet- and Nut-specific):

1 stück 700100 BR 20 Blind rivet adapter: For blind rivets (20 mm range).
1 stück 700101 BR 50 Blind rivet adapter: For blind rivets (50 mm range).
1 stück 700110 BRN 50 Blind rivet nut adapter: For the installation of blind rivets.

Storage and Accessories:

1 stück 700200 Tool Box RS-03 | BMW: Tool box for basic components (BMW specific layout).
1 stück 700201 Tool Box RS-04 | BRN: Tool box for tools related to blind nuts.
1 stück 881341 Handle for Fix Magnets & C-Arms | red: Red handle for fix magnets and C-arms.
1 stück 700801 Box for rivets/mouth pieces/small parts | empty: Empty box for rivets, tool heads, and small parts.
1 stück Transport case: Robust transport case for the safe shipping of the entire system.
1 stück Instruction manual: Detailed user guide.

Advantages of the System in Professional Use

The XPress 1000 SC complete set, as a member of the Wielander + Schill XSeries family, meets the highest demands of the body repair industry.

1. Versatility and Compatibility: The wide range of adapters included in the kit (SPR, blind rivet, blind nut) ensures that workshops are not limited to just one fastening technology. This flexibility is critical during repairs that must comply with various OEM (Original Equipment Manufacturer) specifications.

2. Power and Efficiency: With a force of 96 kN, the system is capable of handling the riveting of the toughest, high-strength steel and aluminum alloys, minimizing repair time without compromising the quality of the connection.

3. Ergonomics and Safety: The noise level below 70 dB(A) and the extremely low vibration level below 2.5 m/s² significantly reduce operator fatigue during prolonged work. Well-organized tool cases (BMW and BRN specific) ensure quick access to necessary components, thereby increasing workflow efficiency.

4. Quality Assurance: The pneumatic system requires air quality compliant with the ISO 8573-1 standard, which guarantees the long-term reliability of the hydraulic system and the consistency of the riveting process.

This complete kit (700002SC) is a comprehensive, professional investment for all service centers that wish to utilize the latest vehicle repair technologies.
