Product Identifier: 777247
This detailed product description presents the precision-engineered metric rivnut screw belonging to the Wieländer+Schill XSeries professional riveting technology, specifically designed for use with the BRN 50 rivnut adapter. This component is essential during body building and repair work where reliable, threaded connections need to be established on thin sheets.

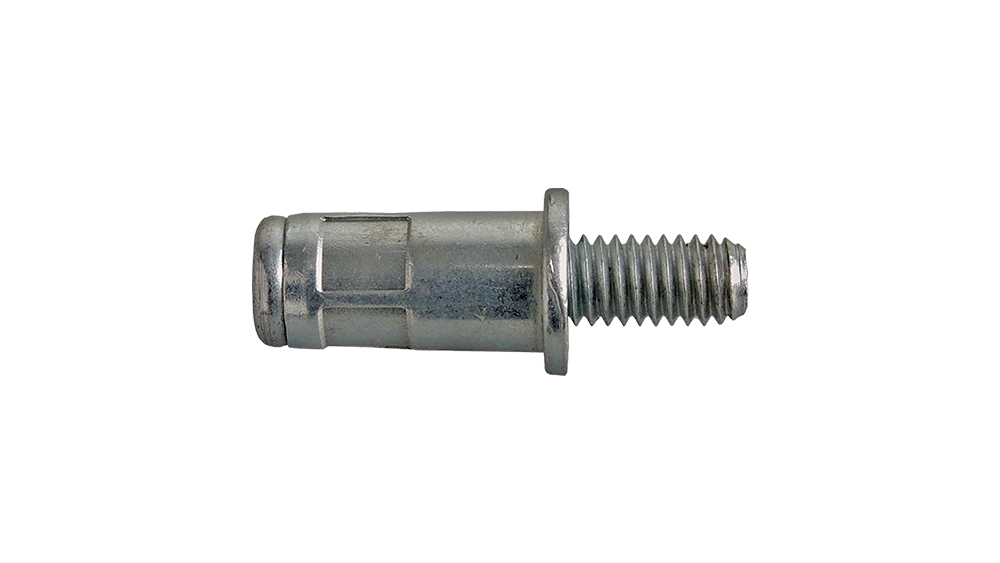

The metric rivnut screw with part number 777247 is a special fastening element that allows the creation of an M6 metric thread on material thicknesses where conventional tapping or welding is not ideal or feasible. The product is an integral part of the Wieländer+Schill professional riveting system, ensuring a fast, strong, and durable joint.
This screw is used together with the BRN 50 rivnut adapter, which performs the installation of the rivnut, while the screw itself forms the installed thread. Made of high-quality steel, the component guarantees high load capacity and long service life in the vehicle repair environment.
Metric Thread: Features a standard M6 metric thread, compatible with standard M6 screws and fasteners.
BRN 50 Compatibility: Optimized for use with the BRN 50 rivnut adapter, ensuring a seamless and efficient installation process.
Wide Fastening Range: Suitable for sheet thicknesses between 0.5 mm and 3.0 mm, providing flexibility when fastening materials of different thicknesses.
Robust Material Usage: Made of steel, which ensures excellent mechanical strength and resistance to vibration and load.
Packaging quantity: Available in a package of 10 pieces, ideal for smaller projects or restocking a spare parts kit.
The table below summarizes the critical dimensions and properties of the metric rivnut screw:
| Property | Value | Note |
|---|---|---|
| Part number | 777247 | Unique Identifier |
| Thread type | Metric | M6 |
| Thread size | M6 x 15 mm | Thread Diameter and Length |
| Shank Diameter (Ø) | 8.9 mm | Diameter of the screw shaft |
| Total Length (Shank) | 14.5 mm | Total length of the screw |
| Clamping Range | 0.5 – 3.0 mm | Usable Sheet Thickness |
| Material | Steel | High-strength structural material |
| Package Contents | 10 pieces | Packaging Unit |
| Weight | 0.030 kg | Weight per Piece (approx.) |
| Overall Dimensions (L x W x H) | 13 x 13 x 27.55 mm | Product Outer Dimensions (approximate) |
This metric rivnut screw is an ideal choice for any professional working in the following areas:
Automotive Body Repair: Especially suitable for replacing damaged or missing threaded points where securing body elements (e.g., internal reinforcements, panels) is required.
Metal Fabrication and Structural Engineering: Any application where a light but strong threaded connection is required in thin sheet metal structures.
Prototype Construction: Offers quick and reliable fastening solutions during the testing phase.
For maximum efficiency, the following accessories are recommended for the use of the metric blind rivet screw (product not included):
BRN 50 Rivnut Adapter: This adapter is necessary for installing the rivet nut, which provides the threaded base for the screw.

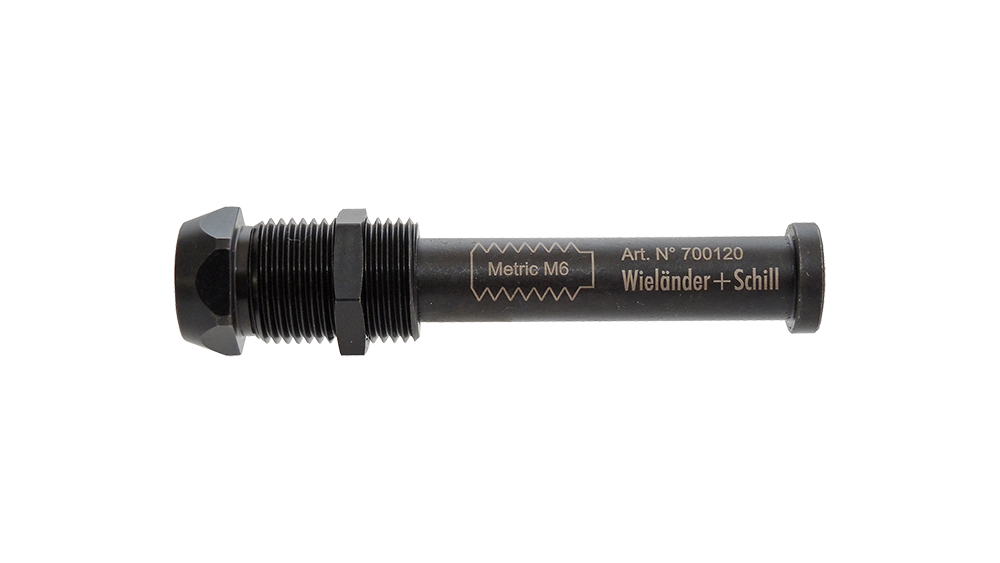

Rivnut Puller Adapter M6 (Part No: 700120): This special puller adapter is designed specifically for rivet nut screws with M6 thread inside the BRN 50 adapter.
The quality of Wieländer+Schill products is also supported by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, guaranteeing consistently high-level production and reliability.
