This detailed product description is for the VAS 6545B/2 C-Arm Manual Welding Head No. 2.presents the, which was specifically developed for VAS 6545B resistance spot welding machine development. This accessory is part of the official Volkswagen AG workshop equipment catalog and guarantees the highest level of performance and reliability during body repair work.
The cooled VAS 6545B/2 C-Arm No. 2 is designed to withstand high loads, thus ensuring consistently perfect welding results and maximum stability. It is particularly suitable for the most demanding applications where precision and durability are essential.
This C-arm can be perfectly positioned for wheel arches repair work, where tight spaces and complex geometries require special tools. The integrated cooling system ensures that the tool remains at the optimal temperature even under intensive, continuous use, thereby extending the life of the electrodes and maintaining the welding quality.
Accessories manufactured by Wieländer+Schill are synonymous with quality and reliability. The VAS 6545B/2 C-arm offers the following advantages:
High Load Capacity: Design optimized specifically for high utilization, guaranteeing a long service life even in high-traffic workshops.
Cooling System: The integrated cooling prevents overheating, which is critical for series spot welding.
Precise Workmanship: The stable structure and precisely fitting electrodes ensure flawless welds that meet standards.
Special Application: Ideal choice for hard-to-reach areas, such as repairs around wheel arches.
The detailed product specifications and the scope of delivery guarantee that the user can start work immediately, complemented by the most important components.
| Property | Value |
|---|---|
| Product Name | VAS 6545B/2 C-Arm Manual Welding Head No. 2. |
| Application Area | Wheel Arches |
| Compatibility | VAS 6545B Resistance Spot Welding Machine |
| Part number | 932011NG |
| Length × Width × Height | 230 x 125 x 35 mm |
| Weight | 1.33 kg |
| Coating | PU (Polyurethane) |
| Content | 1 pc (1 piece) |
For durability and excellent conductivity, the C-arm consists of several carefully selected materials:
Aluminum (Aluminium)
Aluminum
CuCrZr (Copper-Chromium-Zirconium alloy – for electrode holders)
Rubber
Stainless steel
Steel
The kit includes all necessary components for working on wheel arches:

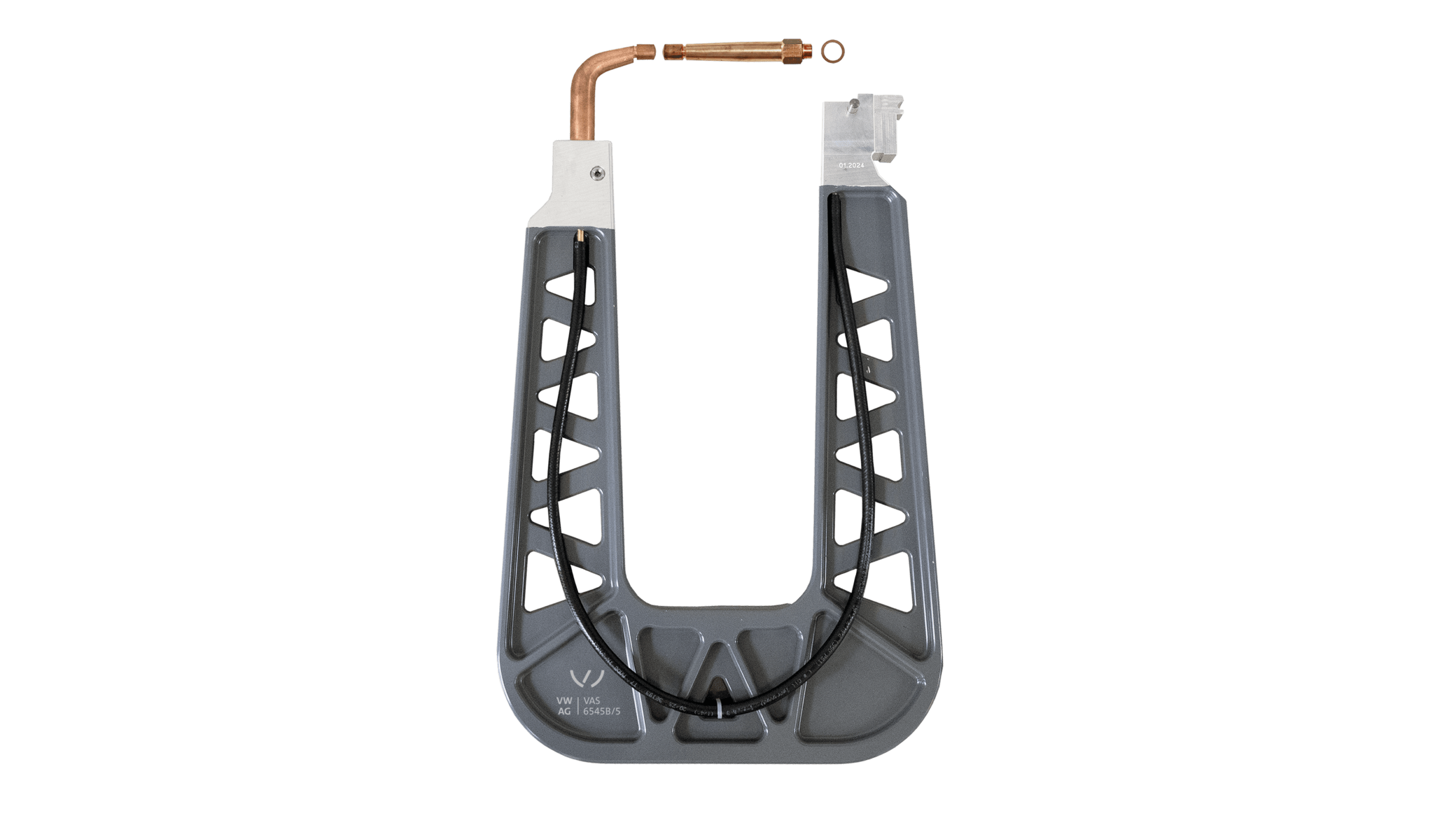

1 pc Assembled C-Arm No. 2.
Electrode A:
Type: 497070
Design: Mushroom shape
Type: 495635
Design: Spoon shape
Equipment: Electrode with cap, Ø 16 mm
This configuration allows for the optimal setup of the welding process for arches of different geometries, ensuring the correct contact surface and pressure.
This accessory fits snugly into the Wieländer+Schill OEM (Original Equipment Manufacturer) recommendations category, specifically developed for the Volkswagen AG workshop equipment requirements. This certification guarantees that the tool meets strict factory specifications, which is essential for repairing the bodywork of modern vehicles, especially in the case of new high-strength steel and aluminum structures.
To maximize the flexibility of the VAS 6545B welding machine, several other C-arms are available in the range, covering different working areas. These accessories are also liquid-cooled and designed for high loads:
VAS 6545B/5 C-Arm No. 5 (Part No: 932014NG):
Working Area: 205 × 550 mm
Accessory: 1 pc 495667 Electrode (135 mm, with Ø 16 mm cap)

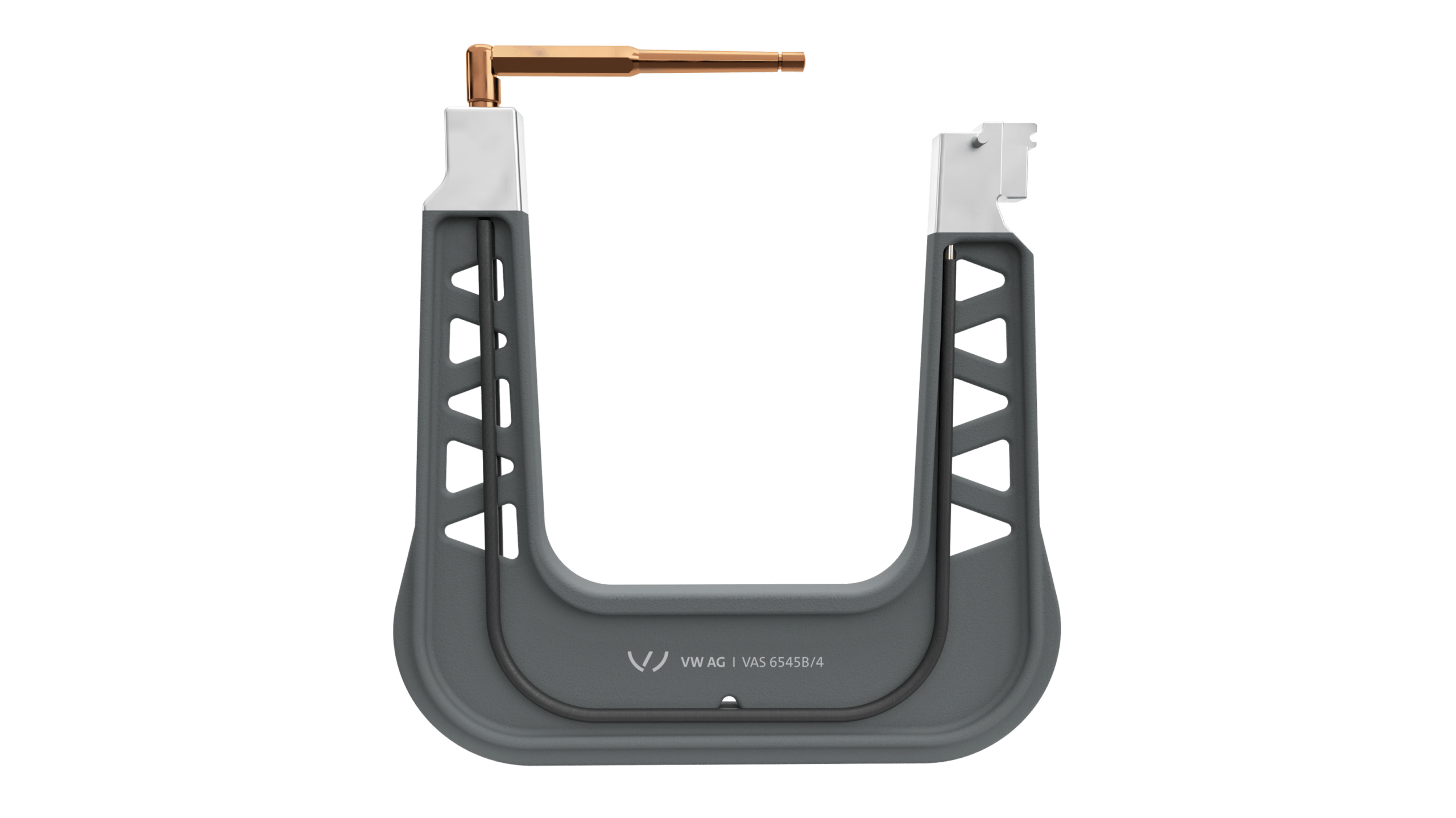

VAS 6545B/4 C-Arm No. 4 (Part No: 932013NG):
Working area: 350 x 450 mm
Accessory: 1 pc 495616 Electrode (260 mm, with Ø 16 mm cap)

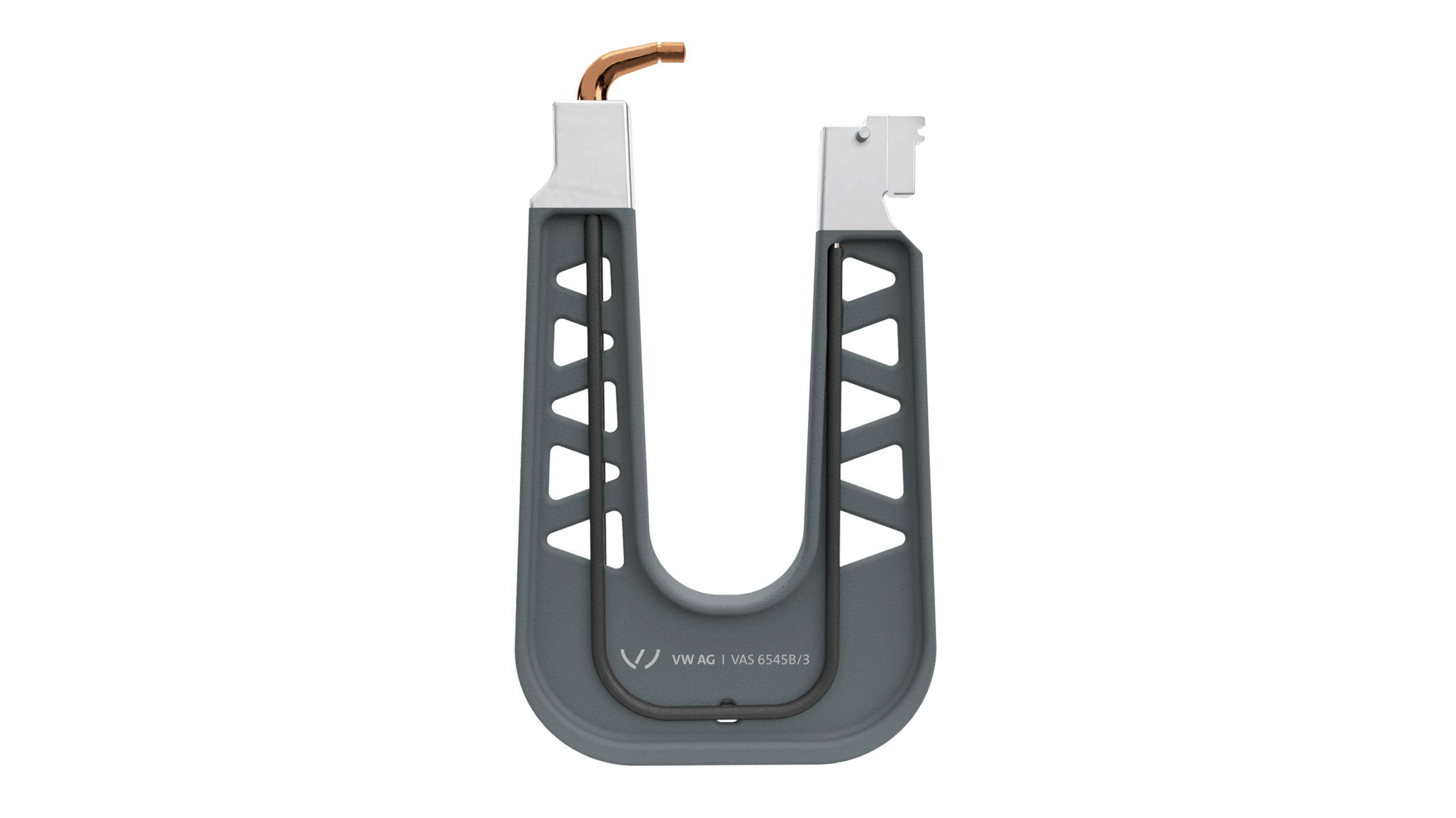

VAS 6545B/3 C-Arm No. 3 (Part No.: 932012NG):
Working area: 150 × 450 mm
Accessory: 1 pc 495635 Electrode (C-shape, with Ø 16 mm cap)
These accessories allow workshops to choose the C-arm with the most suitable geometry and size for the most diverse repair tasks, all integrated into the VAS 6545B system.
Wieländer+Schill is committed to the highest quality standards. During product development and manufacturing, they apply strict quality management systems, which are verified by the following certificates:
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
This quality assurance background guarantees that the VAS 6545B/2 C-arm is not just an accessory, but a long-term, reliable investment in vehicle body repair technology.
