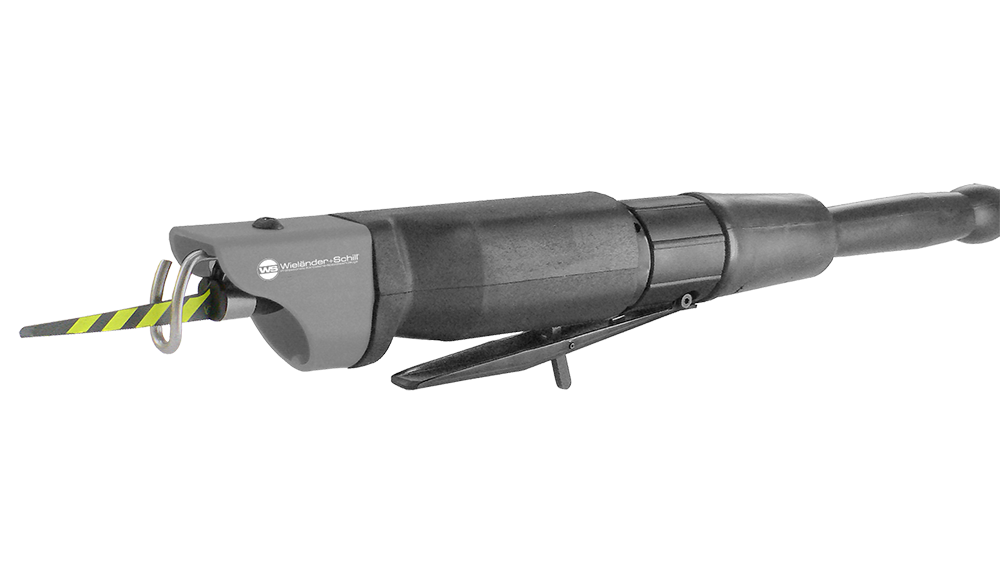

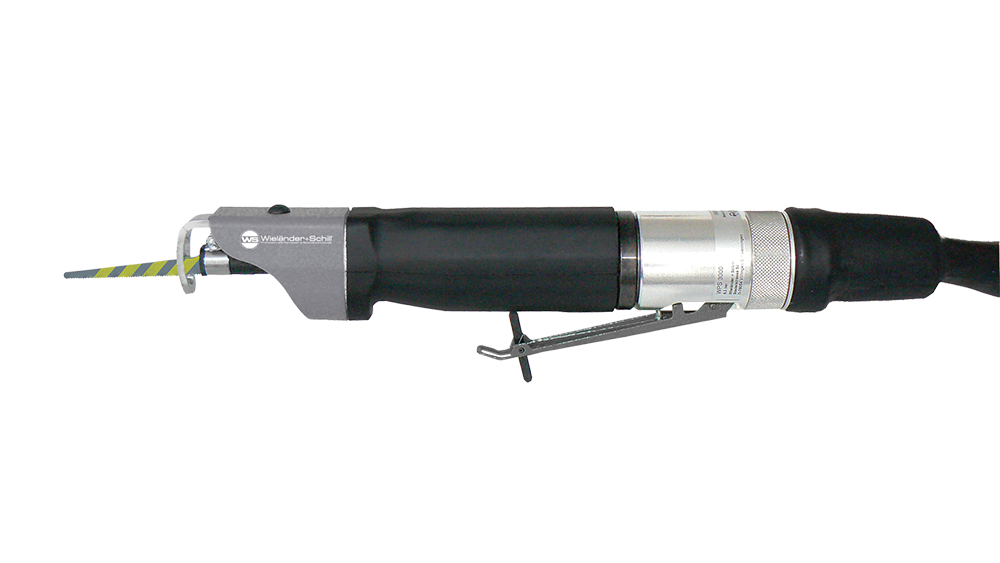

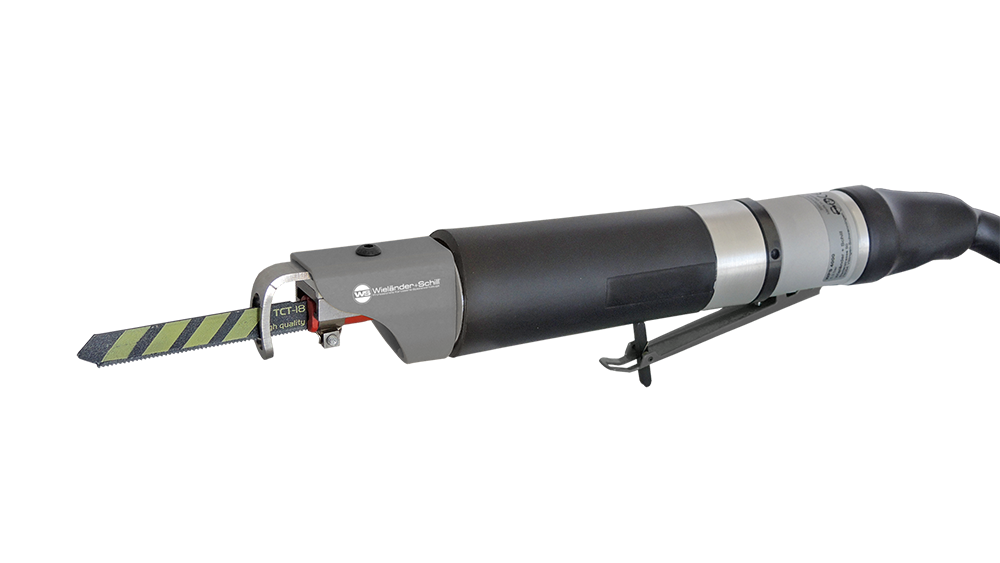

The Wielander + Schill WPS 3000 pneumatic body saw is a handy, extremely powerful, and quiet professional tool specifically designed to meet modern automotive repair needs. This saw is the ideal choice for any workshop where efficiency, durability, and user comfort are of paramount importance.
A standout feature of the WPS 3000 saw is its extremely low vibration level, which, according to ISO 8662, is only 2.5 m/s². This parameter significantly reduces noise pollution, bringing the noise level in the working environment to just 77.4 dB(A) (measured according to ISO 15744) and enables continuous, uninterrupted operation of the device. The device also complies with the strict health and safety regulations of the employers’ liability insurance association.
A 10 mm stroke length provides excellent cutting performance while contributing to reduced sound pressure levels. The WPS 3000 saw is optimized for precise and clean cutting of a wide variety of materials, thanks to the wide selection of included saw blades.
Excellent Ergonomics and Handling: Thanks to its compact design and low vibration, it allows for long-term, fatigue-free work.
Powerful Performance: The 300 W power output and 12000 strokes/min stroke rate guarantee fast and efficient material removal.
Alacsony Zajszint: The noise level of only 77.4 dB(A) significantly improves workshop working conditions.
Designed for Continuous Operation: Its robust construction and excellent cooling ensure reliable, uninterrupted use.
Wide Range of Applications: The included bi-metal saw blades allow for the precise machining of metals, composites, and plastics.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | 120030 | – | |
| Power | 300 | W | |
| Operating pressure | 6 – 8 | bar | |
| Stroke | 10 | mm | Long stroke length for efficient cutting |
| Stroke Speed | 12000 | 1/min | |
| Vibration | < 2.5 | m/s² | According to ISO 8662, extremely low |
| Sound pressure level | 77,4 | dB(A) | According to ISO 15744 |
| Air consumption | 0,3 | m³/min | |
| Dimensions (L x W x H) | 1150 x 63 x 42 | mm | |
| Materials | Acél, alumínium, műanyag | – | Materials of the saw housing |
| Air quality | ISO 8573-1 | – | Appropriate air quality required |

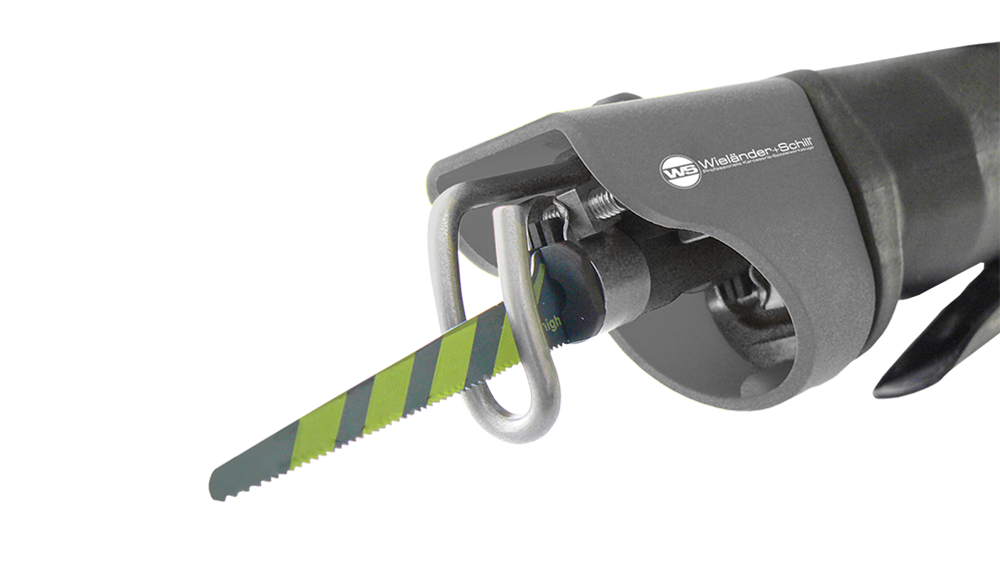

The WPS 3000 saw comes with several special bi-metal saw blades that optimize cutting results for different materials:

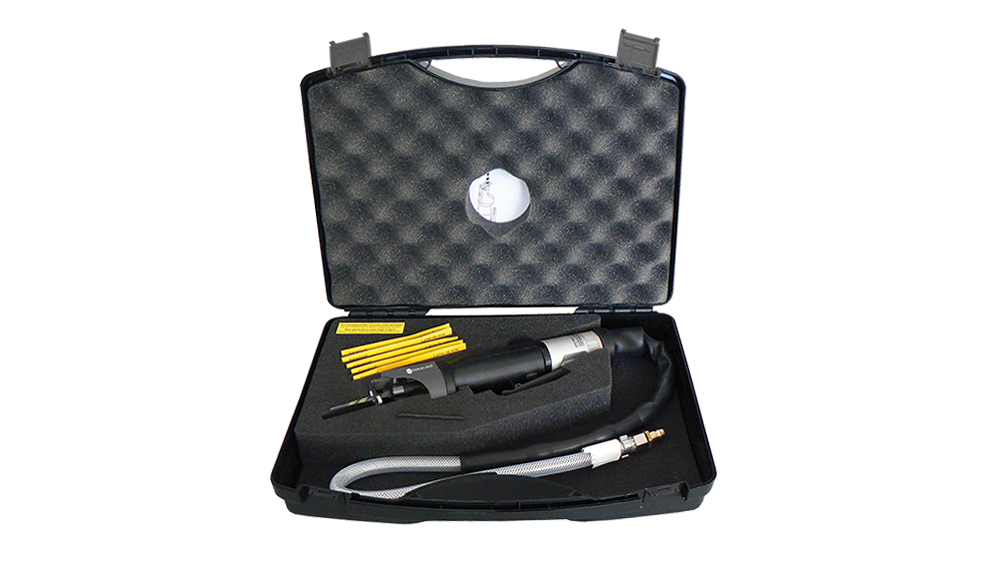

The WPS 3000 professional pneumatic body saw is supplied fully equipped, ensuring immediate readiness for operation:
For maximum efficiency and optimal maintenance of the pneumatic system, the following accessories are also available:
Compressed air mini oiler | 1/4″ (Part No.: 637103) This mini oiler has a 1/4″ connection, reduces wear on pneumatic tools, and improves their operating comfort. It is equipped with a transparent window that helps prevent over-oiling and sticking of parts.
Pneumatic quick coupling | Type 26 | 9 mm (Part No.: 697002) Provides a reliable and fast connection to the compressed air system.
Air nipple | Type 26 | DN 8 | G 1/4″ (Part No.: 697003) Precision element required for compressed air connections.
Pneumatic special oil | 1000 ml (Part No.: 698001) High-performance oil, specially developed for air lubrication units and pneumatic systems, conforming to DIN 51524-2 standard.
Pressure regulator | Universal (Part No.: 698007) Universal device for precise regulation of the compressed air system pressure, ensuring optimal operating pressure for the tools (6-8 bar).
Air Body Saw WPS 2000 (Part Number: 120010) This model is a true „all-rounder” saw for bodywork, designed for daily cutting and disassembly tasks. It ensures outstanding quality and maximum lifespan thanks to the special bi-metal saw blades, guaranteeing completely burr-free cutting at 12,000 strokes/minute. It can be used with the same saw blade types (from 14 tpi to 32 tpi) as the WPS 3000.
Air Body Saw WPS 4000 LV (Part Number: 120060) The WPS 4000 LV is for the most demanding tasks! This body saw has been specifically developed for processing extremely hard and flexible materials such as USIBOR, BTR, TRIP, ZSTE, aluminum, cast iron, etc. Its specialty is the vibration-dampened drive (only 3.5 m/s²), which provides immense power and performance even during the toughest jobs, while remaining ergonomic and versatile. It is supplied with different special saw blades (M42 10 tpi, MPM 18 tpi, TCT 18 tpi) for ultra-high strength steels.
