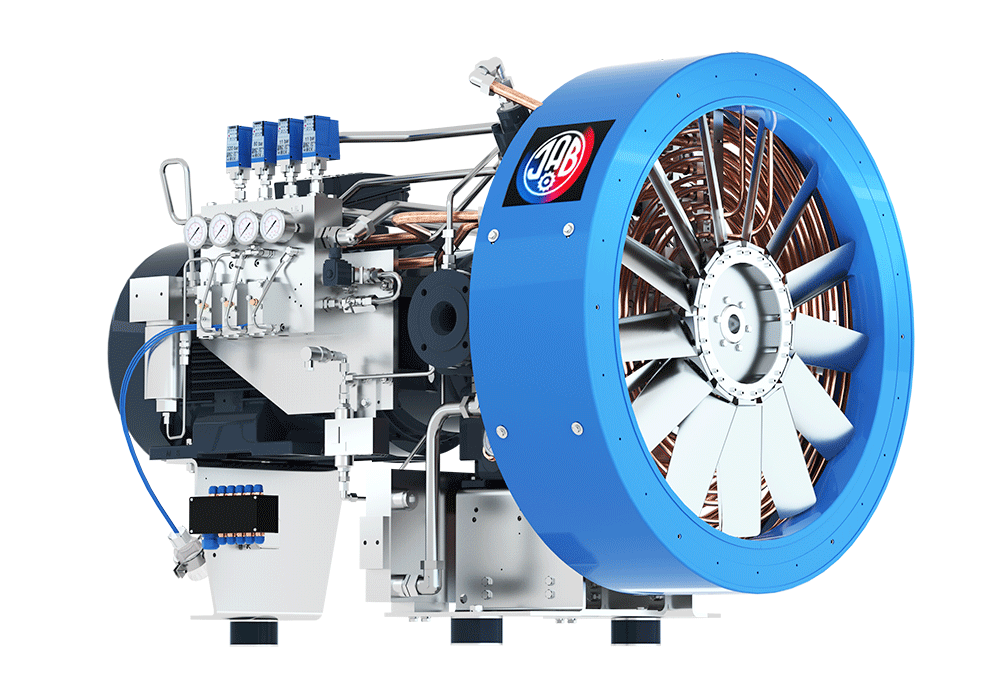

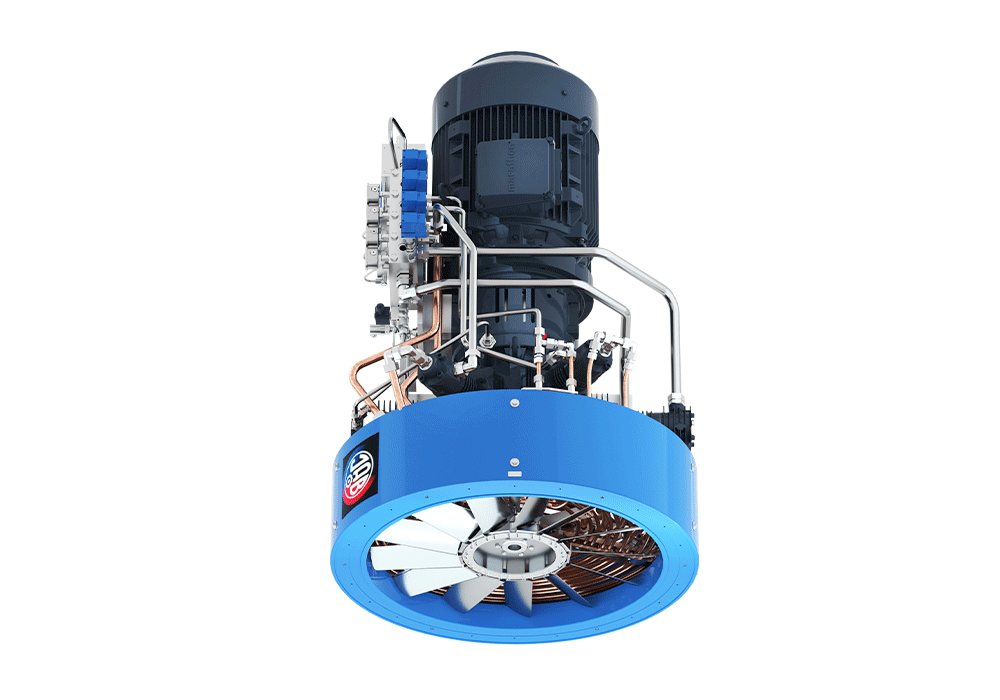

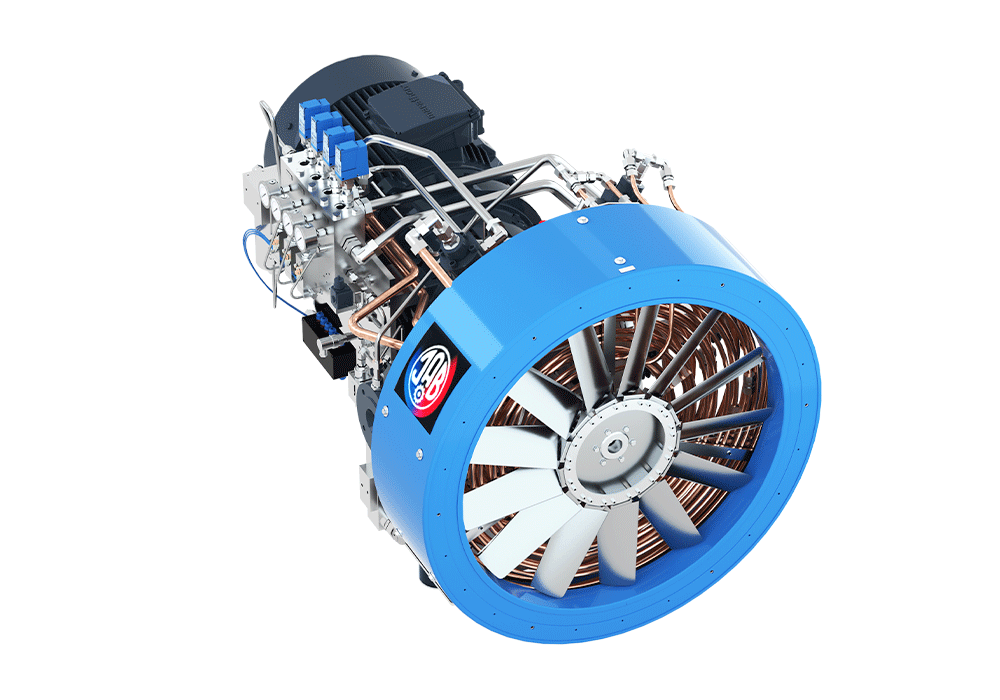

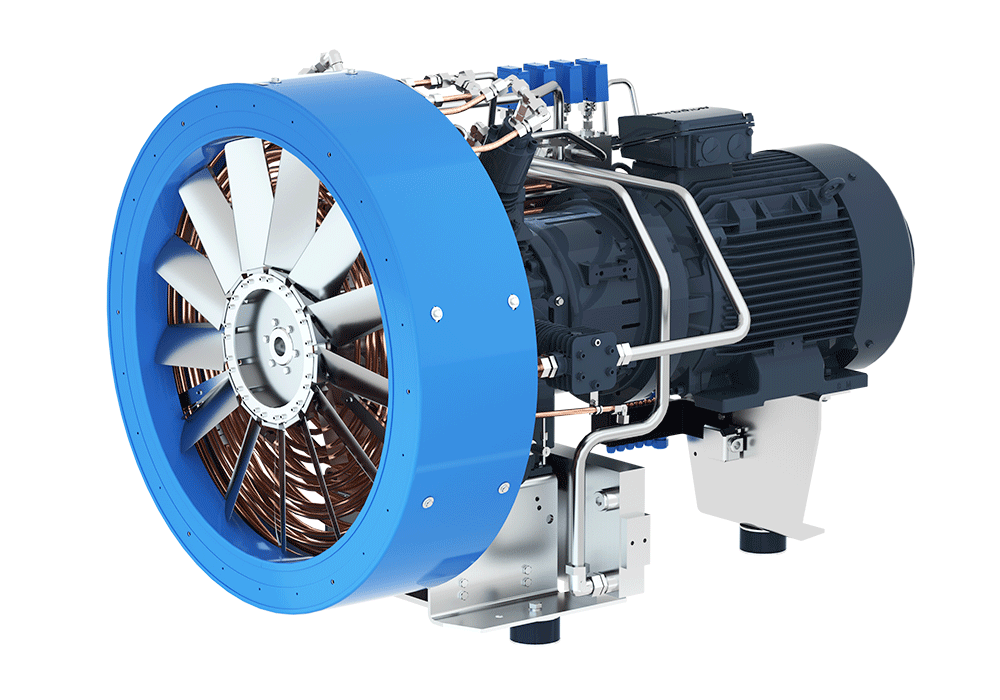

The J.A. Becker & Söhne V 5780/300 NG6 model is a premium category, four-stage natural gas compressor, specifically designed for high-performance, reliable gas compression tasks. This equipment features outstanding technical parameters, providing an ideal solution for industrial applications where high pressure and significant volumetric flow are essential.
The V 5780/300 NG6 compressor follows the philosophy of Becker & Söhne: it is not an „08/15” (average) product, but a precisely engineered machine with a long lifespan and exceptional efficiency.
This compressor boasts several outstanding features that ensure economical and uninterrupted operation:
Outstandingly Efficient Cooling: Efficient dissipation of heat generated during the compression process is crucial for the equipment's lifespan and energy efficiency. The advanced cooling system of the V 5780/300 NG6 minimizes heat loss and stabilizes the operating temperature.
Fully Automatic Discharge: The system automatically manages the release of pressurized gas, which increases safety and reduces the need for human intervention between cycles.
Long Maintenance Intervals: The robust construction and quality components guarantee long, uninterrupted operating time, significantly extending the period between required maintenance cycles, thereby reducing downtime and operating costs.
High-Power Drive: The 36 kW electric motor provides sufficient power to achieve the specified parameters, operating at a stable rotational speed (1500 rpm).
The specifications for the V 5780/300 NG6 compressor are as follows:
| Parameter | Value | Note |
|---|---|---|
| Model | V 5780/300 NG6 | Four-stage natural gas compressor |
| Volume flow | 82.0 – 144.0 m³/h | Variable capacity depending on operating conditions |
| Maximum Operating Pressure | 300 bar | For high-pressure applications |
| Compression Stages / Cylinder | 4 / 4 | Four compression stages |
| Inlet Pressure | 3 / 4.5 / 6 bar | Multiple inlet pressure options (depending on stages) |
| Volumetric Flow Rate (Liters/minute) | 1,367 / 1,760 / 2,400 l/min | Volumetric flow rate adjusted to inlet pressure |
| Electric Motor Power | 36 kW | Drive Unit |
| Rotational speed | 1,500 rpm | Stable operating speed |
The compressor has four separate compression stages that ensure efficient and gradual gas pressurization to achieve the desired final pressure of 300 bar.
First Stage: The gas first enters the initial cylinder, where compression begins at a lower inlet pressure (e.g., 3 bar).
Second Stage: The gas exiting the first stage is further compressed by the second stage.
Third Stage: The third step increases the pressure to intermediate levels.
Fourth Stage: The final, fourth stage brings the natural gas to the maximum operating pressure of 300 bar.
The flow rate (1367 l/min, 1760 l/min, or 2400 l/min) is closely related to the inlet pressure (3 bar, 4.5 bar, or 6 bar), which provides flexibility for adapting to different source pressures.
The V 5780/300 NG6 is exceptionally suitable for critical systems such as:
Natural Gas Grid Replenishment: Increasing or refilling the pressure of existing grids.
Fueling Infrastructure for Gas-Powered Vehicles: For high-capacity CNG (Compressed Natural Gas) refueling stations.
Industrial Gas Supply: Supporting processes that require extremely high-pressure natural gas.
J.A. Becker & Söhne is committed to manufacturing excellent quality machinery. The V 5780/300 NG6 is considered a first-class product in all aspects, a result of precise German engineering. The mechanical components designed for a long service life and the reliable electrical drive guarantee the equipment's long-term, trouble-free operation, even in the most demanding environments.
Further detailed product information, datasheets, and brochures can be downloaded from the manufacturer's official sources.
