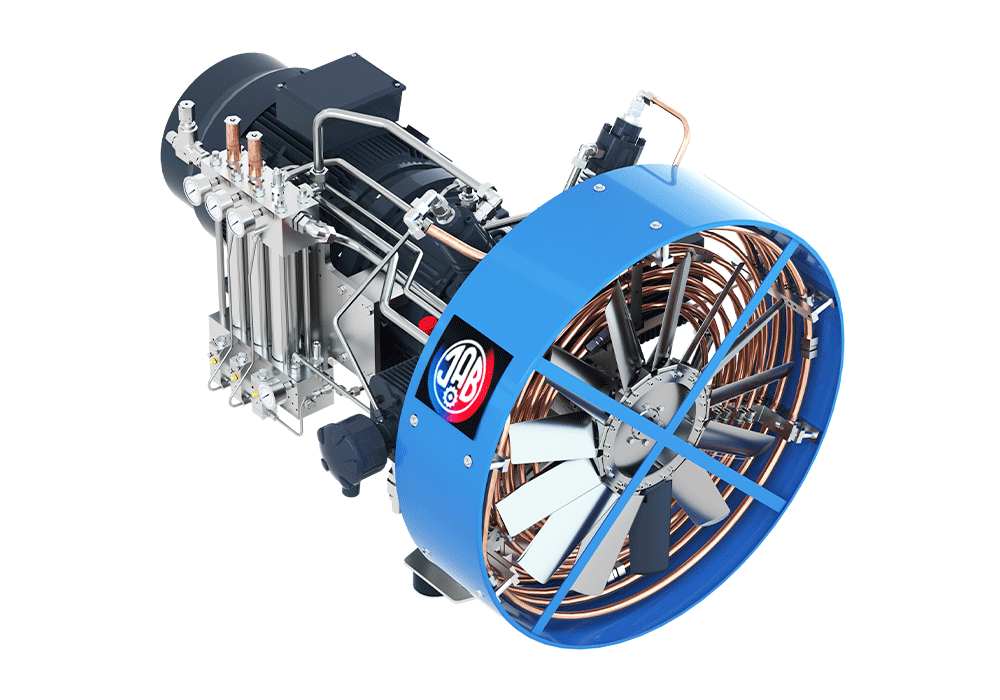

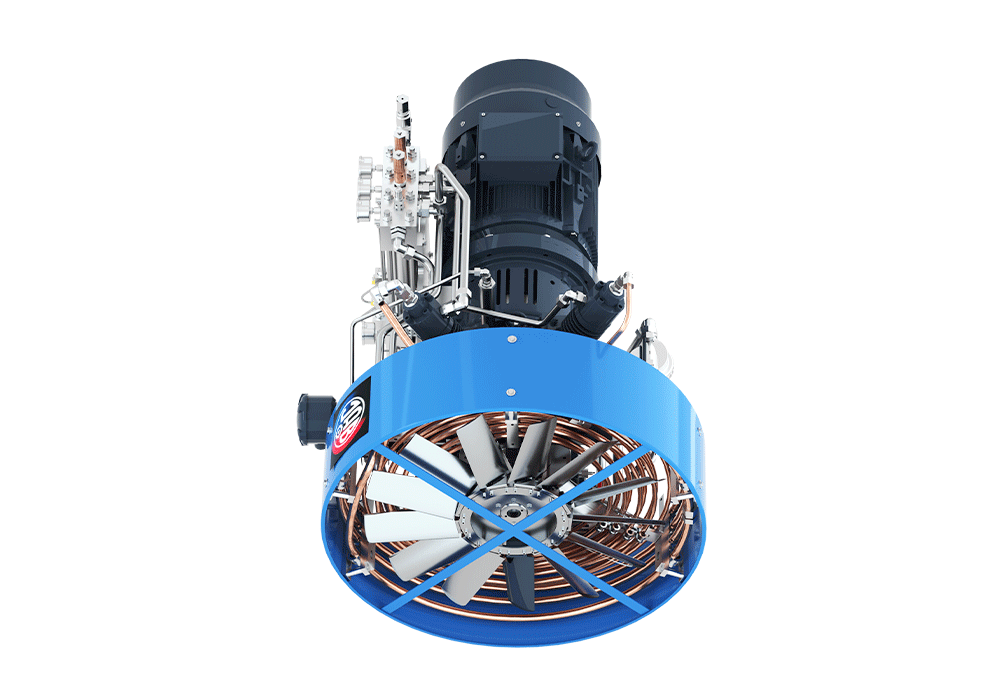

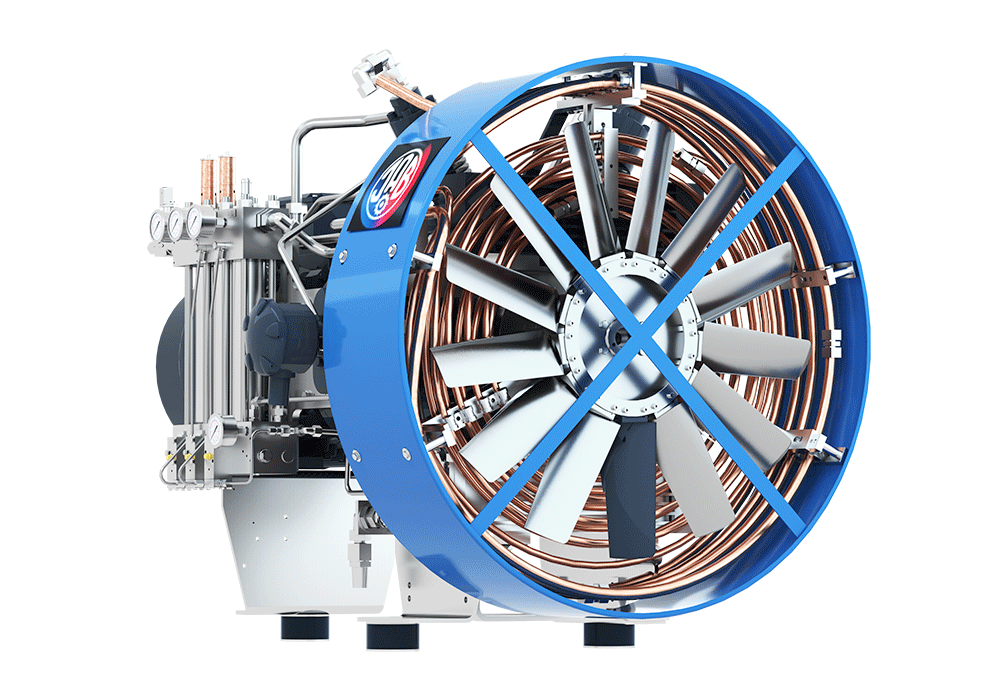

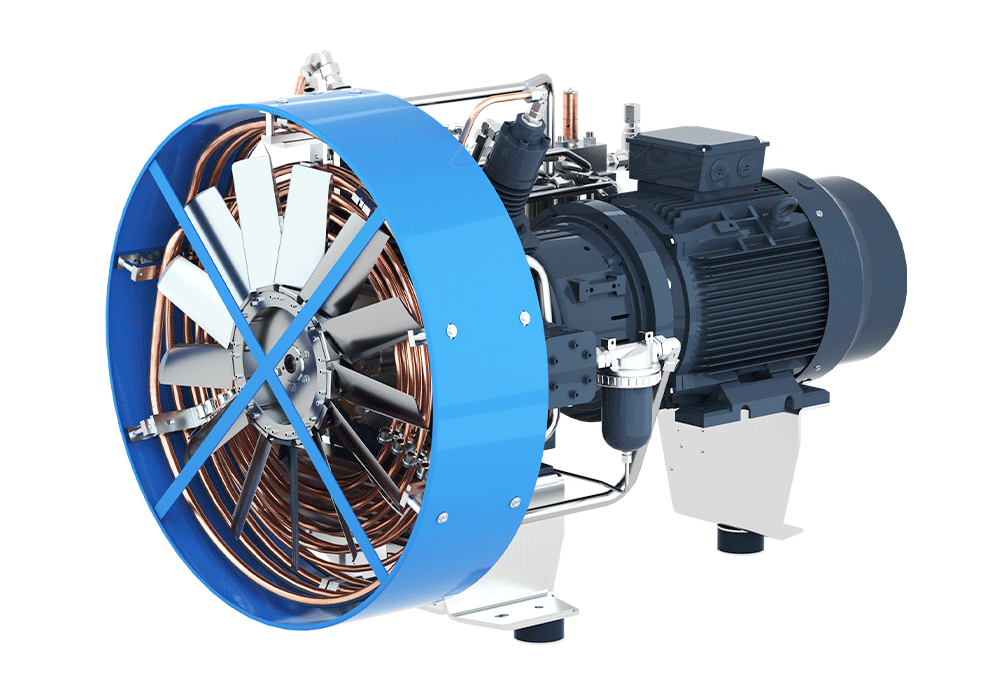

The J.A. Becker & Söhne SVB 1100/250 type air compressor is a top-tier, four-stage piston compressor designed for high-performance, reliable compressed air supply. It is excellently suited for industrial applications where high pressure and continuous, efficient operation are essential. This model is a prominent unit in the JAB compressor family, representing the „NOT AN AVERAGE PRODUCT” philosophy.
The SVB 1100/250 compressor features several characteristics that ensure long service life, optimal efficiency, and easy maintenance:
Excellent Cooling Efficiency: The advanced cooling system minimizes heat generation during the compression process, which increases reliability and extends the lifespan of components. This is particularly critical in high-load, continuous operating modes.
Fully Automatic Condensate Drainage: The built-in, fully automatic condensate drain system ensures the system always remains dry, preventing corrosion and degradation of compressed air quality. This reduces the need for manual intervention and increases operational safety.
Long Maintenance Intervals: As a result of the robust construction and quality components, the compressor features exceptionally long maintenance intervals, significantly reducing downtime and operating costs.
High Performance: The volumetric flow rate of 64.8 m³/h and the maximum operating pressure of 250 bar ensure that even the most demanding pneumatic systems are supplied with sufficient compressed air.
The SVB 1100/250 compressor is the result of precise engineering work, featuring the following technical parameters:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow | 1.100 | l/min | Corresponds to 64.8 m³/h |
| Maximum Operating Pressure | 250 | bar | |
| Compression Stages / Cylinder | 4 / 4 | Four-stage compression | |
| Electric Motor Power | 30 | kW | |
| Rotational speed | 1.500 | rpm |
The four-stage design of the compressor ensures efficient pressure increase, minimizing temperature rise in each stage. The configuration equipped with 4 cylinders creates an optimal balance between performance and mechanical stress.
The 30 kW electric motor operates at 1500 revolutions/minute, guaranteeing stable and reliable drive for long-term, high-demand operation.
The SVB 1100/250 compressor is an ideal choice in critical areas such as:
High-Pressure Gas Filling Stations: Ideal for filling compressed air or inert gases (if the gas type is permitted).
Industrial Processes: Any manufacturing process that requires reliable, high-pressure air.
Special Pneumatic Systems: Systems where 250 bar pressure is essential for operation.
This product represents first-class quality in every aspect, securing J.A. Becker & Söhne's reputation in the field of reliable lifting and compressor technologies. The excellent quality design guarantees that the equipment will provide optimal performance for many years, even under the harshest conditions.
Further detailed technical information, datasheets, and brochures related to the product are available from the manufacturer's official sources.
