The Auto-Messfix The telescopic measuring rod offers an ideal solution for assessing body damage, measuring structural defects, and verifying dimensions after repair. This precision measuring tool is indispensable in every phase of the body repair process, ensuring accurate and reliable results.
The system's specially designed measuring tips make it possible to take measurements even in hard-to-reach areas and for determining distances between non-flush surfaces. The included measuring cone simplifies the precise determination of hole distances. Knurled screws located on the measuring tube holders prevent accidental displacement or adjustment of the tubes during measurement, thus guaranteeing stability and reproducibility.
This telescopic measuring system is the foundation of a professional tool kit for body repair technology, contributing to high-quality workmanship and compliance with OEM (Factory) specifications.
Versatile Application: Excellently suited for assessing damages, measuring structural deviations, and checking dimensional accuracy after repair.
Hard-to-Reach Points: Equipped with special measuring tips that allow measurement even between narrow or uneven surfaces.
Hole Measurement: The distances between holes can be determined easily and precisely with the help of the included measuring cone.
Stability and Safety: The knurled locking screws positioned on the measuring tube holders ensure that the set dimensions do not change accidentally during use.
Robust Construction: Made from a combination of aluminum and plastic, ensuring an optimal balance between durability and handling.
| Property | Value |
|---|---|
| Part number | 871001 |
| Length Range | 920 – 2610 mm |
| Overall dimensions (Length x Width x Height) | 75 x 40 x 870 mm |
| Material composition | Aluminum (Alu), Plastic (Kunststoff) |
| Weight | 1,800 kg |
The complete set ensures that the user can immediately start precision measurements. The package includes the following items:
2 pcs 871008 Measuring Cone (Measuring cone for Auto-Messfix): For determining hole distances.
2 pcs 874020 Measuring Tip | short | straight: For general-purpose, straight measurements.
2 pcs 874021 Measuring Tip | short | angled: For angled or hard-to-reach points.
2 pcs 874026 Measuring Tube | long: For ensuring the telescopic length.
2 pcs 874027 Measuring Tube Holder: For stable mounting of the measuring tubes.
The flexibility and functionality of the system can be further enhanced by the following accessories, available for separate purchase:
| Add-on | Part number | Description |
|---|---|---|
| Fixing screw (Fixing screw) | 874024 | Used for fixing the measuring tubes, preventing accidental adjustment. |
| **Measuring tube | long (Measuring tube | long)** |
| Measuring tube holder (Measuring tube holder) | 874027 | For precise positioning and support of the measuring tubes. |
| **Measuring tip | short | straight (Measuring tip |
| **Measuring tip | short | angled (Measuring tip |
Measuring tube | Long (Part No: 874026)
This measuring tube enables the extension of the telescopic system up to the full 2610 mm range. It is essential for precise and reliable measurements, whether assessing structural damage or checking the dimensions of body panels after straightening.

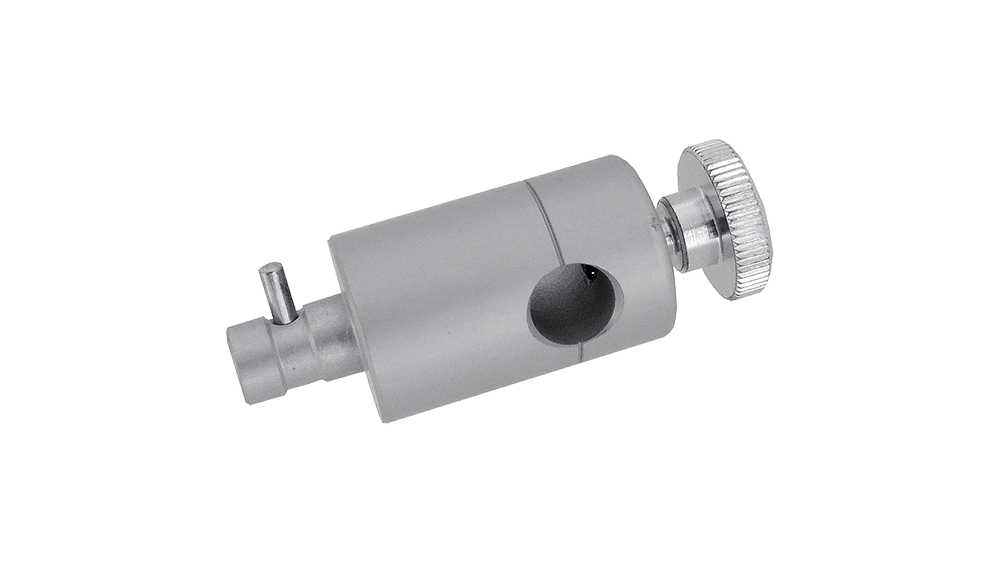

Measuring tube holder (Part No: 874027)
The holder elements are crucial for maintaining the stability of the measuring system. They ensure the precise and fixed position of the measuring tubes during the measurement, minimizing potential user errors.
Measuring tip | Short | Straight (Part No: 874020)
The design of this special measuring tip allows measurement even in locations where standard tools cannot reach, or where surfaces are not perfectly parallel.

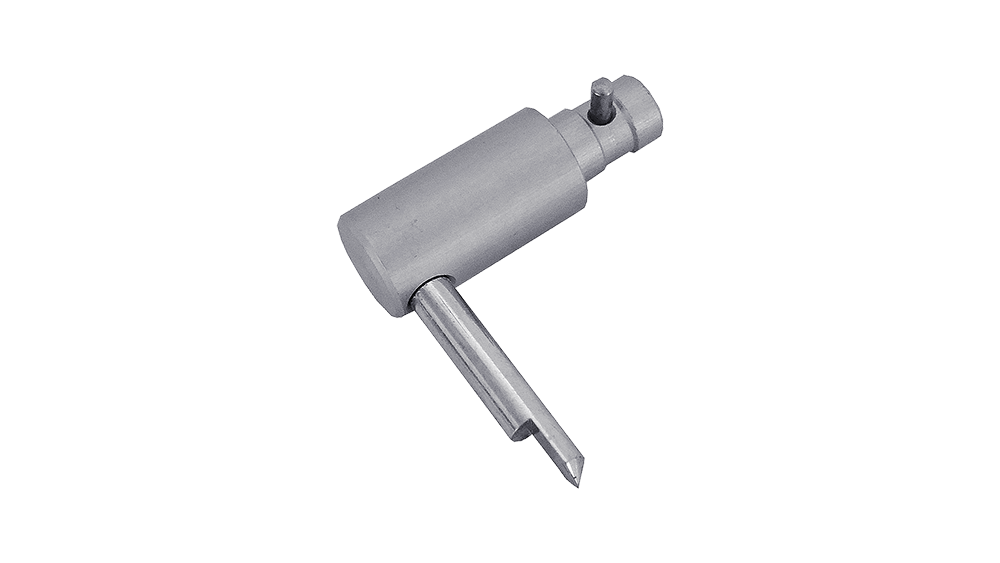

Measuring tip | Short | Angled (Part No: 874021)
The angled tip provides additional flexibility during measurements, especially on the complex, curved, or angled parts of vehicles.
Fixing Screw (Part No: 874024)
These precision screws are used to fix the measuring tubes in the holders. Thanks to their knurled design, they can be easily tightened by hand and guarantee that the set length does not change during manipulation while measuring.
The Auto-Messfix telescopic measuring rod is part of the Wielander + Schill offering Dent Removal Technology & Metalworking (Dent Removal Technology and Metal Processing) category, as a basic measuring tool for professional body repair shops.
