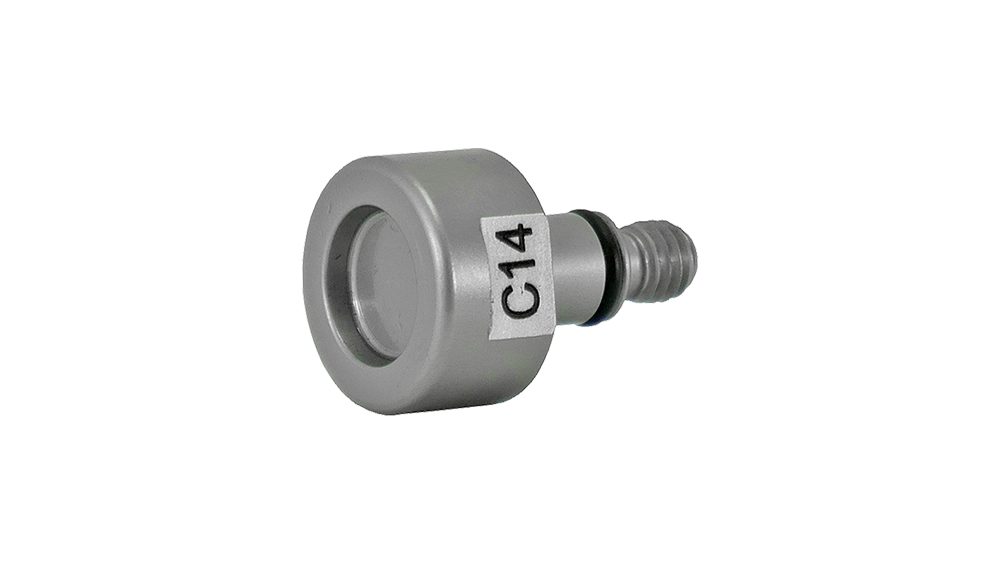

This detailed product description presents the high-precision C14 type closing die (die) from the Wieländer+Schill professional automotive specialist tooling range, specifically designed for the professional and reliable installation of Self Piercing Rivets (SPR). This component is part of the XSeries – Professional Riveting Technology product family, which meets the highest level of automotive repair requirements.
The C14 closing die is an essential component for high-performance riveting systems, especially in applications where self-piercing rivets are used to join body panels. The tool's design guarantees optimal closure of the rivet and joint strength, which is critically important for maintaining the structural integrity and safety of modern vehicles.
This special tool is recommended for Ford vehicles, based on the following identifying marks: Ford ID – DG1102220 HR1R1.5. This marking ensures compatibility and a result that complies with factory specifications for the specified rivet types.
The precise machining and high-quality material of the C14 closing die ensure a long service life and consistent performance.
| Property | Value | Note |
|---|---|---|
| Part number | 700539 | The unique identifier of the product. |
| Típus | C14 | Closing Die (Closing Die) |
| Field of application | Self-Piercing Rivets (SPR) | Specially designed for SPR technology. |
| Compatibility (Ford ID) | DG1102220 HR1R1.5 | Factory identifier for the corresponding rivet type. |
| Length (L) | 18 mm | One external dimension of the tool. |
| Width (W) | 18 mm | One external dimension of the tool. |
| Height (H) | 27 mm | Overall height of the tool. |
| Product Family | XSeries | Professional Riveting Technology. |
As part of the Wieländer+Schill XSeries range, the C14 closing die offers the following advantages:
Precise Geometry: The tool geometry precisely matches the closure profile of the self-piercing rivets specified by Ford. This ensures optimal deformation of the rivet head, which is essential for achieving maximum joining strength.
Excellent Material Quality: To ensure the durability of the tools, they are manufactured from highly wear-resistant materials that withstand high cyclic loads and friction during the riveting process.
Reliability: The tools undergo rigorous quality control, guaranteeing continuous, flawless operation under workshop conditions.
Compatibility: The specific Ford identifier (DG1102220 HR1R1.5) guarantees that the tool can be perfectly integrated with the appropriate riveting machinery and repair processes.
Simple Integration: The compact dimensions (18 x 18 x 27 mm) allow for easy replacement and installation of the tool into compatible riveting heads.
The product belongs to the portfolio of Wieländer+Schill professional automotive specialist tools, which meet the highest industry standards. The company's quality management system is ISO 9001 certified, reinforcing the commitment to continuous quality improvement and customer satisfaction. Furthermore, environmental aspects are also considered, as evidenced by ISO 14001 certification.
This tool is an ideal choice for body repair shops, coachbuilders, and service centers where creating factory-quality, durable, and safe joints using self-piercing rivets is required. The C14 closing die ensures that the repair process complies with the latest OEM (Original Equipment Manufacturer) specifications.
