Part number: 700318
This detailed product description introduces the Wieländer+Schill K3 series punch tool with an 8 mm diameter, belonging to the XSeries professional riveting technology category. This precision tool is an indispensable device for body repair and semi-industrial work, especially when reliable and durable fastenings need to be created.
The K3 Punch Tool (Punch) is an integral part of Wieländer+Schill's professional tool offering, specifically designed for use with XSeries riveting systems. Thanks to its excellent quality construction, this tool ensures clean, precise, and repeatable hole punching in various sheet metal materials.
The tool is an ideal choice for applications where hole size and tool lifespan are critical. The precise design guarantees that the stress generated during punching is optimally distributed, minimizing tool wear and workpiece damage.
The K3 punch tool is also suitable for machining high-strength sheets, especially when high repetition rates and reliability are required during the punching process.
The most important physical and technical characteristics of the K3 punch tool can be found in the table below:
| Property | Value | Note |
|---|---|---|
| Product Family | K3 | Punch Tools |
| Part number | 700318 | Unique Identifier |
| Diameter (Ø) | 8 mm | Nominal diameter of the punched hole |
| Length | 18 mm | Overall tool length (partially specified) |
| Width | 16 mm | Tool width (partially specified) |
| Höhe | 45.6 mm | Overall tool height (partially specified) |
| Category | Dies | Punches |
Important note regarding dimensions: The specified length, width, and height (18 x 16 x 45.6 mm) describe the complete physical dimension of the tool, which is essential for compatibility and fitting into the tool holder.
Wieländer+Schill products, including this K3 punch, carry the guarantee of German engineering precision. The tools are optimized for long service life and high load capacity, which reduces downtime and maintenance costs.
Precise Punching: The 8 mm diameter guarantees a hole size that conforms to standards, which is essential for professional riveting or screwing.
XSeries Compatibility: Fully integrable into the Wieländer+Schill XSeries professional riveting technology.
Durability: Made from high-quality materials, resistant to high mechanical stress.
For ensuring the optimal operation of the K3 punch tool and adapting to different material thicknesses, accessory elements are also available.

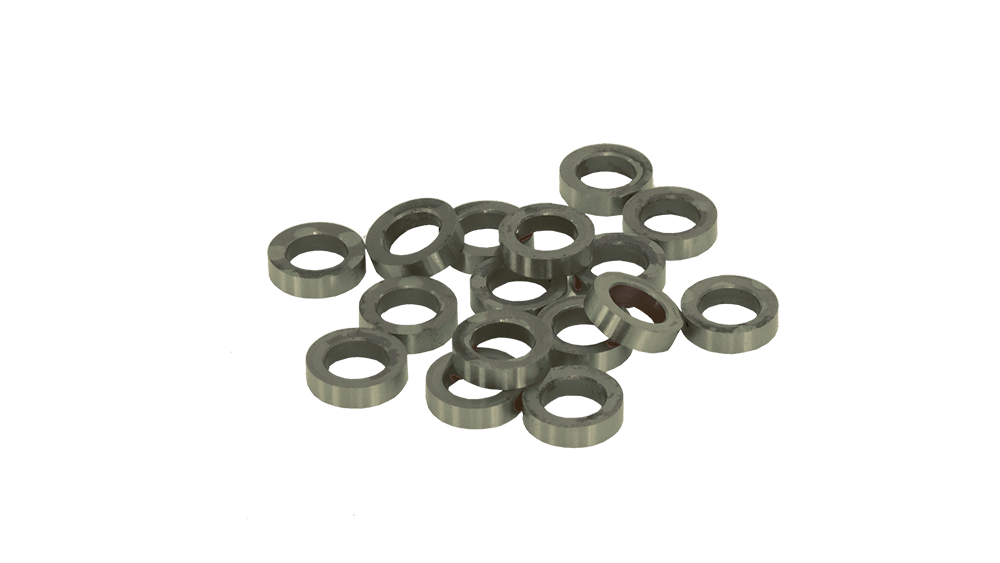

SKR punch crowns are specifically recommended for 8 mm diameter holes and are also suitable for machining high-strength sheets.
| Product | Part number | Package contents | Application |
|---|---|---|---|
| SKR Punch Crowns | 700140 | 50 pcs/PU | For high-strength sheets |

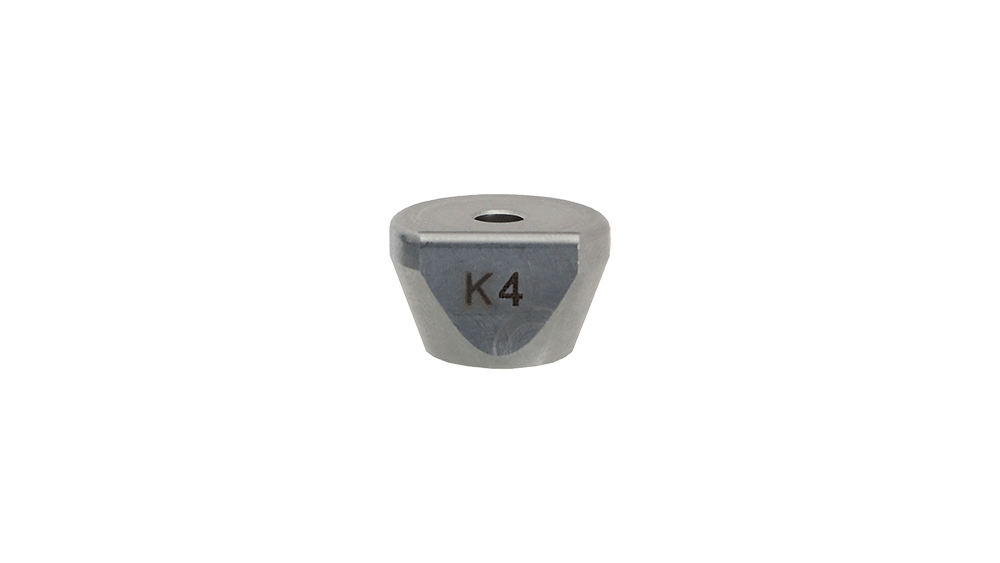

The K4 conversion head is another component related to 8 mm operations, which can assist in different phases of the riveting or forming process.
| Product | Part number |
|---|---|
| K4 Conversion Head | 700298 |
These accessories ensure that the user can assemble the appropriate tool combination for various body repair tasks.
Wieländer+Schill is committed to the highest quality standards, as confirmed by certificates:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
This quality assurance background guarantees that the K3 punching tool reliably meets professional expectations.
For further questions regarding the product, please contact technical support. Prices and exact availability can be viewed after logging in.
