This detailed tool box, Tool Box RS-10 | GM, specifically contains technologies optimized for General Motors (GM) vehicles, as recommended by Wielander + Schill. This set provides a professional solution for body repair, especially concerning riveting and forming processes, ensuring precise work compliant with manufacturer specifications.
The set is an ideal choice for professionals engaged in repairing the latest generation of High Strength Steel (HSS) and aluminum body panels, where conventional welding procedures cannot or should not be applied.
The Tool Box RS-10 | GM is a comprehensive, portable solution that contains all necessary components for performing riveting and forming tasks according to GM specifications.
Optimized for GM Specifications: The contents of the set have been tailored to General Motors repair procedures, guaranteeing compatibility and quality results.
Comprehensive Functionality: It includes hole punching, calibrating, forming, as well as the installation of various rivet types (Flow Form Rivets – FFR and Countersunk Flow Form Rivets – CFFR).
High-Quality Tools: The components are made from durable materials, ensuring a long service life and reliable performance even under heavy use.

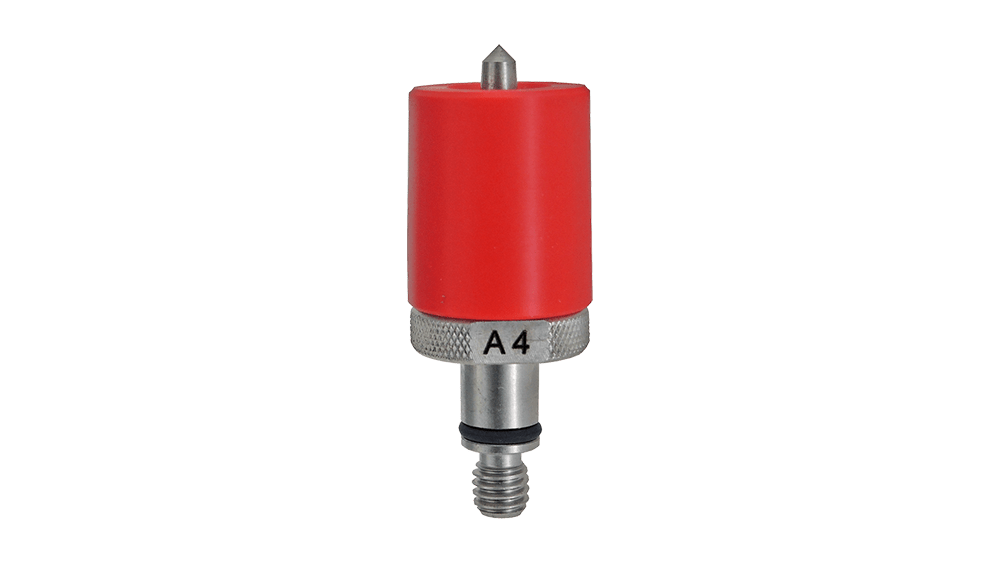

Polypropylene Spring Ejector Shaft: The 700341 A4 ejector shafts are equipped with a polyurethane spring, which aids in precise positioning and efficient material removal.

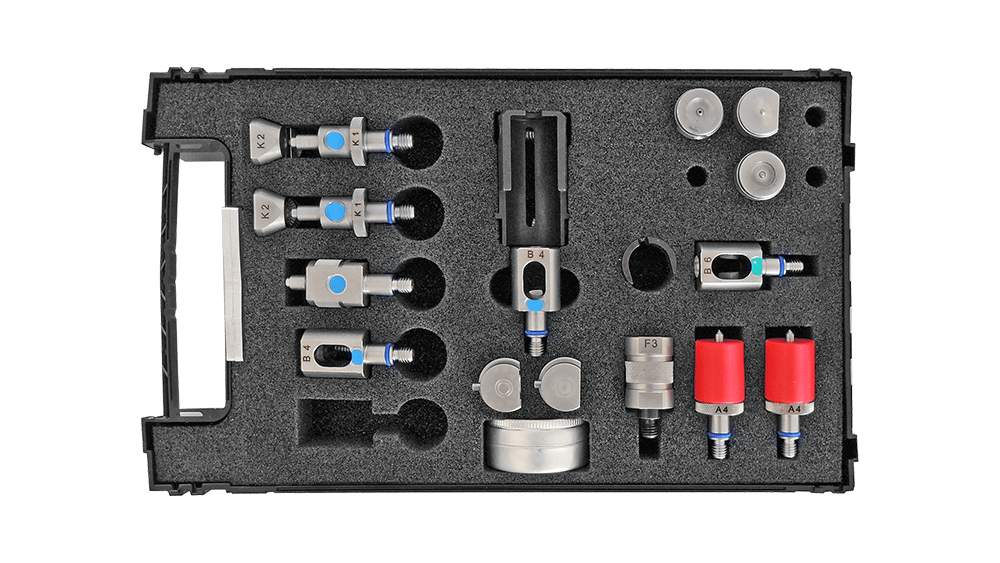

Compact Storage: The tools are supplied in a robust, sized case, which facilitates the organization and transport of the tools between workstations.
Important Note: For specific application areas and detailed descriptions of individual workflows, the relevant repair specifications from the vehicle manufacturer (General Motors) must always be consulted.
| Property | Value |
|---|---|
| Product Name | Tool Box RS-10 |
| Part number | 700208 |
| Field of application | General Motors (GM) OEM Recommendations |
| Dimensions (L x W x H) | 270 x 160 x 59 mm |
| Main Functions | Hole punching, calibrating, forming, riveting (FFR, CFFR) |

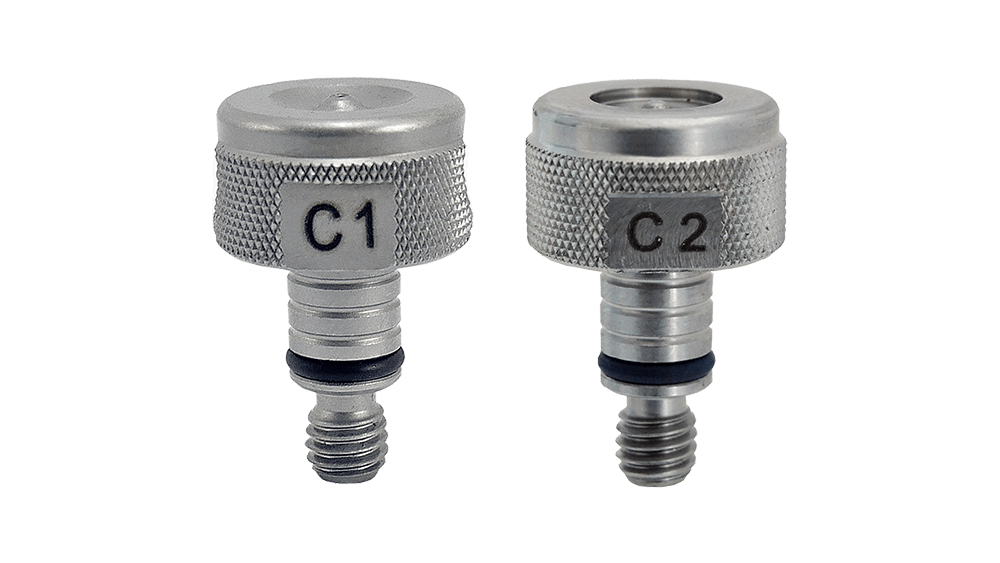

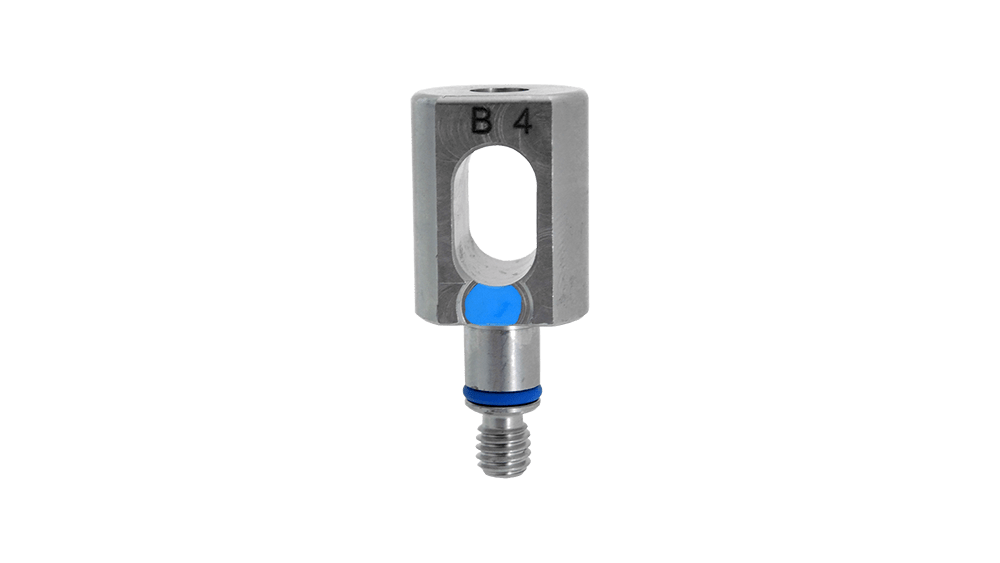

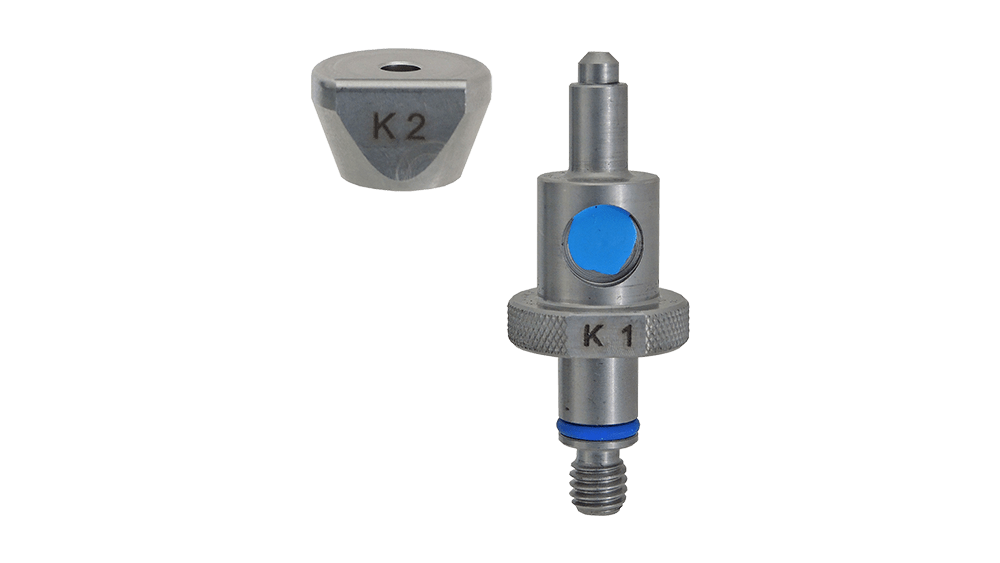

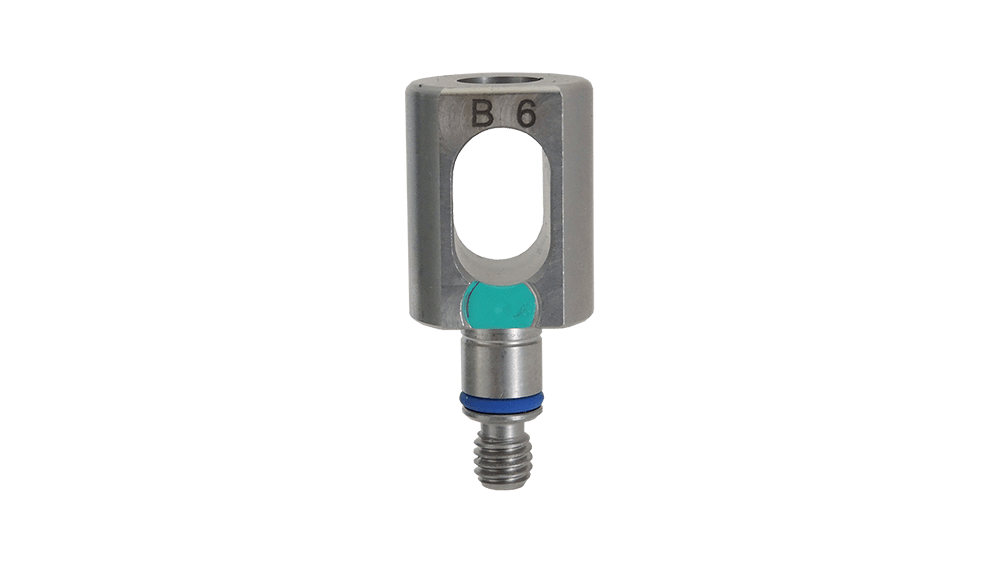

The Tool Box RS-10 | GM, part number 700208, contains the following carefully selected and numbered components: | Part Number | Description | Quantity | Description / Function | | :--- | :--- | :--- | :--- | | 700341 A4 | Ejector shaft with polyurethane spring | 2 pcs | Used for the precise removal of damaged rivets or pins. | | 700270 B6 | Punch and ejector tool | 1 pc | Diameter: Ø 8 mm. For general hole punching and removal tasks. | | 700340 | Tool Set C1 + C2 | 1 pc | Diameter: Ø 6 mm. For setting Flow Form Rivets (FFR). Contains 700256 C1 (Closing tool) and 700257 C2 (Setting tool). | | 700448 C16 | Setting tool for countersunk rivets | 1 pc | Diameter: Ø 6.0 mm. For setting Countersunk Flow Form Rivets (CFFR). | | 700449 K5 | Punch and forming tool | 1 pc | Diameter: Ø 6.0 mm. Preparation step for setting Countersunk Flow Form Rivets (CFFR), includes hole punching and calibration. | | 700352 | Punch and calibrating tool set | 1 pc | Diameter: Ø 6 mm. Preparation step for pressing in Flow Form Rivets (FFR). | | 700264 B4 | Punch and Extractor Tool | 1 pc | Diameter: Ø 6 mm. | | 700348 K1 + K2 | Punch and Forming Tool Set | 2 pcs | Diameter: Ø 6 mm. Preliminary step for setting flow-formed rivets (FFR). Contents: 700319 K1 (Punch) and 700297 K2 (Forming Head). | | 700337 F3 | Extension | 1 pc | 26 mm long extension to improve tool reach. | | 700280 Z1 | Connector | 1 pc | For connecting the B3 + B5, and B7 + B8 punches to the PushPull PP 90 press. | | 700299 Z4 | Assembly Tool | 1 pc | Removal: 2 pcs/package. Attention: For loosening tools, labels, ejector pins, and extensions only, tightening prohibited! | | SKR punch crowns | SKR Punch Crowns | 20 pcs | Diameter: Ø 6 mm. Designed for high-strength sheet metal. |
To increase the efficiency of the set, the following accessory elements are also available (can be purchased separately):
700270 B6 | Punch and Extractor Tool | Ø 8 mm: Further 8 mm punch and extractor unit.
700341 A4 | Extractor Shaft with Polyurethane Spring: Spare part for the extractor shaft.

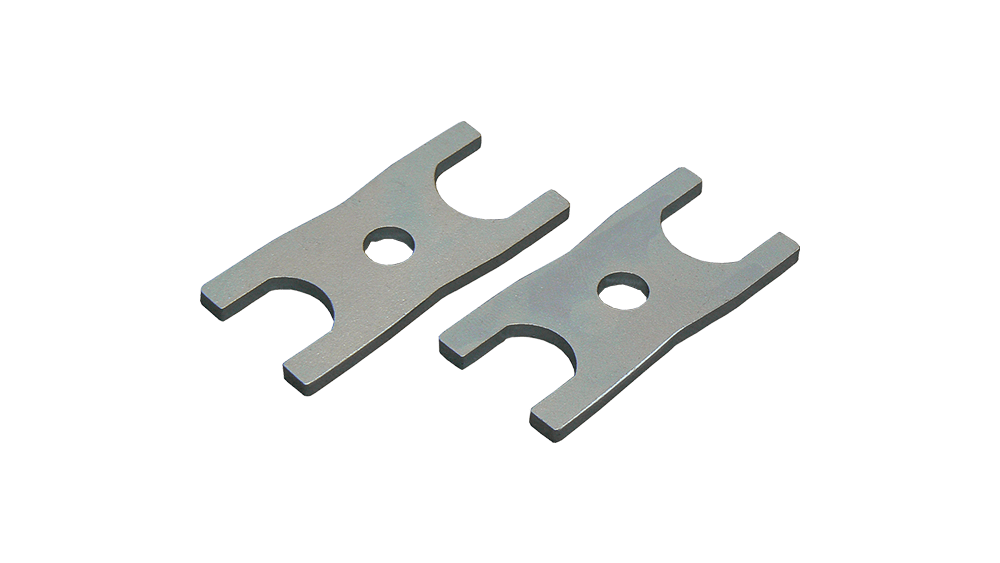

700299 Z4 | Assembly Tool (2 pcs/package): Also available in a separate package.

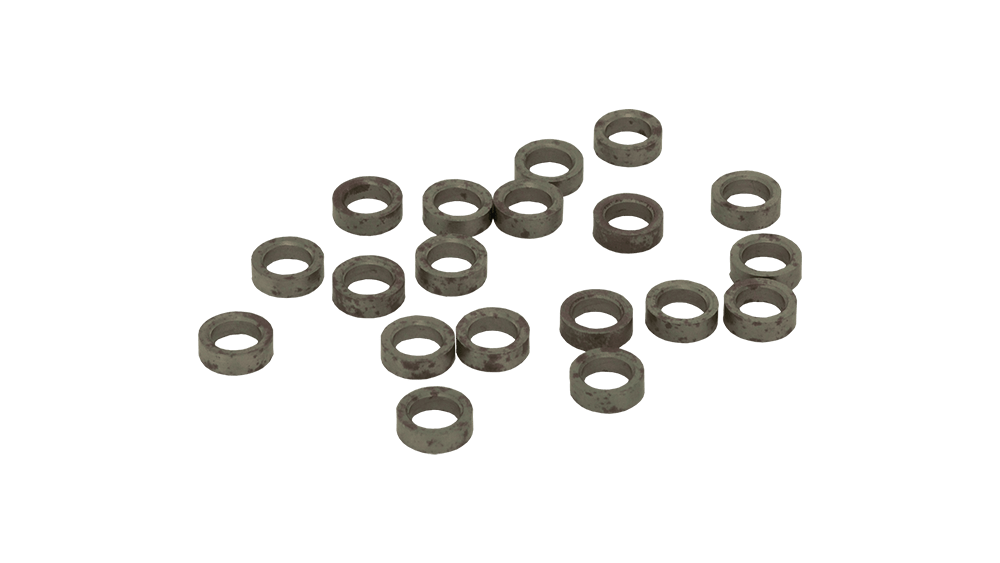

700141 SKR Punch Crowns | Ø 6 mm (50 pcs/package): Replacement crown set for high-strength sheets.
700340 Tool Set C1 + C2 | For Flow-Formed Rivets | Ø 6 mm: Separate set for setting 6 mm FFR rivets.
700448 C16 | Setting Tool for Countersunk Flow-Formed Rivets: Setting tool required for countersunk type rivets.

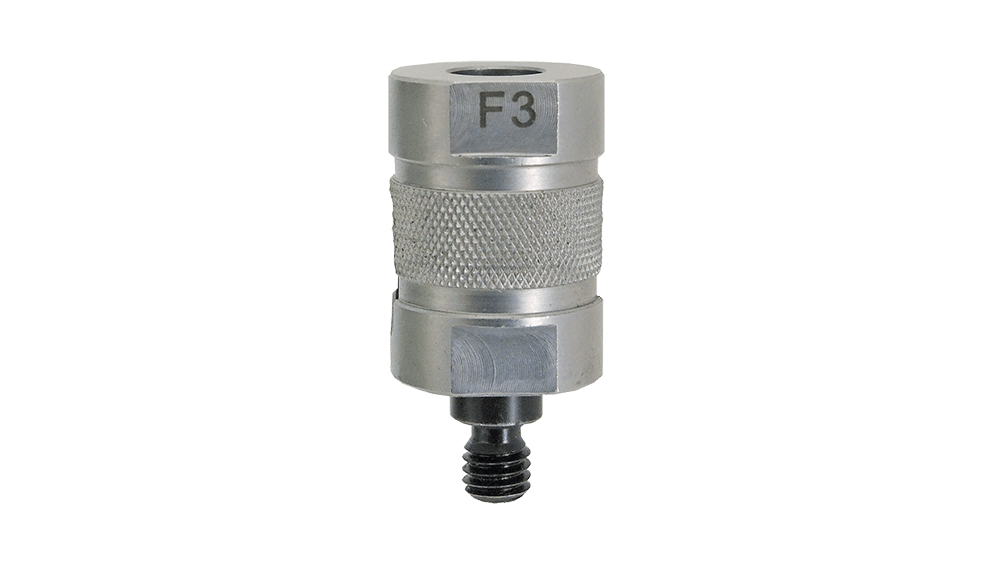

700337 F3 | Extension | 26 mm: Additional extension element.
700280 Z1 | Connector: Connecting element for the PushPull PP 90 press.
700264 B4 | Punching and pulling tool | Ø 6 mm: 6 mm punching unit available separately.

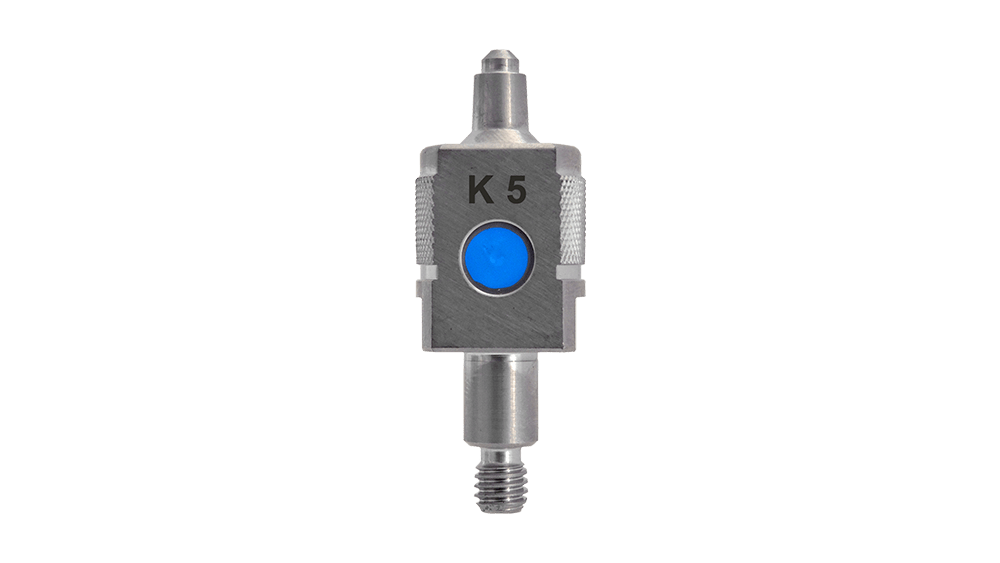

700449 K5 | Punching and forming tool | Ø 6.0 mm: Preparation tool for countersunk rivets.
700348 K1 + K2 | Punching and reshaping tool set | Ø 6 mm: 6 mm FFR preparation set available separately.
700352 Punching and calibrating tool set | Ø 6 mm: Complete set required for the preparation of 6 mm FFR pressing.
This toolbox is part of the professional offering from Wielander + Schill, which guarantees that body repairs on General Motors vehicles are carried out at the highest professional level.
