| Weight | 1 kg |
|---|---|
| Dimensions | 27 × 16 × 5,9 cm |
This product is a universal adapter set specifically for the BRN 50 blind rivet nut adapter designed for use. The set provides the necessary draw adapters for the most common metric sizes, maximizing the versatility of the BRN 50 tool in repair and bodywork tasks. As part of the Wielander + Schill XSeries professional riveting technology, this tool box is essential for precise and reliable fastening work.

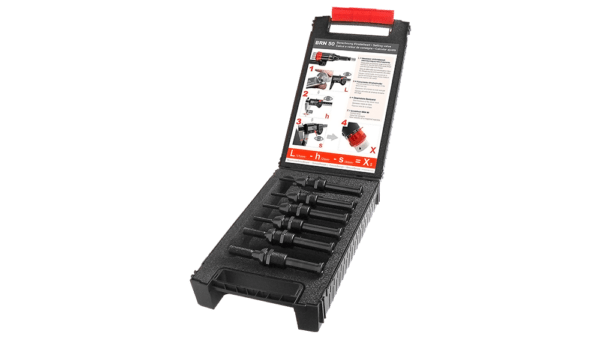

A Tool Box RS-04 | BRN a set made of carefully assembled plastic and steel components, usable together with the BRN 50 blind rivet nut adapter. The goal of the set is to enable users to work quickly and efficiently with various sizes of blind rivet nuts, without needing to purchase each adapter separately. The storage organization (Tool Box) ensures that all necessary components are stored clearly and protected in the workshop or service vehicle.
Important note: Detailed specifications for actual application areas and specific workflows must always be taken from the relevant repair instructions of the respective vehicle manufacturer.
The Tool Box with part number 700201 contains the following high-quality draw adapters that fit the BRN 50 adapter:
| Part number | Description | Thread Size | Thread Size |
|---|---|---|---|
| 700324 | Blind Rivet Nut Draw Adapter | M4 | 25 mm |
| 700325 | Blind Rivet Nut Draw Adapter | M5 | 25 mm |
| 700326 | Blind Rivet Nut Draw Adapter | M6 | 30 mm |
| 700327 | Blind Rivet Nut Draw Adapter | M8 | 25 mm |
| 700328 | Blind Rivet Nut Draw Adapter | M10 | 25 mm |
| 700305 | Blind Rivet Nut Draw Adapter | M12 | 30 mm |
Total Content: 1 set (1 pc)
The Tool Box RS-04 | BRN set is designed with durability and precise fit in mind. The storage elements are made of durable plastic, while the draw adapters are made of high-strength steel, ensuring a long service life even with intensive industrial use. | Property | Value | Comment | | :------ | :------ | :------ | | Part number | 700201 | Product Identifier | | Category | XSeries – Professional Riveting Technology | Product Family | | Application | For BRN 50 blind rivet nut adapter | Compatibility | | Storage Material | Plastic (Kunststoff) | Material of the box | | Adapter Material | Steel (Acél) | Material of the draw elements | | Dimensions (L x W x H) | 270 x 160 x 59 mm | External dimensions of the tool box | | Weight | 1.000 Kg (1.000 kg) | Weight of the entire set |

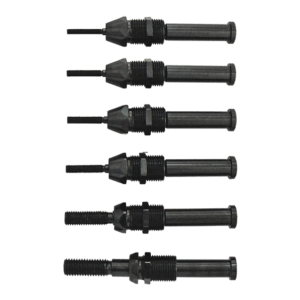

The adapters included in the set have a specific design to optimally fit different thread sizes:
This adapter is designed for the largest size, M12. The 30 mm thread length ensures proper contact and effective pulling power for higher load fastenings. Ideal for thicker sheets or high-demand connections.
The smallest adapter size in the set, for M4 threads. Its 25 mm thread length is ideal for fastening smaller diameter, lighter structural elements where precision is crucial.
The adapter designed for the M5 size has a 25 mm thread length. This size is a common choice for fastening medium-load body panels.
The 30 mm thread length of the M6 adapter is applicable to a wide range of standard fastenings, providing balanced force during the riveting process.
The 25 mm thread length of the M8 adapter is ideal for more robust yet common-sized blind rivet nuts.
The 25 mm thread length of the M10 adapter offers an optimal solution for larger diameter, but not the most massive fastenings.
With the use of the Tool Box RS-04 | BRN, workshops and service centers can save significant time and resources:
Complete Set: The immediate availability of the most important metric sizes minimizes searching and downtimes during work execution.
Organized Storage: The robust plastic case (Tool Box) protects the adapters from damage and contamination while ensuring a transparent organization system.
Professional Quality: The steel adapters guarantee the maximum performance of the BRN 50 adapter and the reliability of the riveting process, meeting strict OEM (Original Equipment Manufacturer) requirements.
Compatibility: Specifically optimized for Wielander + Schill XSeries systems, ensuring seamless integration with the existing toolset.
This toolbox is the cornerstone of professional body repair technology, providing all the necessary tools for fast, precise, and durable blind rivet nut fastenings.
