Wieländer+Schill presents the Caremaster mobile welding fume extractor and filter unit, which is specifically designed for the effective extraction and filtration of fumes generated during the heat treatment of metals (welding, cutting). This robust unit, marked with the CE conformity symbol, offers an ideal solution for workshop environments where mobility and high filtration efficiency are equally essential for preserving the health of employees and the cleanliness of the working environment.
The Caremaster unit combines a user-friendly design with advanced filtration technology:
Dual Extraction Arm: The equipment features two extraction arms equipped with internal joints. This design allows for precise and flexible approach to the fume source.
New Generation Spring Support: Thanks to a new type of spring support system, the extraction arms can be positioned extremely easily and stably in any desired position, minimizing adjustment time.
Adjustable Extraction Hood: The suction head, equipped with an integrated throttle valve in the extraction head, can be freely positioned in all directions, ensuring maximum extraction efficiency directly at the source.
CE Conformity: The equipment complies with Directive 2006/42/EC, guaranteeing adherence to European safety and quality requirements.
IP54 Protection: The high protection rating ensures the reliable operation of the equipment against dust and splashing water under typical workshop conditions.
High Performance: A maximum volumetric flow rate of 3500 m³/h and a maximum negative pressure of 2500 Pa ensure effective fume removal even during intensive work.
The detailed technical parameters of the Caremaster mobile extraction unit can be found in the table below:
| Parameter | Value | Note |
|---|---|---|
| Part number | 881752 | |
| Application | Mobile Extraction and Filtration Unit | For metal heat treatment fumes |
| Supply Voltage | 3 ~ 400 V | Three-phase mains |
| Frequency | 50 – 60 Hz | |
| Power | 2.2 kW | |
| Maximum Volume Flow | 3500 m³/h | |
| Maximum Negative Pressure | 2500 Pa | |
| Fuse | 16 A | |
| Operating Temperature | 5° – 35° C | |
| Air Humidity (max.) | 70% | |
| Protection Class | IP 54 | |
| Conformity Mark | CE (according to 2006/42/EC) | |
| Dimensions (L x W x H) | 665 x 681 x 1175 mm | |
| Weight | 130 kg | |
| Dust class | H, M | |
| Filter Classes | F9, H13 | Multi-stage filtration possibility |
| Filter Type | Pocket filter |
The Caremaster unit utilizes a multi-stage filtration system that guarantees air quality. The system can be flexibly expanded to remove various contaminants (particles and gases/vapors).
For effective and long-lasting operation, the use of the following accessories is recommended:
| Add-on | Part number | Filter class | Description and Function |
|---|---|---|---|
| Particle Filter | 881822 | F9 | F9 class pocket filter set in a robust wooden frame. Basic filtration layer. |

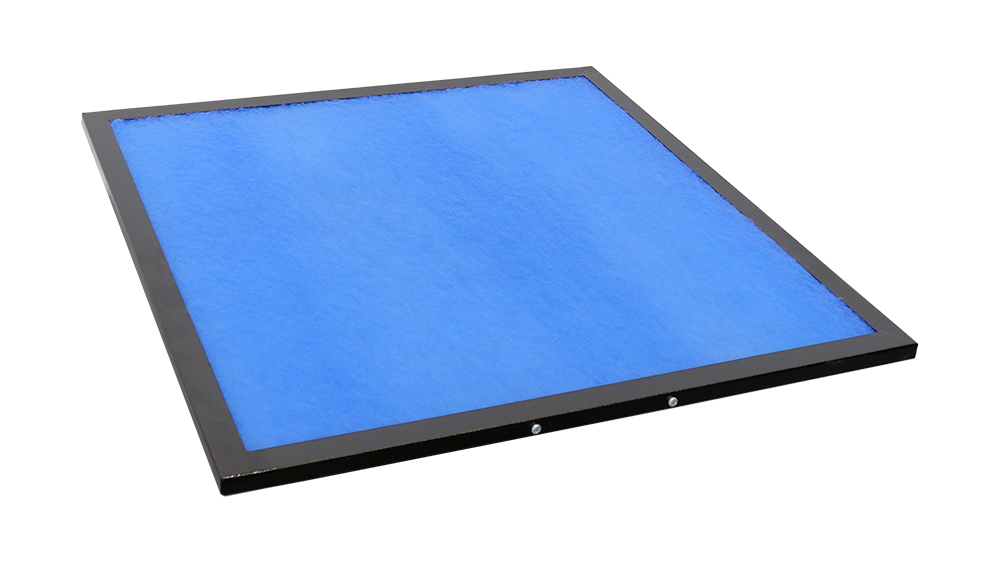

| Pre-Filter Mat | 881810 | M5 (Qty: 10 pcs) | M5 class pre-filter mats. Reliably capture coarse dust particles, thereby protecting downstream filters and increasing their service life. |

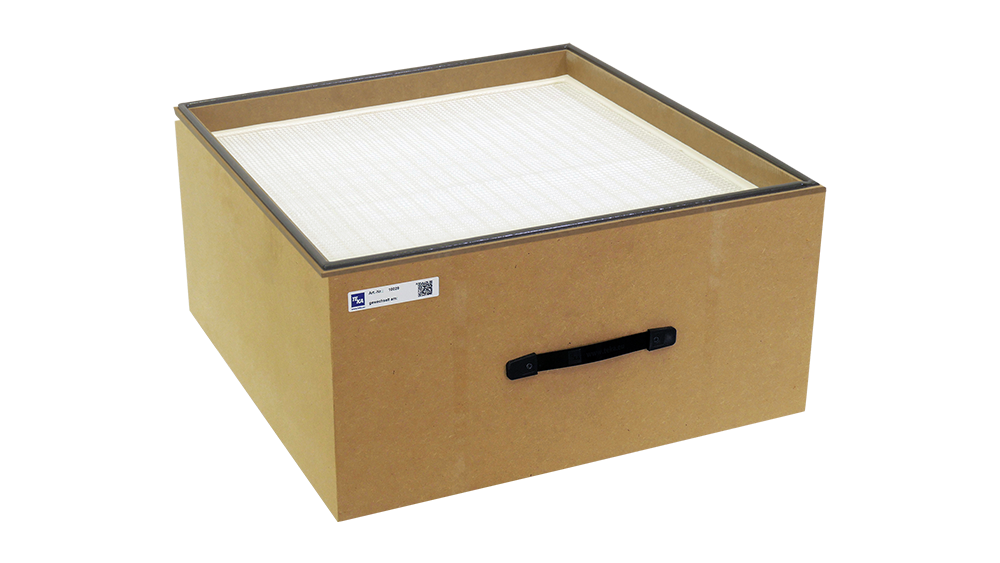

| Particle Filter (HEPA) | 881820 | H13 | H13 class HEPA filter, also in a solid wood frame. Used for removing fine particles. |
| Activated Carbon Filter Cartridge | 881821 | Gas/Vapor Filtration | A cartridge placed in a powder-coated steel housing, containing two specially coated filter inserts and a carefully selected activated carbon filling. Important: Can only be used in conjunction with the H13 particle filter (part number 881820) for effective absorption of gases and vapors. |
M5 Pre-Filtration (881810): Protects more expensive filters from large contaminants, reducing maintenance costs.
F9 Filtration (881822): Provides an adequate filtration level for most common welding dust.
H13 HEPA Filtration (881821 + 881820): Removal of the finest, health-hazardous particles (e.g., fine dusts), ensuring compliance with strict occupational exposure limit values.
Activated Carbon (881821): Effective capture of odors, gases, and vapors generated during welding, improving air quality.
The Caremaster mobile extraction unit is the ideal choice for any professional seeking a reliable, high-performance, and flexibly positionable fume extraction solution in the fields of body repair and metalworking.
