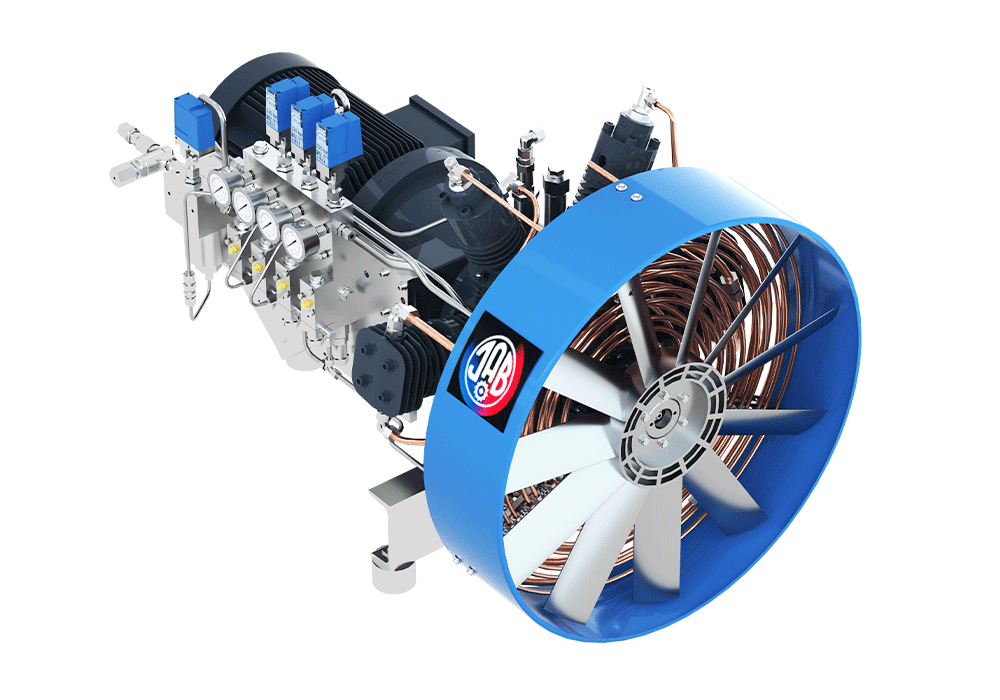

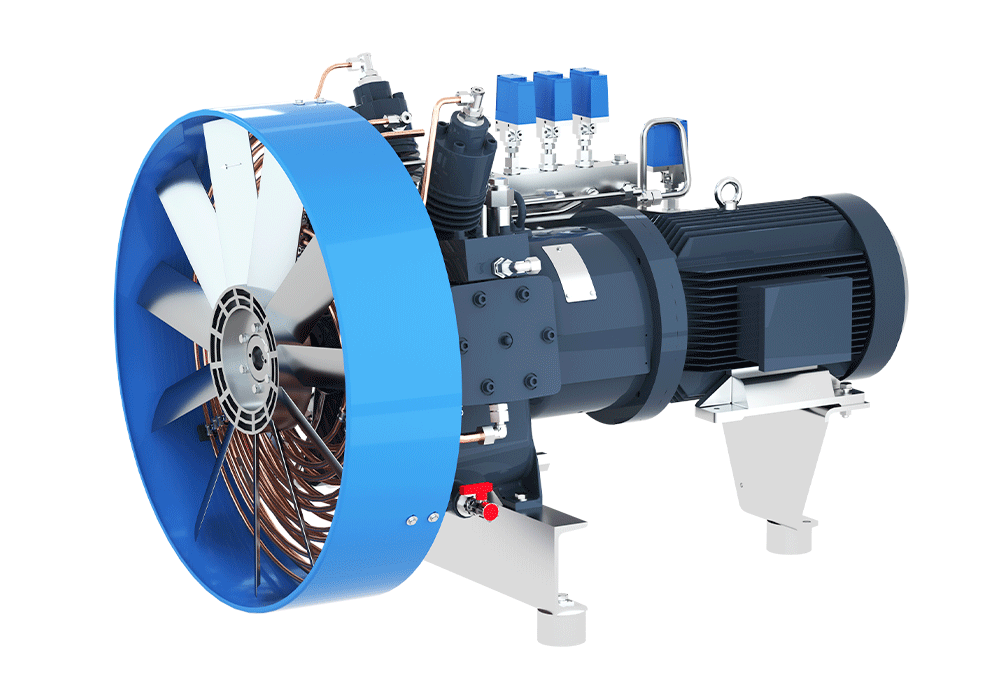

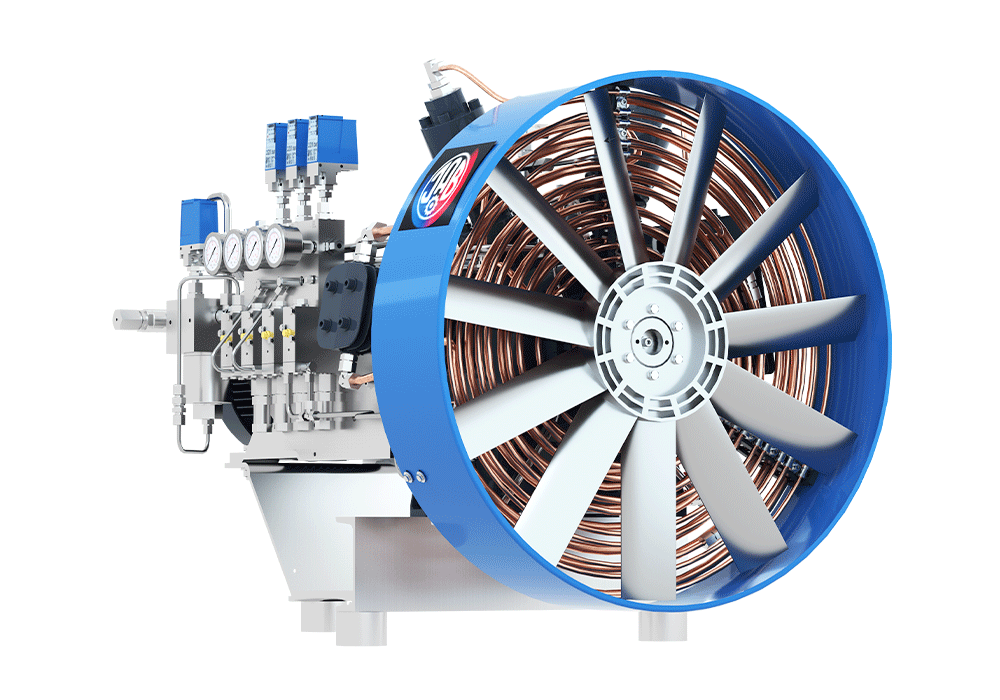

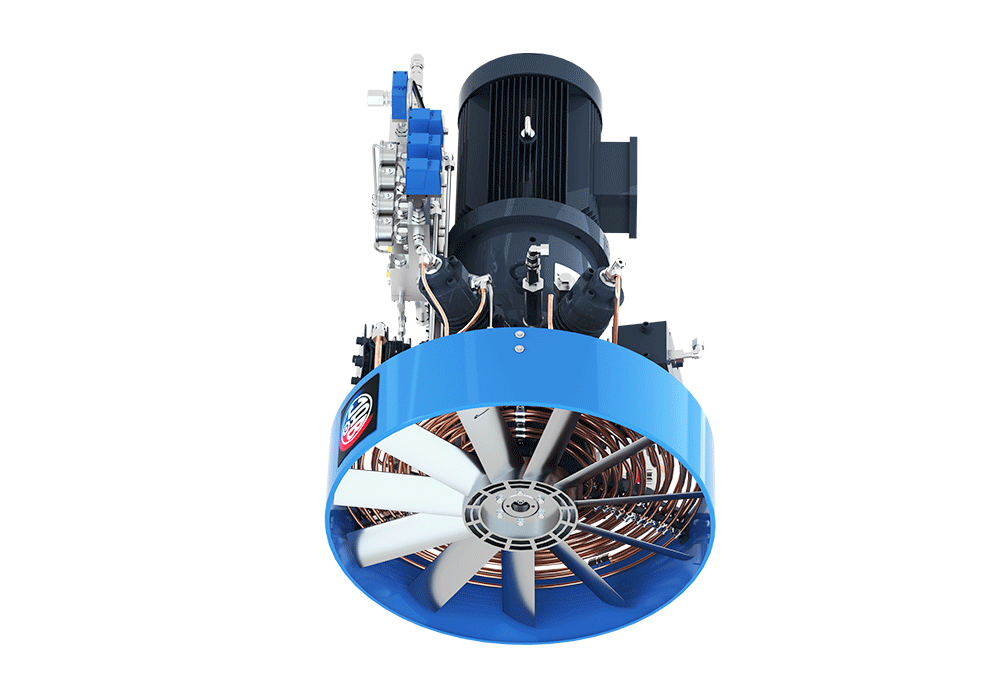

The J.A. Becker & Söhne SVD 700/300 NG model is a diaphragm technology, four-stage nitrogen compressor designed for high-performance, reliable gas compression tasks. This equipment is the ideal choice for industrial applications requiring a stable, high-pressure nitrogen supply with outstanding efficiency and long service life.
The unit reflects J.A. Becker & Söhne's commitment to quality and engineering precision, ensuring that users do not settle for average solutions („NO 08/15 PRODUCTS”).
The SVD 700/300 NG compressor features several outstanding characteristics that guarantee efficient and trouble-free operation:
Excellent Efficient Cooling: The advanced cooling system ensures the optimal operating temperature during the compression process. This not only maintains gas quality but also significantly contributes to the equipment's long service life and energy efficiency.
Fully Automatic Discharge: The fully automated pressure reduction and condensate removal system minimizes the need for human intervention, thus increasing reliability and reducing operating costs.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, maintenance intervals have been significantly extended, ensuring maximum availability in production processes.
High Performance: With a maximum operating pressure of 350 bar and a significant flow rate (46.6 – 59.3 m³/h), the system is capable of meeting even the most demanding industrial requirements.
The precise engineering data of the SVD 700/300 NG compressor guarantees its performance:
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Gas type | Nitrogen (N₂) | – | For Special Applications |
| Pressure stages / Number of cylinders | 4 / 4 | – | Four-stage compression |
| Inlet Pressure (Min/Max) | 0,02 / 0,3 | bar | Low Inlet Pressure Tolerance |
| Flow Rate (Min/Max) | 714 / 910 | l/min | Corresponds to the range 46.6 – 59.3 m³/h |
| Maximum Operating Pressure | 300 | bar | For high-pressure applications |
| Electric Motor Power | 24 | kW | Powerful Drive |
| Motor Speed | 1.500 | rpm | Standard Rotational Speed |
Flow rate conversion according to the specified ranges:
Minimum Flow Rate: $714 text{ l/min} approx 42.84 text{ m³/h}$
Maximum volumetric flow rate: $910 text{ l/min} approx 54.60 text{ m³/h}$
(Note: The values 46.6 – 59.3 m³/h mentioned in the introduction may indicate a range close to, but different from, the measured l/min values, as they are adjusted for specific operating conditions (e.g., inlet pressure). The measured values listed in the table are the most accurate.)
The SVD 700/300 NG is a first-class product in every respect. J.A. Becker & Söhne uses materials and manufacturing processes that comply with the highest quality standards, guaranteeing the long-term, reliable operation of the equipment even in the harshest industrial environments.
The four-stage design allows for gradual gas compression, which reduces the load and heat generation in individual stages, thereby increasing system stability and service life. Achieving the final pressure of 300 bar is accomplished very efficiently thanks to the 24 kW electric drive operating at a speed of 1500 revolutions/minute.
This compressor can be the ideal solution for:
Industrial Gas Filling Stations: For fast and safe filling of large quantities of nitrogen.
Laboratory and Research Applications: For a stable, high-pressure gas supply.
Special Manufacturing Processes: Where precise pressure nitrogen is required for process control.
The equipment design places great emphasis on easy accessibility for planned maintenance tasks, even though maintenance cycles are long. Highly efficient cooling is crucial for maintaining the thermal stability of the compressor, especially in high-pressure stages.
The expertise behind the J.A. Becker & Söhne products and rigorous quality control guarantee that the SVD 700/300 NG model is an investment that pays off in the long run due to its reliability and low operating costs.
