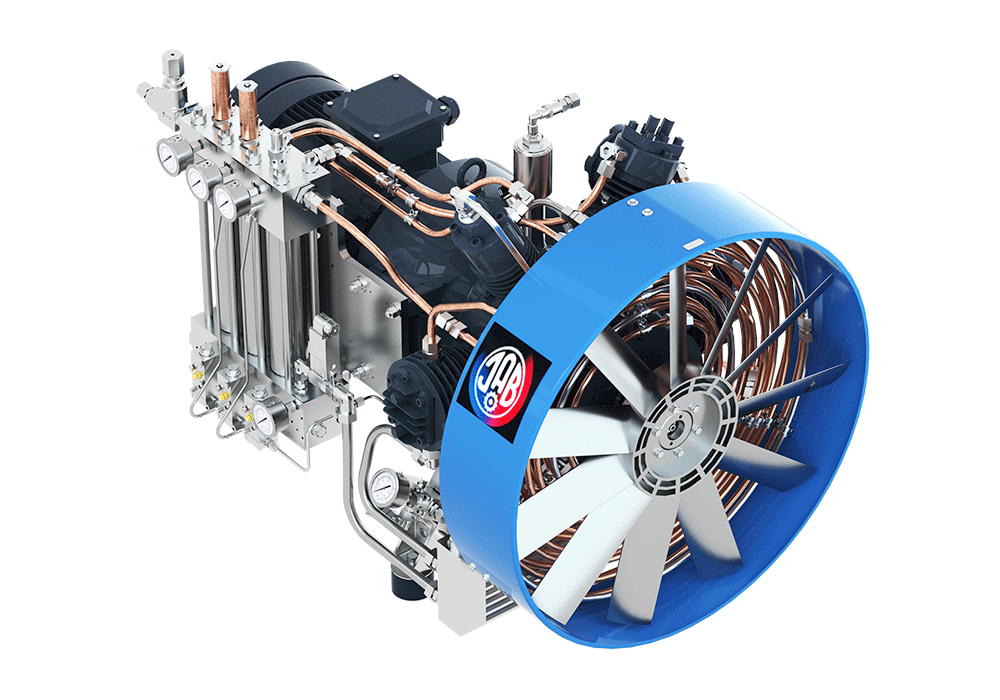

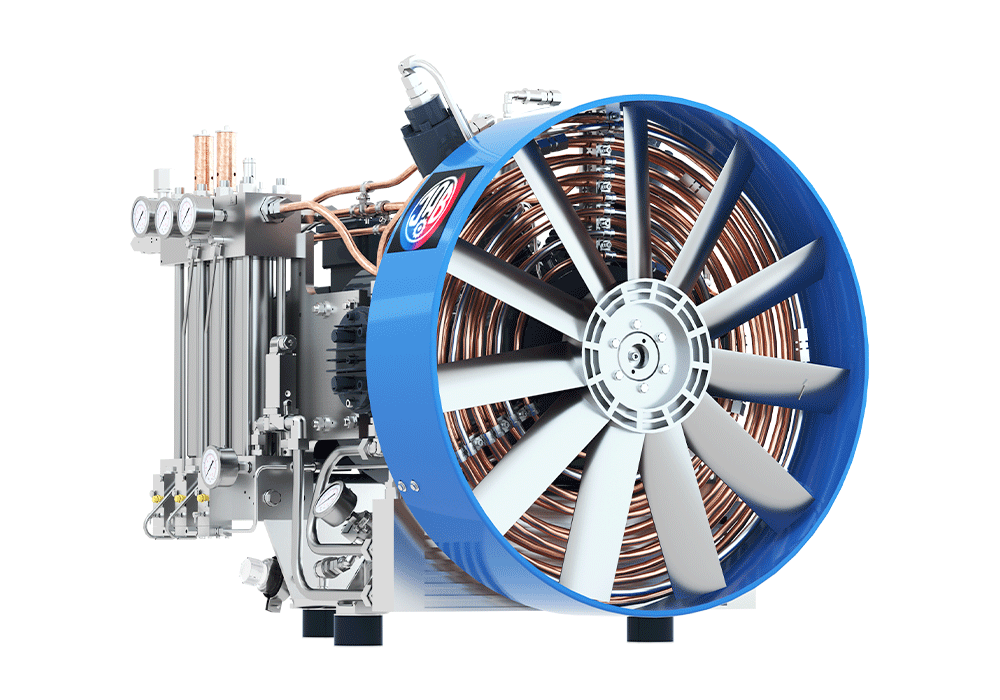

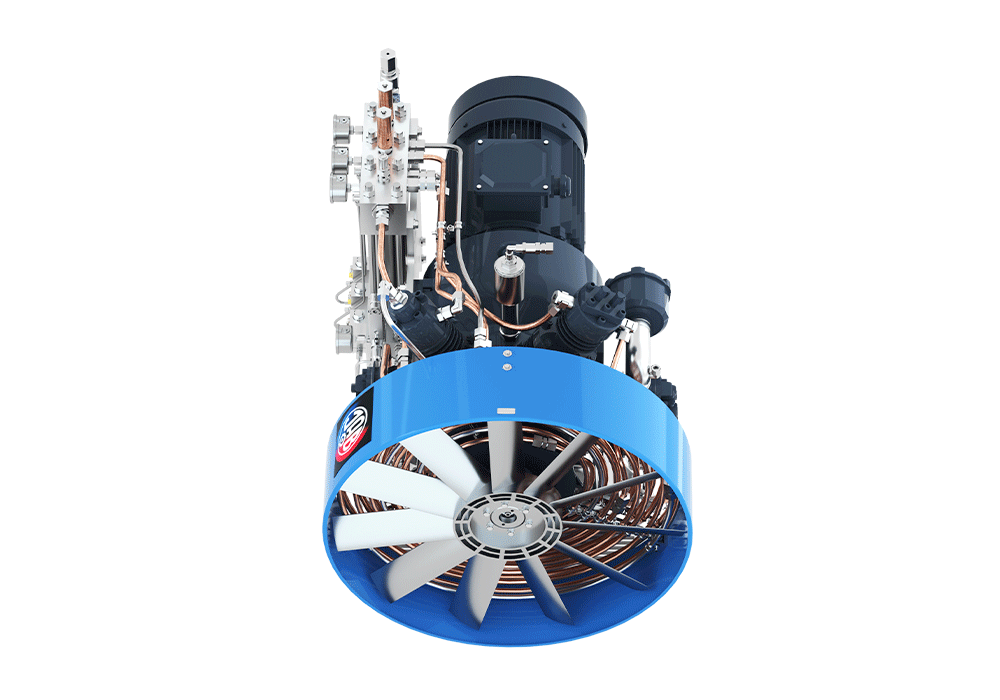

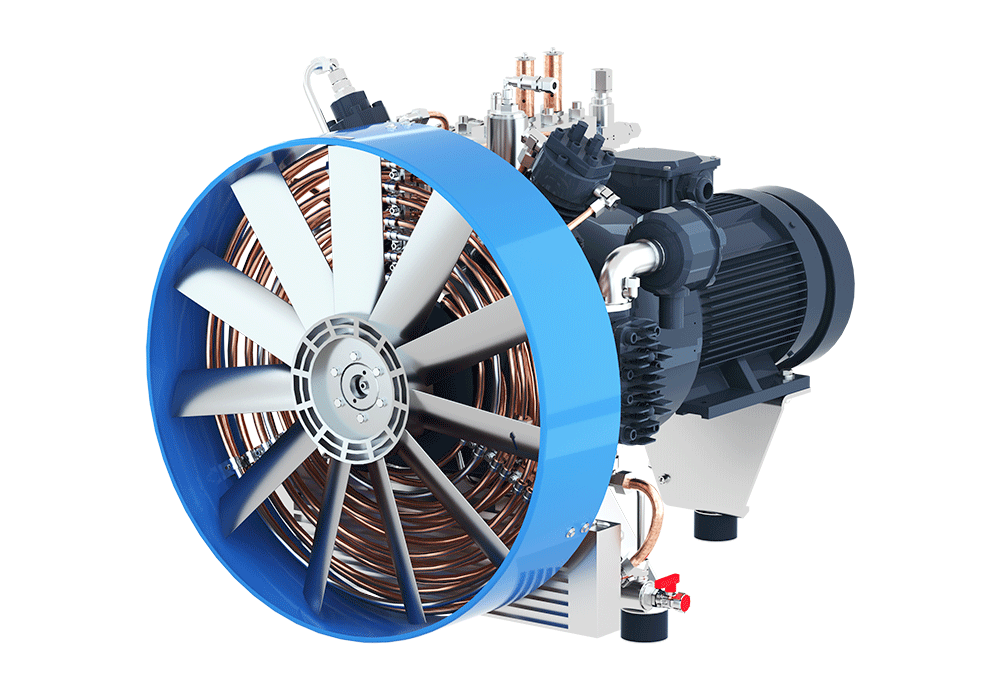

The J.A. Becker & Söhne SVC 300/250 model is a chuck-class, four-stage air compressor designed for high-performance, reliable compressed air supply. This equipment is an ideal choice for industrial applications requiring extremely high operating pressures while prioritizing efficiency and long service life.
The compressor reflects J.A. Becker & Söhne's commitment to quality and the „NO 08/15 PRODUCTS” (No Average Product) philosophy, ensuring every single unit represents the highest technical standard.
The SVC 300/250 compressor features several outstanding characteristics that ensure excellent operating parameters and low maintenance requirements:
High-efficiency cooling: The advanced cooling system minimizes heat generation during the compression process, which increases system reliability and extends the lifespan of the components. This is particularly critical in high-pressure applications.
Fully automatic condensate drain: The built-in automatic dryer system ensures continuous and reliable removal of moisture (condensate) separated from the compressed air. This prevents system corrosion and degradation of compressed air quality, thereby reducing the need for user intervention.
Long maintenance intervals: As a result of the robust construction and high-quality components, maintenance cycles are significantly extended, optimizing uptime and reducing operating costs.
Outstanding quality in every respect: Every detail of the product is designed to meet the highest quality standards, ensuring long-term, trouble-free operation.
The performance and capabilities of the SVC 300/250 compressor are supported by the following detailed technical specifications:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow (Volume flow) | 300 | l/min | Suction side volumetric flow |
| Maximum operating pressure (Max. operating pressure) | 250 | bar | Maximum pressure achievable by the system |
| Pressure stages / Cylinder | 4 / 4 | – | Four-stage compression arrangement |
| Electric motor power | 9 | kW | Drive unit power |
| Speed (Speed) | 1.500 | RPM (revolutions/minute) | Electric motor nominal speed |
Further specifications (based on data mentioned in the text but not present in the table):
Volumetric flow (Converted value): 17.4 m³/h (cubic meters/hour)
Operating pressure (Converted value): 350 bar (Note: Although the main table mentions 250 bar, the introductory text also mentions 350 bar operating pressure, which may indicate the high-pressure capability of the model family, but 250 bar is authoritative for the specific SVC 300/250 model.)
The SVC 300/250 compressor, capable of reaching an extremely high pressure of 250 bar, is the ideal choice for critical areas where compressed air quality and pressure are of fundamental importance:
High-pressure filling stations: Ideal for systems operating with compressed air, for example, for filling breathing air cylinders or special industrial gas accumulators.
Industrial processes: Manufacturing processes that require precise, high-pressure air for operation.
Laboratory and research purposes: Ensuring stable and clean, high-pressure air for special experiments.
Workshops and service centers: Serving lifting equipment (Lifting technology) and other high-performance pneumatic systems.
J.A. Becker & Söhne provides comprehensive documentation for the product so that users have full information for installation, operation, and maintenance.
Downloadable Documentation:
Data sheet: Detailed technical descriptions and dimensions.
Brochure: Comprehensive product information and application examples for HD air compressors.
This compressor is the pinnacle of J.A. Becker & Söhne's engineering expertise, guaranteeing reliability and performance even in the most demanding industrial environments.
