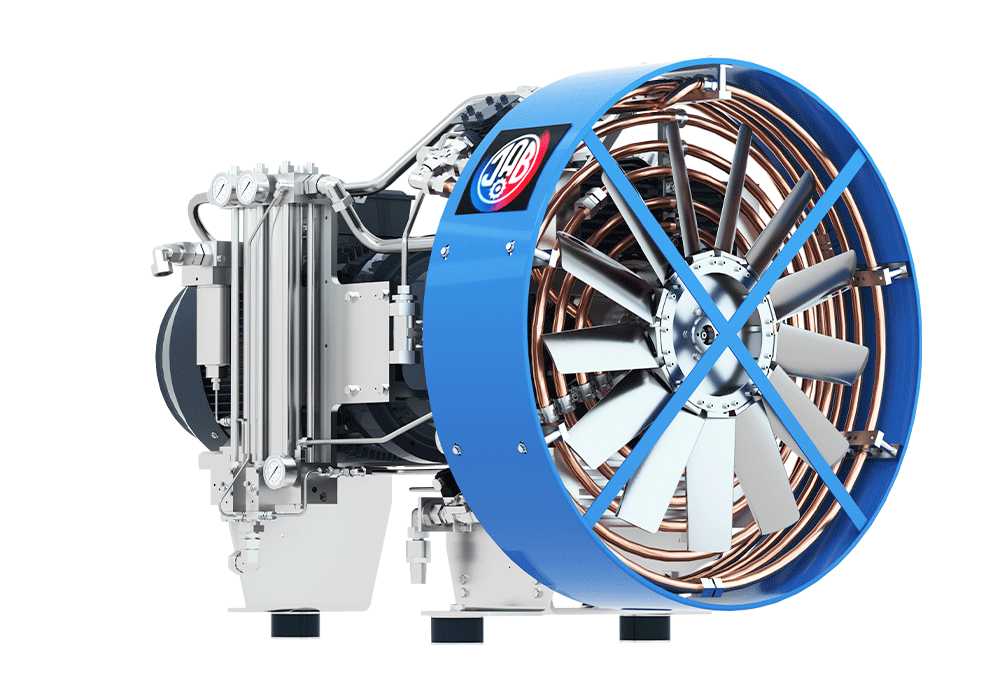

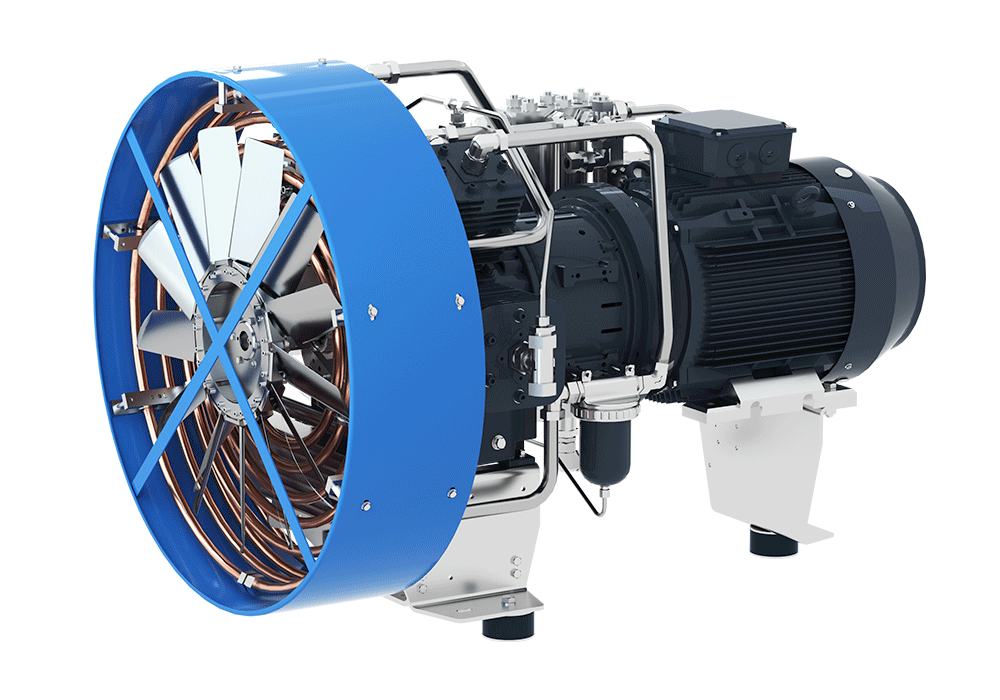

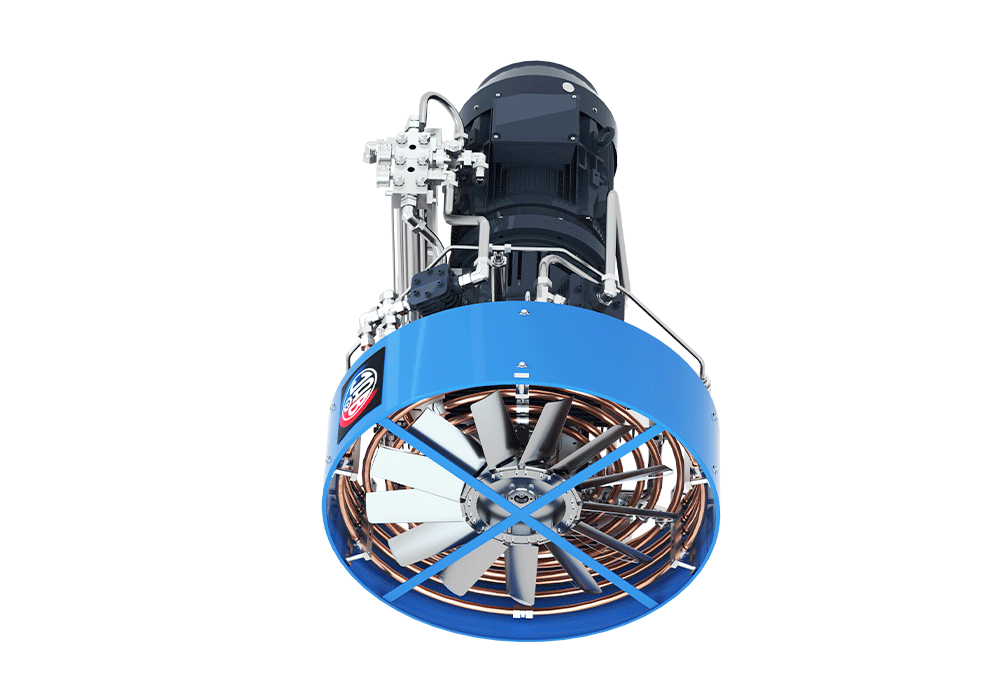

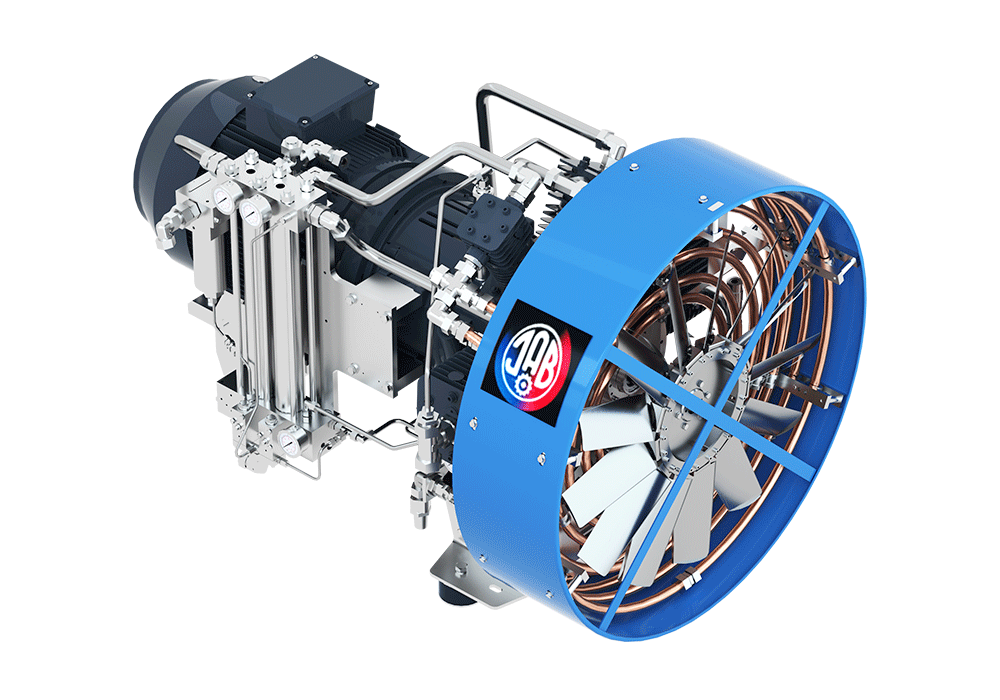

J.A. Becker & Söhne proudly presents the SV 2400/50 He típusú hélium kompresszort, amely egy csúcstechnológiájú, háromlépcsős berendezés, kifejezetten a nagy teljesítményű hélium-visszanyerési és -kompressziós feladatokhoz tervezve. Ez a modell a megbízhatóság, a magas hatékonyság és a hosszú élettartam ötvözetét kínálja az ipari alkalmazások legszigorúbb követelményeinek kielégítésére.
The SV 2400/50 He is excellently suited for areas where precise and high-volume helium handling is required, whether for research, development, or special industrial processes.
This compressor is not an „ordinary” (NO 08/15) solution, but a premium category device with several outstanding features:
Outstandingly Efficient Cooling: The advanced cooling system ensures optimal operating temperature between the compression stages, thereby maximizing efficiency and minimizing helium loss while protecting internal components from overheating.
Fully Automatic Draining (Discharge): The built-in, fully automated draining function ensures regular and reliable removal of condensate and unwanted by-products from the system, reducing the need for manual intervention and increasing operational reliability.
Long Maintenance Cycles: Thanks to its robust construction and high-quality materials, the machine features long maintenance intervals, significantly reducing downtime and operating costs.
First-Class Engineering: A first-class product in every respect, guaranteeing long-term, trouble-free operation even under the most demanding conditions.
The detailed technical specifications for the SV 2400/50 He helium compressor are as follows:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow | 2.350 | l/min | Corresponds to 141.0 m³/h value |
| Maximum Operating Pressure | 40 | bar | The final pressure achievable by the system |
| Compression Stages / Cylinder | 3 / 4 | – | Three-stage compression, with four cylinders |
| Electric Motor Power | 37 | kW | Drive unit power |
| Rotational speed | 1.500 | RPM (revolutions/minute) | Operating speed of the motor and drive |
The device three-stage design ensures efficient and gradual compression of helium up to the desired pressure of 40 bar. The 4-cylinder arrangement optimizes load distribution and vibration. The 37 kW electric motor drives the system at 1500 revolutions/minute, resulting in a volumetric flow rate of 2350 liters/minute (141 m³/h) at maximum pressure.
Further detailed information about the product, including the complete technical datasheet and product brochure, is also available for download:
This unit represents the pinnacle of J.A. Becker & Söhne engineering expertise, guaranteeing precise gas handling and long-term, economical operation. Our experts are available for any special requirements or consultation.
