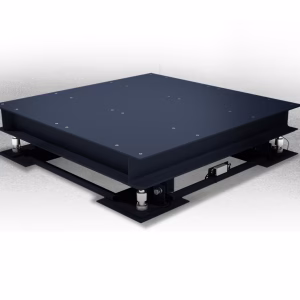

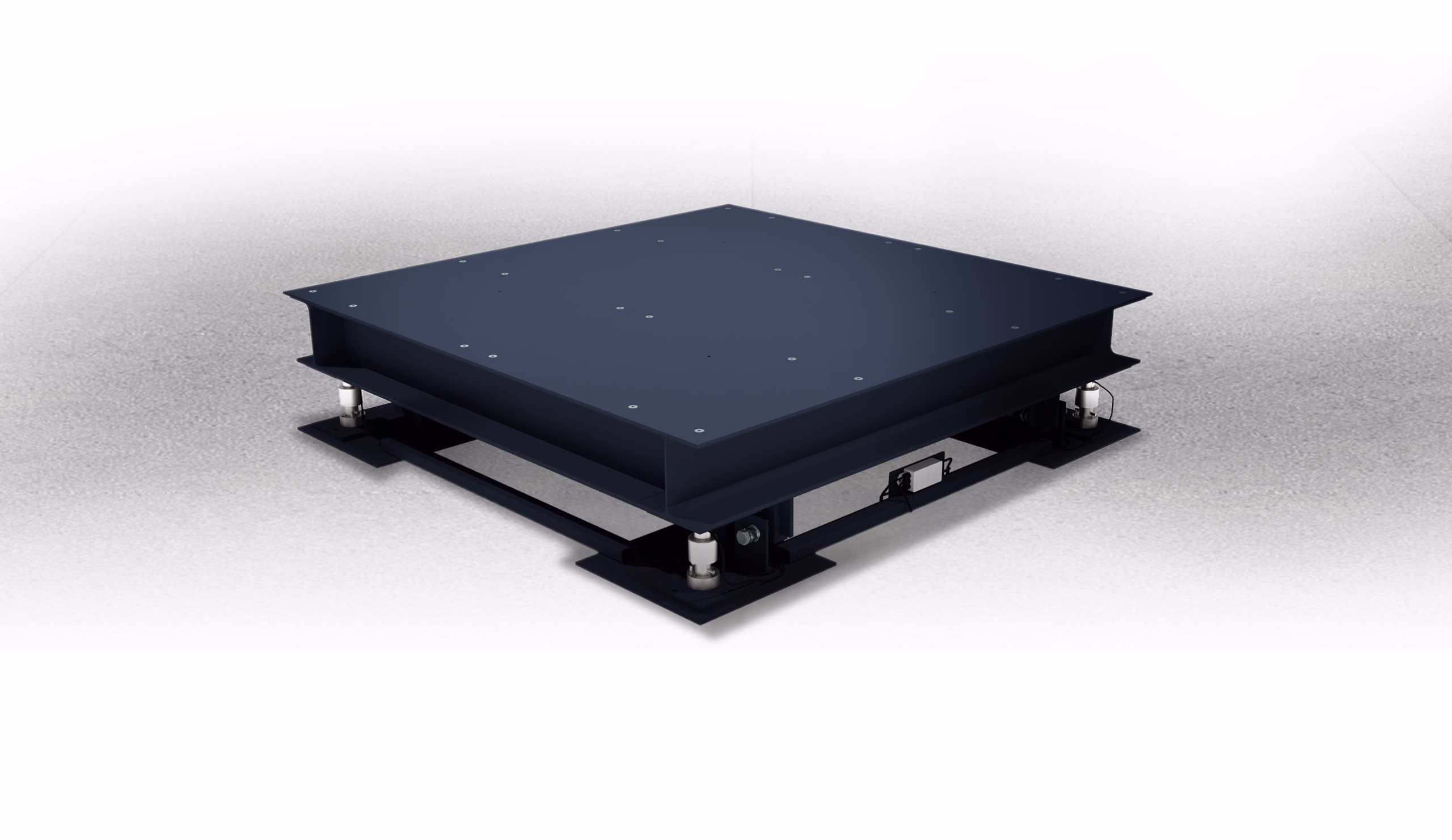

P4A és P4A-R Sorozatú Platform Mérleg Tekercsekhez – Robusztus és Precíz Megoldás Nehéz Terhek Mérésére
The P4A and P4A-R series platform scales are specifically designed for high-capacity industrial applications, such as weighing coils, large stones, or blocks. These weighing systems combine exceptional strength and accuracy for reliable operation in the most demanding environments.
Key Features and Construction Advantages
The basis of the P4A series platforms is an extremely durable structure that guarantees a long service life and high load-bearing capacity.
Robust Design and Load Capacity
The weighing platforms feature high-caliber columns and a frame made of laminated H-profiles, which ensures the necessary rigidity and stability. This design allows the platforms to safely bear loads of up to
30,000 kg (30 tons) in weight.
- Robust Structure: The H-profile, laminated construction ensures maximum resistance to mechanical stress.
- Application Areas: Ideal for quarry, stone quarry, and other heavy industry operations where large, heavy materials need to be accurately weighed.
- CE-M Certification: The P4A series platforms have CE-M legal metrology approval, ensuring that measurements are officially acceptable in commercial trade.
Safety and Ergonomic Solutions
Special attention was paid to safety and ease of operation during the design phase:
- Base Fixing System: The scale base includes a fixing system that stably holds the anti-tilt elements and prevents the accidental detachment of the load cells.
- Ergonomic Design: The user-friendly design facilitates installation and daily use.
Coil-Specific Accessories
For weighing coils, special accessories are available for maximum safety and precision:
- Levehető Ékek Tekercsekhez: These accessories mount onto the coil supports, preventing the coils from shifting during the weighing process. This significantly increases reliability and safety when handling heavy, rolling objects.
G8R Stainless Steel Load Cells
The reliability of the P4A platforms is ensured by the excellent quality G8R load cells, which have been optimized for the harshest industrial environments.
Technical Specifications (G8R)
| Characteristic |
Description |
| Material |
Stainless steel |
| Welding |
Lézer hegesztett |
| Protection |
Protection against electric shock |
| Sealing |
IP69K |
| Application |
Any industrial environment |
The IP69K sealing standard guarantees that the cells resist high-pressure, high-temperature water jets and dust ingress, making them ideal for use in wet or contaminated environments. The stainless steel construction and laser welding ensure long-term corrosion resistance and reliability.
Platform Dimensions and Capacities
The P4A/P4A-R series is available in multiple sizes and load capacity categories to satisfy every unique requirement.
Important Note: A 3000 x 3000 mm -es platformokat szállításkor különálló modulokban szállítják, amelyeket a telepítési helyszínen kell összeszerelni.
| Dimensions (mm) |
Capacity (kg) |
Readability (kg) |
Painted Version |
Galvanized Version |
| 1500 x 1500 |
15000 |
5 |
• |
• |
| 1500 x 1500 |
30000 |
10 |
• |
• |
| 2000 x 2000 |
15000 |
5 |
• |
• |
| 2000 x 2000 |
30000 |
10 |
• |
• |
| 2400 x 2400 |
15000 |
5 |
• |
• |
| 2400 x 2400 |
30000 |
10 |
• |
• |
| 3000 x 3000 |
15000 |
5 |
• |
• |
| 3000 x 3000 |
30000 |
10 |
• |
• |
Note: In the table, „•” indicates the available version (painted or galvanized).
Testre szabhatóság és Kiegészítő Rendszerek
The flexibility of the system is ensured by a wide range of customization options. Numerous accessories and extra components are available for the platforms, enabling the optimal adjustment of the product to the client's specific needs.
BPPCE EVO Modular Weighing Station
The BPPCE EVO is an all-metal, modular weighbridge system that is also exceptionally suitable for weighing trucks.
- Installation Options: Telepíthető felépítménnyel vagy süllyesztve.
- Corrosion Protection: Optionally available with a galvanized coating, which ensures increased resistance to corrosion.
GI400i LCD Stainless Steel Indicator
The indicator, used for displaying and managing measurement data, has several advanced functions:
- Memory: Képes akár 6 manuálisan bevezetett kísérő súly (tára) érték tárolására (TLU memória).
- Output: The receipts can be printed in up to 8 different formats and in multiple languages.
- Configuration: Stainless steel housing that resists harsh industrial environments.
Columns
A mérőrendszerhez külön oszlopok is kaphatók, amelyek a mérőindikátor (pl.: GI400i) elhelyezésére szolgálnak, biztosítva az optimális vizuális hozzáférést a kezelő számára.
Summary
A P4A/P4A-R platform mérlegek a nagy teherbírású mérés etalonjai. A rendkívül szilárd, H-profil alapú szerkezet, a CE-M hitelesítés, a G8R IP69K minősítésű rozsdamentes acél cellák és a speciális tekercs-rögzítő kiegészítők együttesen garantálják a precíz, biztonságos és hosszú távon megbízható működést a legkeményebb ipari körülmények között is. A testre szabható opciók (festett/horganyzott kivitel, különböző méretek) lehetővé teszik a rendszer tökéletes integrálását bármilyen bányászati vagy nehézipari folyamatba.
