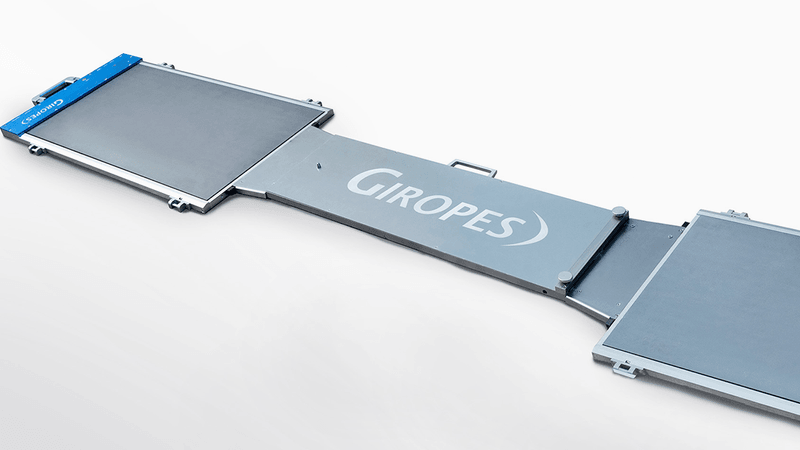

BPRG / BPRG-W Portable Weighing Platform System – Static and Dynamic Weight Checking
The BPRG / BPRG-W wheel weighing platform system is an extremely flexible and robust solution for accurately checking vehicle axle weights under both static and dynamic conditions. This system is critically important in minimizing the safety risks caused by overloaded vehicles, ensuring compliance with road traffic regulations.
The lightweight yet high-capacity design of the BPRG platforms makes them ideal for mobile applications, while the optional wireless feature offers maximum flexibility during installation.
Key Features and Advantages
-
Versatile Measurement: Allows checking the weight of the wheels in both static (stationary position), and dynamic (while moving) modes.
-
Road Safety: Significantly increases safety by identifying and preventing overloaded vehicles from entering traffic.
-
OIML R134 Approval: It possesses OIML R134 certification for dynamic weighing, which guarantees measurement accuracy and legal compliance for in-motion applications.
-

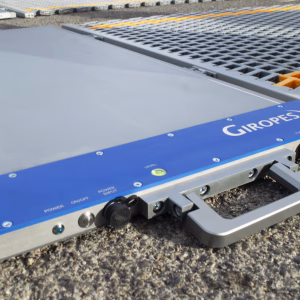

Robust and Portable Design: The aluminum structure ensures long life and easy portability.
-
Alacsony Profil: The platform height is only 23 mm, which facilitates vehicle approach, minimizing errors due to the approach angle.
-
Customizability: A kiegészítők és további platformok széles választéka lehetővé teszi a rendszer egyedi vevői igényekhez való teljes körű személyre szabását.
Technical Specifications
The BPRG system is available in different configurations with varying dimensions and capacities.
Platform Capacity and Dimensions
| Reference |
Width (mm) |
Length (mm) |
Capacity (kg) |
Precision (kg) |
Wireless Option |
Legal Metrology |
| BPRG / BPRG-W |
700 |
389 |
10,000 – 15,000 kg/platform |
5 |
Optional |
OIML R134 (Dynamic) |
| Platform Height |
N/A |
N/A |
N/A |
N/A |
N/A |
23 mm |
Basic Capacity Range: Between 10,000 kg and 15,000 kg per platform.
Available Platform Dimensions (Width x Length):
-
700 x 389 mm
-
890 x 389 mm
Detailed Configuration Table
The system is available in several kits (KIT), including the legal metrology (M) options:
| Model |
Width (mm) |
Capacity (kg) |
Precision (kg) |
Wireless |
Legal Metrology (M) |
| KIT BPRG |
700 x 350 |
10000 |
5 |
No |
No |
| KIT BPRG |
700 x 350 |
15000 |
5 |
No |
No |
| KIT BPRG-W |
700 x 350 |
10000 |
5 |
Yes (·) |
No |
| KIT BPRG-W |
700 x 350 |
15000 |
5 |
Yes (·) |
No |
| KIT BPRG |
890 x 350 |
10000 |
5 |
No |
No |
| KIT BPRG |
890 x 350 |
15000 |
5 |
No |
No |
| KIT BPRG-W |
890 x 350 |
10000 |
5 |
Yes (·) |
No |
| KIT BPRG-W |
890 x 350 |
15000 |
5 |
Yes (·) |
No |
| MKIT BPRG |
700 x 350 |
10000 |
5 |
No |
Yes (0) |
| MKIT BPRG |
700 x 350 |
15000 |
5 |
No |
Yes (0) |
| MKIT BPRG-W |
700 x 350 |
10000 |
5 |
Yes (·) |
Yes (0) |
| MKIT BPRG-W |
700 x 350 |
15000 |
5 |
Yes (·) |
Yes (0) |
| MKIT BPRG |
890 x 350 |
10000 |
5 |
No |
Yes (0) |
| MKIT BPRG |
890 x 350 |
15000 |
5 |
No |
Yes (0) |
| MKIT BPRG-W |
890 x 350 |
10000 |
5 |
Yes (·) |
Yes (0) |
| MKIT BPRG-W |
890 x 350 |
15000 |
5 |
Yes (·) |
Yes (0) |
Note: The dimensions 700 x 350 mm and 890 x 350 mm listed in the table indicate the actual measuring surface of the platforms, which are part of the complete kit.
System Components and Accessories
The BPRG platforms are intrinsically functional, but additional specific components are required to build the complete system and perform dynamic weighing:
GI620 Hordozható Kijelző
A GI620 egy dedikált, hordozható kijelző, amelyet kifejezetten a hordozható mérőplatformokhoz terveztek. Ez az egység biztosítja a mért adatok megjelenítését és feldolgozását.
GesDyn Software
A GesDyn a Giropes által fejlesztett speciális szoftver, amely a mozgásban lévő járművek mérésére (dinamikus mérés) szolgál. Ez a rendszer kulcsfontosságú a forgalomban lévő járművek súlyának észlelése és a szabályszegések (túlsúly) szankcionálása szempontjából.
Kiegészítők a Testre szabáshoz és Optimalizáláshoz
-

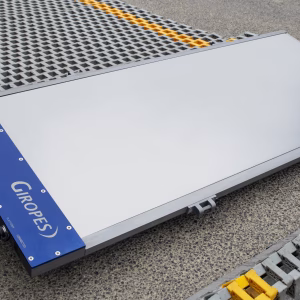

Platform Készlet Szintkiegyenlítő Szőnyeggel: Accessory mat for the platforms, which can help in smoothing out uneven ground and increasing stability.
-
Tengelysúly Differenciálás: Functions and settings that allow for the precise separation of the weight resting on each axle of the vehicle.
-
Pozicionáló: A device that assists in setting the optimal placement of the two platforms before starting the measurement, ensuring the most accurate result.
-

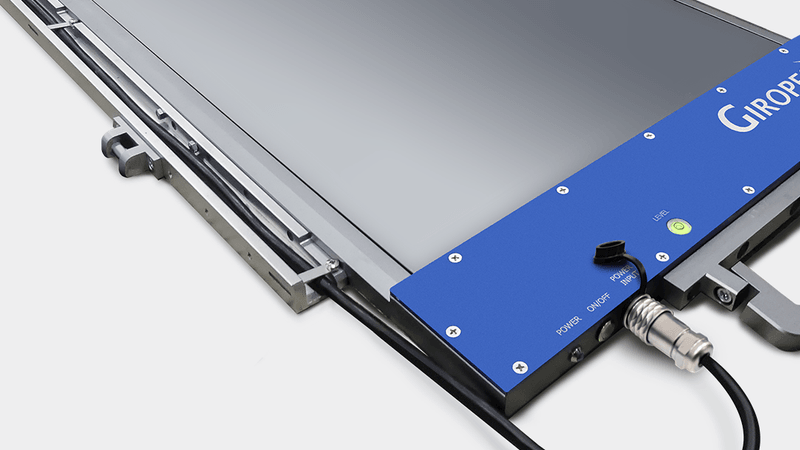

Cabling and Cable Protection: Cables and protective elements required for the wireless version. Important: A vezeték nélküli verzió without cable feed-through and connection cable is supplied to the display, as communication takes place via radio frequency.
Application Areas
The BPRG system is excellently applicable:
-
Public Checkpoints: Border crossings, highway exits, and police checkpoints.
-
Logistics Hubs: Freight distribution centers, ports, and rail terminals where loading and unloading require weight checking.
-
Construction Sites and Mining: Monitoring the weight of heavy-duty machinery and trucks.
The BPRG / BPRG-W system is a professional solution combining precision, mobility, and legal compliance for weighing tasks.
