This product is a high-quality, precisely designed ceramic gas nozzle specifically engineered for TIG (Tungsten Inert Gas) welding torches. The component offered by Wieländer+Schill ensures the reliability of welding processes and the optimal flow of shielding gas, which is essential for a high-quality and durable joint.
The nozzle is the ideal choice for SR 17, SR 18, and SR 26 type TIG welding torches, ensuring the precision required for professional automotive repair and metal industry applications.
| Property | Value |
|---|---|
| Part number | 337131 |
| Material | Ceramics |
| Compatible Torches | TIG SR 17, SR 18, SR 26 |
| Length | 47.0 mm |
| Diameter (Ø) | 11.0 mm |
| External Dimensions (Length x Width x Height) | 15 x 15 x 50 mm |
During welding, the gas nozzle plays a crucial role in protecting the weld zone. Nozzles made of ceramic material feature outstanding heat resistance, significantly increasing their lifespan compared to traditional materials, especially during high-temperature or intensive welding cycles.
The excellent insulating capability of the ceramic ensures that the nozzle does not deform or melt under the direct heat influence of the welding arc. This property guarantees a steady and undisturbed flow of shielding gas (usually argon) throughout the entire welding process. The 11.0 mm diameter (Size 7) is the ideal choice for applications requiring a wider shielding gas cup for larger weld seams or thicker materials.
The precisely defined 47.0 mm length and 11.0 mm inner diameter ensures a perfect fit for compatible TIG torches (SR 17, SR 18, SR 26). The component manufactured with tight tolerances minimizes vibration and movement of the nozzle during operation, contributing to the aesthetic quality and mechanical strength of the weld seam.
This ceramic gas nozzle is an indispensable accessory for professionals working in the following areas:
Body Repair: Especially when welding aluminum and stainless steel, where pure shielding gas is essential to prevent oxidation.
Precision Mechanics: Jobs where precise arc control and a clean weld surface are critical.
General Metalworking: Any TIG welding task requiring a reliable, long-life consumable.
The product is part of the extensive welding technology range from Wieländer+Schill, developed to meet the highest industrial standards.
| Technical Parameter | Spezification |
|---|---|
| Product Family | Welding Technology / Shielded Arc Welding |
| Nozzle Type | Ceramic Gas Nozzle |
| Size (Standard Marking) | Size 7 |
| Nominal Diameter | 11.0 mm |
| Total Length | 47.0 mm |
| External Dimensions | 15 mm x 15 mm x 50 mm |
| Manufacturer Part Number | 337131 |
This nozzle is compatible with a wide range of standard TIG torches. It is important to note that for optimal setup of the welding process, the correct size tungsten electrode and the correct electrode stick-out length are essential.
Other sizes in this product family are also available to satisfy various application needs:

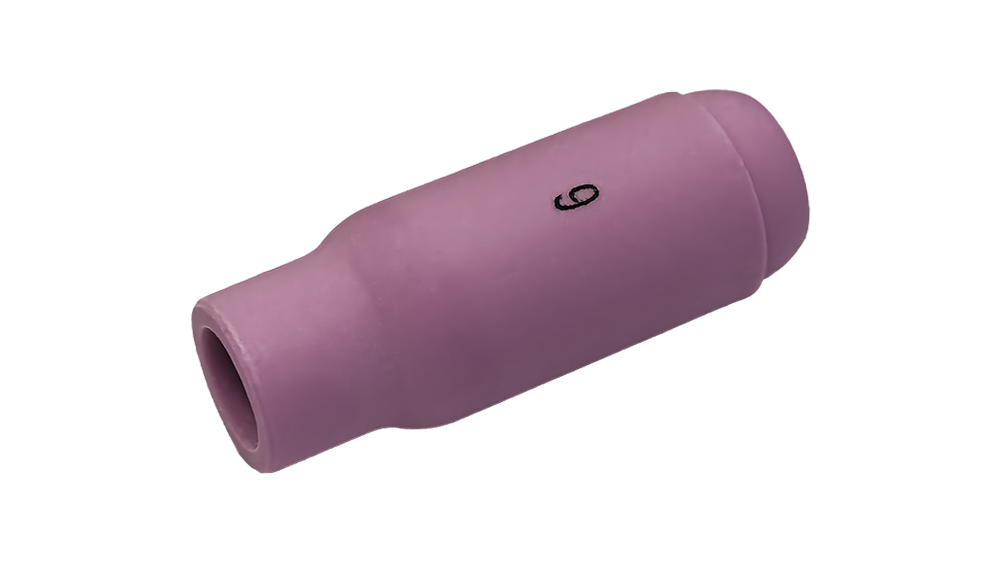

Size 6 (Part No.: 337130): Diameter 9.5 mm, Length 47.0 mm.

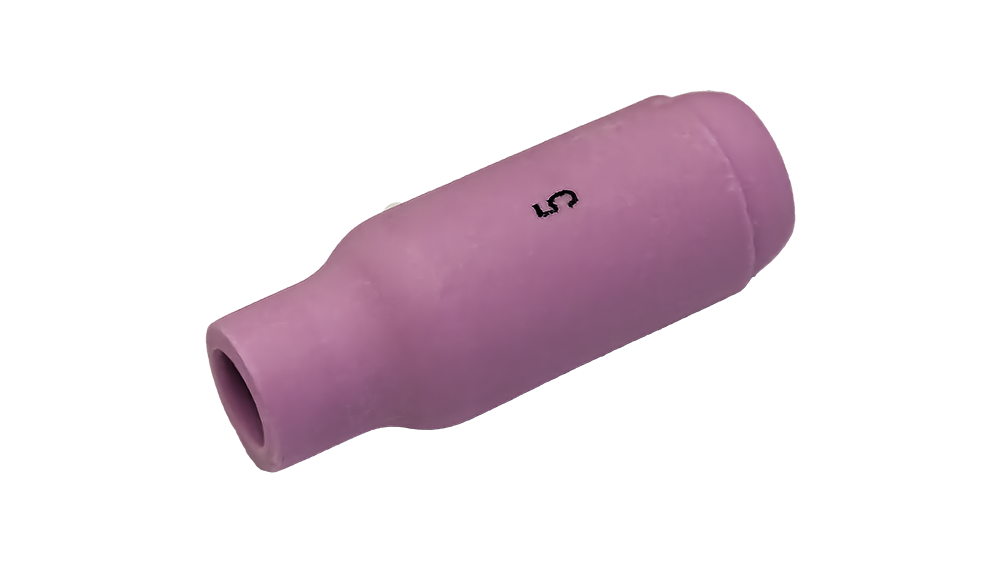

Size 5 (Part No.: 337132): Diameter 8.0 mm, Length 47.0 mm.
These supplementary sizes allow the welder to select the most appropriate nozzle size according to the weld size and accessibility requirements.
Wieländer+Schill is committed to the highest quality standards. Manufacturing processes are subjected to strict quality control, supported by the ISO 9001 quality management system certification. This ceramic gas nozzle is also manufactured according to these principles, guaranteeing long-term, reliable performance even in the most demanding professional environments. Environmental aspects are also considered according to the ISO 14001 standard.
This ceramic gas nozzle (337131) is a fundamental yet critical consumable for TIG welding, prioritizing precision and durability.
