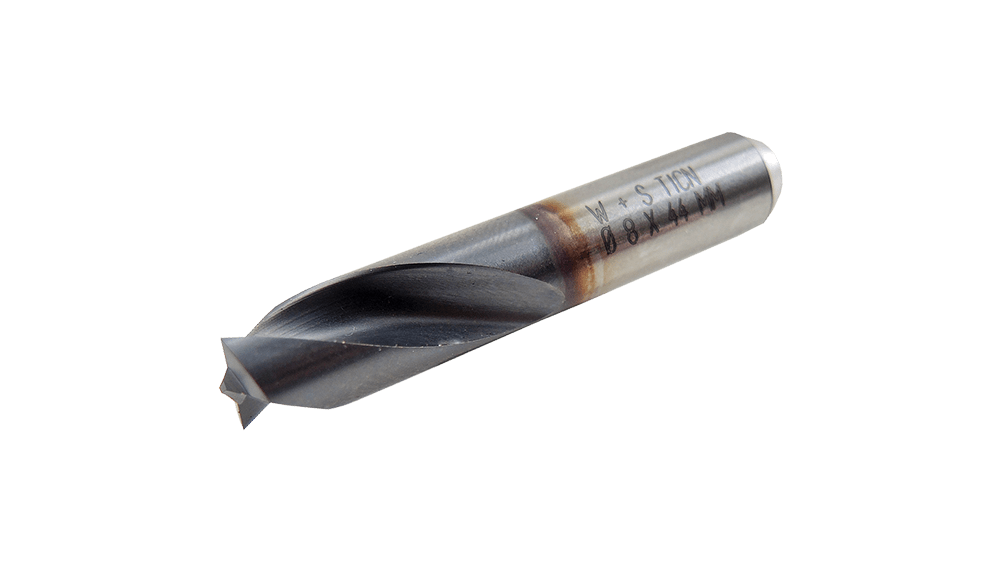

This detailed product description presents the high-performance, Z2-type spot weld cutter manufactured by Wieländer+Schill, specifically designed for the precise and efficient machining of steel materials. This tool is part of the VarioDrill WS 90 series, belonging to the category of separation tools, and is an essential device for car body repair and semi-industrial applications.
The Z2 type spot weld cutter is the optimal choice for the quick and clean removal of spot welds. The high-quality HSS (High-Speed Steel) base material ensures the tool's durability and resistance to high loads. The surface treatment is a crucial element TiCN (Titanium Carbonitride) coating, which significantly increases the tool's hardness, wear resistance, and heat resistance, thereby extending its service life and improving cutting performance during steel machining.
The two-flute design (2 grooves) allows for efficient material removal, while the precise geometry minimizes the risk of damage to the surrounding material. This cutter head is an ideal choice for professional workshops where reliability and accuracy are fundamental requirements.
The table below summarizes the critical dimensions and properties of the Z2 spot weld cutter:
| Property | Value | Note |
|---|---|---|
| Part number | 607023 | The unique identifier of the product. |
| Típus | Spot weld cutter Z2 | Spot weld cutter. |
| Coating | TiCN (Titanium Carbonitride) | Excellent wear and heat resistance. |
| Field of application | Steel | Optimized specifically for machining steel. |
| Diameter (Ø) | 8.0 mm | The nominal diameter of the cutting edge. |
| Total length | 44.0 mm | The total length of the tool. |
| Number of Flutes | 2 | Two-flute design for efficient chip removal. |
| Material | HSS (High-Speed Steel) | Robust and durable base material. |
| Shank diameter | 8.0 mm | Diameter of the shank part. |
| Dimensions (Length x Width x Height) | 44 x 8 x 8 mm | The physical dimensions of the tool. |
| Weight | 0.021 kg | Lightweight for precise maneuverability. |
| Package contents | 1 piece (1 stück) | Package contents. |
The Titanium Carbonitride (TiCN) coating is an extremely hard, ceramic layer applied to the cutting surface. Thanks to this coating:
Increased Heat Resistance: The high temperature generated during cutting damages the tool less, allowing for higher machining speeds without the cutting edge softening.
Excellent Wear Resistance: The TiCN layer is significantly resistant to friction and mechanical wear, drastically increasing the tool's service life, especially in repetitive, high-volume jobs.
Clean Cut: The smoother surface treatment reduces friction, contributing to cleaner and more accurate weld removal.
The 8 mm diameter and 44 mm length provide the ideal ratio for accessing and removing most standard spot welds. The 8 mm shank diameter guarantees a firm mounting in compatible VarioDrill WS 90 support systems or other suitable machine tools. The two-flute design ensures efficient chip evacuation, minimizing the risk of tool clogging.
This cutting head is specifically optimized for steel sheet welds. The combination of HSS base material and TiCN coating allows for fast advancement, which reduces repair time, thereby increasing workshop productivity. Precise cutting minimizes the need for subsequent finishing work, such as deburring or correcting surface irregularities.
This high-precision tool is indispensable in the following areas:
Vehicle Body Repair: Removal of spot welds during the replacement or repair of body panels.
Metal Construction Works: Disassembly or modification of spot-welded structures.
General Sheet Metal Machining: Any application where precise, controlled material removal from steel surfaces is required.
A 607023 The article number Spot Weld Cutter Head Z2 represents the quality and reliability of Wieländer+Schill, ensuring professional results every time.
