This detailed product description presents the excellent quality Spool-Gun welding torch offered by Wieländer+Schill, specifically designed to increase the efficiency of welding processes, particularly for aluminum and stainless steel materials. The robust construction of the torch and user-friendly functions guarantee reliable and durable performance in the professional body repair environment.

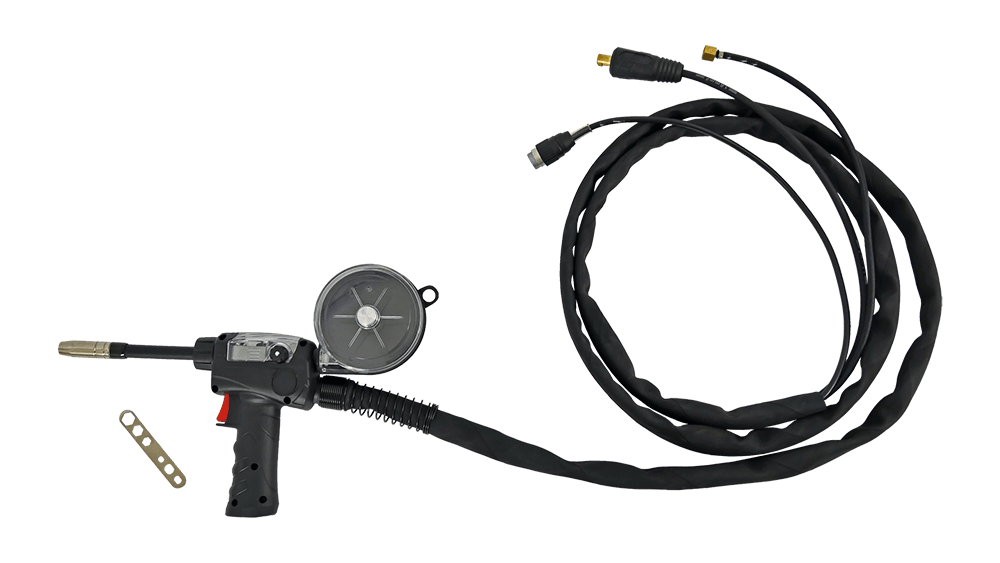

The Spool-Gun welding torch with part number 308115 belongs to the shielded arc welding (MIG/MAG) category and is an ideal choice for professionals who frequently switch between different welding wires without having to deal with wire feeding problems. The main advantage of the torch is that it integrates the wire spool directly onto the torch, minimizing long, flexible wire conduits, which is especially advantageous for softer welding wires (like aluminum).
Key Features:
Euro Central Connection: Ensures universal compatibility with most professional welding machines.
Robust Construction: Durable construction that withstands workshop use.
Integrated Wire Spool: Wire feeding occurs directly on the torch, making it ideal for softer wires.
Strain-Relief Protected Cable: The 3-meter cable ensures increased durability at critical points.
Profile Compatibility: Optimized for use with M6 contact tips and 100 mm welding wire spools.
Fine Adjustment: Continuously adjustable wire feed speed for precise welding.
Durable Metal Components: The roller guide and cable entry are made of durable metal to guarantee a long service life.
The precise technical parameters of the Spool-Gun torch ensure consistent and reliable performance during the most diverse welding tasks.
| Characteristic | Value | Note |
|---|---|---|
| Part number | 308115 | The product identifier. |
| Connection Type | Euro Central Connection | Universal fit. |
| Cable Length | 3.5 m | The total cable length of the torch. |
| Wire Diameter Compatibility | 0.6 mm – 0.8 mm | Ideal for thinner wires. |
| Wire Spool Size | 100 mm | Compatible with standard small spools. |
| Current Feeder Nozzle Compatibility | M6 | Suitable for standard size nozzles. |
| Wire Feed Control | Continuously adjustable | Fine-tuning capability for welding parameters. |
| Roller Feed | Metal | Durable construction. |
| Cable Entry Material | Metal | Increases mechanical resistance. |
| Dimensions (Length x Width x Height) | 3000 x 180 x 80 mm | The physical dimensions of the torch and the integrated unit. |
Spool-Gun technology is crucial in body repair, where thin-walled and sensitive materials like aluminum (e.g., modern vehicle structures) or stainless steel require precise and consistent wire feeding.
Advantages of the Wire Spool Torch:
Aluminum Welding Optimization: Aluminum wire is extremely soft and prone to „bird-nesting” in long, conventional wire feed liners. The Spool-Gun system eliminates this problem because the wire travels only a short distance from the spool inside the torch to the nozzle.
Fast Material Change: The welder spends less time changing wire and fine-tuning settings, as the wire is stored in the torch. This significantly increases productivity.
Excellent Welding Quality: The continuously adjustable wire speed allows the welder to precisely set the arc energy, which is essential for achieving a clean and solid weld.
Ergonomics and Handling: Although the torch contains the spool, the design ensures that handling is not compromised, while the metal components guarantee long-term reliability.
This welding torch is an integral part of the professional welding technology range from Wieländer+Schill, meeting even the highest quality demands. The product combines reliability, durability, and efficiency to meet the needs of modern body repair.
