This detailed product description is prepared for the Wieländer+Schill XSeries professional riveting technology, presenting a high-quality nosepiece (jaw piece) accessory, specifically designed for the precise installation of blind rivets with diameters falling within the specified range. This component is essential for ensuring a reliable and durable connection during automotive repair and semi-industrial applications.
This nosepiece is part of the Wieländer+Schill XSeries professional riveting systems, and is BR 50 and BR 80 optimized for compatibility with Type BR 80 blind rivet adapters. Its design ensures optimal seating of the rivet head and even distribution of forces occurring during riveting.

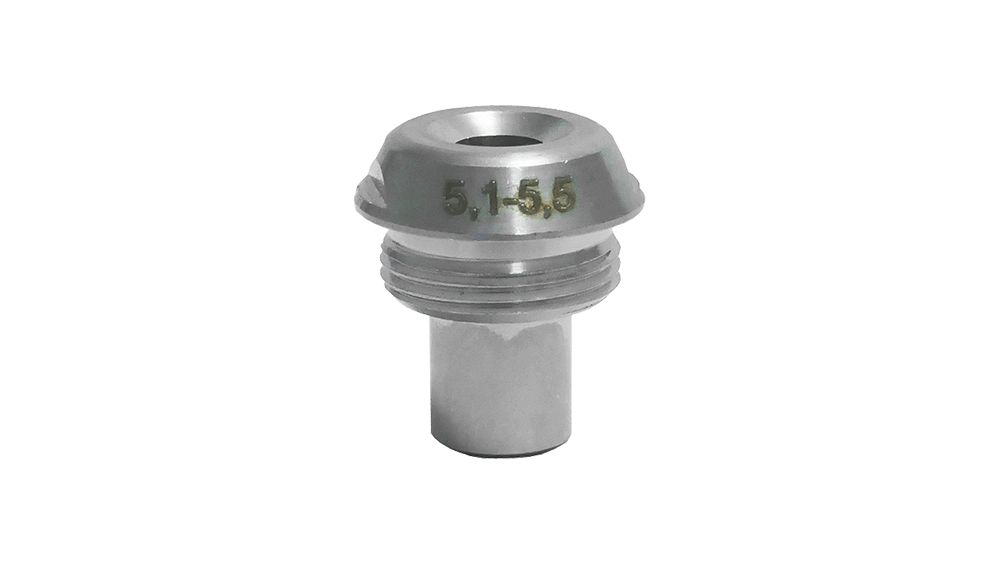

Part number: 703131
The product arrives in a concave design nosepiece, which ideally fits the contour of the blind rivet head. This special geometry is crucial for ensuring the correct pulling force of the rivet shank during the riveting process, minimizing the risk of workpiece damage.
Type: Type B Nosepiece
Area of application: Blind Rivets
Compatible Rivet Diameter: For rivets with a shank diameter between 5.1 mm and 5.5 mm
Compatible Adapters: BR 50 and BR 80 blind rivet adapters
The precise dimensions guarantee a perfect fit and professional performance.
| Property | Value | Unit of Measure |
|---|---|---|
| Part number | 703131 | – |
| Típus | B | – |
| Application Range (Diameter) | 5.1 – 5.5 | mm |
| Length | 18,9 | mm |
| Width | 18,9 | mm |
| Höhe | 21,3 | mm |
| Compatibility | BR 50, BR 80 adapters | – |
| Construction | Concave | – |
This nosepiece is an integral part of the Wieländer+Schill XSeries systems, meeting the highest quality requirements expected in the automotive repair industry.
The concave design ensures that the rivet's pulling mechanism functions optimally. This precise fit is critical in the following areas:
Force transmission: When inserting the rivet, the pulling force is evenly distributed over the rivet head, preventing deformation of the rivet or the fastened material.
Joint Quality: Proper fit guarantees the full extension of the rivet and the perfect spreading of the mandrel, resulting in maximum fastening strength.
Durability: Quality material usage and precise manufacturing ensure a long service life, even in high-demand workshop environments.
The product is specifically designed for the XSeries professional riveting technology. The BR 50 and BR 80 synergy with adapters allows users to quickly and efficiently switch between different rivet sizes while maintaining consistent quality. This modular approach increases workshop efficiency.
This specific nose piece is the ideal choice for every professional who:
Deals with vehicle body repair works, especially when riveting modern, high-strength materials (e.g., aluminum, high-strength steel).
Performs industrial assembly tasks where a reliable, vibration-proof connection is required.
Demands precision and and reliability in their pneumatic or hydraulic riveting tools.
Wieländer+Schill is committed to the highest quality standards. The product complies with strict industrial requirements, which is supported by the company's ISO certifications:
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
This nose piece is part of the wide portfolio of Wieländer+Schill professional body-specific tools, guaranteeing tool reliability and optimizing repair processes. The precision component ensures that riveting operations always comply with manufacturer specifications.
