InvertaSpot GT-C AUTOMATIC | 3 × 400 V

InvertaSpot GT-C AUTOMATIC Welding Machine | 3 × 400 V

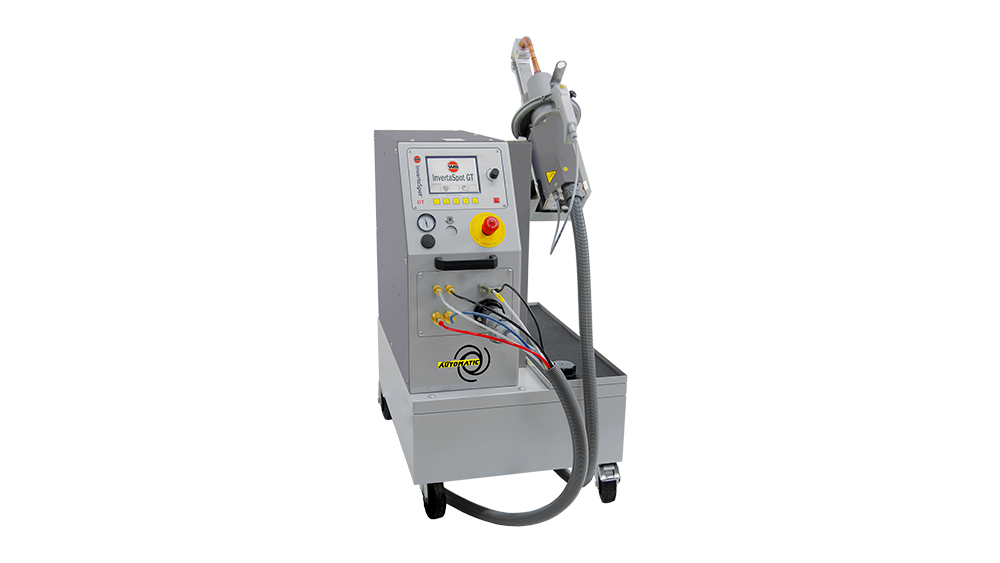

The InvertaSpot GT-C AUTOMATIC A single-tip technology resistance spot welding machine specifically designed for the efficient and reliable welding of High-Strength Steel (HSS) and Ultra-High-Strength Steel (UHSS) sheets. This equipment features state-of-the-art automation functions that optimize the welding process while ensuring significant energy efficiency.

Key Features and Advantages

The InvertaSpot GT-C AUTOMATIC adapts to user needs by combining automation and manual control capabilities, making it an ideal choice for modern automotive repair shops.

Full Automation and Intelligent Control

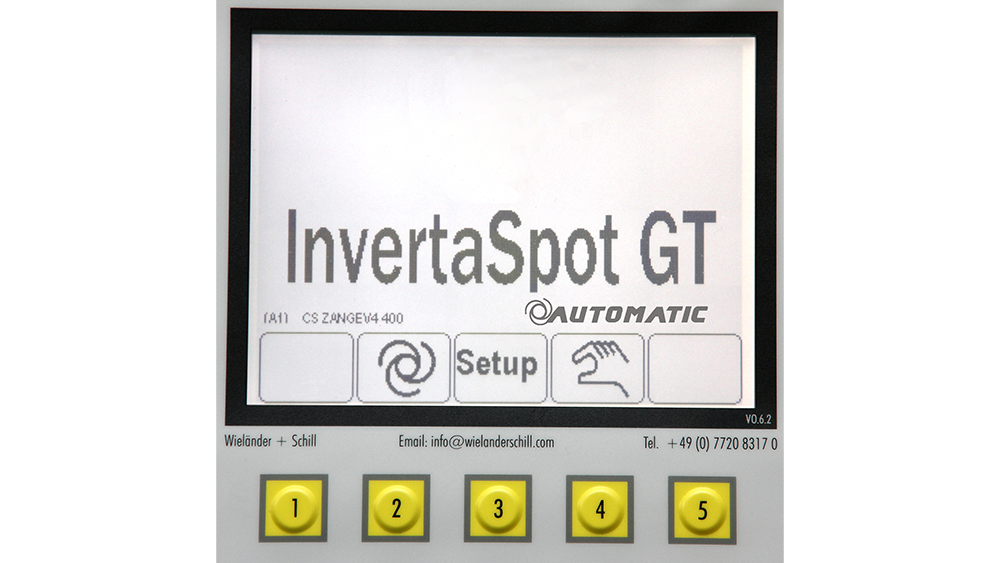

The machine's key advantage is the automatic welding process monitoring:

• Weld Spot Sensing: The device continuously senses the conditions prevailing at the weld spot.

• Automatic Parameter Setting: Based on the detected data, the machine automatically optimizes the welding parameters for a perfect joint.

• Process Monitoring: It monitors the process throughout the entire welding duration, guaranteeing consistent quality.

• Energy Efficiency: Thanks to full automation, the machine operates extremely energy efficiently.

Manual Control Option

Although the machine is fundamentally automatic, there is an option for full manual mode for experienced specialists:

• Free Parameter Setting: Users can freely modify the welding parameters if necessary for maximum flexibility.

Robust Design and Cooling

For durable and reliable operation, the machine is made of high-quality materials and equipped with an effective cooling system:

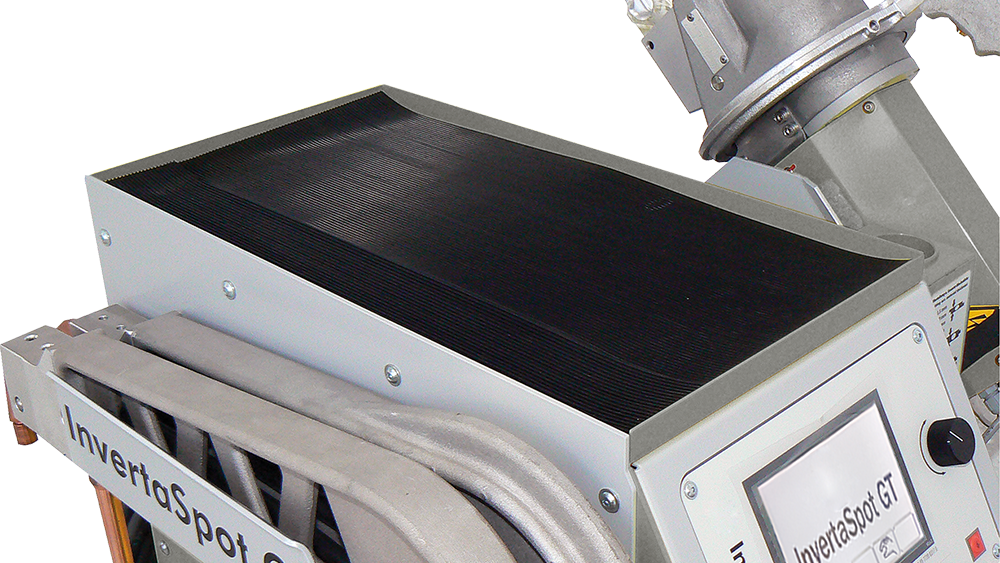

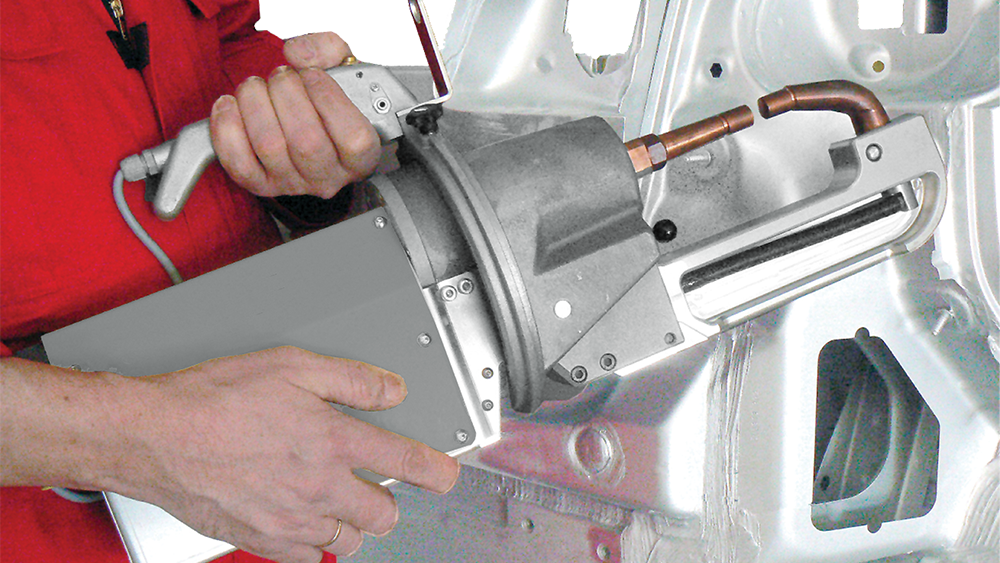

• Water Cooling: The welding gun (Trafogun) is water-cooled, ensuring continuous operation under high load without the temperature rising to critical levels.

• Materials: The housing is made of plastic, sheet steel, and steel, ensuring a long service life.

Technical Data

Detailed technical specifications for the InvertaSpot GT-C AUTOMATIC (Part Number: 471002) can be found in the table below:

Scope of Delivery

The base package of the InvertaSpot GT-C AUTOMATIC includes all necessary components for putting it into operation:

• 1 pc 474466 C-Trafogun: GT-V6 type, 400 V welding gun, with a 3-meter cable.
• 1 pc 474004 Balancer tube GT: 630 mm balancer tube, in basalt gray color.
• 1 pc 474014 Balancer arm GT: Balancer arm, in basalt gray color.
• 1 pc 478060 Balancer roller GT: Balancer roller.
• 1 pc 498085 Spring balancer: Spring balancer (load capacity 9-15 kg).
• 1 pc 474017 Insulation strap with carabiner: Insulation strap with carabiner.
• 1 pc 474250 Allen keys GT: Allen key set (2 pieces).
• 1 pc 497096 Electrode caps: Electrode caps (Ø 16 mm, A-32 type, 6 pcs/pack).
• 1 pc 474028 Holder for C-arms: C-arm holder.
• 1 pc 474085 Cable holder for InvertaSpot GT-C: Cable holder.
• 1 pc 478041 Cable support GT: Cable support (V2).
• 1 pc 474007 Wheel set GT: Wheel set for easy movement.
• 1 pc Instruction manual: User manual.

Important notice: Please do not forget to send back the registration card for machine registration!

Recommended Accessories (Zubehör)

For maximum efficiency and ergonomics, we recommend using the following accessories:

C-Arms and Welding Heads

• C-Arm no. 7 | 150 × 200 mm | GT (Part No.: 495650): Water-cooled C-arm, with electrode and 13 mm electrode caps, for resistance spot welding.

Ergonomics and Maintenance

• Spring balancer | 9-15 kg (Part number: 498085): This spring balancer ensures an ergonomic working environment, relieving the arms, shoulders, and back. The required load (9-15 kg) is individually adjustable on the device.
• Features: Impact-resistant aluminum housing, bowl-shaped cable reel with impact damper, carabiner steel cable for load fixation, swiveling carabiner for balancer mounting.
• Copper paste for electrodes | 75 g (Part number: 497010): Copper paste for electrodes. Measurably reduces transitional resistances and improves the current-carrying capacity of the electrode arms.
• Electrode fix | Grain 60 (Part number: 298298): Electrode fixing/cleaning material.

Electrode Accessories

• Electrode caps | Ø 16 mm | Type A-32 | PU: 6 pcs. (Part number: 497096): Type A-32 electrode caps with a length of 20 mm and a diameter of 16 mm, for automatic welding. Can only be used for the C-Trafogun GT-V6.
• Electrode caps | Ø 16 mm | 16-piece set (Part number: 497110): 16-piece electrode set containing different types:
• 2 pcs. Type A-32
• 2 pcs. Type A-40
• 4 pcs. Type B
• 2 pcs. Type D
• 2 pcs. Type E
• 2 pcs. Type H
• 2 pcs. Type P

Welding Aids

• EUROPAX welding primer | 500 ml (Part number: 817030): Welding primer. Prevents rust and oxidation between the sheets during both spot welding and MIG-MAG welding.
