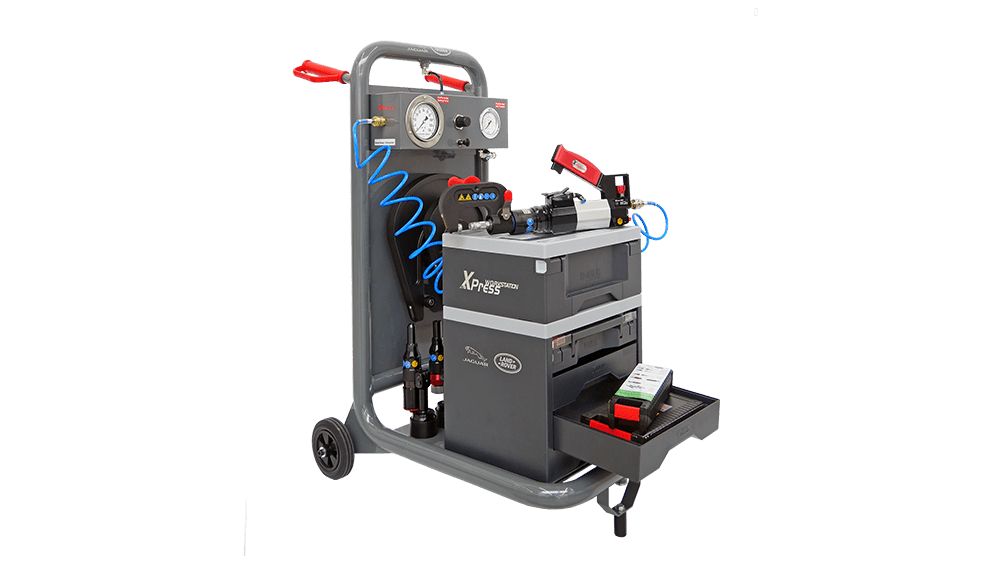

The Wielander + Schill XPress Workstation JLR Complete Set (Item No.: F700058) represents the pinnacle of professional riveting technology, specifically optimized for Jaguar Land Rover (JLR) specifications. This complete system offers the highest level of process reliability and flexibility for body repair and assembly work.
The central element of the system is the XLogic patented pressure monitoring technology, which guarantees stable and reliable riveting processes. The air reservoir system integrated into the trolley ensures complete process reliability even in the event of an air supply interruption, minimizing potential errors during critical operations.
This complete set includes all necessary tools for immediate work, including the drive unit, the hydraulic cylinder, various sizes of C-arms, and the specific adapters.
Thanks to the integrated air reservoir and XLogic pressure monitoring, the XPress Workstation ensures unparalleled stability. This technology continuously monitors and regulates the force required for riveting, thereby ensuring that every single connection meets strict quality requirements. The built-in air reservoir functions as a buffer, maintaining the required operating pressure even during temporary air outages.
The workstation is fully compatible with all modules of the XPress 800 system, enabling seamless integration of existing equipment and future system expansion.
The set includes tool boxes (Tool Box RS-06 and RS-04) specifically optimized for Jaguar Land Rover vehicles, ensuring immediate availability of the necessary adapters for the required fasteners.

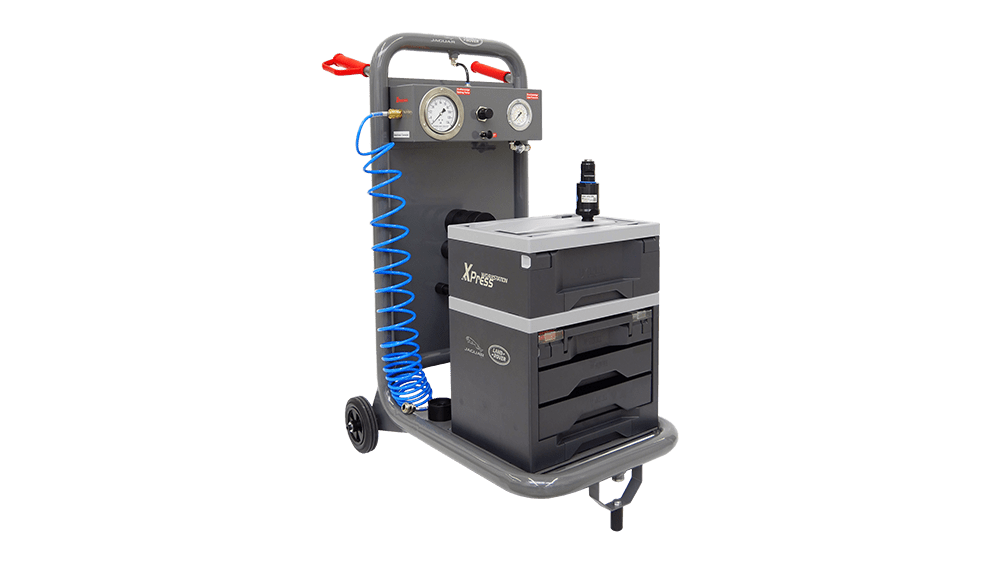

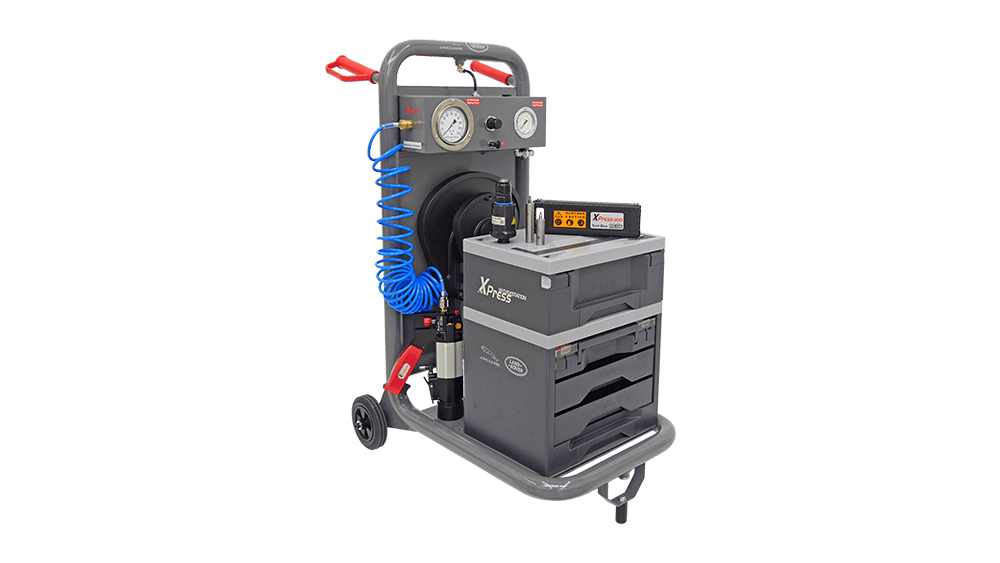

The workstation is mounted on a robust yet mobile trolley, which ensures easy maneuverability in the workshop environment. The trolley design not only houses the air reservoir but also provides optimal stability during high-force operations.
| Parameter | Value | Note |
|---|---|---|
| Part number | F700058 | XPress Workstation JLR |
| Force (Riveting Range) | 25 – 80 kN | The maximum force that can be exerted by the hydraulic system. |
| Operating Pressure | 6 – 8 bar | Pressure required for pneumatic connection. |
| Air Quality | ISO 8573-1 | Defines the cleanliness standard for compressed air. |
| Dimensions (Length x Width x Height) | 820 x 610 x 1130 mm | The physical extent of the carriage. |
| System Base | XPress 800 | Full compatibility with XPress 800 modules. |
| Process Safety Guarantee | SSC 40/25 Short stroke cylinder | The included short-stroke cylinder guarantees reliability. |
The F700058 Complete Kit includes the following components, ensuring full operation:
| Part number | Item Name | Function |
|---|---|---|
| N/A | Workstation with XLogic pressure monitoring | The central control and pressure measuring unit. |
| 700050 | PowerPack | The hydraulic drive unit of the XPress 800 system. |
| 700067 | SSC 40/25 Short stroke cylinder | Short-stroke hydraulic cylinder, the basis of process safety. |
| 700070 | C-Arm GC 80/40 | C-arm of a specified size for different working distances. |
| 700071 | C-Arm GC 80/120 | C-arm of a specified size for different working distances. |
| 700072 | C-Arm GC 140/240 | C-arm of a specified size for longer stroke applications. |
| 700100 | BR 20 Adapter | Adapter for blind rivet pins (smaller diameter). |
| 700101 | BR 50 Adapter | Adapter for blind rivet pins (larger diameter). |
| 700110 | BRN 50 Adapter | Adapter for blind rivet nuts. |
| 700193 | Tool Box RS-06 | Jaguar Land Rover specific tool box, version 4. |
| 700201 | Tool Box RS-04 | Tool box for blind riveting nut (BRN). |
| N/A | Spiral compressed air hose | 4 meters long, for pneumatic connection. |
To increase the efficiency of the workstation, the following accessories are recommended:
Standard rivet sets for the BR 20 blind riveting adapter.
Standard rivet sets for the BR 50 blind riveting adapter.
Tools for servicing the XPress 800 PowerPack, including bleeding and oil refilling.
Complies with EN166 safety standards. Features a polycarbonate visor for optimal impact resistance and clarity. Patented visor attachment, comfortable, breathable headband, and easily adjustable size.
Further configurations related to JLR specifications are also available:
XPress Workstation JLR | Standard Kit (S700058): Includes the workstation with XLogic control, PowerPack, SSC 40/25 cylinder, C-arms, and the JLR RS-06 tool box, but lacks the BR 20 and BR 50 adapters, as well as the BRN adapter.
XPress Workstation JLR | Upgrade Kit (700058): This kit contains the essential elements (Workstation with XLogic, SSC 40/25 cylinder, air hose) and is ideal for upgrading existing XPress 800 systems with JLR-specific capabilities.
