This detailed description presents the Gartec wall-mounted pump kit with part number NK1005/IBC, specifically designed for 1000-liter commercial IBC (Intermediate Bulk Container) tanks. The kit offers an ideal solution for the efficient and reliable dispensing of more viscous fluids, such as new oil, ensuring precise operation in workshops and industrial environments.

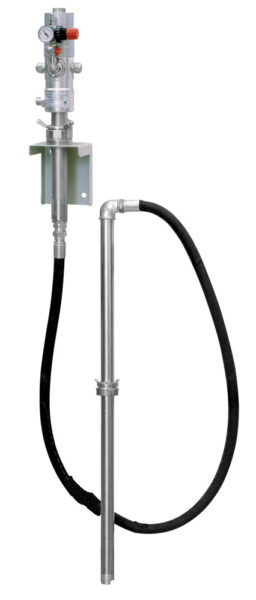

The NK1005/IBC is a complete, pneumatically operated pump system designed to connect directly to standard 1000-liter IBC containers. The kit includes the 5:1 ratio wall pump, the corresponding mounting bracket, the necessary suction unit for connection to the tank, and an integrated pressure regulator mounted on the pump. This configuration allows for maximum flexibility and easy installation with existing storage systems.
The 5:1 ratio pump is excellently suited for transferring medium-viscosity fluids where higher pressure is required for efficient dispensing. This kit is a crucial element for reliable fluid management, minimizing waste and ensuring a clean working environment.
Compact and Wall-Mountable Design: The pump features a wall-mountable bracket, which offers a space-saving solution and ensures stable mounting next to the IBC container.
High Ratio (5:1): This ratio makes it possible to achieve a higher output fluid pressure from a relatively low input air pressure, ideal for more viscous materials.
Integrated Pressure Regulator: A pressure regulator that can be directly mounted to the pump allows for precise adjustment, optimizing performance and protecting the system from overpressure.
Komplett Készlet: The package includes the pump, the support bracket, and the suction assembly (for the 1000 liter IBC container ferrule connection), so it is ready for immediate use.
Area of Application: Optimized primarily for the transfer of New oil, but based on the general characteristics of pneumatic pumps, it can also be used for other fluids with similar viscosity and compatibility.
The following table summarizes the critical technical parameters of the NK1005/IBC wall pump kit:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | NK1005/IBC | – | Identifier |
| Flow Rate | 5:1 | – | Compression Ratio |
| Flow Rate | 15 | l/perc | Maximum performance |
| Operating Pressure | 4 – 8 | bar / 58 – 116 PSI | Inlet Air Pressure Range |
| Inlet Air Connection | 1/4″ | Inch | Standard connection |
| Noise Level | 79 | dB | Noise level during operation |
| Air consumption | 340 | l/perc | Air volume required for pneumatic operation |
| Suction Size (Diameter x Length) | 42 / 290 | mm | Dimensions of the suction hose |
| Weight | 12 | kg | Net weight of the set |
| Packaging Dimensions | 150x150x620 and 300x140x1230 | mm | Two packaging dimensions (likely the pump and accessories separately) |
This pump kit has been specifically optimized for the transfer of the following fluid:
Although the specifications focus on new oil, based on the general characteristics of pneumatic pumps, other compatible materials of similar viscosity can also be pumped with appropriate seals and cleaning (e.g., certain types of hydraulic fluids, provided authorized by the manufacturer).
The kit is designed to perfectly fit 1000-liter IBC tanks equipped with a standard ferrule connection. Thanks to the wall-mounted design, the pump can be stably secured near the tank, minimizing the length of the suction tube and thus improving suction efficiency. The built-in pressure regulator ensures that the user can easily set the desired dispensing parameters according to the requirements of the workflow.
For maximum efficiency and safety, Gartec recommends using the following accessory products alongside the NK1005/IBC kit:
Tank Stand for 1000 liter IBC tank: This accessory ensures the safe placement of the 1000-liter tank, especially when used together with the pump.
Further Dispensing Equipment: Gartec's offer also includes other types of pumps (e.g., higher capacity 5:1 pumps for IBCs, 8:1 or 3:1 ratio pumps), as well as grease dispensing kits (e.g., mobile grease dispensing kit for 20-30 kg drums), which can supplement workshop equipment.
This wall-mounted pump set reflects Gartec's commitment to reliable, industrial-grade fluid handling solutions, especially concerning the efficient and safe dispensing of oils from high-capacity tanks.
