This detailed description presents the wall-mountable pump kit offered by Gartec, specifically optimized for 1000-liter commercial IBC (Intermediate Bulk Container) tanks. The kit provides an ideal solution for the efficient and reliable dispensing of more viscous fluids, such as new oil, ensuring precise work in workshops and industrial environments.

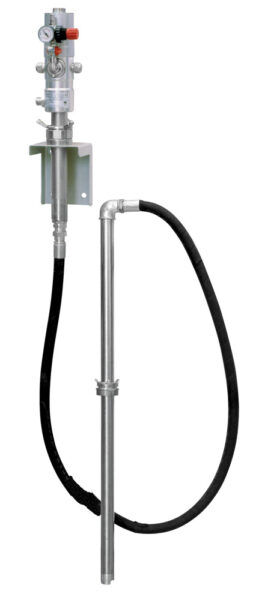

The NK1003/IBC The part number wall-mounted pump kit includes a complete, pneumatically operated system designed for fluid transfer from high-capacity, 1000-liter IBC tanks. The central element of the kit is a robust, 3:1 compression ratio pump, ideally suited for pumping medium-viscosity materials.
The pump comes with a specially designed wall mounting bracket that ensures stable and secure fastening at the workstation. The design of the suction unit enables efficient material intake from the bottom of the IBC tank, while the complete kit also includes the necessary connections and an integrated pressure regulator.
The pressure regulator can be mounted directly onto the pump, which is crucial for maintaining a continuous and even flow rate, as well as for setting the system's optimal operating parameters. This feature is particularly important for applications requiring precise dispensing.
Complete Solution: The kit includes the pump, wall mounting bracket, suction assembly, and pressure regulator, making it ready for immediate installation and commissioning.
IBC Compatibility: Equipped with a suction hose and design specifically optimized for 1000-liter commercial IBC tanks, featuring a ferrule connection.
Pneumatic Operation: Air-operated design, which provides high safety in flammable or explosive environments as it does not require electrical current to operate the pump.
3:1 Compression Ratio: This ratio provides an ideal balance between pumping performance and the required air pressure, efficiently handling medium-viscous fluids.
Integrated Pressure Regulator: The built-in pressure regulator allows the user to fine-tune the output pressure, thereby maximizing efficiency and minimizing fluid waste.
This pump kit is primarily recommended for pumping the following fluids, especially regarding the handling of new oils:
New Oil: Ideal for transferring lubricants, hydraulic oils, and other fresh oils between tanks.
Grease: Also suitable for dispensing medium-viscosity greases.
Hydrocarbons: Can also be used for handling certain types of hydrocarbons.
Based on the Gartec product range, this pump can be excellently integrated into systems where oil and lubricant management plays a central role.
The precise technical parameters of the NK1003/IBC pump kit ensure reliable performance according to the specified certifications.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | NK1003/IBC | – | Wall Pump Kit for IBC |
| Flow rate | 18 | l/min | Maximum performance |
| Working pressure | 4 / 58 – 8 / 116 | bar/PSI | Inlet air pressure range |
| Compression ratio | 3:1 | – | Pump ratio |
| Noise Level (Noisiness) | 79 | dB | Noise level during operation |
| Air consumed (Air consumed) | 340 | l/min | Total air requirement at maximum performance |
| Inlet air connection | 1/4″ | Thumbs | Standard pneumatic connection |
| Fishing size (Fishing size) | Diameter x length | 42 / 290 mm | Dimensions of the suction hose |
| Weight | 12 | kg | Weight of the complete set |
| Packaging dimensions (Packaging mm) | 150x150x620 and 300x140x1230 | mm | Various packaging dimensions (likely the pump and accessories separately) |
The 3:1 ratio pump is excellently suited to efficiently lift and transfer the liquid in the tank, even at relatively low inlet air pressure. The flow rate of 18 liters/minute ensures fast filling or transfer in workshops.
A 79 dB noise level Considered acceptable in an industrial environment, but measures to reduce the noise level due to pneumatic operation (e.g., noise-reducing enclosures) may be advisable if the workstation is under human supervision.
The suction unit is 42 mm in diameter and 290 mm long, ensuring it reaches the bottom of most IBC tanks, minimizing the residual liquid volume in the tank.
For maximum safety and efficiency, Gartec recommends the use of the following accessory products for this wall-mounted pump kit:
Tank filling Tray for 1000 liter IBC tank (Holding tank for 1 1000l cistern): This accessory is essential for complying with strict environmental regulations. It catches leaks or drips, thus preventing soil contamination, especially in the case of dangerous fluids (e.g., used oil).
Further Pump Ratios: If in the future there is a need to handle fluids with different viscosity or larger volume, 5:1 and 8:1 ratio wall-mounted pump kits for IBC tanks are also available in the Gartec range.
This wall-mounted dispensing system is an integral part of the Gartec Fluid Control Technology range, which prioritizes reliability and long service life in industrial fluid handling.
