The Gartec pneumatic fuel suction unit, model V0041/100G, is a robust and reliable solution for workshops and industrial environments, specifically designed for the safe recovery and handling of diesel fuels. This high-performance unit is ideally suited for the efficient and controlled suction of hydrocarbons, ensuring reliable workflows and compliance with environmental regulations.

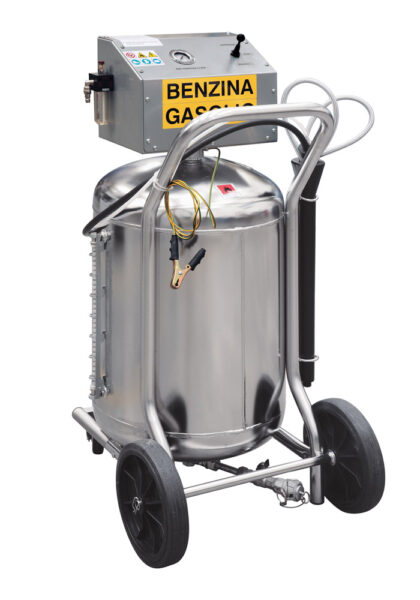

The core component of the equipment is a 100-liter stainless steel tank on wheels, guaranteeing maximum mobility and durability. Thanks to its pneumatic operation, the suction process is extremely efficient, while the built-in Venturi system further increases the suction power.
This suction unit is the ideal choice for situations requiring fast, clean, and safe fluid handling.
Excellent Suitability: Optimized specifically for the recovery of diesel fuels (hydrocarbons).
High Capacity: The 100-liter stainless steel tank ensures sufficient capacity for longer shifts without the need for frequent emptying.
Pneumatic Drive: Operation with compressed air guarantees an explosion-proof environment and continuous, reliable performance.
Venturi System: The built-in Venturi system enhances suction efficiency, enabling the quick and complete removal of liquids.
Controlled Operation: The control unit allows for precise regulation of the suction and discharge processes.
Könnyű Kezelhetőség: The wheeled design of the tank facilitates the movement of the equipment within the workshop.
Safety Features: The built-in grounding clamp is essential for preventing static charge buildup, especially when handling flammable liquids.
Continuous Monitoring: The visual level indicator allows for immediate inspection of the tank's fill level.
The V0041/100G model has been designed according to Gartec quality standards, featuring detailed technical parameters:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Part Number (Art. No.) | V0041/100G | – | Product Identifier |
| Operating Pressure | 4 – 8 | bar | (58 – 116 PSI) |
| Compression Ratio | 1:1 | – | Suction Power Ratio |
| Operating Fluids | Hydrocarbons (Diesel) | – | Primary Application |
| Air Inlet Connection | 1/4″ | Thumbs | Standard Connector Size |
| Noise Level (Noisiness) | 78 | dB | Noise level during operation |
| Air consumption | 150 | l/min | Pneumatic Requirement |
| Tank Capacity | 100 | Liter | Stainless steel design |
| Weight | 53 | kg | Net Weight |
| Packaging Dimensions | 600 x 600 x 1200 | mm | Length x Width x Height |
The V0041/100G is a complete pneumatic suction system that meets the highest industrial requirements. The 100-liter stainless steel tank provides excellent resistance to diesel fuels, guaranteeing a long service life. The tank features a wheeled chassis, which significantly facilitates positioning under large vehicles or machinery.
The equipment includes a dedicated control box, which allows the user to precisely switch between the suction (extraction) and return (refill) functions. This function is crucial for transferring the recovered fuel into other storage containers or back into the system.
A Venturi system uses compressed air energy to create a vacuum, resulting in extremely effective suction power. This technology ensures that used or contaminated diesel can be completely removed even from hard-to-reach places.
From a safety perspective, the included grounding clamp. is of paramount importance. Since we are dealing with diesel fuels, there is a risk of electrostatic charge buildup due to friction. Grounding ensures potential equalization, minimizing the risk of sparking.
A visual level indicator (visual level indicator) is a simple but vital tool that prevents tank overfilling, thus avoiding accidents and environmental pollution.
Although the V0041/100G model is specifically optimized for diesel, it may also be suitable for handling fluids belonging to the hydrocarbon category, as part of the general fluid handling portfolio by Gartec.
The Gartec product range also offers solutions for other fluids, such as waste oil, new oil, AdBlue, antifreeze, water, detergents, and windshield washer fluids, but this specific model focuses on diesel recovery.
The Gartec V0041/100G pneumatic fuel extractor is a professional device that combines high capacity (100L), pneumatic reliability, and functions compliant with strict safety regulations (Venturi, grounding). It is an ideal choice for any workshop where the efficient and safe recovery of diesel fuels is essential for daily operations. The noise level of 78 dB and air consumption of 150 l/min ensure manageability alongside efficient performance.
