This document presents the detailed technical description and functional characteristics of the Consul 0.42 SN-AM BA type, 4800 mm version, floor-mounted scissor lift. This high-performance lift is an ideal choice for workshops requiring precise lifting height, work related to wheels (wheel alignment), and flexible vehicle handling.
The Consul 0.42 SN-AM BA is an electro-hydraulic, floor-mounted (optionally available in an in-ground version) scissor lift, specifically designed for the highest level of service work. Its outstanding feature is the integrated, bidirectional extendable Auxiliary Lift, which has a lifting capacity of up to 3,500 kg. This system enables the full-height lifting of vehicles and wheel alignment in a level position, for vehicles up to a total weight of 4,200 kg.
During the design, great emphasis was placed on durability, safety, and precise operation, with special consideration for the integration of wheel alignment systems.
Integrated Auxiliary Lift (Wheel Free Lift): The built-in auxiliary lift is extendable on both sides, has a capacity of 3,500 kg, and provides approx. 450 mm of lifting height. This is ideal for performing work with the wheels freely suspended.
Design Optimized for Wheel Alignment: The lift allows for wheel alignment in a fixed, level position. The lifting elements equipped with serrated covers are capable of picking up turntables up to a height of 50 mm.
Flexible Platforms: Equipped with adjustable, full-size sliding plates and ramps that ensure safe loading and unloading of vehicles, as well as protection against rollback.
Robust Construction: The platforms are made of special rolled steel profile, guaranteeing long service life and high load capacity.
The table below summarizes the critical technical data for the Consul 0.42 SN-AM BA scissor lift.
| Characteristic | Value | Note |
|---|---|---|
| Product Identifier (SKU) | 732644 | |
| Manufacturer Number (HAN) | 500448 | |
| Category | Scissor Lifts | |
| Rated Capacity (Main Lift) | 4.200 kg | |
| Lifting Height (Main Lift) | ca. 2.150 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Set-up width | ca. 2.240 mm | |
| Installation length | approx. 5,910 mm | |
| Drive-on-height | ca. 290 mm | |
| Actuator (SN) | ca. 50 mm | |
| Tápellátás | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 5.5 kW | |
| Fuse Protection | 20 A slow-blow | |
| Runway width | ca. 650 mm | |
| Runway length | ca. 4.800 mm | |
| Auxiliary Lift (Wheel Free Lift) Capacity | 3,500 kg | |
| Auxiliary lift lifting height | ca. 450 mm | |
| Auxiliary lift length | approx. 1,440 – 1,940 mm | Extendable Range |
| Auxiliary lift lifting time | 15 seconds | |
| Auxiliary lift width | ca. 670 mm |
The lift operates with electro-hydraulic control, which ensures reliable and precise functioning. The system uses a Master/Slave hydraulic arrangement for synchronized lifting.
Electro-hydraulic Control: Standard operating mode.
Pneumatic Release: During lowering, a pneumatic release activated by a push button ensures smooth and controlled descent.
Detachable Main Switch: Lockable main switch compliant with CE requirements for safe shutdown.
Acoustic Foot Protection: Warning buzzer during lowering.
Mechanical Locking System: A 17-stage mechanical locking device provides mechanical support in addition to the hydraulic system.
Bearing: Shared, 20 mm thick fixed and sliding bearing (in galvanized version as standard), optionally for height-adjustable wheel alignment.
Platform Material: Special rolled profile steel.
Drive-on Ramps: The platforms are equipped with approach ramps and anti-roll back protection.
Sliding plates: Adjustable, full-size sliding plates to optimize vehicle positioning.
Rake System: Integrated rail for the jacking beam.
Rubber Adapters: 40 mm elastomer adapters are part of the standard equipment.
Turntable Suspension: The standard accessory's turntable pickup points with cover provide the necessary positioning for wheel alignment up to 50 mm height.
The lift complies with the strictest industrial standards and possesses the required certifications:
Protection Class: IP 54
Connector: 230 V socket (on the control unit)
Certifications: GS approval, DIN EN 1493, CE approval.
Numerous accessories are available for the product, which further increase the flexibility and efficiency of servicing:
Hot-dip galvanized Auxiliary Lift (SURCHARGE): Separately orderable accessory lift in hot-dip galvanized version.

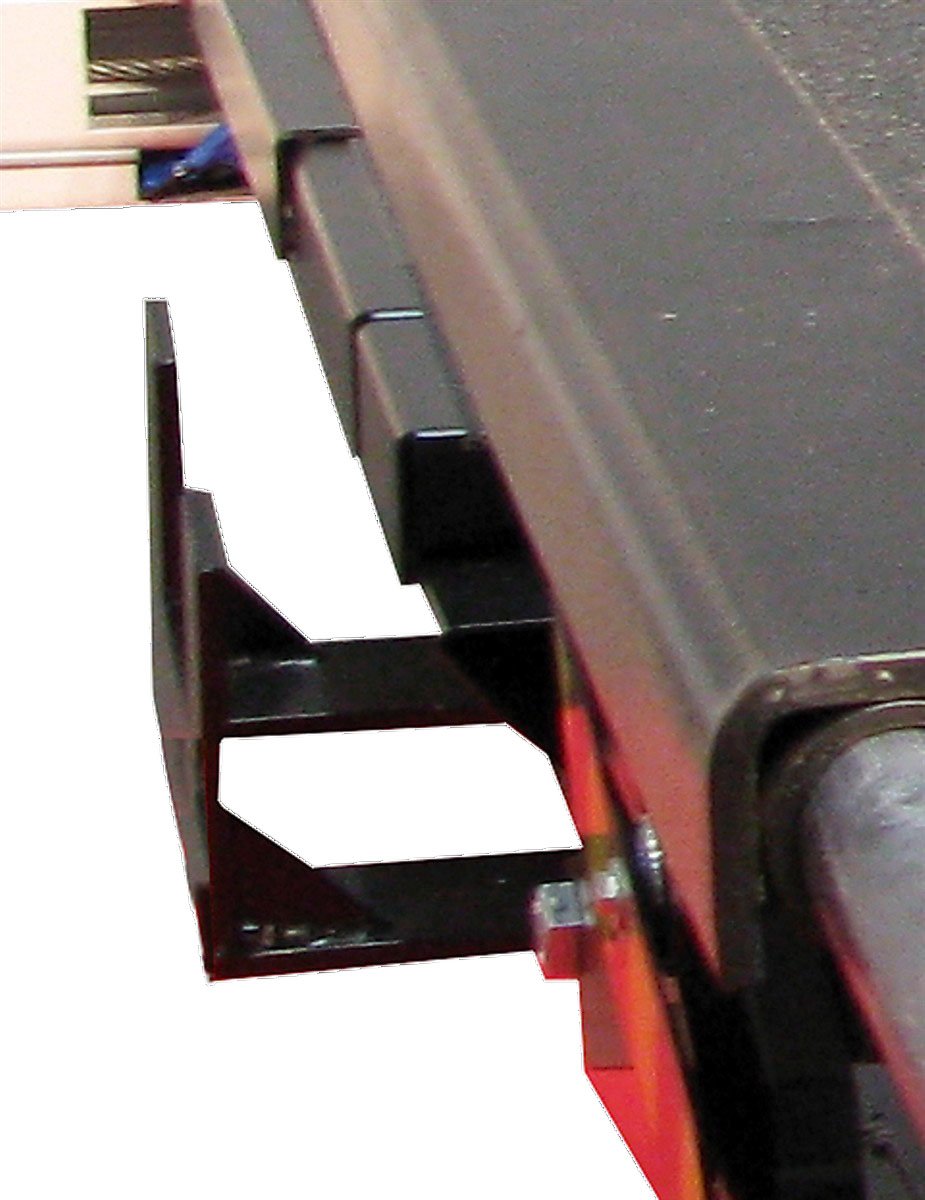

3D Wheel Aligner Adapters: Special adapter kits (e.g., for Beissbarth Easy 3D) for retrofitting.
Anti-slip Coating: Anti-slip coating available for platforms (not retrofittable).
Drive-on Ramps: Approach ramps of various lengths (e.g., 1,000 mm or extended 1,500 mm) with wheel stops.
Chassis Lift Bridge: Movable adapters and turntable spindle specifically for framed vehicles (up to max. 3,000 kg).
Control Panel Placement: Optional right-side positioning (for an extra charge).
Fixing Materials: Mounting kits for the 0.35/0.40 series (with M16 anchor bolts).
This Consul scissor lift offers a perfect combination of reliability, high load capacity, and the precise functions required for vehicle alignment for modern car services.
