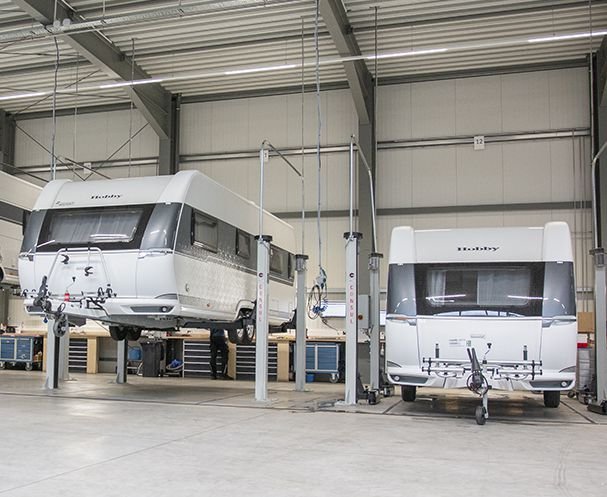

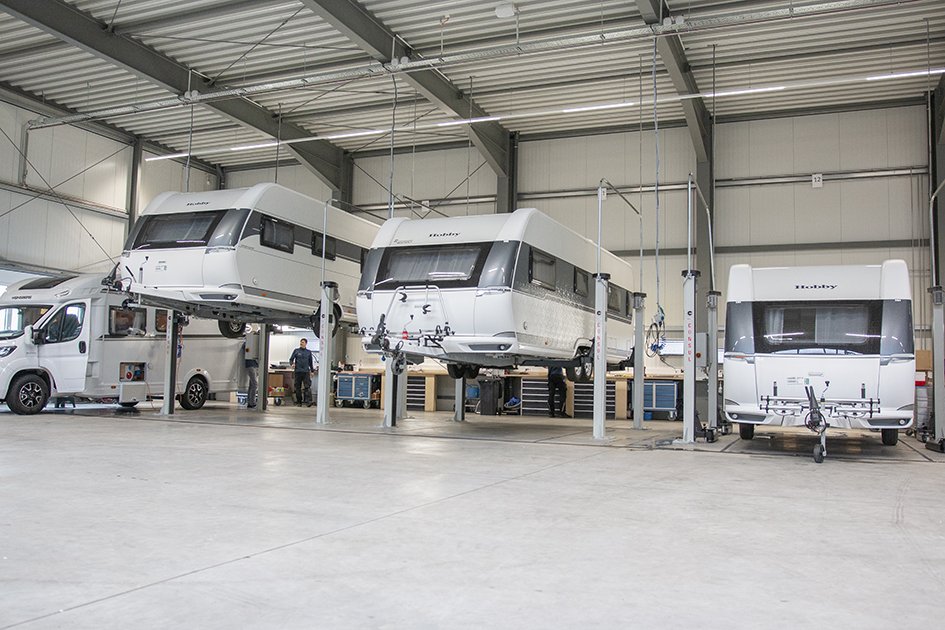

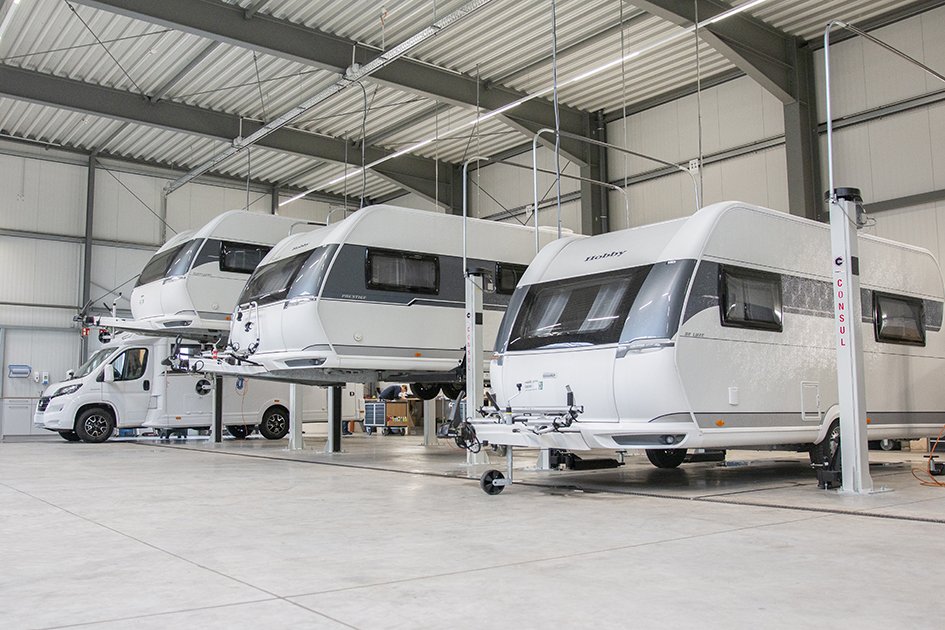

The Consul Caravan 2x 2.30 EL is a specially designed, fully electric lifting device intended for the safe and efficient lifting of caravans and trailers. This model combines reliability, precise control, and flexible installation options, making it an ideal choice for service centers and workshops that regularly handle large yet relatively light vehicles.
This equipment is part of the Consul C-Line series and, with a maximum load capacity of 3000 kg, is perfectly suited for servicing most standard caravans and trailers. The 4-motor electronic synchronized control guarantees stable and level lifting, while the robust design ensures a long service life and a safe working environment.
The Consul Caravan 2x 2.30 EL lift incorporates several design elements that optimize usability and enhance safety:
Four Special Profiled Columns: The stability and load-bearing capacity of the structure are ensured by four special, rolled profile columns.
Precise Carriage Guidance: The load-bearing carriages run on six rollers, whose lifting and safety nuts are made of bronze material, minimizing friction and increasing durability.
Electronic Synchronization: The lifting is performed by four V-belt motors, each with 3.0 kW of power, which ensure perfect parallelism during the lift via computer synchronization.
Safety Features: The equipment features a broken nut lift-locking function, acoustic foot protection, and a pivoting arm locking mechanism that also includes a manual release option.
Könnyű Kezelhetőség: Operation is performed via touch control, supplemented by a separate lockable main switch (in accordance with CE requirements).
Adjustable Lift Pads: The lift pads are equipped with a hard rubber profile and are adjustable with a threaded spindle (with 25 mm of stroke), allowing them to be optimally positioned for different chassis.
Flexible Installation: The equipment allows for variable installation, which provides a high degree of flexibility in workshop layout.
Low Approach Height: Under optimal floor conditions, the lowest entry heights can be achieved (the exact value may depend on optional accessories).
The technical parameters of the Consul Caravan 2x 2.30 EL lift can be found in detail in the table below:
| Characteristic | Value | Note |
|---|---|---|
| Part Number (SKU) | 721852 | |
| Manufacturer Number (HAN) | 9597 | |
| Category | Caravan and Trailer Lifts | |
| Rated load capacity | 3,000 kg | |
| Lifting height | approx. 2,005 mm* | *Height achievable with optional accessories |
| Lifting/Lowering Time | approx. 35 seconds | |
| Lowest Free Height | approx. 85 mm** | **Under optimal floor conditions |
| Arm Extension Range | approx. 830 – 1,330 mm | |
| Set-up width | approx. 4,070 mm | |
| Installation Height | ca. 2.550 mm | |
| Distance Between Arms | approx. 3.400 mm | |
| Drive-through width | ca. 2.900 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 4 x 3.0 kW | Total 12 kW |
| Fuse Protection | 40 A slow operation | |
| Protection class | IP 54 | Dust and splash-proof |
| Specifications | GS-approved, DIN EN 1493, CE-approved |
The Consul lifts are manufactured according to the strictest European safety regulations. The equipment features the GS (Geprüfte Sicherheit – Tested Safety) certificate, complies with the DIN EN 1493 standard, and is CE-marked. The 40A slow-acting fuse protection and the lockable main switch further increase workshop safety.
For maximum functionality and to meet special requirements, several accessories are available:
Fixing materials (Consul Fixing material up to 3,500 kg): Mounting set recommended for all Consul 2-post lifts with a load capacity of 3,500 kg, containing 12 pieces of M12 anchor bolts, threaded rods, and washers. For the 2x 2.30 EL model, ordering 2 sets is recommended.
Spacers: Spacers of various sizes (100 mm, 12 mm, 150 mm, 200 mm) are available for Consul articulated arm lifts (up to 4 tons), helping to support the vehicle underbody more precisely.
Limit Switches: A ceiling limit switch with a light signal or a manual pull switch is also available for safe height limitation.
Detailed documentation is also available for the product:
Catalogue (Brochure): Detailed overview of the product family.
Installation plan (Installation plan): Precise guide for professional installation of the equipment.
This Consul Caravan lift is the ideal solution for professionals seeking reliable, high-precision, and electrically controlled lifting technology for servicing caravans and trailers.
