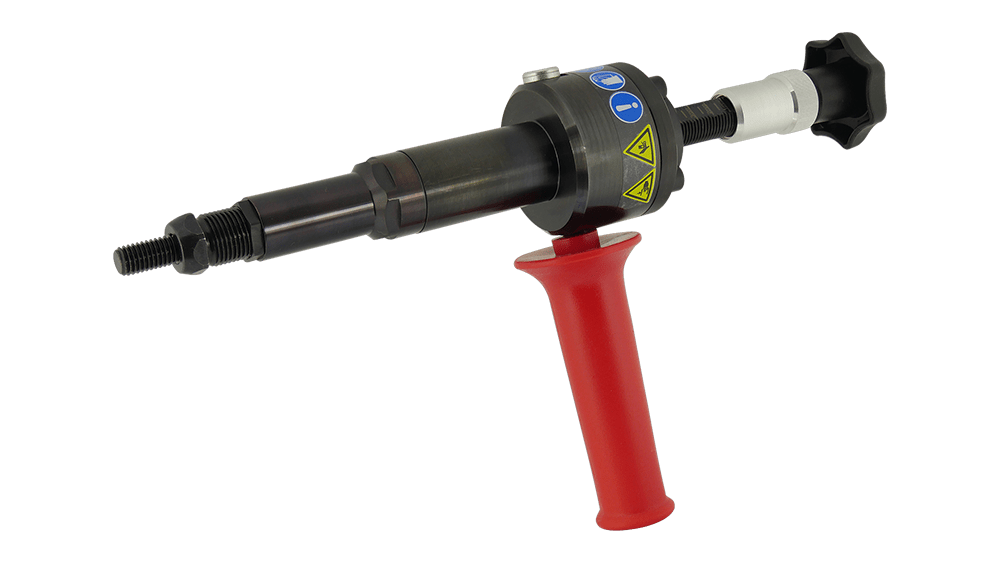

The Wielander + Schill XPull is a blind rivet technology, mechanical-hydraulic force multiplier tool specifically developed for high-precision and high-load riveting and pulling tasks in the field of automotive repair and metalworking. This system allows the user to generate up to 20 kN (kilonewtons) of compression/pulling force using pure manual force, which significantly facilitates and speeds up heavy fastening operations.
The primary advantage of the XPull lies in its extremely efficient power transmission: the force multiplication ratio is 1:8, meaning the operator can work on the workpiece with eight times the force exerted by hand.

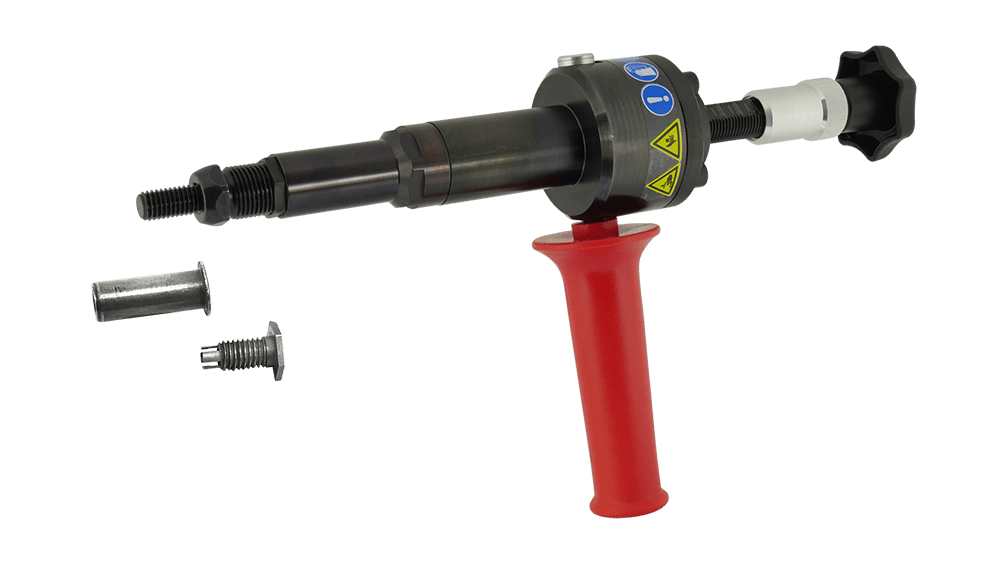

The XPull 700098 model is an integral part of the professional XSeries riveting technology and ensures excellent compatibility with all currently available WS pulling adapters, such as the Tool Box RS-04 | BRN set. This versatility ensures that the tool can be used across a wide range of applications, from standard riveting nuts to special bolted fastenings.
Manual operation with hydraulic assistance: The pure mechanical-hydraulic operation guarantees reliability and ease of maintenance while providing exceptional force without an external energy source.
High Force Multiplication: The 1:8 ratio minimizes user fatigue while delivering maximum performance.
Broad Compatibility: Compatible with the entire range of WS pulling adapters, ensuring flexibility for installing various fastening elements (rivet nuts, bolts).
Accessory M10 Pulling Adapter: The set includes one M10 left-hand thread rivet nut pulling adapter, ready for immediate use with appropriately sized fastening elements.
Important Note: The exact application areas and specific workflows must always be determined from the repair specifications of the respective vehicle manufacturer.
The table below details the specifications of the XPull 700098 product:
| Property | Value | Note |
|---|---|---|
| Part number | 700098 | |
| Product Name | XPull mechanical-hydraulic power intensifier with M10 puller adapter | |
| Force Multiplication Ratio | 1:8 | |
| Maximum Generated Force | 20 kN (Pulling Force) | Maximum thrust force provided by the hydraulic system |
| Accessory adapter | Rivet nut puller adapter | M10, Left-hand thread |
| Maximum adapter force | 25 kN | Maximum load capacity for the M10 adapter |
| Length | 340 mm | |
| Width | 260 mm | |
| Höhe | 145 mm | |
| Weight | 1.535 kg | Net weight of the tool |
| Compatibility | With all currently listed WS puller adapters | E.g. Tool Box RS-04 |

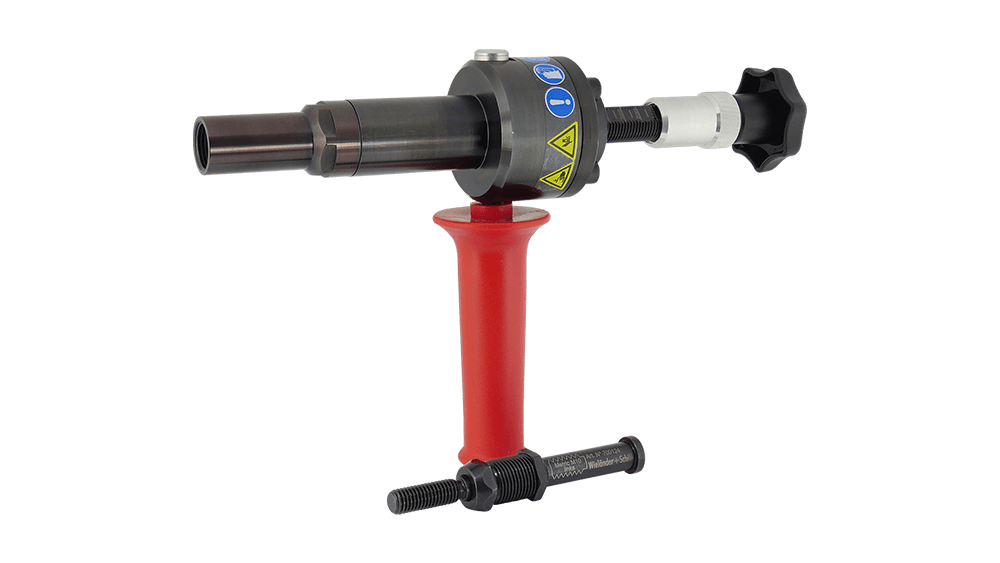

The XPull set with part number 700098 contains the following components, providing the basics required for professional work:
XPull Riveting Tool: The mechanical-hydraulic force amplification unit.
M10 Rivet Nut Puller Adapter: One adapter equipped with a left-hand thread, which can be directly connected to the tool.
The flexibility of the XPull system is further enhanced by a wide selection of compatible puller adapters, which can be purchased separately for different types of fasteners. These adapters are generally part of the Tool Box RS-04 | BRN (Part No: 700201) set, or available separately:

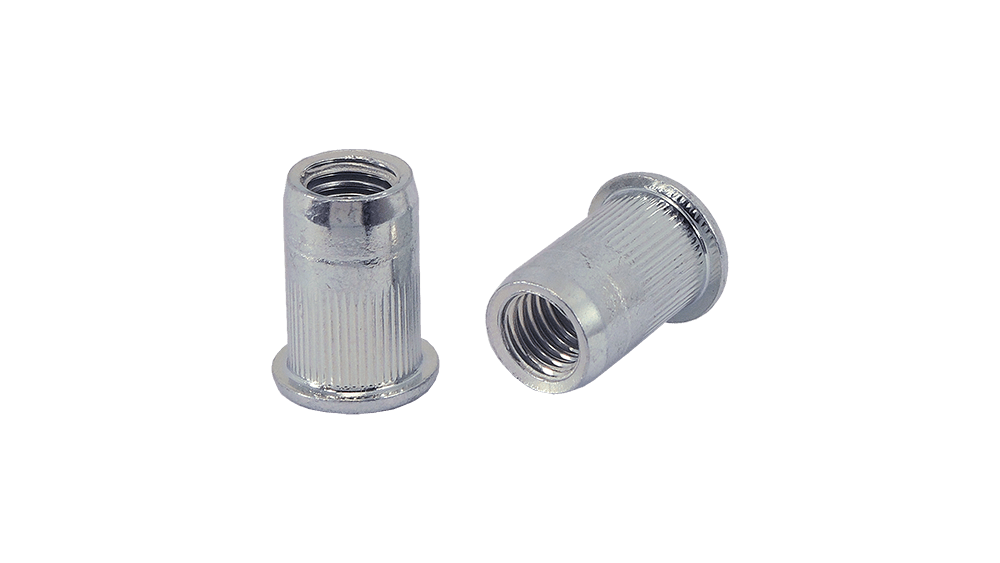

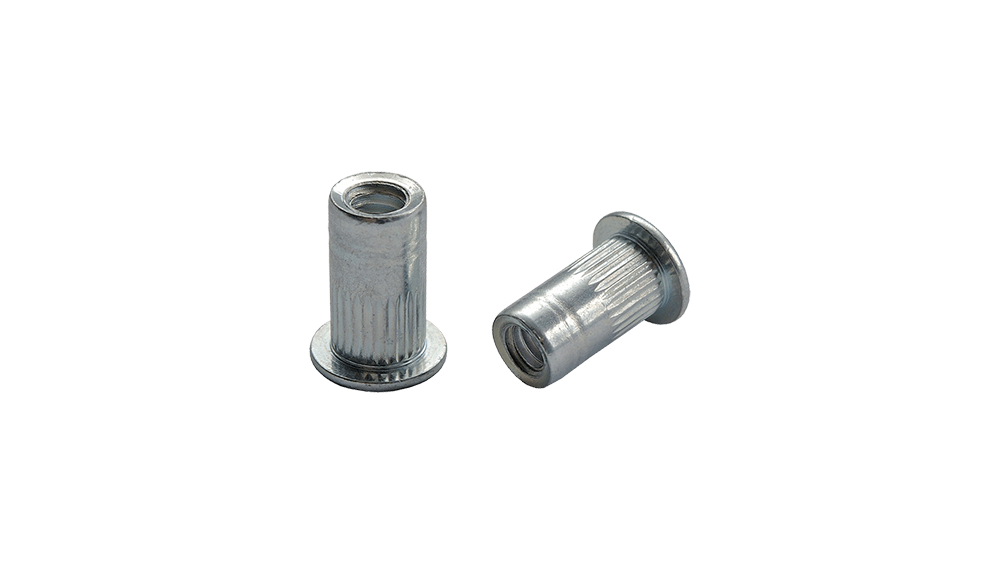

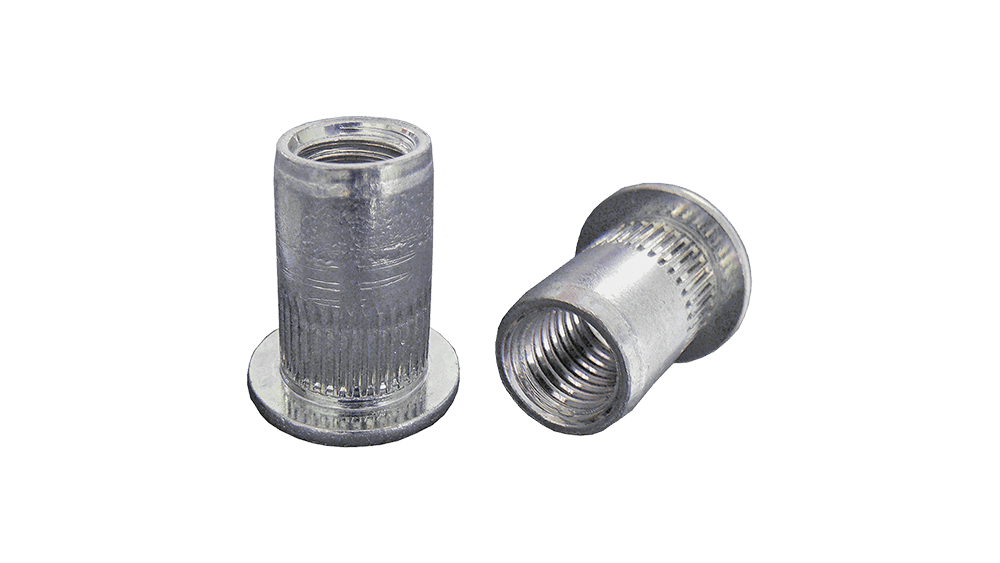

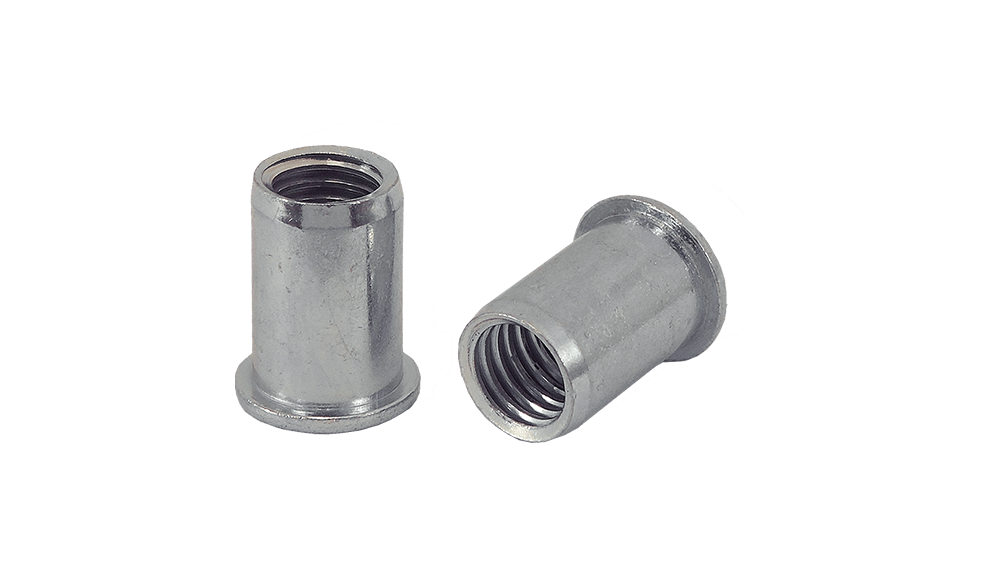

These adapters are necessary for installing standard rivet nuts and are available in different sizes:
M4 size steel rivet nuts: (E.g. Ø 6.0 × 11.0 mm, Part No.: 777203)
M6 size steel rivet nuts: (E.g. Ø 9.0 × 15.5 mm, Part No.: 777205)
M8 size steel rivet nuts: (E.g. Ø 11.0 × 17.0 mm, Part No.: 777206)
M10 size steel rivet nuts: (E.g. Ø 12.0 × 17.5 mm, Part No.: 777207)
M12 size steel rivet nuts: (E.g. Ø 15.9 × 23.0 mm, Part No.: 777208)
Special adapters for screw fasteners:

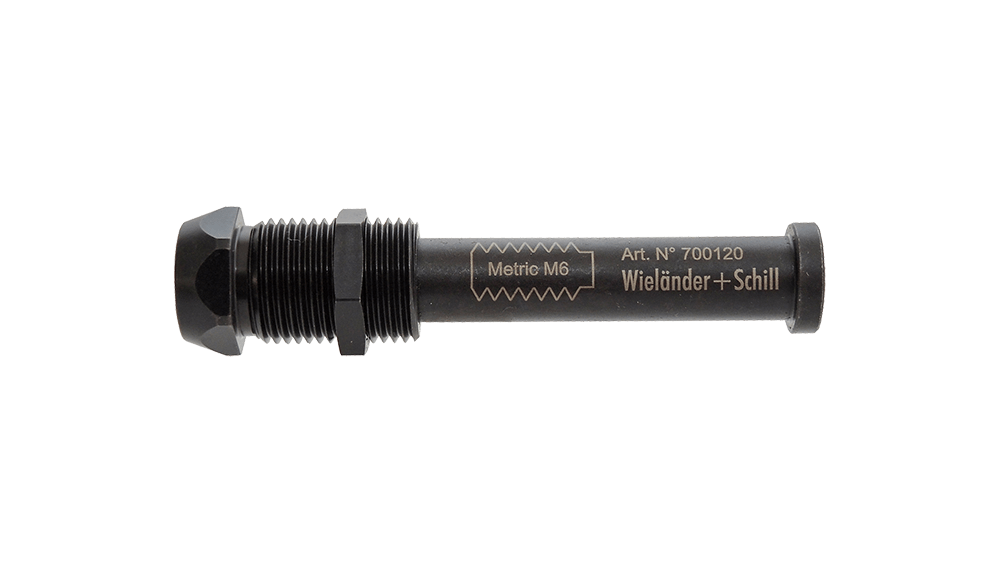

With M6 thread: (Part No.: 700120)

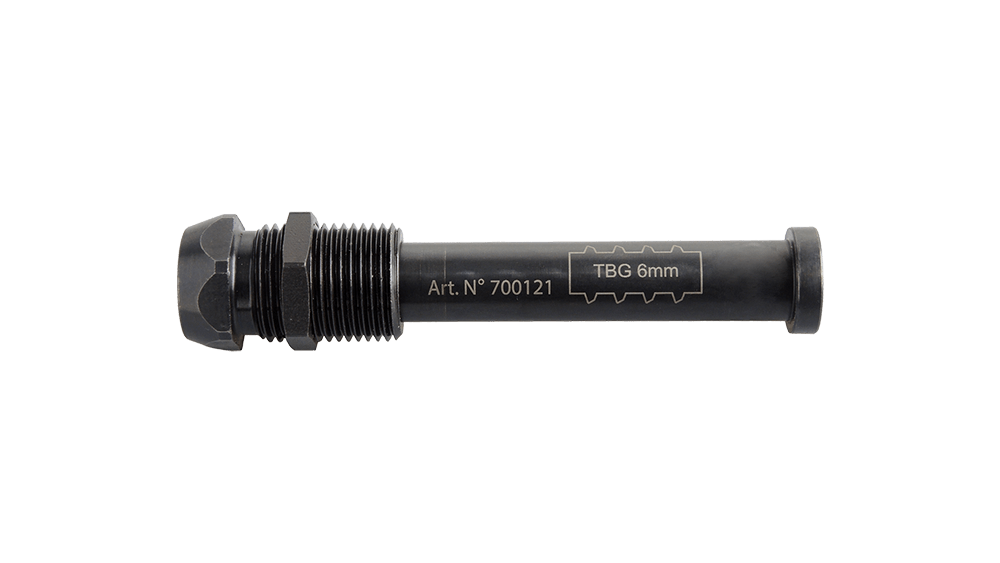

With 6 mm SelfLock thread: (Part No.: 700121)

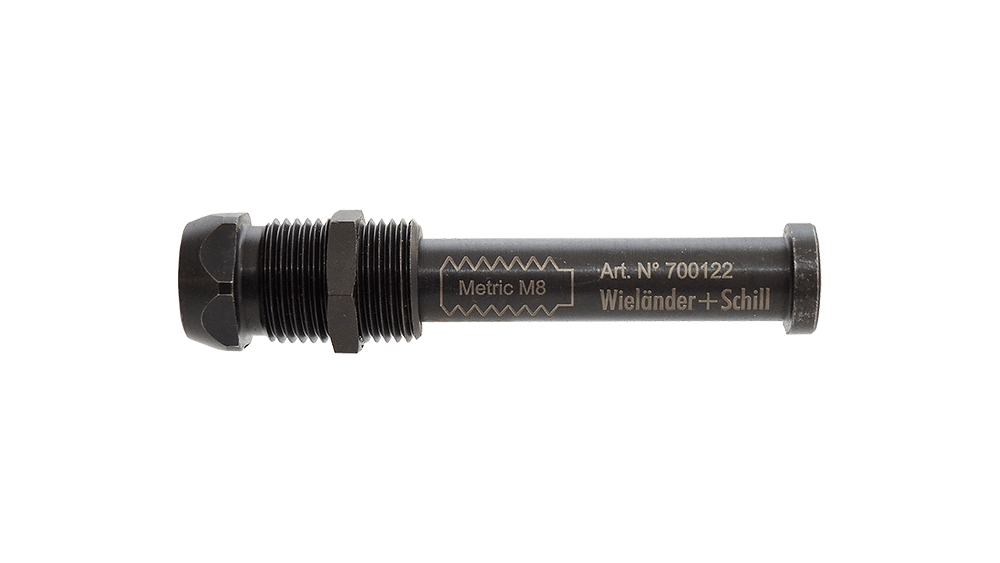

With M8 thread: (Part No.: 700122)

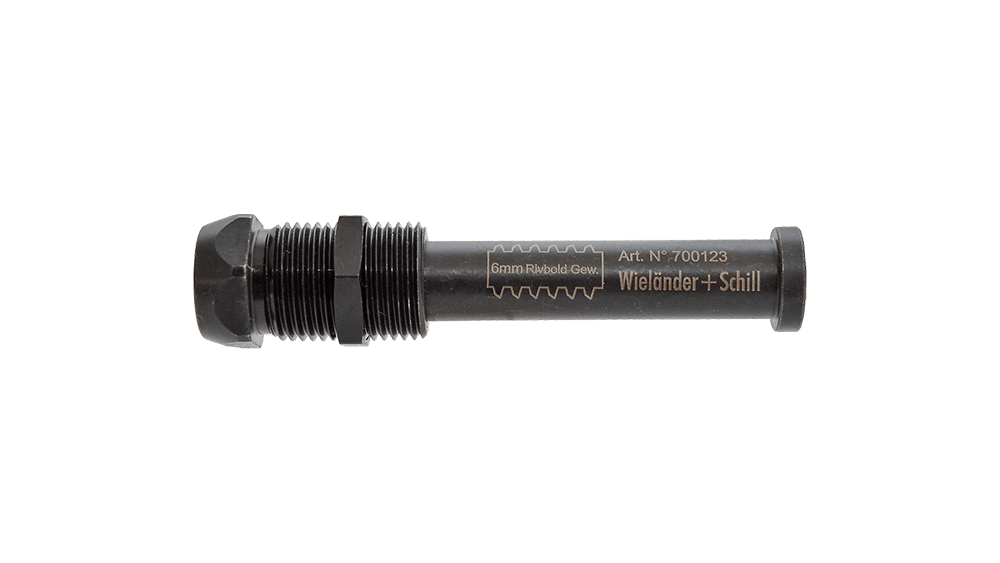

With 6 mm RivBolt thread: (Part No.: 700123)
With 5 mm RivBolt thread: (Part No.: 700127)

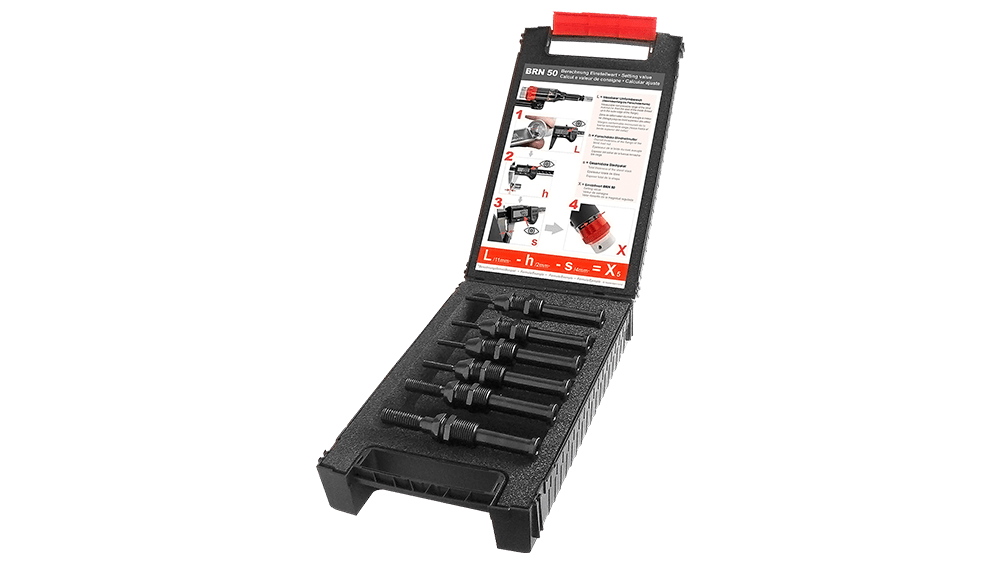

This adapter set is designed for the BRN 50 rivet nut adapter and includes the following pull mandrels: for M4, M5, M6, M8, M10, and M12 sizes.
The XPull booster is the ideal choice for any professional seeking a reliable, high-power, yet hand-operated fastening solution. It is particularly valuable in body repair where reliable and durable fastening is essential for maintaining structural integrity. The 20 kN force is sufficient for the hardest materials and the most demanding fastening points.
A detailed brochure (Flyer) is also available for this product, containing further information on the tool's use and specifications.
