The Wielander + Schill Roll Out 2020 CF The windshield removal system is a revolutionary solution for the professional and safe removal of bonded vehicle windows. This system is an innovative further development of the proven Roll Out 2000 model, which Constant Friction (CF) increases process safety and simplifies work with its technology.
The Roll Out 2020 CF system is designed so that a single person can use it easily and efficiently, while providing maximum protection for the vehicle's paint, thus eliminating the need for post-processing.
The Roll Out 2020 CF stands out on the market with numerous advantages that prioritize efficiency, safety, and cost-effectiveness:
One-Handed Operation: The design of the system allows a single technician to perform the cutting process precisely and safely.
Constant Friction (CF) Function: This innovative function significantly minimizes the risk of the cutting cord or Kevlar string breaking, thereby increasing the reliability and safety of the repair process.
No External Power Source Required: The system is completely mechanical and does not require electrical current or batteries, which ensures flexibility during in-shop and on-site work.
Precise Operation at Minimal Tolerances: The system operates accurately and safely even when the gap between the windshield and the body is extremely narrow.
Easy Handling and Low Costs: The lightweight design and the lack of need for additional tools contribute to economical operation.
Paint protection: During the removal of the windshield, the system guarantees that the surrounding surfaces remain undamaged.
| Property | Value |
|---|---|
| Part number | 842020 |
| Product Family | Roll Out 2020 CF |
| Field of application | Removal of bonded vehicle windows |
| Handling | Can be performed by one person |
| Power source | No external power source required |
| Special function | Constant Friction (CF) |
| Dimensions (L x W x H) | 390 x 390 x 100 mm |
| Weight | 5.28 kg |
| Number of accessories | 17-piece set |

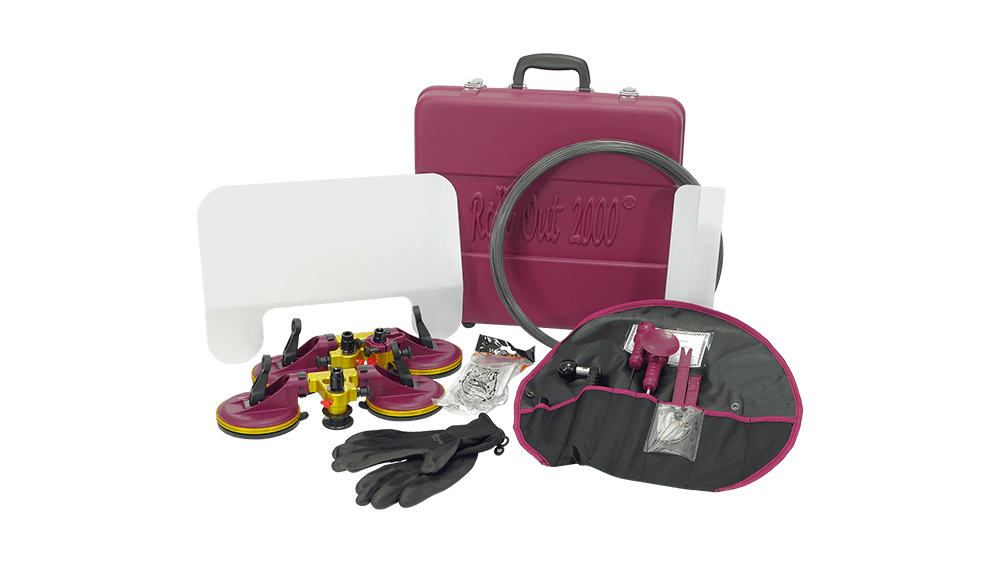

The Roll Out 2020 CF molding removal system completely includes all the premium tools required for professional work:
| Part number | Designation | Quantity / Description |
|---|---|---|

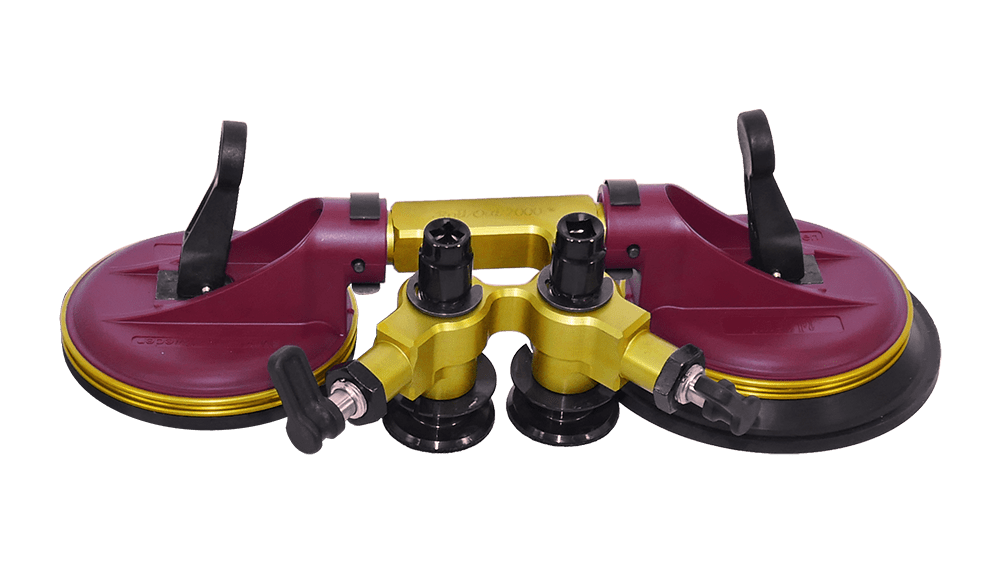

| 848088 | CF Handle with Suction Cups | 1 pc (with 120 mm and 150 mm suction cups) |
| 848007 | Parabolic suction lifter | 1 stück |

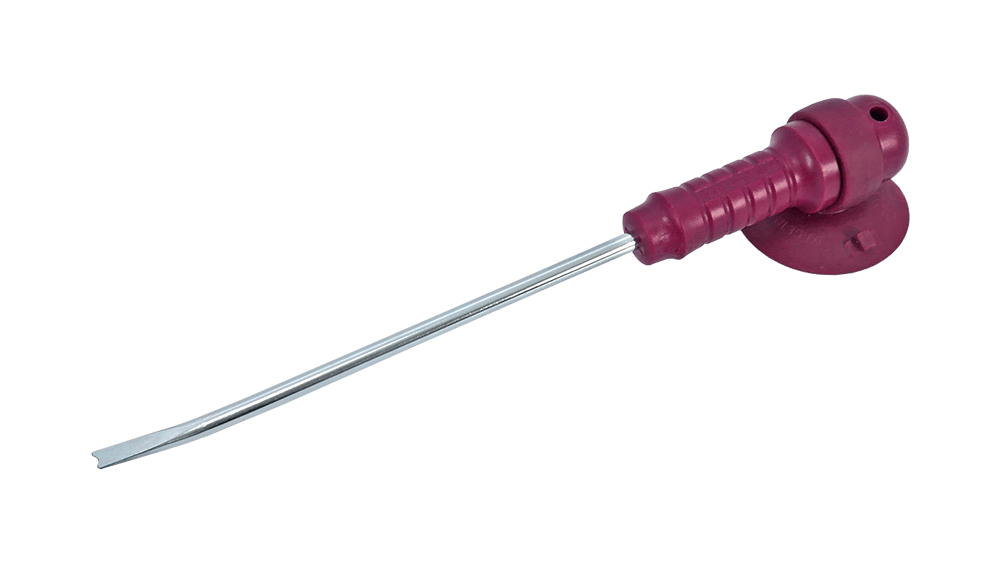

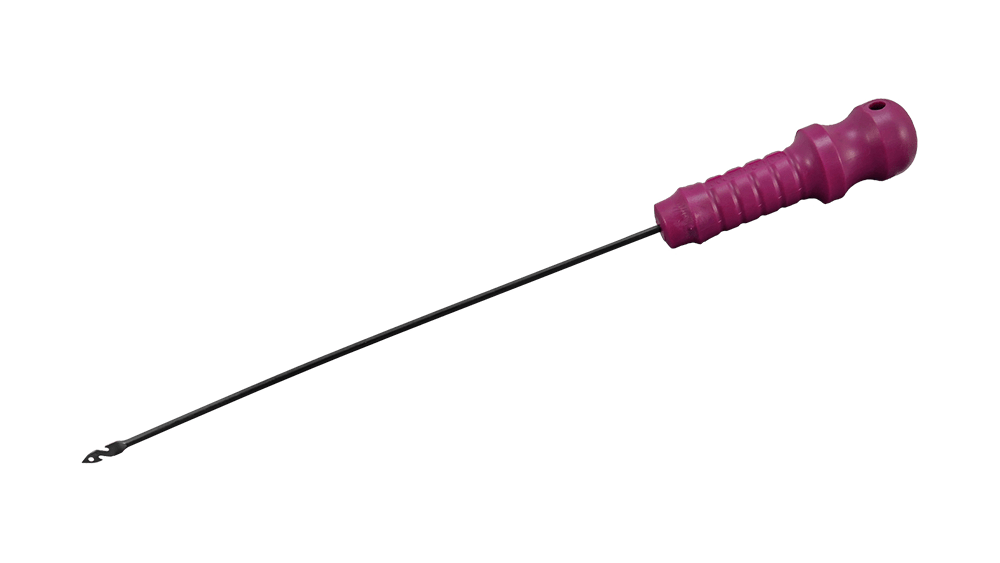

| 848090 | Wire feed tool | 1 pc (Roll Out 2020CF specific) |
| 848027 | Ratchet drive handle | 1 pc (with 3/8″, ball handle) |
| 848087 | Small ratchet wrench | 1 stück |
| 848038 | Ratchet extension | 1 pc (75 mm) |
| 848029 | Insertion picks | 1 set (2 pieces) |
| 848004 | Cutting wire needle set | 1 set (8 straight, 2 bent) |
| 848032 | Safety goggles | 1 stück |
| 848042 | Tool Bag | 1 pc (Roll Out 2000, red) |
| 848085 | Kevlar Cord CF | 1 pc (25 meter roll) |

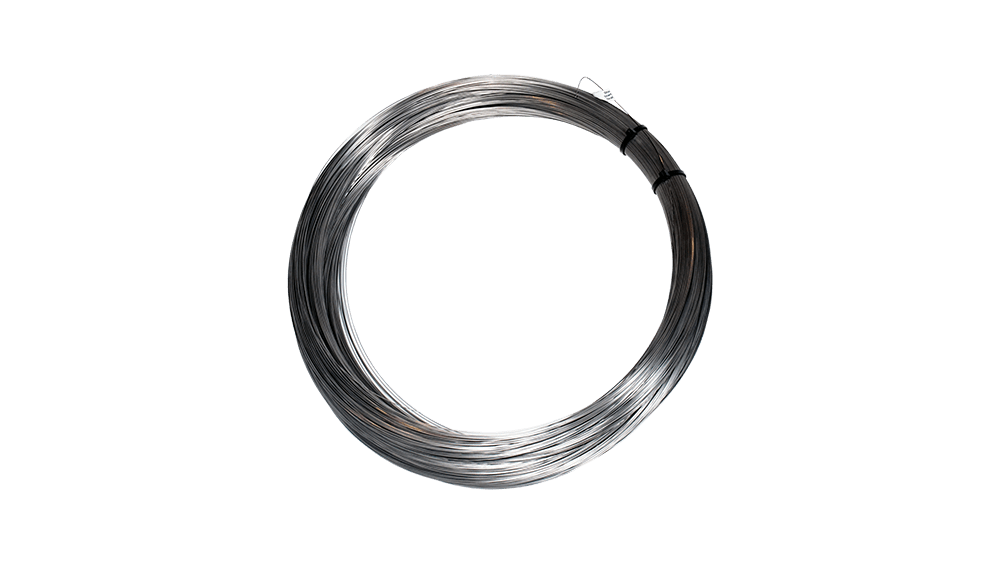

| N/A | Cutting wire | 1 roll (Ø 0.75 mm x 350 m) |

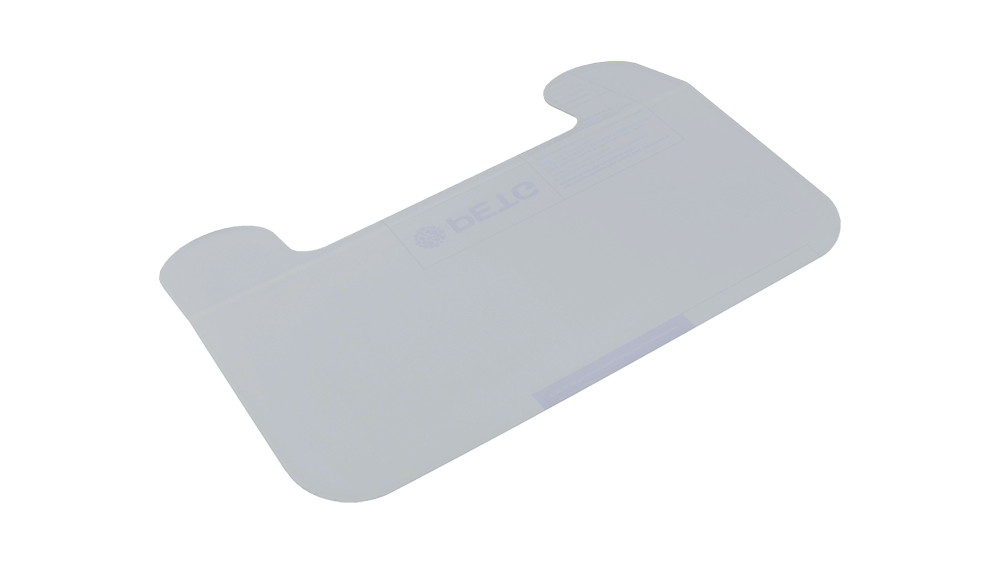

| N/A | Interior Protector | 1 stück |
| N/A | Protective gloves | 1 pair |
| N/A | Repair Manual | 1 stück |
| N/A | Carrying bag | 1 stück |
For professional execution, Wielander + Schill offers numerous accessory tools that optimize the molding replacement process:
This special cutter ensures the cutting cord is held stably against the glass or bodywork, freeing both hands for precise work.

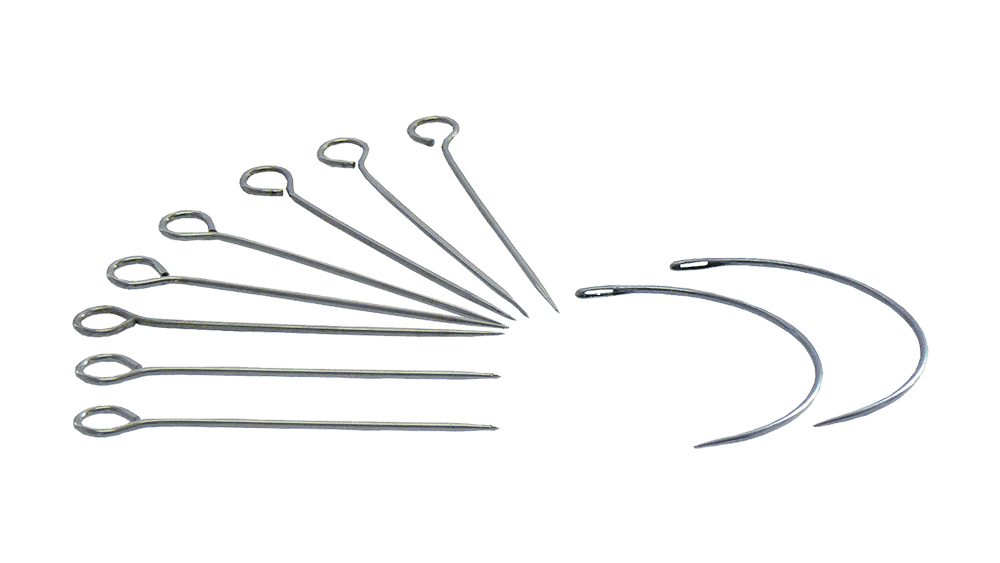

A set of 10 pieces containing 8 straight and 2 bent needles. These assist in guiding the cutting cord in hard-to-reach or complex areas.

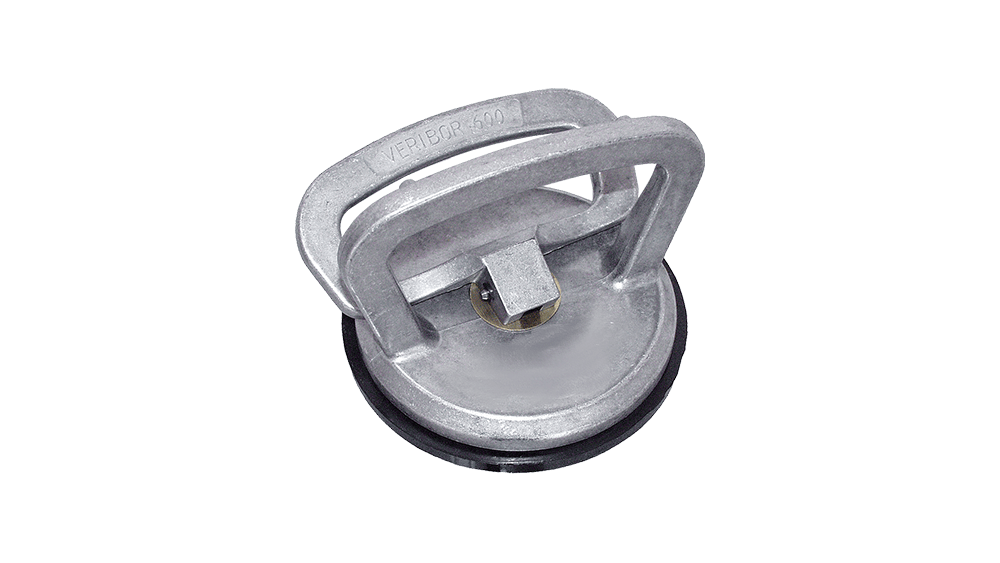

Suction cup made of cast aluminum, ideal for smooth, airtight sealing surfaces (glass, metal). It can be easily fixed and released with one hand using the lever handle.
Special cutting wire for the Roll Out 2000 system, supplied in a 1500-meter spool, sufficient for removing approximately 250 windshields.
This device ensures safe and protected storage of the cutting wire, and allows for easy unwinding of the cord and accurate length measurement.

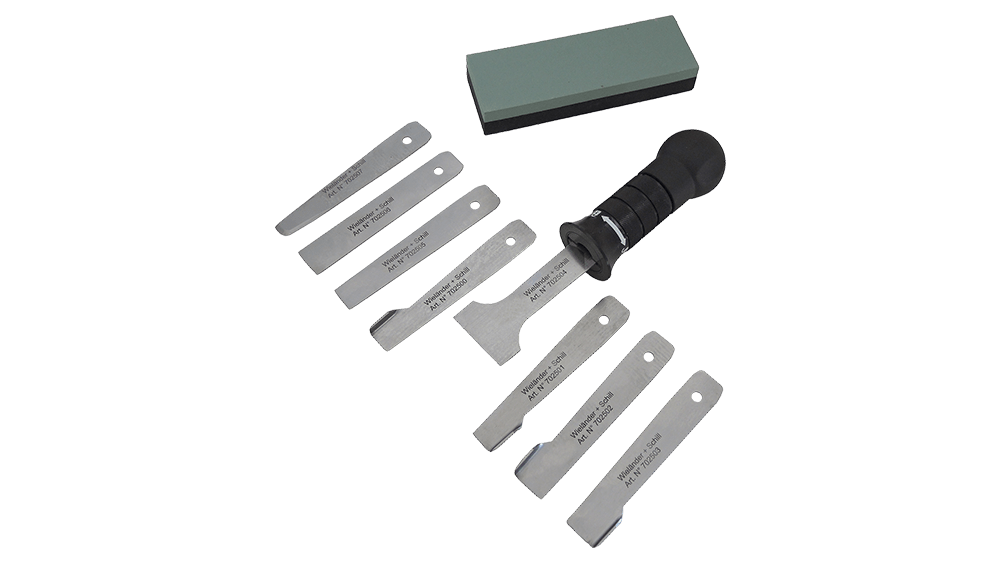

This set includes professional scraper blades, ideal for removing residual PU adhesive. The comfortable handle ensures efficient power transmission. The blades' rounded side bevels allow for fine-tuning the cutting edge to individual requirements, ensuring the correct adhesive thickness is maintained to facilitate later re-gluing.
Contents of the Fix-Cut 1 Set:
2 pcs 547033 Scraper Blade (20 mm)
2 pcs 547034 Scraper Blade (25 mm)
2 pcs 547035 Handle
1 pc 547037 Whetstone (silicon carbide)
1 pc 474251 Allen key (4 mm)
1 pc Carrying case
