InvertaPuls IP 4-3 | 3 × 400 V | 240 A

InvertaPuls IP 4-3 | 3 × 400 V | 240 A

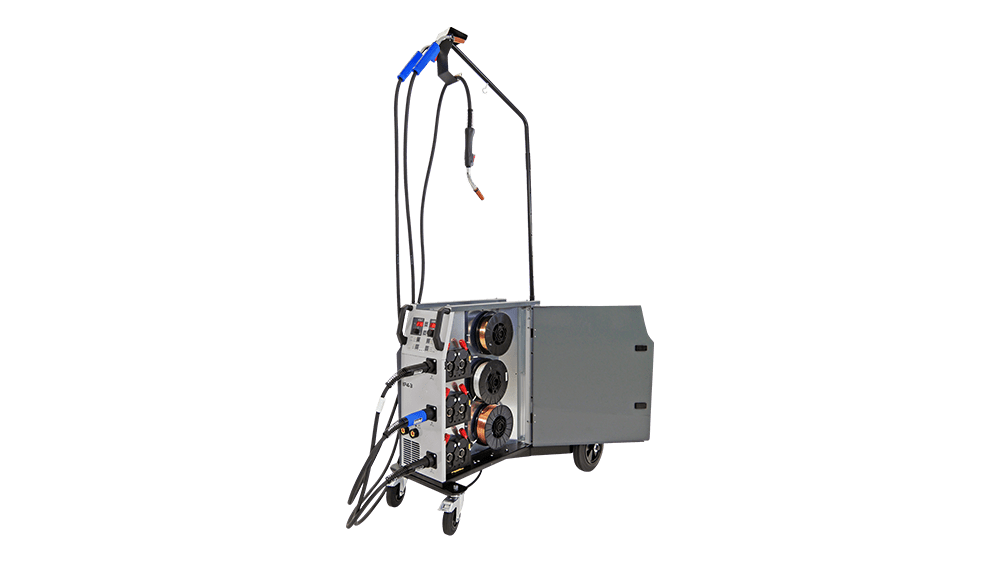

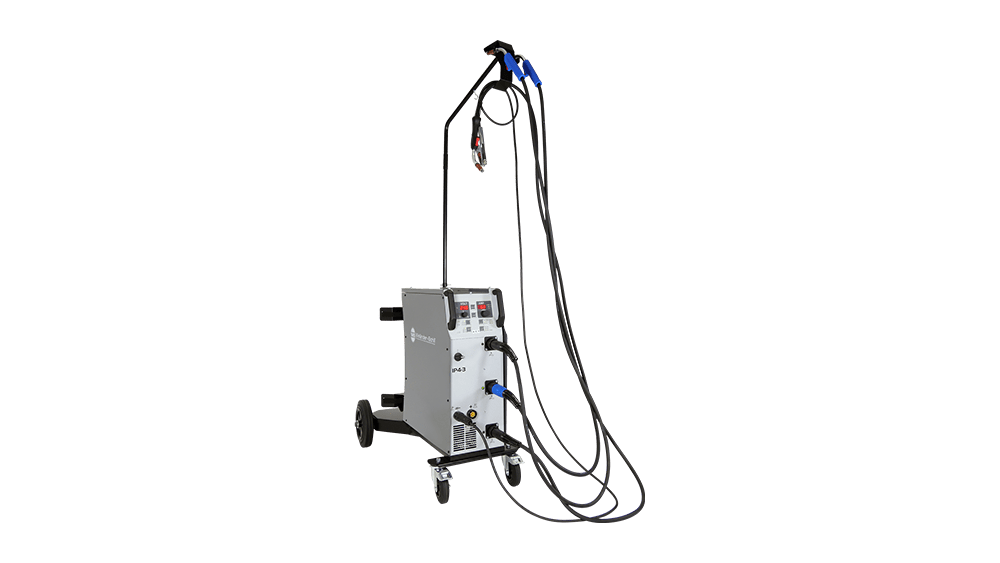

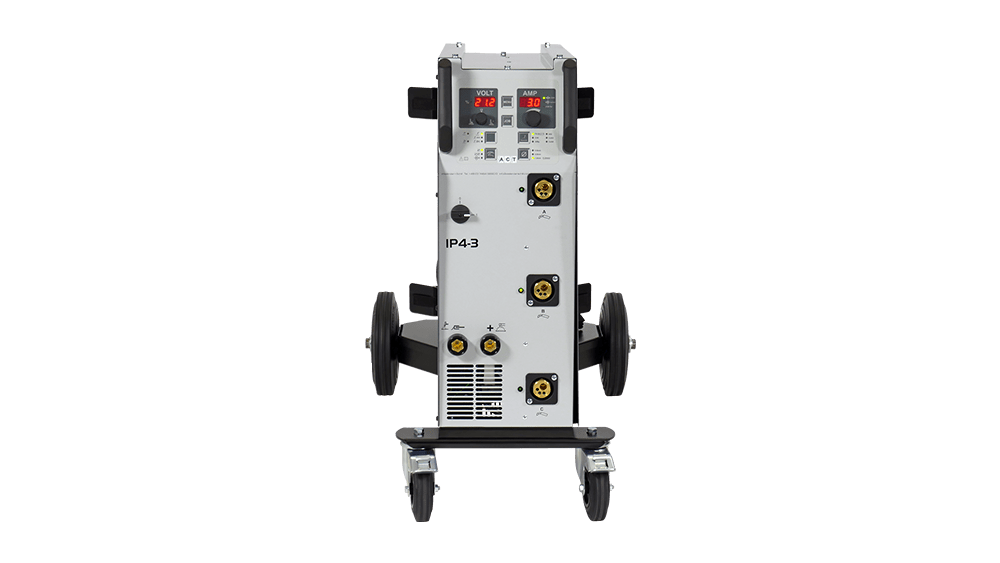

The Wielander + Schill InvertaPuls IP 4-3 A welding machine tailored to the demands of modern body repair and metalworking, an extremely versatile and high-performance inverter unit. This device is the ideal choice for steel welding, as well as MIG brazing technologies (especially for copper-silicon based materials), ensuring maximum efficiency and accuracy for body repair specialists.

The intelligent design of the IP 4-3 allows for up to three different torches connection, with automatic torch recognition, providing unparalleled flexibility and fast workflow when switching between different materials and processes.

Key Features and Advantages

The InvertaPuls IP 4-3 focuses on optimizing user convenience and welding quality:

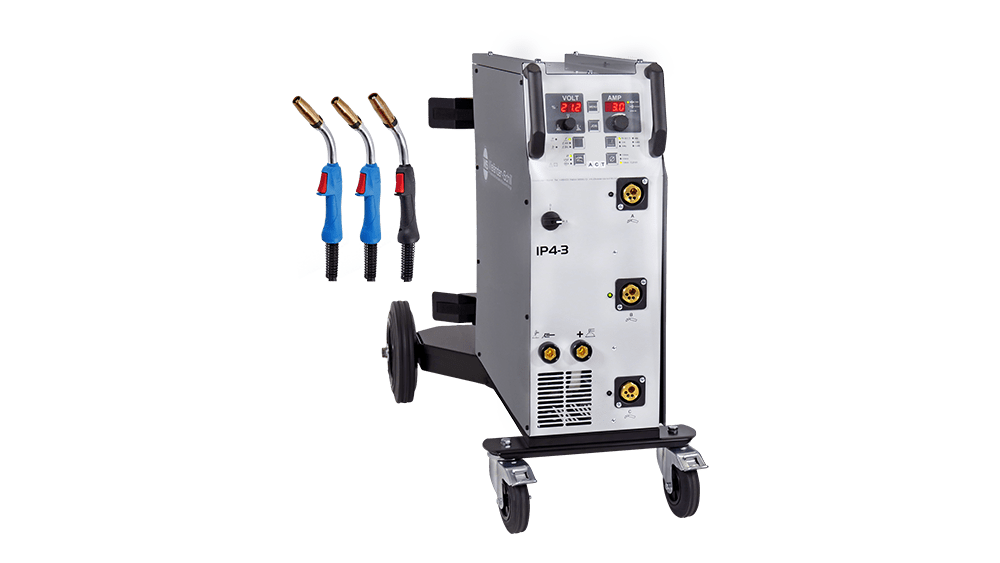

• Three Torch Support: Enables the connection of three different torches (e.g., steel, ALU, brazing) with automatic recognition, minimizing setup time.

• Higher Welding Speed: Significantly increases productivity through inverter technology and advanced arc control.

• Lower Heat Input: Particularly advantageous when welding thinner sheets and heat-sensitive materials, thus reducing material distortion.

• Excellent Gap Bridging: Guarantees a reliable bond even with imperfectly fitting or gapped joints.

• Automatic Parameter „Hold” (Hold Function): Automatic recording of successful welding parameters ensures consistent quality during continuous work.

• Robust Wire Feeder: A 4-roller drive wire feeder unit guarantees uniform and reliable wire advancement, which is essential for precise welding.

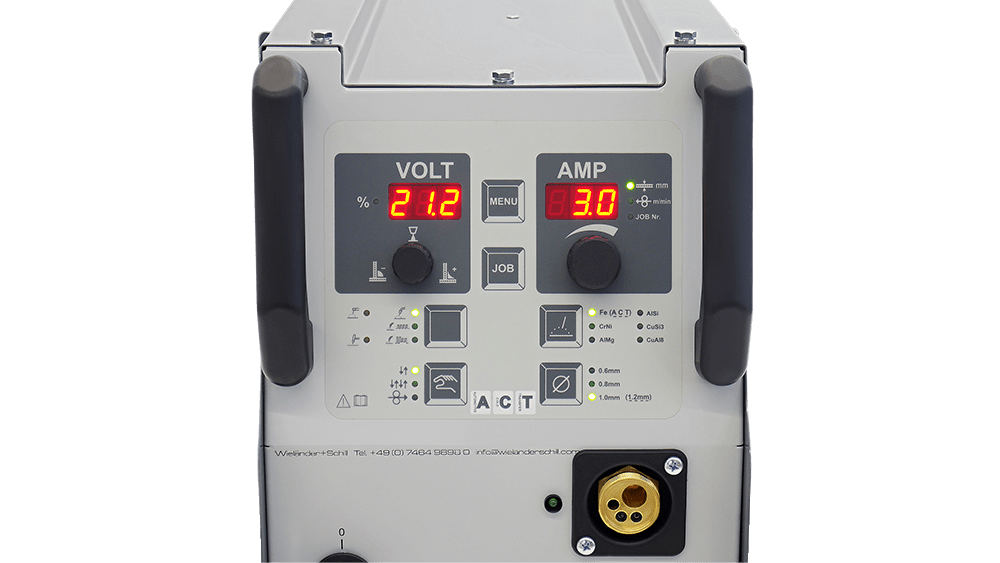

• Programmability: Ability to save unique welding programs for quick recall.

• Software Update Interface: Integrated interface ensures the device software remains up-to-date.

Versatile Application Areas

The InvertaPuls IP 4-3 offers optimized programs for a wide range of welding processes:

• MIG Brazing: Especially suitable for CuSi3, AlBz8, CuAl8 materials, which is crucial for modern vehicle body repairs.

• Steel and Stainless Steel Welding: Standard MIG/MAG processes.

• Aluminum Welding: Special programs for aluminum.

• TIG Welding: For high-quality, clean welding seams.

• Flux-Cored Wire Welding: For outdoor or more demanding environment work.

• Shielded Metal Arc Welding (MMA): Optional capability.

Technical Data

The InvertaPuls IP 4-3 provides precise and reliable performance based on the given specifications:

Note: Mains voltage of 2 × 200 V is also optionally available in some configurations.

Basic Accessories

The device is delivered with the basic accessories required for professional work:

• Wire Feeder Roller Sets:

• 1 pc steel roller set (0.6 mm & 0.8 mm) – Part No: 337219

• 1 pc steel roller set (0.8 mm & 1.0 mm) – Part No: 337220

• 1 pc aluminum roller set (1.0 mm & 1.2 mm) – Part No: 337221

• Welding Torches (Type 3G):

• 1 pc 3G Torch for steel welding (3.0 m) – Part No.: 308110

• 1 pc 3G Torch for ALU welding (3.0 m) – Part No.: 308111

• 1 pc 3G Torch for MIG brazing (CuSi3) (3.0 m) – Part No.: 308116

• Earth cable:

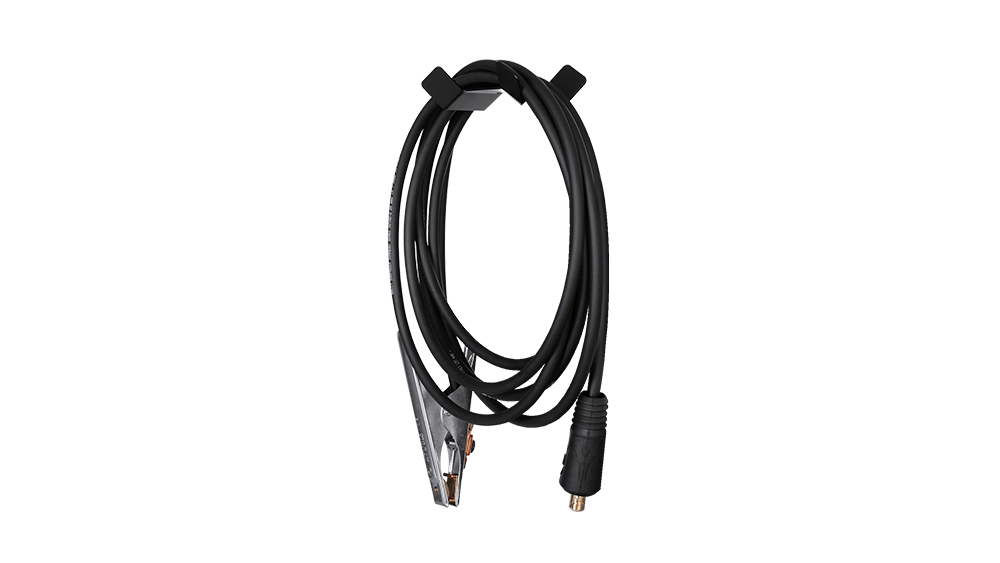

• 1 pc Ground cable with clamp (5 m, 35 mm², SK 35 connector) – Part No.: 304053

• Gas pressure regulators (Only for DE and AT regions):

• 2 pcs ProControl pressure reducer (200 bar) – Part No.: 311042

• 1 pc Double shut-off valve 1/4″ for pressure gauge (Only for DE and AT) – Part No.: 311044

• Consumables:

• 1 set Contact tips M6 x 28 mm (Set of 10) – Part No.: 307060

• Documentation:

• 1 pc User manual

Accessory Materials Recommendation

To achieve maximum performance, the use of the following welding materials is recommended, which are compatible with the processes supported by the InvertaPuls IP 4-3:

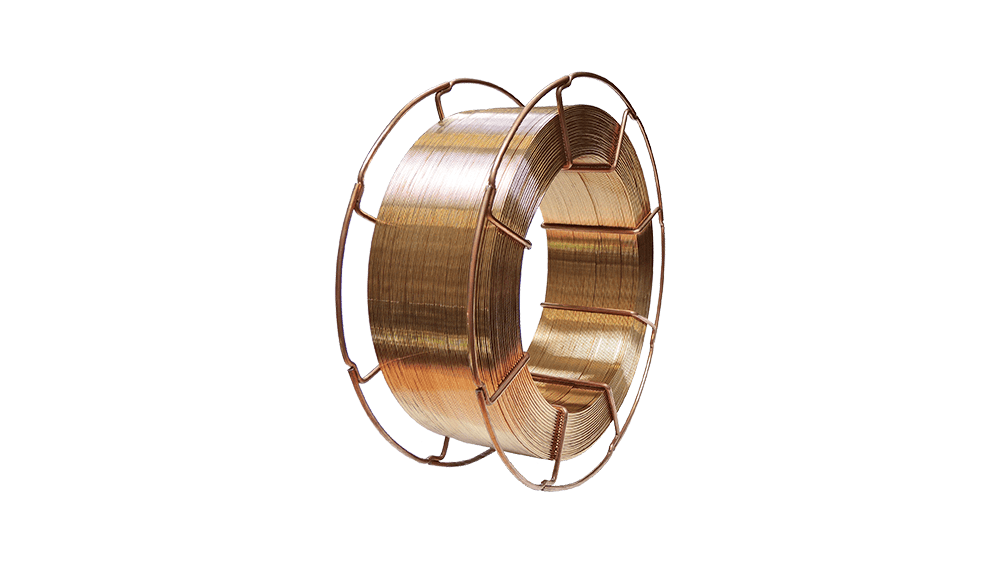

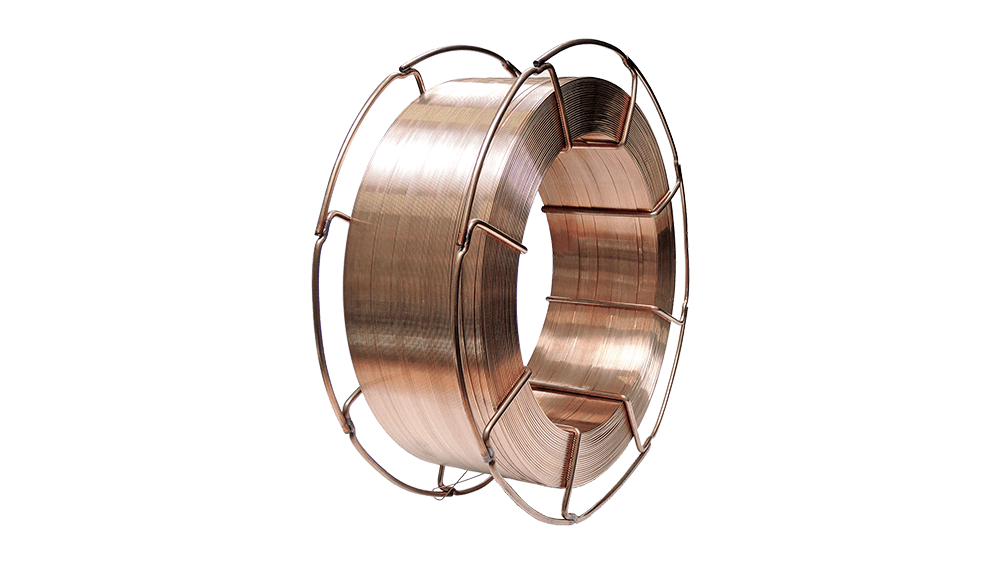

Welding wire CuSi3 | Ø 1.2 mm | K300 | 15 kg (Part No.: 311006)

This 1.2 mm diameter copper-silicon (CuSi3) wire is available on a K300 spool. It is excellently suited for MIG brazing of galvanized steel sheets (short arc or pulsed) and TIG welding in body construction. A significant advantage is that it largely preserves the corrosion protection of galvanized surfaces and generally does not require base material preheating.

• Recommended shielding gases (EN ISO 14175): TIG: Argon I1; MIG: Argon I1, I3.

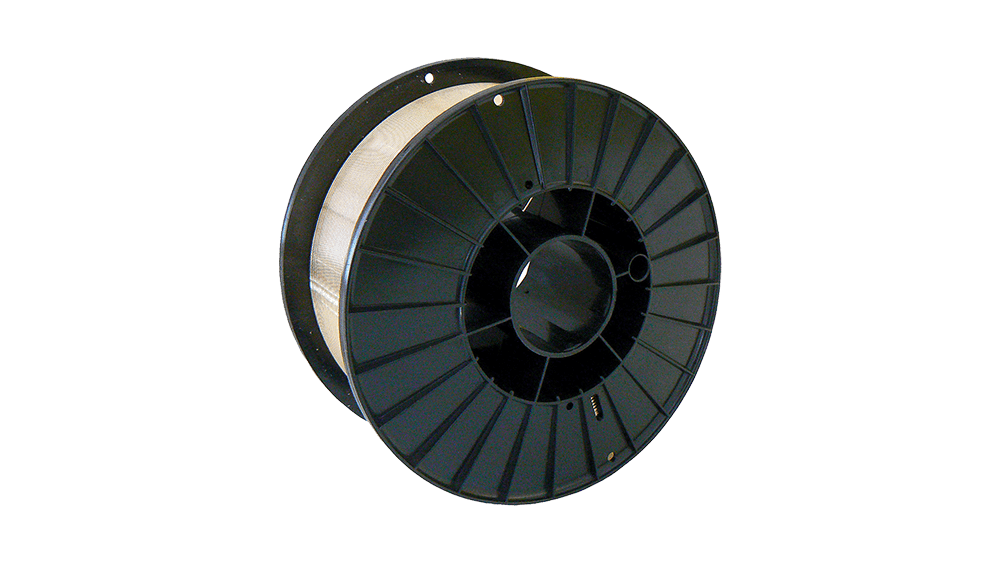

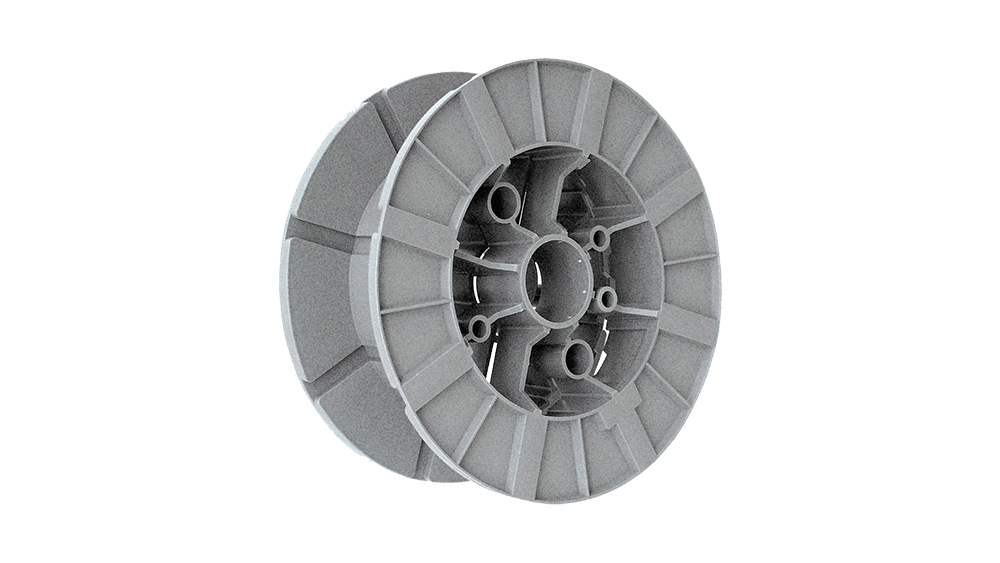

Welding wire NiMoCr | Ø 0.8 mm | K300 | 15 kg (Part No.: 311010)

This 0.8 mm diameter NiMoCr wire is on a K300 spool. It is made of low-alloy steel and is suitable for MAG welding of hardened and tempered fine-grain steels. The weld metal can be used at operating temperatures between -40 °C and 350 °C.

• Important: Welding characteristics are strongly dependent on the shielding gas; optimal performance is achieved with M21 mixed gas. The interpass temperature must not exceed 200 °C.

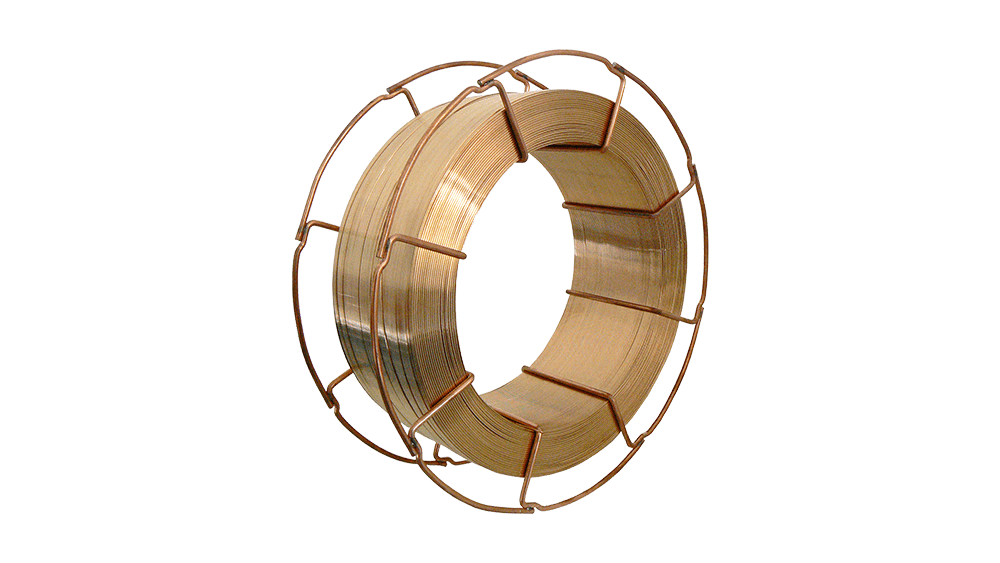

Welding wire CuAl8 | Ø 1.2 mm | K300 | 15 kg (Part No.: 311028)

This 1.2 mm diameter CuAl8 wire is available on a K300 spool and is made from a copper-aluminum alloy. It has excellent corrosion and seawater resistance, as well as good flow properties. It is suitable for welding aluminum-bronze (7-9% Al content), copper, and copper-zinc alloys (brass). Furthermore, it is excellently suited for surfacing welds on unalloyed and low-alloy steels, as well as cast iron.

• Preheating: Only necessary for large workpieces (approx. 250 °C).

• Recommended shielding gases (EN ISO 14175): TIG/MIG: Argon I1.

The InvertaPuls IP 4-3 welding machine represents Wielander + Schill quality, providing body repair shops with the latest technology for efficient and durable work.
