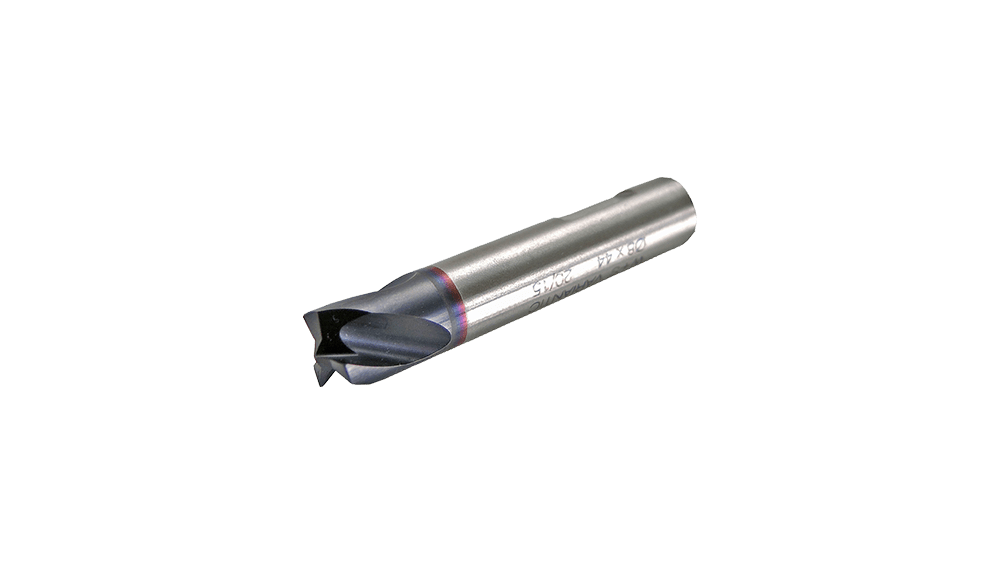

This detailed product description showcases the high-performance tool manufactured by Wieländer+Schill Variantic Z3 milling cutter which is specifically designed for the VarioDrill WS 90 precise and efficient removal of spot welds using the system. This tool is an essential accessory for every professional body repair shop where maximum precision and tool life are required during the dismantling of body panels.
The Variantic Z3 milling cutter belongs to the Separating Tools category and is optimized for the VarioDrill WS 90 systems. Its design ensures fast, clean, and vibration-free weld removal, minimizing the risk of damage to surrounding material.
Main Advantages:
Excellent Material Quality: HSS (High-Speed Steel) base material ensures the tool's durability and resistance to high loads.
Optimized Coating: The TiCN (Titanium Carbonitride) coating significantly increases surface hardness, reduces friction, and improves heat resistance, contributing to a longer service life, especially when machining high-strength steels.
Precise Geometry: The 3-flute design (Z3) guarantees efficient material removal and stable running at the center of the spot weld.
Compatibility: Designed exclusively for use with VarioDrill WS 90 systems.
The precise specifications of the product ensure users can accurately assess compatibility and performance.
| Property | Value | Unit of Measure | Note |
|---|---|---|---|
| Item number | 620200 | – | Unique Identifier |
| Típus | Variantic cutter Z3 | – | Milling Cutter Type |
| Diameter (Ø) | 8,0 | mm | Cutting Edge Diameter |
| Overall Length (Length) | 44,0 | mm | Total length of the tool |
| Number of Flutes | 3 | pcs | Number of cutting edges |
| Material | HSS | – | High-Speed Steel |
| Coating | TiCN | – | Titanium carbonitride coating |
| Shank diameter (Shank diameter) | 8,0 | mm | The holder diameter |
| Weight | 0,020 | kg | Product weight |
| Dimensions (Length x Width x Height) | 45 x 8 x 8 | mm | The packaging or total dimension (depending on context) |
| Content (Content) | 1 stück | piece | Contents of the package |
| Extended content | 5 pcs | piece | Optional order quantity |
The Z3 milling head is essential for repairing the bodywork of modern vehicles, especially in cases where spot welds of high-strength steels (HSS, UHSS) need to be removed.
Precise Spot Weld Removal:
The tool is designed to precisely remove the weld seam created by the upper electrode of the spot welder without unnecessarily stressing or thinning the adjacent sheets or structural elements of the body. The design with 3 cutting edges allows for a stable cut, which is critical when replacing safety-relevant components.
Longer Tool Life:
The TiCN coating is a crucial factor in maximizing tool life. This coating is excellently resistant to high temperatures and friction, which significantly reduces wear, thus requiring less frequent replacement and increasing workshop efficiency.
To further enhance maximum performance and tool life, Wieländer+Schill recommends the use of the following cutting fluids, which have been specially developed for machining high-strength automotive steels:
This special, silicone-free cutting oil ensures cooling and lubrication during machining, which is essential for increasing tool life and maintaining optimal cutting performance.
| Product | Package contents | Part number | Advantages |
|---|---|---|---|
| BTR/BOR Fluid | 125 ml | 628000 | Increases the service life of milling heads, drills, and saws on high-strength steels. |
| BTR/BOR Fluid | 50 ml | 648007 | Compact packaging, ideal for frequent use or for smaller workshops. |
Using the appropriate lubricant reduces overheating of the tools, prevents premature wear of the tools, and ensures a clean cutting surface.
Wieländer+Schill is committed to the highest quality standards, which are reflected in the strict procedures applied during product manufacturing. The company holds the following ISO certificates, which guarantee consistent quality management and environmentally conscious operation:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
This Variantic Z3 milling head (620200) is a reliable and durable solution designed for professional body repair work, guaranteeing the fast and precise removal of spot welds in conjunction with the VarioDrill WS 90 system.
