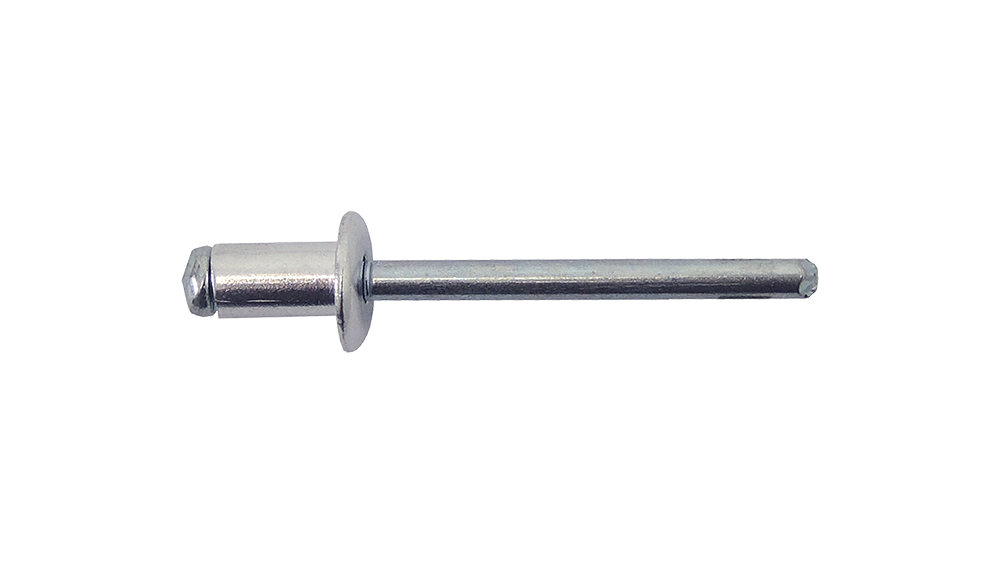

This detailed product description refers to a high-quality aluminum blind rivet that is part of the Wieländer+Schill XSeries professional riveting technology range. This fastener is an ideal choice for applications where two or more different materials need to be permanently joined, and fastening is only possible from one side.
The aluminum blind rivet (Pop-rivet) is a versatile, single-sided fastening element developed specifically for the demands of body construction, repair, and general metalworking. It is excellently suited for the safe and solid fastening of various materials, such as metals, plastics, or composites, where traditional screwing or welding is not feasible.
The use of aluminum material ensures excellent corrosion resistance and low weight, which is particularly advantageous in the automotive sector where weight reduction is crucial. The design of the rivet guarantees quick and reliable assembly with the help of suitable riveting tools (e.g., battery-powered or pneumatic riveting gun).
One-Sided Installation: Ideal for situations where the backside of the workpiece is inaccessible.
Material Compatibility: Designed for the secure joining of different materials (metal, plastic, etc.).
Aluminum Construction: Provides excellent corrosion resistance and light weight.
High Clamping Force: During the riveting process, the rivet body expands, firmly securing the two materials together, thereby creating a vibration-resistant connection.
Professional Quality: As part of the XSeries product family, it is guaranteed to meet strict professional requirements.
The precise dimensions and materials of the product ensure compatibility with standard riveting tools and a precise fit into the holes.
| Property | Value | Note |
|---|---|---|
| Part number | 777231 | Unique identifier for kit tracking. |
| Material | Aluminum (Alu, Aluminium) | Material of the mandrel (shank) and the head. |
| Clamping Range | 2.0 – 4.0 mm | The range of the maximum joinable material thickness. |
| Diameter (Ø) | 6.0 mm | The nominal diameter of the rivet shank. |
| Head Length | 10.0 mm | The dimension of the rivet head. |
| Total Length (Length) | 11.15 mm | The total length of the rivet (including the head dimension). |
| Width (Width) | 11.15 mm | The width of the head. |
| Height | 50.1 mm | The total length of the rivet according to specifications (likely the open mandrel length or the total length in the packaging). |
| Package Contents | 40 pieces | Number of rivets in one package. |
| Weight | 0.180 kg | The net weight of the packaged product. |
| Other Materials (Note) | Stainless Steel, Steel | Although the product is primarily aluminum, the description may refer to compatible materials or the composition of the rivet shank/pin. |
This product originates from manufacturing processes that comply with ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certificates, as part of the Wieländer+Schill professional tool range.
For achieving the proper riveting result and protecting the tools, the following accessory is recommended:
Mouthpiece 3.6A
Part number: 700519
Description: Flat head mouthpiece with a diameter of 3.6 mm, specifically for blind rivets.
Compatibility: Can be used for BR 20 or BR 50 type blind rivet adapters.
This precision aluminum blind rivet ensures a durable and reliable connection even in the most demanding professional applications.
