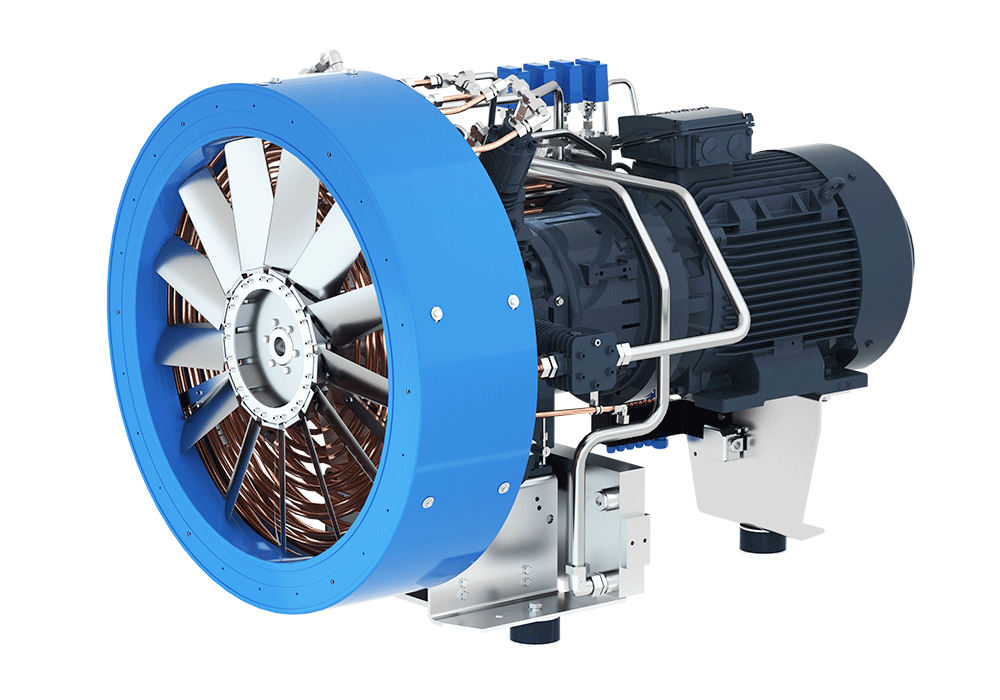

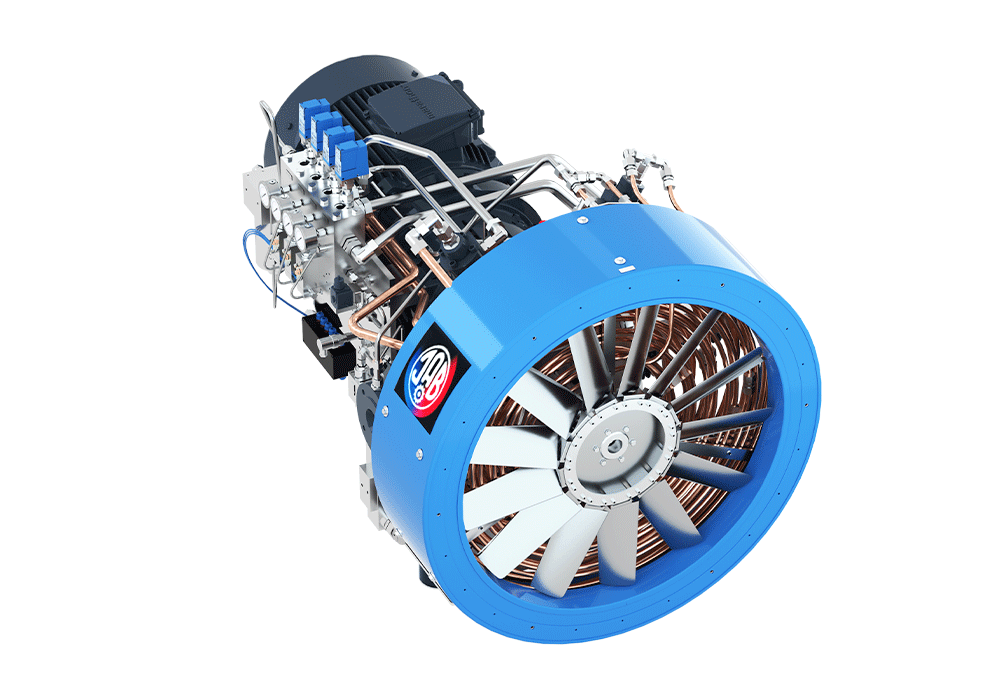

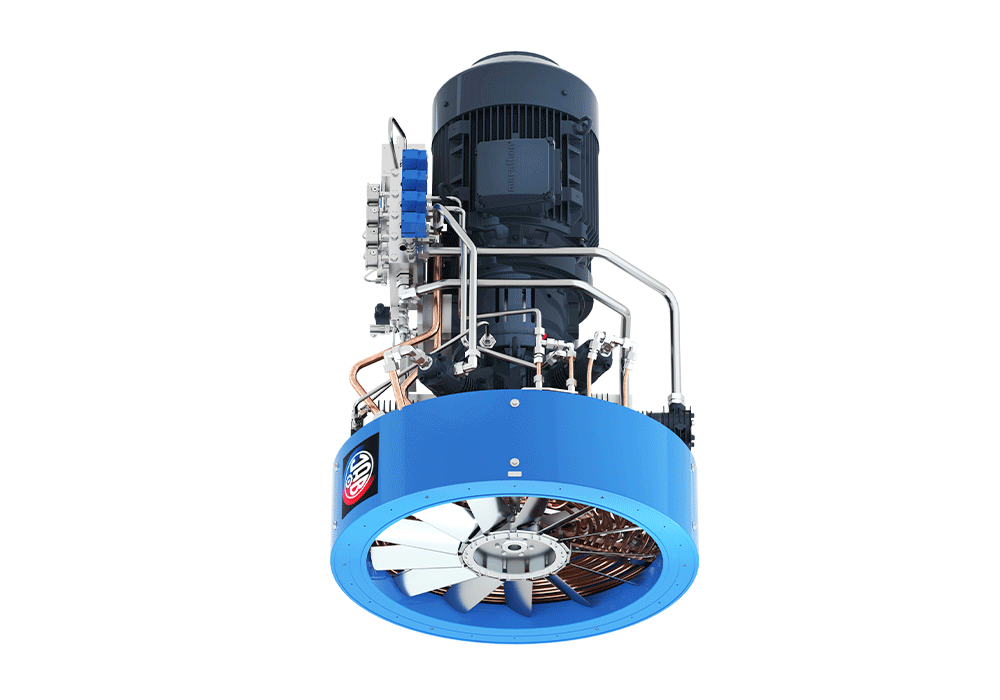

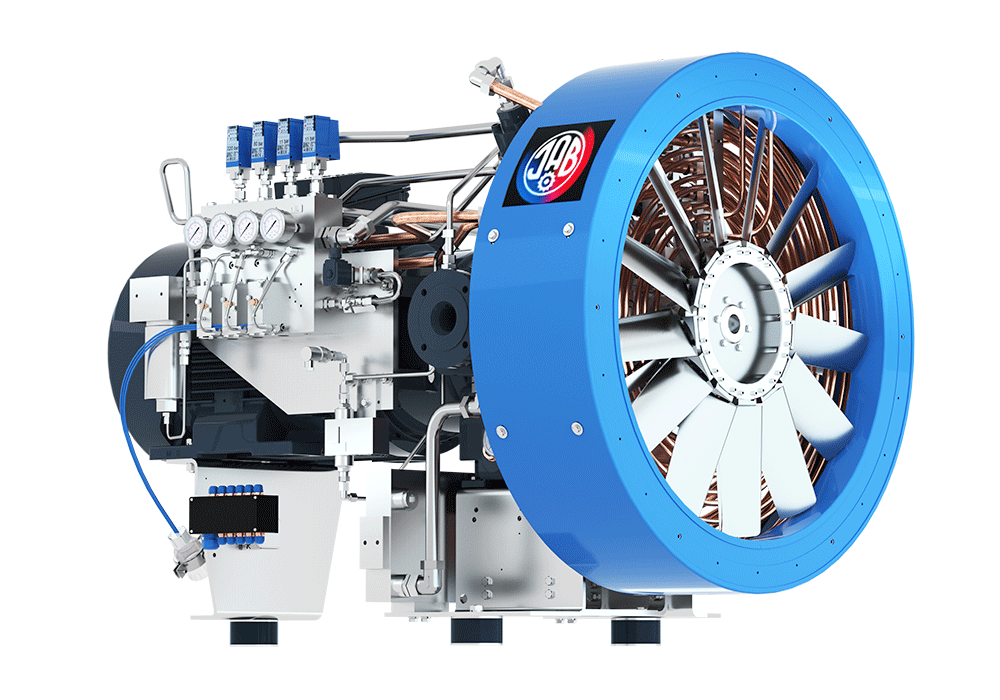

The J.A. Becker & Söhne V 5770/300 NG4 model is a top-class, four-stage natural gas compressor specifically designed for high-performance and reliable gas compression tasks. This unit offers an ideal solution for industrial applications where the compression of natural gas flow rates between 40.0 and 85.0 m³/hour is required, up to an operating pressure of 300 bar.
The V 5770/300 NG4 compressor reflects J.A. Becker & Söhne's commitment to quality, efficiency, and long service life, ensuring continuous and safe operation even in the most demanding environments.
The V 5770/300 NG4 has several outstanding features that guarantee excellent performance and low operating costs:
High-Efficiency Cooling: The advanced cooling system of the compressor ensures optimal dissipation of heat generated during the compression process. This not only allows for regulation of the gas temperature but also increases the overall efficiency of the system and extends the service life of the seals and valves.
Fully Automatic Discharge: The unit is equipped with an automatic purging function, which simplifies operation and minimizes the need for manual intervention. This function contributes to maintaining stable pressure and safe shutdown.
Long Maintenance Cycles: As a result of its robust construction and high-quality components, the V 5770/300 NG4 features extremely long maintenance intervals. This significantly reduces downtime and annual service costs, maximizing availability.
No „Standard” Solution: According to Becker's philosophy, every product is a unique engineering solution that meets the highest quality requirements, avoiding compromises in performance and reliability.
The detailed technical parameters of the V 5770/300 NG4 compressor are as follows:
| Parameter | Value | Note |
|---|---|---|
| Model | V 5770/300 NG4 | Four-stage natural gas compressor |
| Maximum Operating Pressure | 300 bar | For high-pressure applications |
| Flow Rate (Range) | 40.0 – 85.0 m³/hour | |
| Inlet Pressure (Options) | 1.5 bar / 3 bar / 4 bar | Flexible adaptation to the source |
| Volumetric Flow Rate (Liters/minute) | 667 l/min / 1,063 l/min / 1,417 l/min | Adjusted to the inlet pressure |
| Pressure stages / Number of cylinders | 4 / 4 | Four compression stages |
| Electric Motor Power | 30 kW | |
| Rotational speed | 1.500 U/min |
The V 5770/300 NG4 compressor is excellently suited for natural gas booster (Nachverdichter) tasks where the existing network pressure is insufficient to achieve the desired process. The maximum pressure of 300 bar allows for feeding gas into high-pressure storage units or for re-injection into transmission pipelines.
The four-stage design ensures efficient and temperature-controlled compression of the gas in each step, minimizing mechanical stress and maximizing efficiency. The 30 kW electric motor provides stable drive at a speed of 1500 rpm.
This unit is a first-class product in every respect, representing the engineering precision of J.A. Becker & Söhne. The robust design and carefully selected materials guarantee long-term, trouble-free operation.
Further information can be downloaded:
Datasheet: Detailed technical specifications.
Flyer: Comprehensive product overview.
The V 5770/300 NG4 is not just a compressor; it is a strategic tool for the efficient and reliable operation of natural gas infrastructure.
