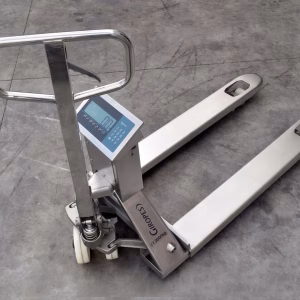

TP410i WIDE Stainless Steel Pallet Scale for American Pallets
A TP410i WIDE sorozatú mérlegelő targonca a legigényesebb ipari környezetekbe lett tervezve, ahol a higiénia, a tartósság és a pontosság elengedhetetlen. Teljesen rozsdamentes acél kivitelének köszönhetően kiválóan ellenáll a korróziónak és a kemény tisztítószereknek, így ideális élelmiszeripari, gyógyszerészeti és vegyipari alkalmazásokhoz. Ez a modell kifejezetten amerikai szabványú raklapok kezelésére optimalizált.
A TP410i WIDE sorozat a
„versatile, durable, reliable” can be specified with indicators, and is available in two main versions offering different protection levels and functionalities: with printer and without printer.
Key Features and Advantages
- Stainless Steel Design: The full stainless steel surface guarantees a long service life and easy cleanability, complying with strict hygiene requirements.
- Optimized for American Pallets: Specifically designed for the safe and efficient handling and weighing of wide American pallets.
- Hitelesített Mérésre Alkalmas (OIML): A készülék alkalmas kereskedelmi forgalomban történő mérésre, ami növeli a felhasználási rugalmasságot, mivel a mért súly közvetlenül felhasználható számlázási alapként.
- GI410i Digital Indicator: The built-in digital display ensures accurate and easily readable weight data.
Technical Data and Versions
The capacity of the TP410i WIDE series ranges between 1000 kg and 2000 kg, depending on the selected configuration.
Protection Levels and Configurations
The two main versions have different IP protection ratings, which determine their environmental resistance:
| Variant |
IP Protection |
Printer |
Application Area |
| Nyomtatós |
IP54 |
Yes |
Dust and splash protection, internal printing capability |
| Nyomtató Nélküli |
IP65 |
No |
Full dust protection and protection against strong water jets (ideal for wet environments) |
Capacity and Readability Values
The measurement accuracy (readability) depends on the selected maximum capacity:
| Capacity (kg) |
Readability (g) |
Printer |
Hitelesített Mérés |
| 1000 – 2000 |
200 – 500 |
No |
No |
| 1000 – 2000 |
500 – 1000 |
No |
No |
| 1000 – 2000 |
200 – 500 |
Yes (M) |
Yes |
| 1000 – 2000 |
500 – 1000 |
Yes (M) |
Yes |
Megjegyzés: Az ‘M’ jelölés a kereskedelmi dokumentációval és hitelesítéssel rendelkező modellekre utal.

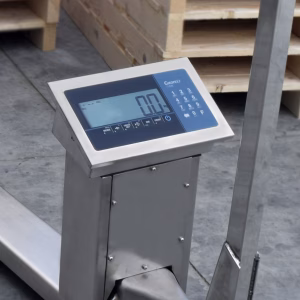

GI410i Digital Indicator Details
The GI410i display used for weighing offers several functions that increase efficiency during warehouse and production processes:
- High Contrast Display: Provides easy readability under various lighting conditions.
- Functions: Alapvető súlykijelzés mellett valószínűsíthetően rendelkezik tára, összegzés és darabszámláló funkciókkal (a kereskedelmi alkalmazásokhoz igazítva).
- Printing Capability (Optional): The printer model allows for immediate printing of measurement receipts, which may include net/gross weight, date, and time.
Application Areas
Due to its stainless steel design and certification capability, the TP410i WIDE is an ideal choice in the following sectors:
- Food Industry: Meat processing, dairy industry, bakeries, where hygiene and wet cleaning are essential.
- Pharmaceutical and Cosmetics: Providing surfaces compliant with standards that are easy to sanitize.
- Chemical Industry: Handling corrosive substances where standard painted steel is insufficient.
- Logistics and Warehousing: Handling of American pallets, where weight control is critically important for optimizing shipping costs.
This weighing forklift is not just a lifting device, but a precision measuring instrument that can be integrated into modern, strictly regulated industrial processes. High IP protection (up to IP65) guarantees reliable operation even in the most aggressive work environments.
