This detailed product description presents the high-quality spark protection door curtain offered by Wieländer+Schill, which provides an ideal solution for protection against sparks and heat generated during body repair work. The product belongs to the vehicle protection and workplace safety category, ensuring the integrity of the surroundings and adjacent components.

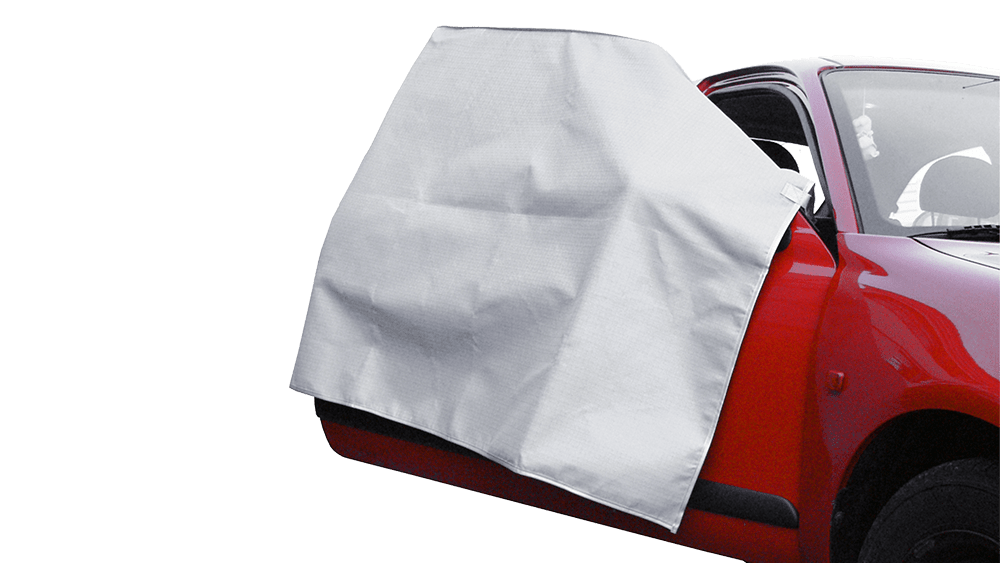

The spark protection door curtain is an extremely durable and flexible protective device specifically designed to contain hot sparks and heat generated during welding, grinding, or cutting work. The base material of the curtain is premium quality E-glass fabric, which has excellent heat resistance. This material has a single-sided with Alufix coating coating, which is grey in color, further increasing its heat reflective capability and durability.
The product is not only heat-resistant but also extremely dimensionally stable , which guarantees that the specified dimensions are maintained even at high temperatures. Thanks to its flexibility, it can be easily positioned and fixed on the protected surface, whether it is a door, a body panel, or any other sensitive area.
Safety is the most important aspect, which is why the curtain has been tested in accordance with strict European standards. The DIN EN 13501-1 certification according to the European fire protection standard confirms its reliability.
Excellent Heat Protection: It is capable of resisting both short-term and long-term high temperatures, preventing damage caused by sparks.
Premium Material Usage: E-glass fabric base material with Alufix coating for maximum performance.
Fire Protection Compliance: Certification according to DIN EN 13501-1 standard (B-s2, d0).
Flexibility and Stability: Easy to handle, yet retains its shape even under extreme conditions.
Wide Temperature Range: Resistant to heat up to 600 °C.
The product specifications ensure compliance with the requirements of professional use.
| Property | Value | Note |
|---|---|---|
| Part number | 881005 | Product Identifier |
| Dimensions (Length × Width) | 100 × 125 cm | The specific dimension applies to this model |
| Material composition | E-glass fabric with Alufix coating | Grey color, with single-sided coating |
| Fabric Thickness | 0.7 mm | Thickness for durability |
| Fabric Weight (Grammage) | 650 g/m² (GSM) | High density material |
| Short-term heat protection | 600 °C | Maximum short-time exposure |
| Long-term heat protection | 550 °C | Continuous heat load resistance |
| Temperature range | Up to 600 °C | General operating limit |
| Fire protection class (DIN EN 13501-1) | B-s2, d0 | Excellent flame retardancy and smoke emission rating |
| Packaging dimensions (Length × Width × Height) | 50 × 32 × 20 mm | Product's packaged dimensions (not relevant for display, but recorded) |
| Weight | 1.630 kg | Net weight of the product |
This product family is also available in multiple sizes to meet different application requirements:
100 × 125 cm (Item Number: 881005)
150 × 150 cm
The spark protection curtain is an essential tool in every bodywork and metalworking shop where precision and safety are paramount. Ideal for:
Protection of Body Elements: Protecting doors, tailgates, or other surfaces awaiting painting or sensitive surface treatment during welding.
Environmental Protection: Preventing the spread of sparks and molten metal droplets onto workshop floors or adjacent vehicles.
Insulation of Heat Sources: In areas where a temporary heat shield is required.
The quality of Wieländer+Schill products is also supported by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, guaranteeing continuously high-level manufacturing and quality control processes. This spark protection curtain is a fundamental safety element of professional body repair technologies.
