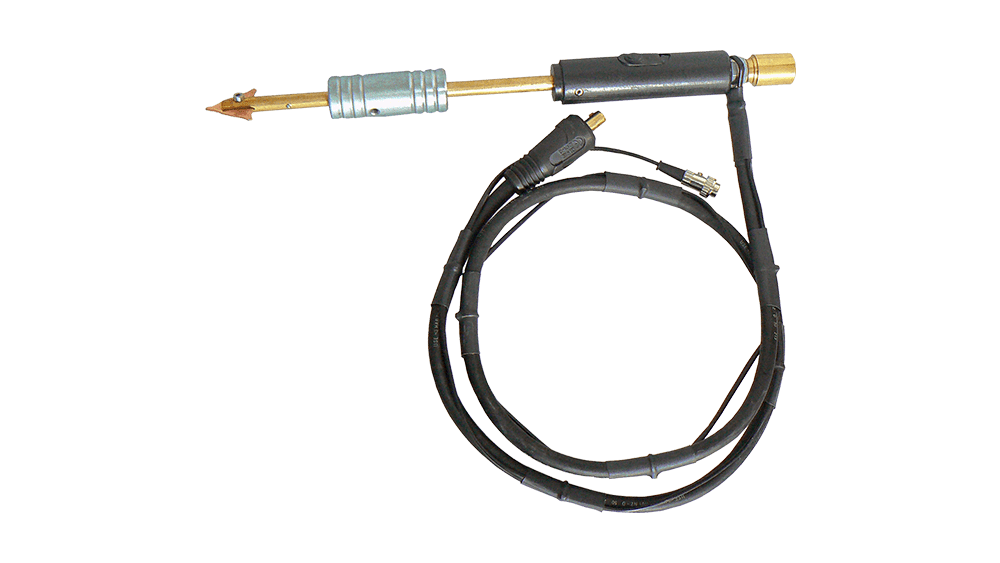

The Wieländer+Schill Multi-Slide Hammer with part number 351080 is an extremely efficient and versatile tool developed specifically for body repair specialists. This premium quality tool enables fast and economical dent removal, especially during work on triple-layered panels. The flexibility of the Multi-Slide Hammer lies in the fact that it is suitable not only for basic pulling operations but can also be extended with further welding accessories, making it useful for a wide range of repair tasks.
This tool belongs to the Dent Spotter category and is a prominent element of the Dent Removal Technology & Metalworking product family, which is also ideal as an accessory for professional workstations, such as the Work Station WS 60.
The main goal of the Multi-Slide Hammer is to maximize efficiency in body repair processes:
Fast Dent Removal: Design optimized for the fast and precise repair of triple-layered body elements.
Weldability Extension: The tool is fundamentally suitable for wave wire welding, but by connecting additional contact elements, the user can weld other fastening elements as well, thus increasing the flexibility of the operation.
Modular Design: By connecting additional contact points, the tool can be adapted for welding U-washers, T-studs, and screws, allowing for versatile use during the repair of various damages.
Durable Construction: The robust construction of the tool guarantees a long service life even under intensive workshop conditions.
The 351080 Multi-Slide Hammer features precise technical parameters that ensure reliable performance:
| Property | Value | Note |
|---|---|---|
| Part number | 351080 | |
| Connection Type | Dinse connection | Standard connection surface |
| Length × Width × Height | 580 x 330 x 58 mm | Compact dimensions for easy handling |
| Weight | 3.96 kg | Optimal weight for efficient operation |
The basic package of the Multi-Slide Hammer contains everything necessary for initial operations:
1 pc Contact element for wave wire (Wave wire contact piece)
1 pc Triple-layered sheet (Triple-layered sheet)
To utilize the full potential of the Multi-Slide Hammer, several accessories are available that further extend welding and pulling capabilities:

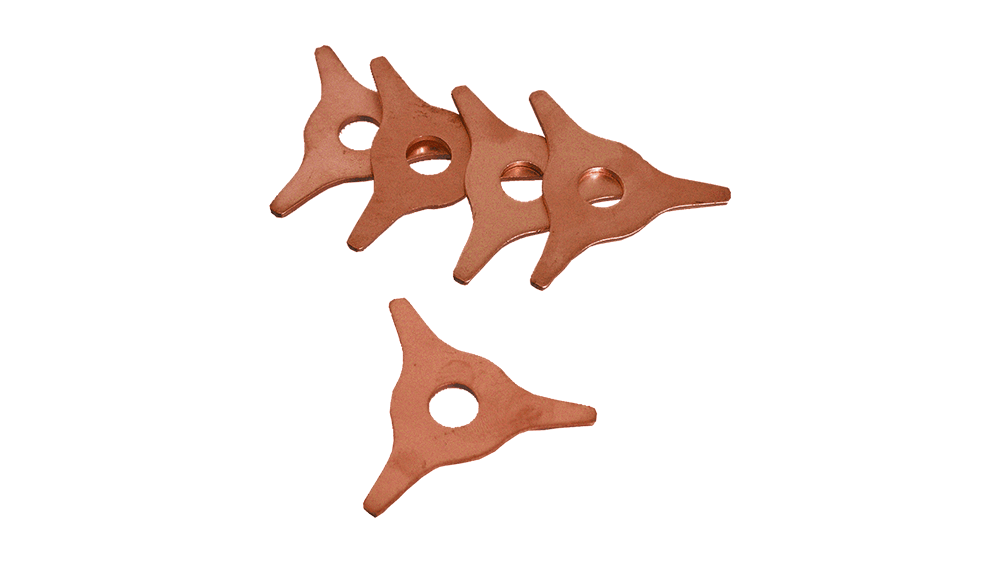

Part number: 297013
Packaging quantity: 15 piece unit (PU: 15 pcs.)
Function: Fast and economical repair on vehicle parts can be performed using the triangular pulling attachments and a Quick pulling hammer.
Maintenance: If necessary, burnt or worn welding spots can be easily ground off.

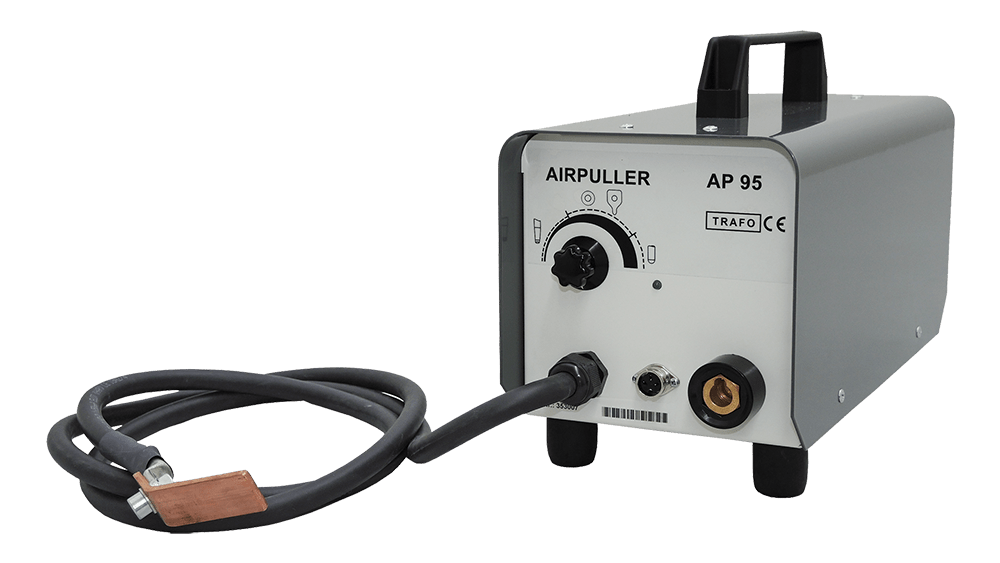

Part number: 353007
Voltage: 230/400 V
Function: This transformer provides the power supply for the Airpuller AP95 dent repair system.
Flexible Power Connection: Flexibly adjustable for local power supply:
Single-phase: 220 – 240 V
Three-phase: 400 V
Factory Setting: The transformer is factory set for the 400 V three-phase power network.
The Multi-Slide Hammer is the ideal choice for all body repair shops where efficiency and repair quality are paramount. It is particularly useful in situations where the damaged area is large or where traditional spot welding methods are insufficient for pulling the metal back. The wide range of weldable accessories ensures that damage to the most diverse body elements (e.g., doors, fenders, bonnets) can be professionally rectified.
This tool is part of the professional range from Wieländer+Schill, which guarantees cutting-edge automotive repair technologies.
