This detailed toolbox kit is specifically optimized for the Wielander + Schill XSeries professional riveting technology and contains specific tools adapted for Ford vehicles. The kit aims to provide a precise and efficient solution for riveting, punching, and extraction tasks during body repair and assembly work.
The „Tool Box RS-09 | Ford | version 2” is a comprehensive solution that contains all the necessary components for the installation and removal of self-piercing rivets (SPR) according to Ford specifications. The set includes components made of excellent quality steel and plastic, ensuring long service life and reliable performance in workshop environments.
This tool kit serves as an accessory for the XSeries professional riveting technology and includes the special tools required for repairing Ford vehicles. The carefully assembled components of the kit guarantee work performed according to standards and professionally.
Main Advantages:
Ford Specific: The included tools (e.g., locking and setting tools) are tailored to the specifications prescribed by Ford (e.g., Ford IDs).
Comprehensive Solution: Includes extractor, punch, locking, and setting tools, as well as the necessary accessories.
Quality Construction: The tools are made of durable materials (steel, plastic) for demanding workshop use.

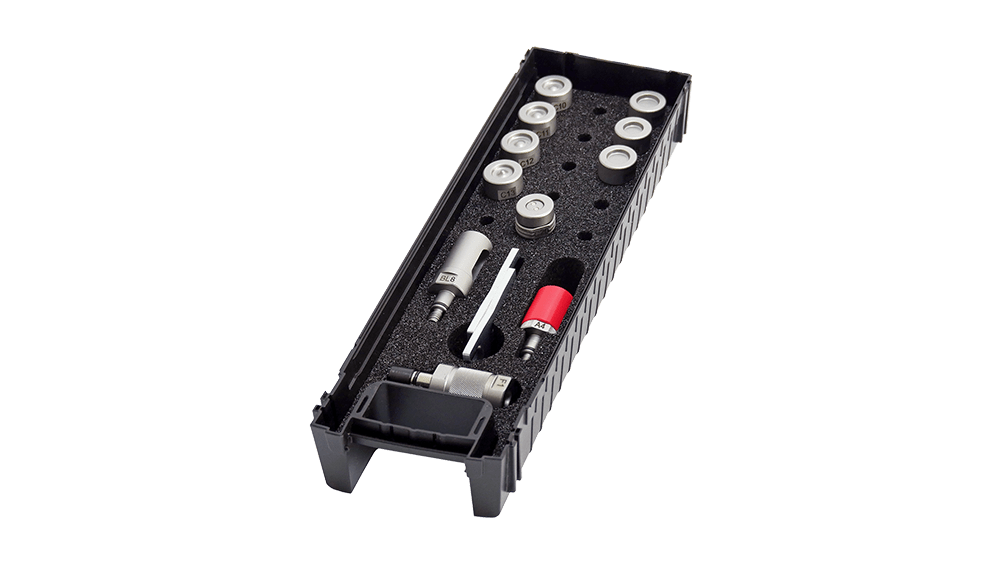

Compact Storage: The components are supplied in a sturdy plastic box, which facilitates organization and portability.

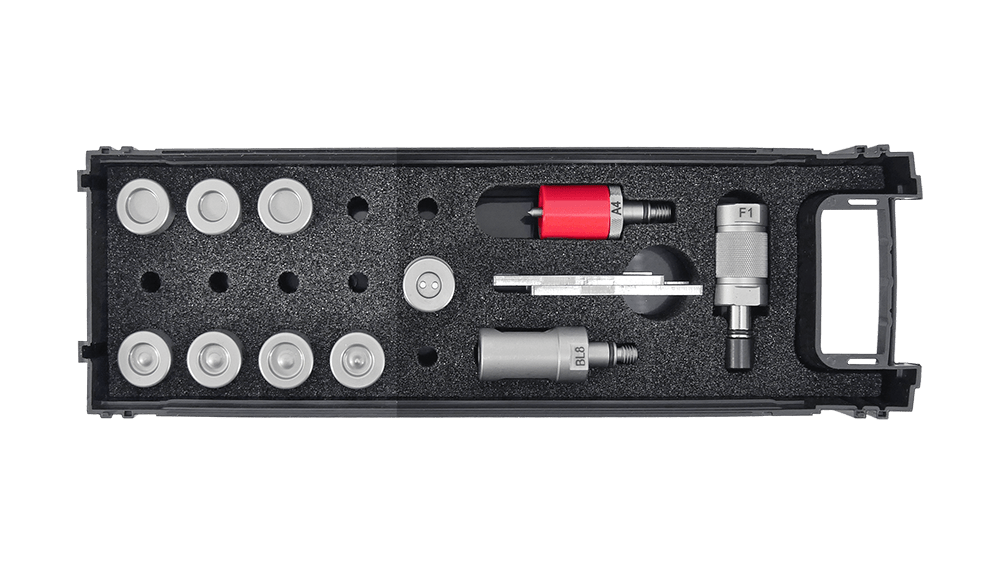

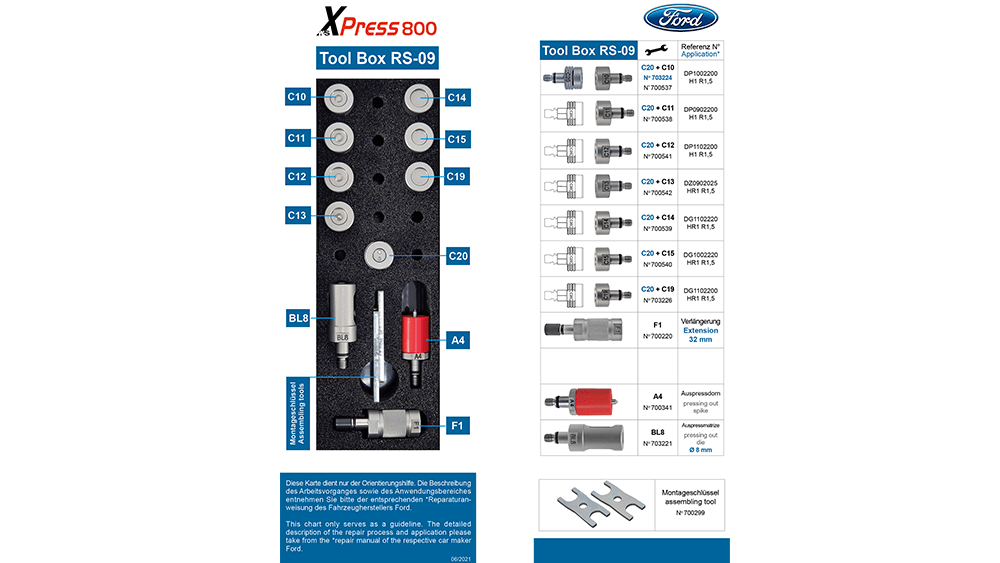

The kit with part number 700195 contains the following precision components, each with its own part number for easy identification and replacement:
| Part number | Designation | Quantity | Further Information |
|---|---|---|---|
| 700341 | A4 | Extraction pin with polyurethane spring | 1 stück |
| 703221 | BL8 | Punching and Extraction Tool | Ø 8 mm |

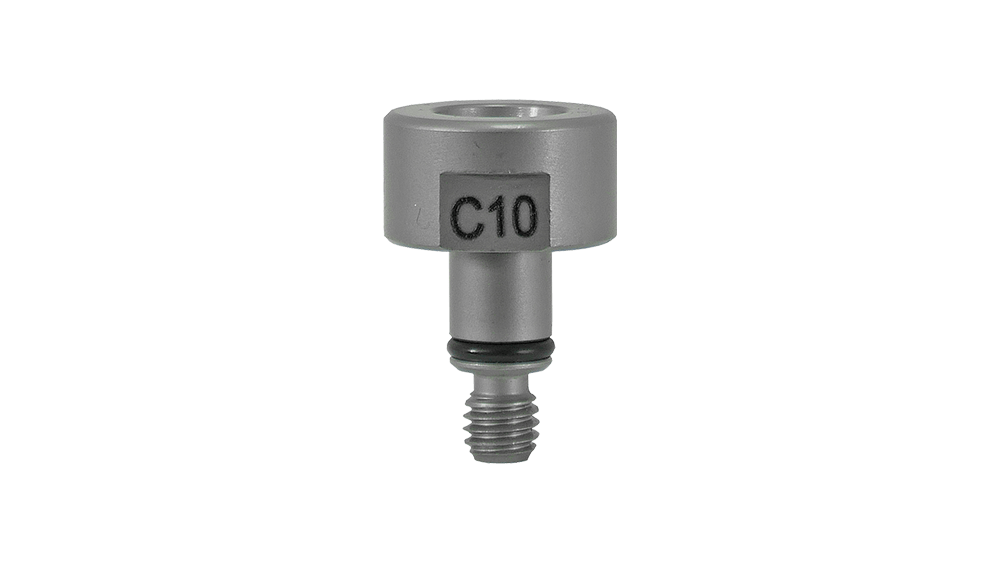

| 700537 | C10 | Closing tool for self-drilling rivets (SPR) | Ford ID: DP1002200 H1R1.5 |
| 700538 | C11 | Closing tool for self-drilling rivets (SPR) | Ø 4.7 mm, Ford ID: DP0902200 H1R1.5 |

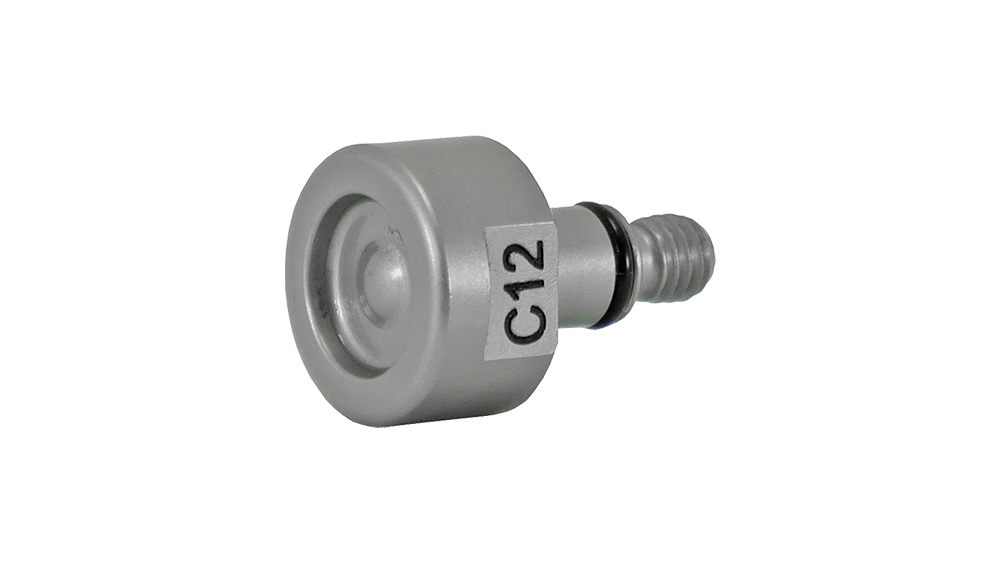

| 700541 | C12 | Closing tool for self-drilling rivets (SPR) | Ford ID: DP1102200 H1R1.5 |

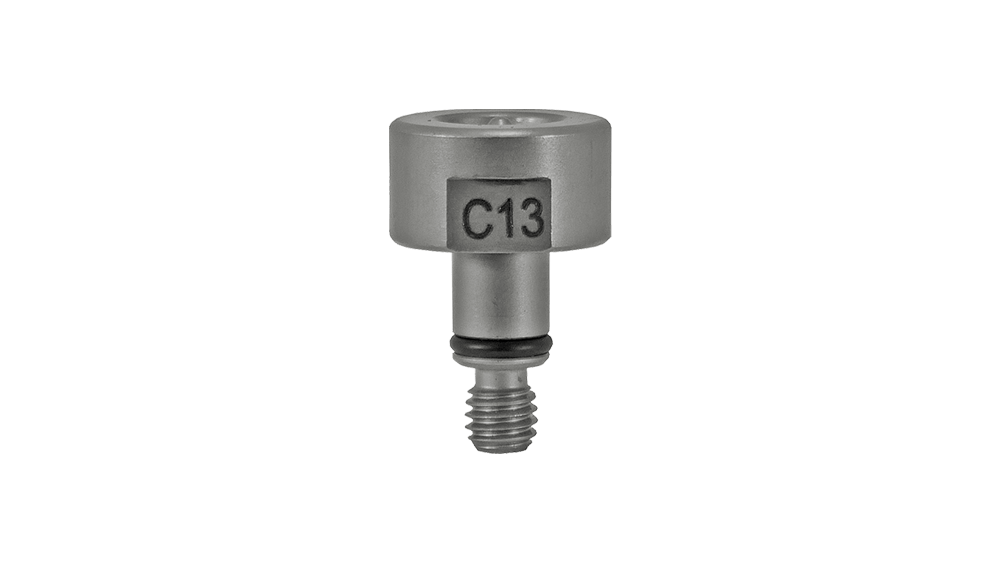

| 700542 | C13 | Closing tool for self-drilling rivets (SPR) | Ford ID: DZ0902025 HR1R1.5 |

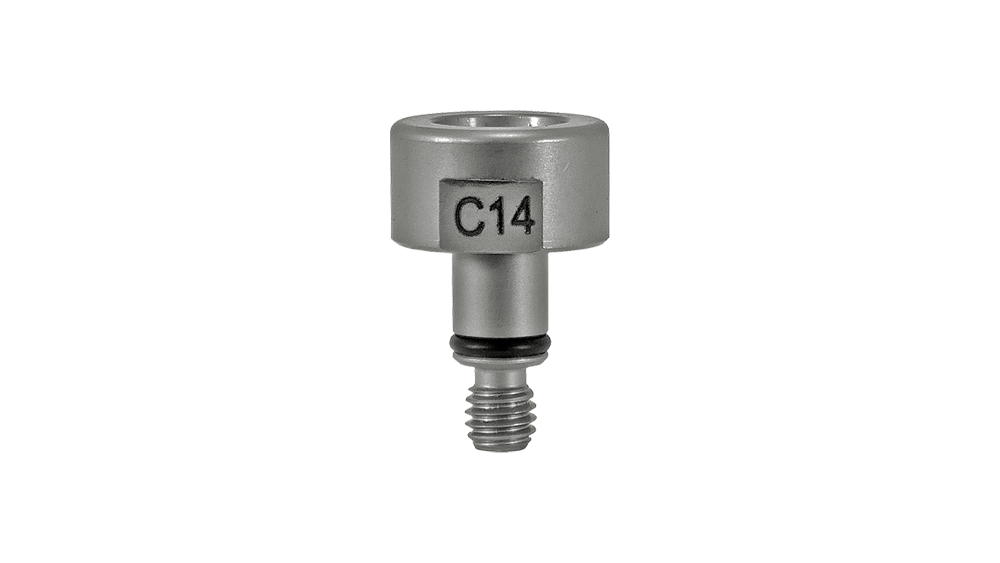

| 700539 | C14 | Closing tool for self-drilling rivets (SPR) | Ford ID: DG1102220 HR1R1.5 |

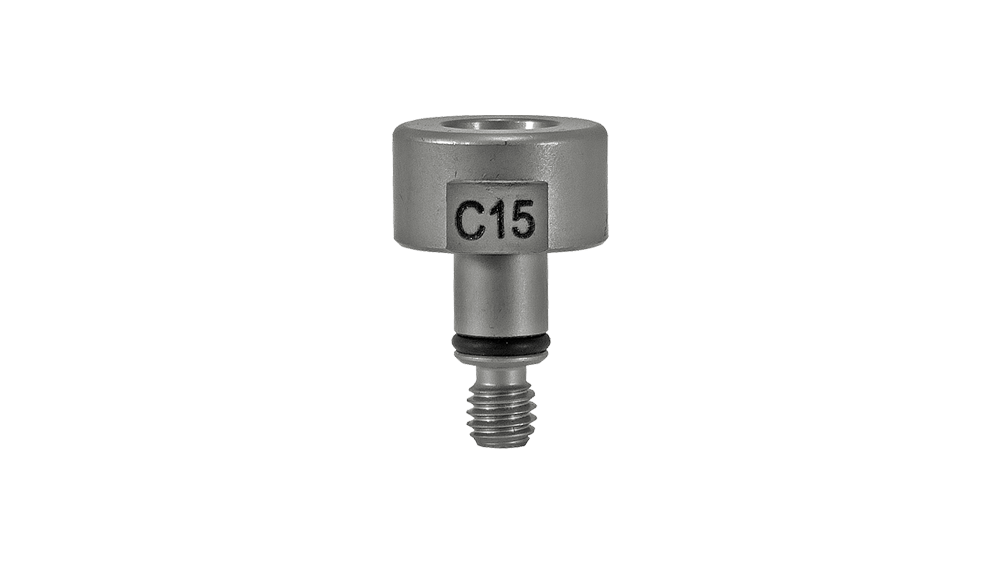

| 700540 | C15 | Closing tool for self-drilling rivets (SPR) | Ford ID: DG1002220 HR1R1.5 |

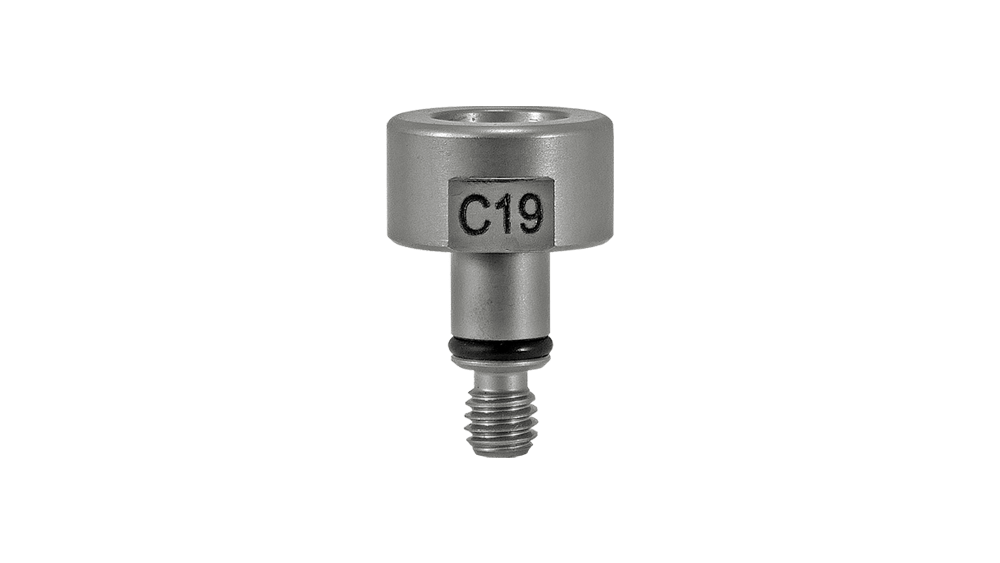

| 703226 | C19 | Closing tool for self-drilling rivets (SPR) | Ford ID: DG1102200 HR1R1.5 |
| 703224 | C20 | Setting tool for self-piercing rivets (SPR) | |
| 700220 | F1 | With extended threaded sleeve (M6) | 32 mm |
| 700299 | Z4 | Assembly tool | 2 pcs/pack (PU: 2 pcs.) |
The components of the kit comply with strict quality requirements for precise fit and efficient work performance.
| Property | Value |
|---|---|
| Part number | 700195 |
| Product Name | Tool Box RS-09 |
| Field of application | XSeries Professional Riveting Technology |
| Compatibility | Adapted for Ford vehicle repair specifications |
| External dimensions (Length x Width x Height) | 270 x 84 x 56 mm |
| Material composition | Plastic (housing), Steel, Plastic (tools) |
| Weight | 0.500 kg |
1. Ejector Pin (700341 A4):
This item is essential for the damage-free removal of existing rivets or fasteners. The integrated polyurethane spring aids in the retraction of the pin and its optimal positioning against the workpiece, minimizing the risk of damaging the vehicle body.
2. Punch and Ejector Tool (703221 BL8):
The BL8 tool is used for the precise creation of 8 mm diameter holes or can be used for auxiliary extraction operations. High-quality steel ensures the tool's durability even when machining harder materials.
3. Locking Tools (C10-C15, C19):
These tools are necessary for the final closing and forming of self-piercing rivets (SPR) according to Ford specifications. Each closing tool (from C10 to C19) has a unique Ford identifier (e.g., DP1002200 H1R1,5), guaranteeing that the repair meets factory requirements regarding joint strength and shape. The different sizes (e.g., Ø 4.7 mm for the C11) cover the various rivet types used at different points on the vehicle.

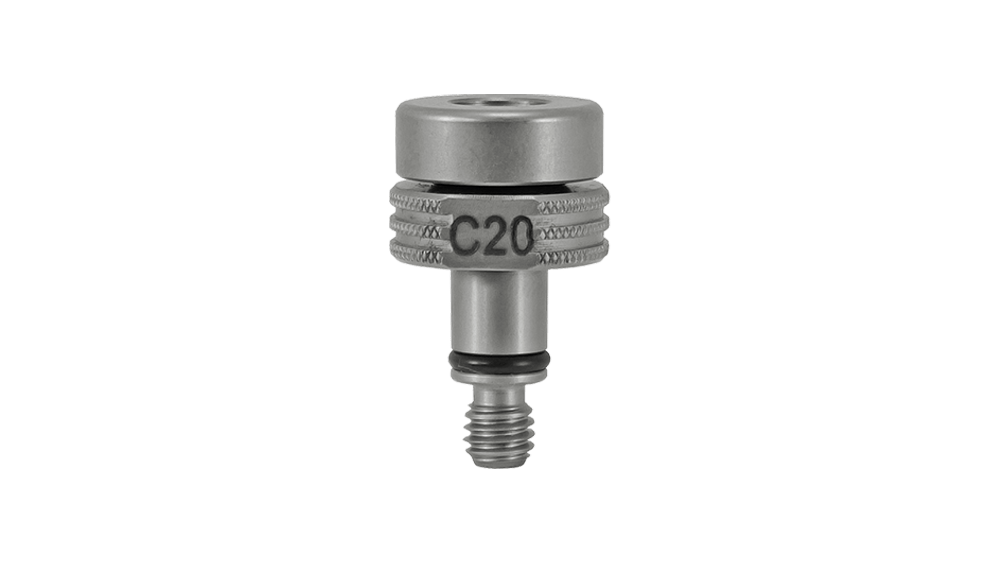

4. Adjustment Tool (703224 C20):
The C20 setting tool ensures a perfect closure in the final phase of the SPR rivet installation process, which is critical for structural integrity.

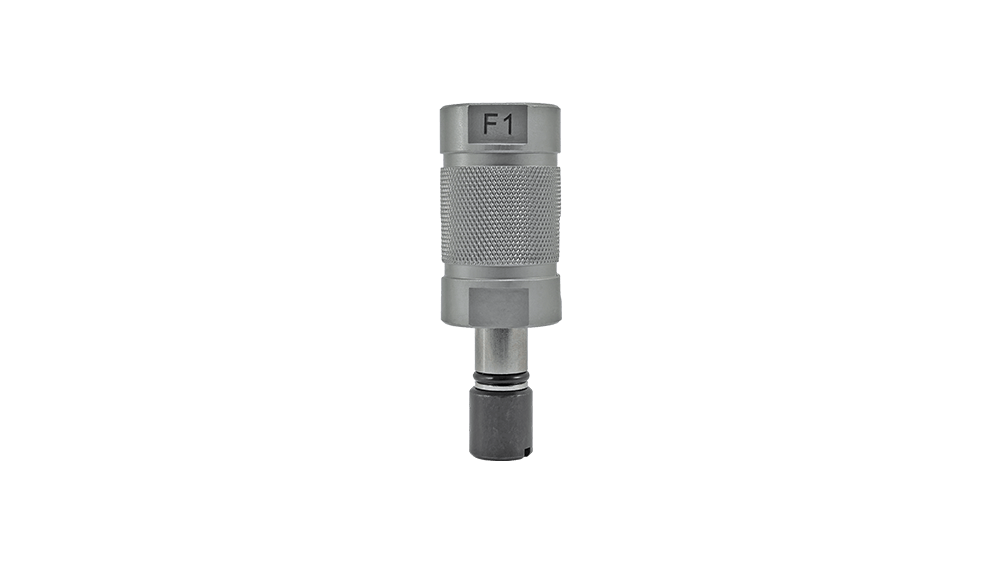

5. Extender (700220 F1):
The 32 mm long F1 extension features an M6 thread, enabling the use of tools in hard-to-reach areas, thus increasing operational flexibility.

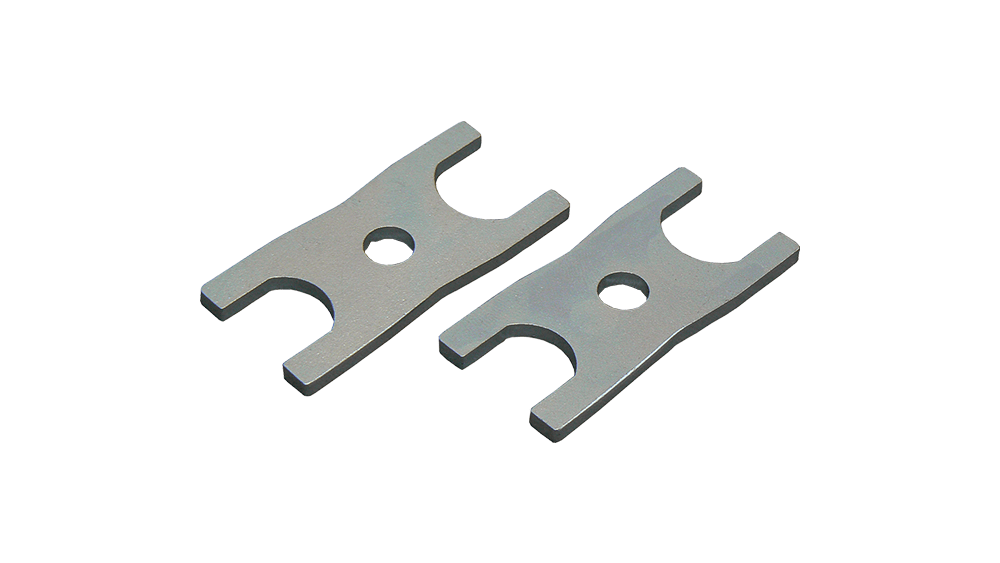

6. Assembly Tool (700299 Z4):
This assembly tool, supplied as a two-piece set, is exclusively used for loosening the tools (e.g., matrices, ejector pins, extenders). Important note: This tool MUST NOT be used for tightening; it is exclusively for loosening fasteners.
The Tool Box RS-09 Ford version 2 is the ideal choice for any technician involved in Ford vehicle body repair, especially for repairs where the original factory joining technology (SPR) needs to be applied or restored.
The pre-assembled nature of the kit saves workshop time as the most frequently required Ford-specific tools are immediately at hand. Despite the compact dimensions of the plastic case (270 x 84 x 56 mm), it provides ample space for secure and clear tool storage. Thanks to a weight of only 0.500 kg, the toolbox is easily transportable between workstations.
This professional kit combines the reliability and precision of the Wielander + Schill XSeries systems with the specific demands of Ford vehicles, ensuring a high standard of repair quality.
