Tool Box RS-07 | Mercedes-Benz

Tool Set RS-07 | Mercedes-Benz (Part No.: 700205)

This professional tool box, Tool Box RS-07, specifically optimized for Mercedes-Benz vehicles, and includes the precision tools required for the most modern riveting technologies. The goal of the set is to support body repair processes, particularly the professional installation of Solid Self Piercing Rivets and Flow Form Rivets (FFR), as well as hole drilling and forming operations.

The RS-07 set offered by Wielander + Schill ensures reliable and durable joints that comply with manufacturer specifications, which are essential for repairing modern high-strength steel bodies.

Important Note: The application areas of the tools and individual work processes must always be performed according to the relevant repair specifications of the vehicle manufacturer (Mercedes-Benz).

Key Features and Advantages

• Factory Compatibility: A specific tool set assembled in strict compliance with Mercedes-Benz OEM (Original Equipment Manufacturer) recommendations.

• Comprehensive Solution: Includes the necessary elements for drilling, calibrating, forming, and installing different rivet types (Solid Self Piercing and FFR).

• Support for Two Rivet Types: Separate tool sets are available for solid self-piercing rivets (V1+V2) and flow-form rivets (C1+C2, C3+C4).

• Handling of Two Diameters: The set supports work done with 6 mm and 8 mm diameter rivets and holes.

• Durability and Quality: The tools are made of high-quality plastic, steel, and other durable materials, ensuring a long service life even in intensive workshop environments.

Scope of Delivery

The Tool Box RS-07 (700205) is a comprehensive package consisting of 1 set, which contains the following precision components:

Detailed Technical Data and Accessory Components

General Properties

Accessory Tool Details (Parts of the Set)

Further details of the individual components found in the set:

1. Solid Self Piercing Rivets

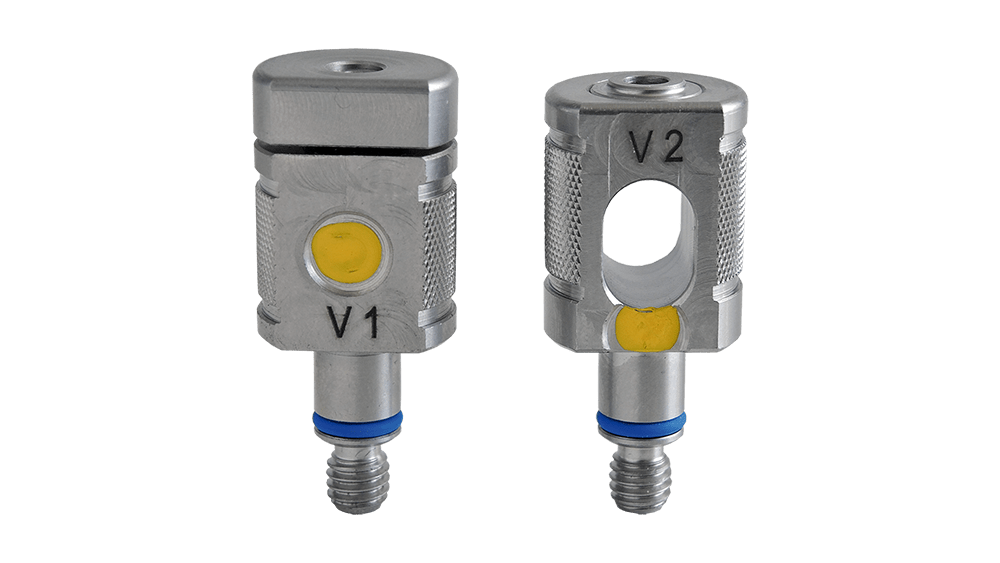

• 700350 Tool Set V1 + V2:

• 700333 V1: Closing tool for rivet sets for self-drilling rivets.

• 700277 V2: Closing tool for rivet sets for self-drilling rivets.

2. Flow Form Rivets (FFR)

• 700340 Tool Set C1 + C2 (Ø 6 mm): For setting FFR rivets.

• 700338 Tool Set C3 + C4 (Ø 8 mm): For setting FFR rivets.

• 700276 C5: Setting tool for FFR rivets.

3. Hole Drilling and Forming (Preparatory Operations)

These kits ensure the perfect preparation for rivet installation:

• 700352 Drilling and Calibration Kit (Ø 6 mm):

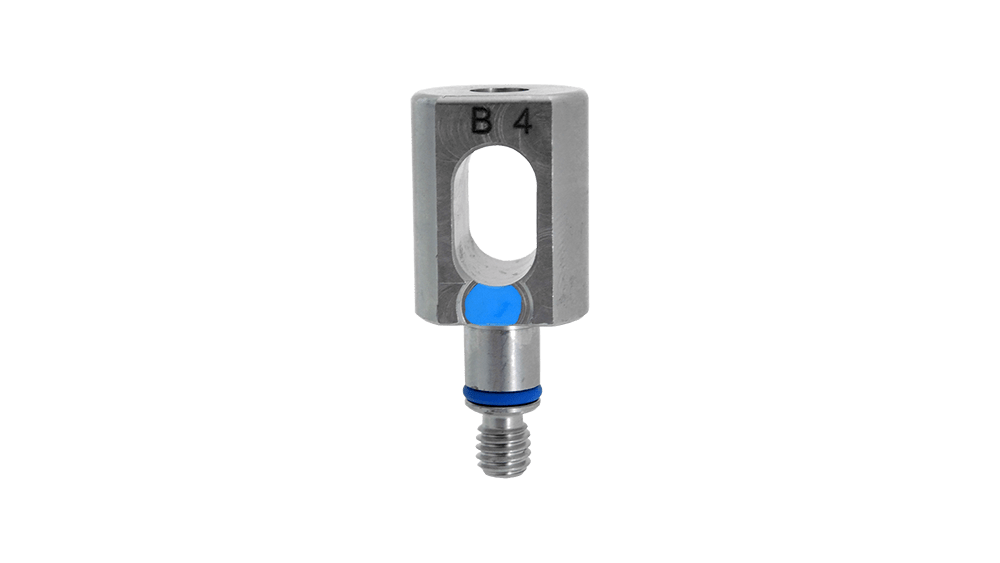

• 700264 B4: Drilling and extraction tool (Ø 6 mm).

• 700273 G1: Counter-die tool (Ø 6 mm).

• 700343 B3: Drill (Ø 6 mm).

• 700345 B7: Drill with SKR drill crowns (Ø 6 mm).

• 700353 Drilling and Calibration Kit (Ø 8 mm):

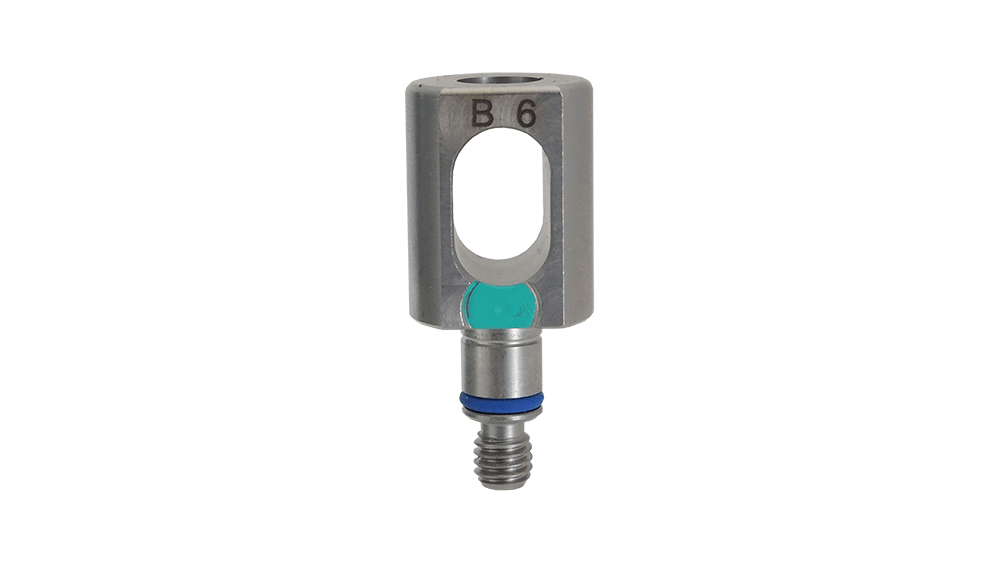

• 700270 B6: Drilling and extraction tool (Ø 8 mm).

• 700268 G2: Counter-die tool (Ø 8 mm).

• 700344 B5: Drill bit (Ø 8 mm).

• 700342 B8: Drill bit with SKR drill collars (Ø 8 mm).

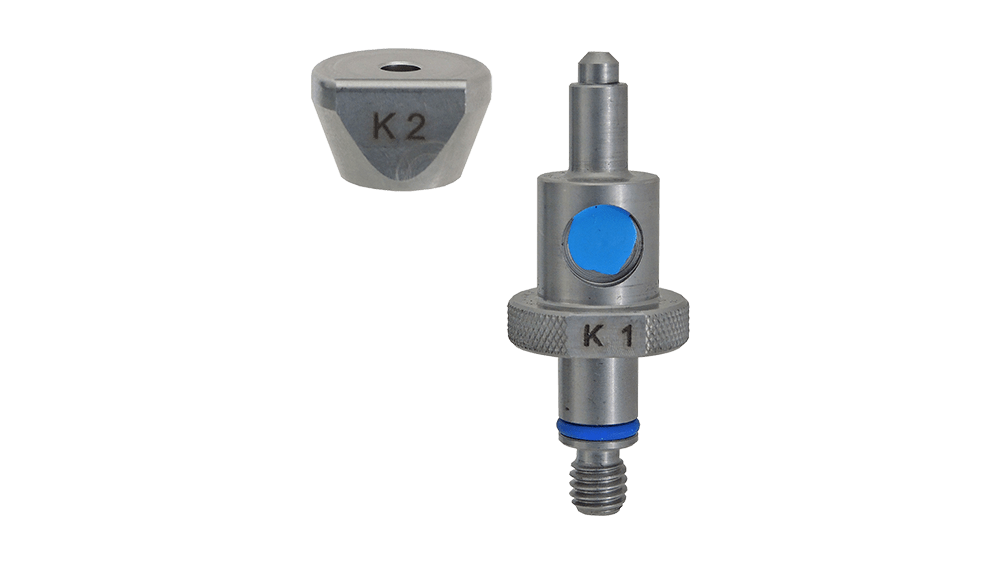

• 700348 K1 + K2 Tool set (Ø 6 mm): For forming, drilling, and calibrating.

• 700319 K1: Drill (Ø 6 mm).

• 700297 K2: Forming head (Ø 6 mm).

• 700349 K3 + K4 Tool set (Ø 8 mm): For forming, drilling, and calibrating.

• 700318 K3: Drill bit (Ø 8 mm).

• 700298 K4: Forming head (Ø 8 mm).

4. Consumables and Accessories

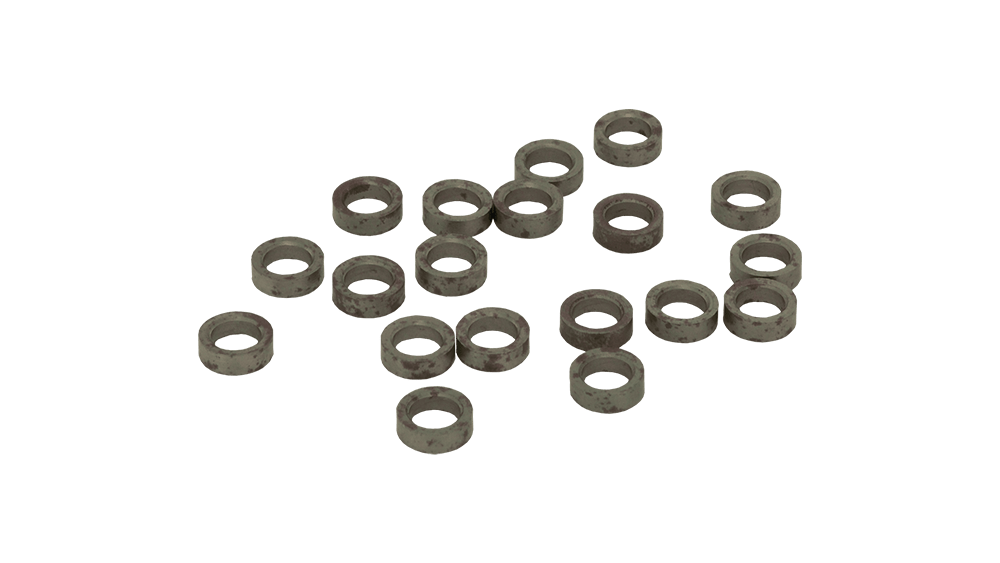

• SKR Drill Collars:

• Ø 6 mm (20 pcs in the set)

• Ø 8 mm (20 pcs in the set)

• Note: Also available in different package sizes, e.g., for article number 700141 Ø 6 mm, in a 50 pc package, for high-strength sheets.

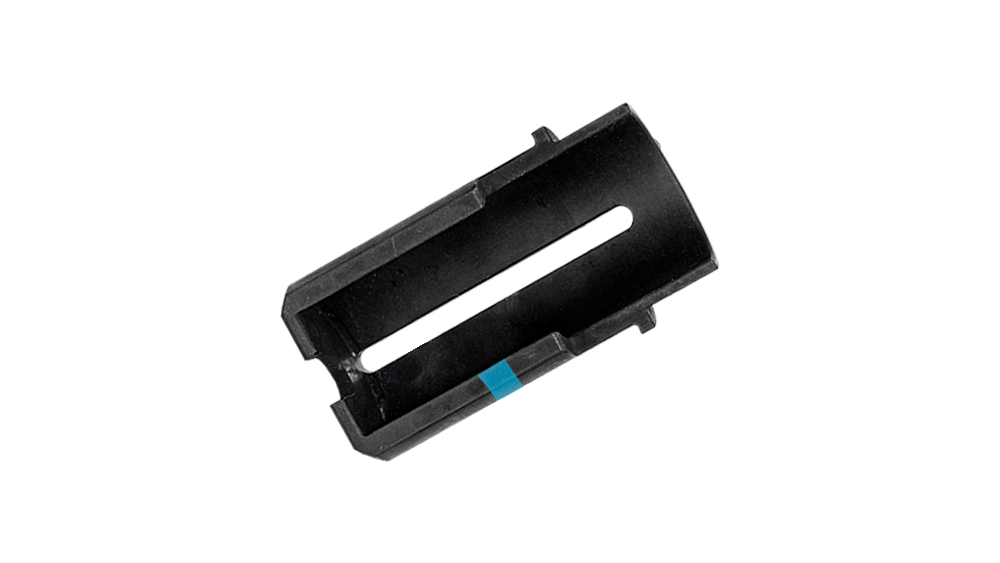

• 700341 A4: Ejector pin with polyurethane spring, which aids in the retraction of the tools at the end of the working cycle.

• 700337 F3: 26 mm extension element.

• 700280 Z1 Connector: For securing the appropriate tools (B3+B5, B7+B8) to the hydraulic puller (e.g., PushPull PP 90).

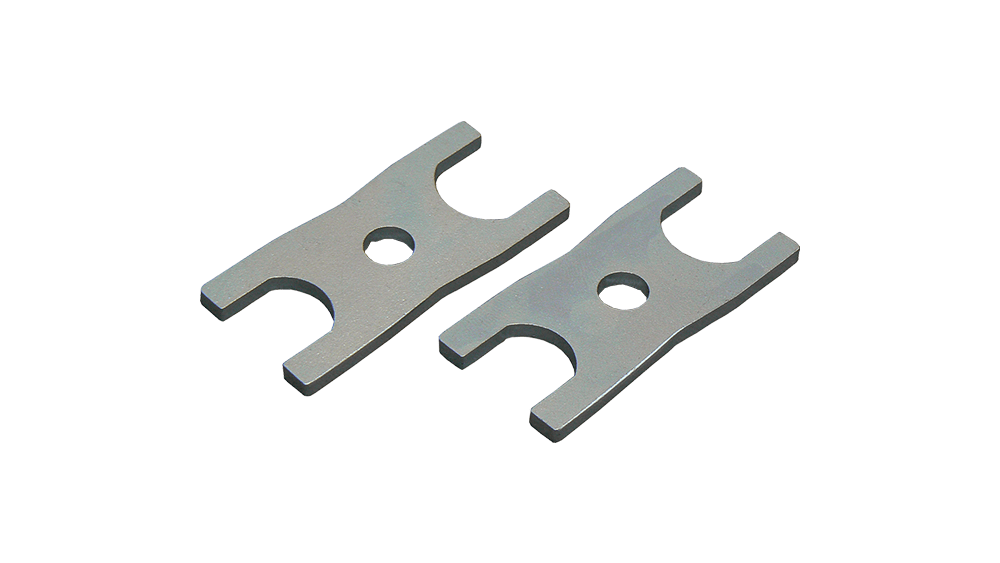

• 700299 Z4 Assembly tool (2 pcs/pack): Exclusively tools (matrices, punches, extractor pins, extensions) for loosening does not serve for assembly or riveting.

Application Context

This tool box is the ideal choice for any workshop dealing with Mercedes-Benz vehicle body repair that wants to guarantee the quality and durability of the repairs. The set works in synergy with Wielander + Schill hydraulic pulling systems (such as the PushPull PP 90, for example), enabling the precise repair of body parts according to factory specifications, whether it is replacing damaged parts or fastening new ones. Covering two types of riveting technology provides flexibility in handling different body construction generations.
