Product Identifier: 341290

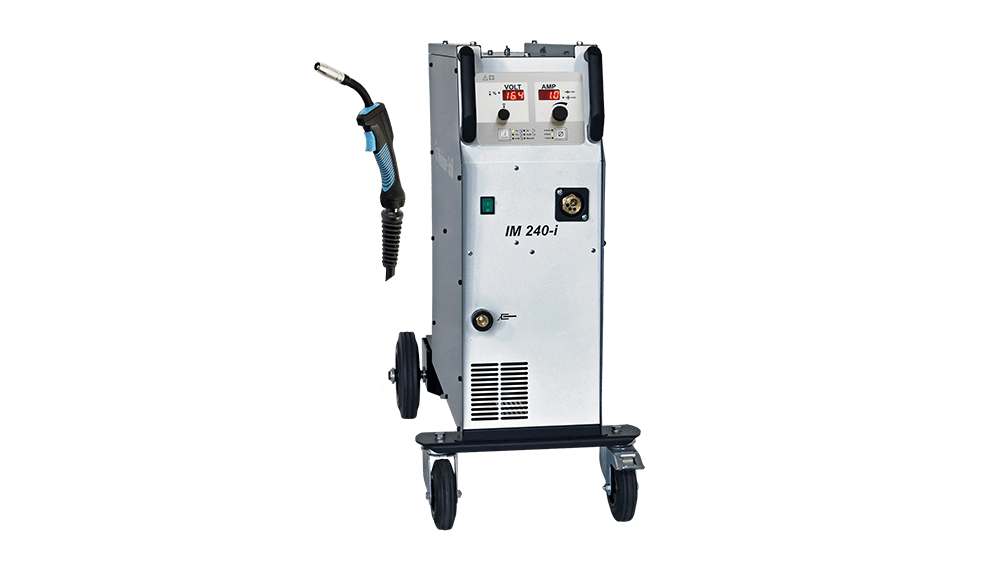

The Wielander + Schill IM 240-i welding machine is a compact MIG-MAG inverter specifically developed for automotive body repair work. This device combines state-of-the-art technology with a user-friendly design, ensuring excellent quality welding results in the workshop environment.
One of the outstanding advantages of the machine is excellent MIG soldering characteristic, which enables the precise and distortion-free joining of body elements. Furthermore, the extremely good steel welding properties guarantee that almost all repair tasks encountered on vehicles can be carried out with excellent results.
The IM 240-i is the ideal choice for professionals looking for a reliable, portable, and versatile inverter welding unit for everyday bodywork.
Specifically for Body Repair: Optimized parameters for welding the thinner sheets and special materials of vehicles.
Excellent MIG Brazing Capability: Enables joining heat-sensitive areas with minimal heat input.
Versatile Steel Welding: Guarantees excellent quality welds for various steel thicknesses and types.
Compact and Portable: Ideal dimensions and weight for flexible workshop use.

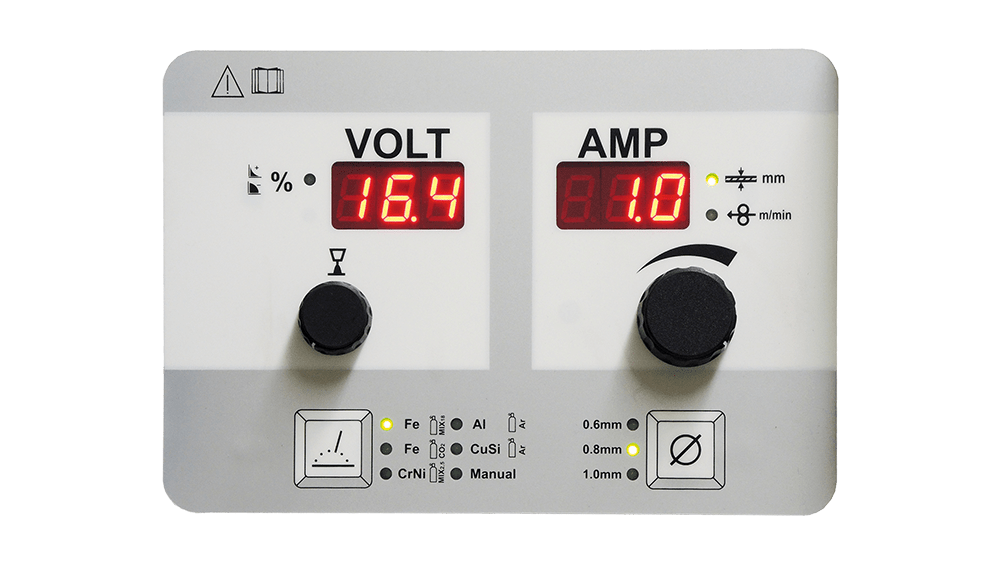

Intuitive Operation: Simple adjustment ranges for quick and efficient work execution.
The IM 240-i welding machine has the following technical parameters and standard equipment:
The device will be delivered with the following components, ensuring immediate readiness for work:
1 pc 337219 Wire feed roller set (for steel, 0.6 mm and 0.8 mm)
1 pc 308103 Torch Force 200 Welding Gun (for steel welding, with 3.0 m cable)
1 pc Test Cable (4 meters long)
1 pc Operating instructions
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | 341290 | – | |
| Mains Connection | 1 ~ 230 V | V | Single-phase network |
| Mains Voltage (Cu) | 3 × 2,5 mm² | mm² | Recommended cross-section |
| Performance Indicator ($cosphi$) | 0,75 | – | |
| Efficiency | 85 | % | |
| Mains Fuse | 16 A (slow) | A | |
| Current Adjustment Range | 20 – 200 | A | Welding Current |
| Voltage Adjustment Range | 10 – 35 | V | Welding voltage |
| No-load Voltage | 40,2 | V | |
| Wire Feed Speed Range | 1.5 – 15 | m/min | |
| Protection Class | IP 23 | – | Dust and Splash Protection |
| Dimensions (Length x Width x Height) | 900 x 500 x 840 | mm | |
| Weight | 40 | kg | |
| Operating Temperature | -10 and 40 | °C | |
| Conformity Declaration | CE | – |
The IM 240-i inverter welding machine belongs to the Wielander + Schill „Welding Technology” category, specifically the Gas Shielded Arc Welding section. Specifically tailored to modern vehicle repair needs, the device is excellently suited for:
Body Repairs: The MIG soldering capability is critically important for repairing body parts, especially thinner sheets where conventional MIG/MAG welding can cause excessive heat input. The precise arc control of the IM 240-i minimizes deformation.
Steel Structure Welding: The wide current range (20-200 A) and stable arc also allow for the reliable joining of thicker steel components, such as subframe parts or reinforcements.

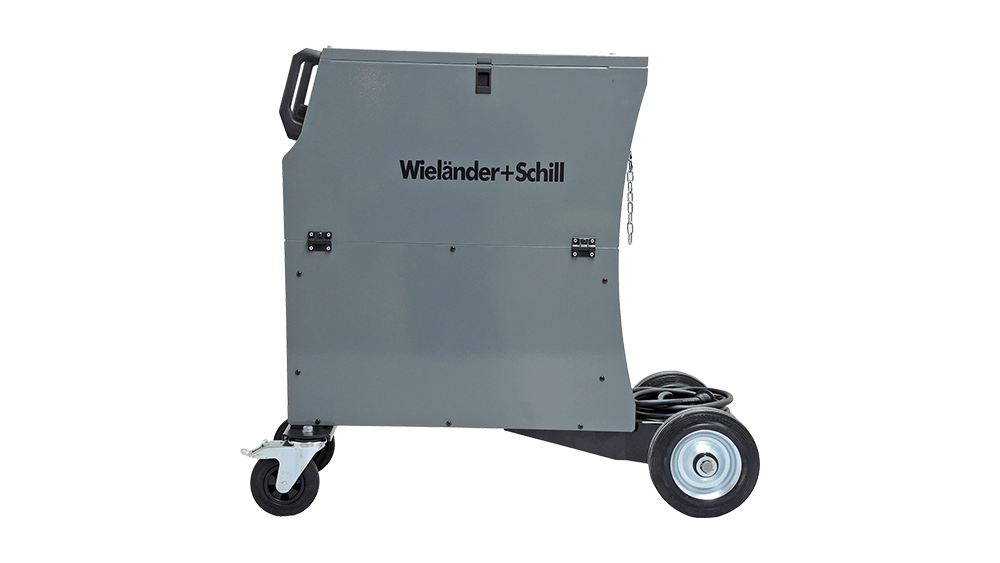

Workshop Flexibility: Despite its weight of 40 kg and relatively compact dimensions (900x500x840 mm), the machine has a robust construction, which is essential in high-demand workshop environments.
The 85% efficiency rating means that a large portion of the input energy is converted into useful work, reducing energy loss. The 16 A slow-blow fuse ensures the machine operates reliably on a standard 230 V mains connection while protecting the internal circuits from sudden current surges. The 10-35 V voltage range allows for fine-tuning for different wire diameters and material thicknesses.
Further detailed information regarding the product can be found in the following downloadable documents:
Product Information (Flyer) – ENG: Detailed English description of the functions.
Welding machine IM 240-i | DE: German language brochure.
Welding machine IM 240-i | ENG: English language brochure.
For efficient operation, the following accessories are recommended for the product (exact availability and price visible after login):

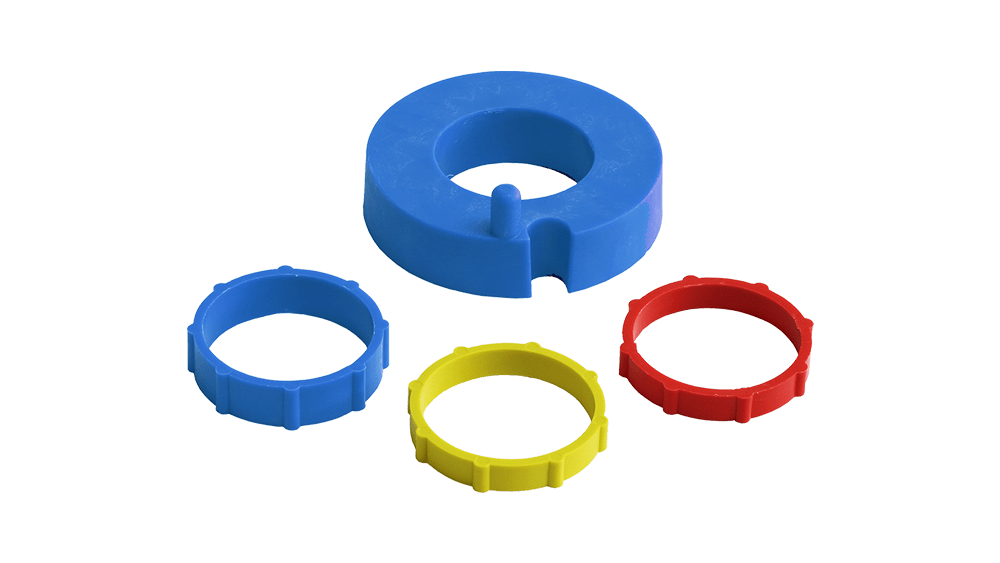

307004 Centering adapter for D200 wire spool: For precise adjustment of D200 wire spools on the spool holder, ensuring smooth, unobstructed wire feed.

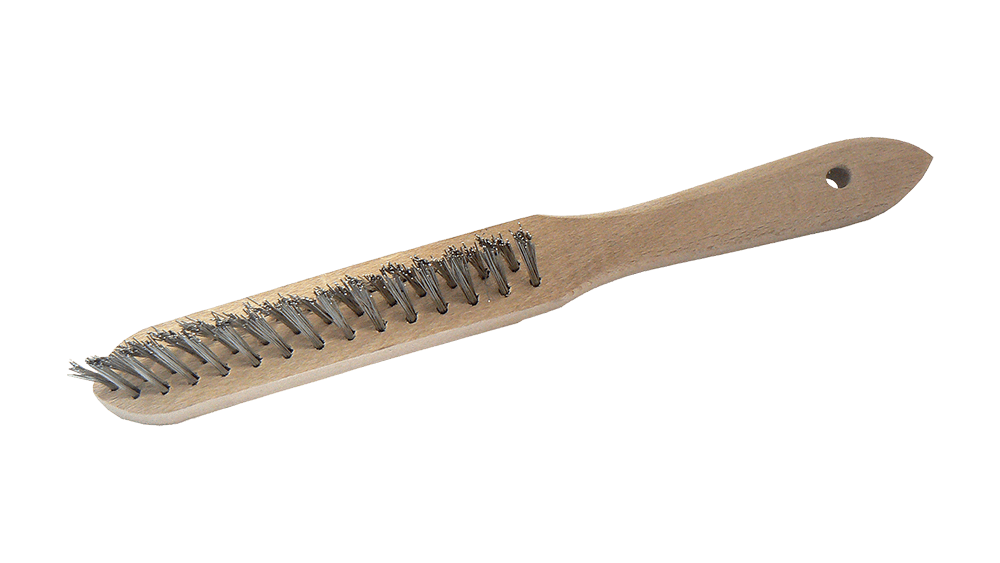

541211 Four-row hand wire brush (Stainless steel): For general cleaning tasks.
541212 Hand wire brush for corner welds (INOX): Specially designed for cleaning V-welds and corner welds, with a wire diameter of 0.35 mm.

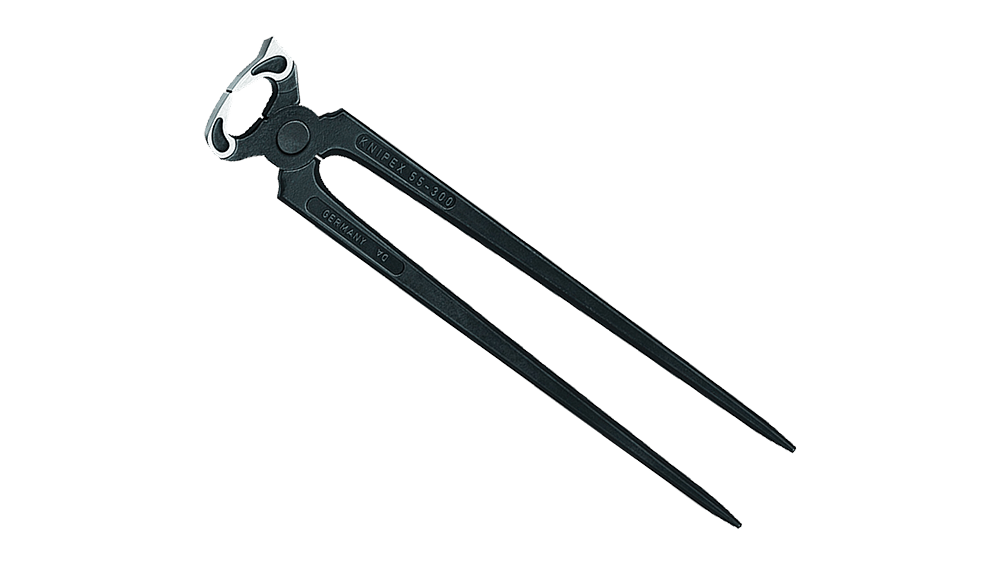

561030 Body dismantling pliers (Cutting pliers): Special tool for dismantling body parts. The cutting edges are extra hardened (approx. 59 HRC), made of forged and oil-hardened tool steel.
311050 Crack detection fluid (Penetrant red | Ardrox 9VF2): For checking the internal structure of metals, especially for detecting damage after accidents (e.g., around the MacPherson strut). The penetrant penetrates even the finest cracks and is then made contrastingly visible with the help of the white developer spray.

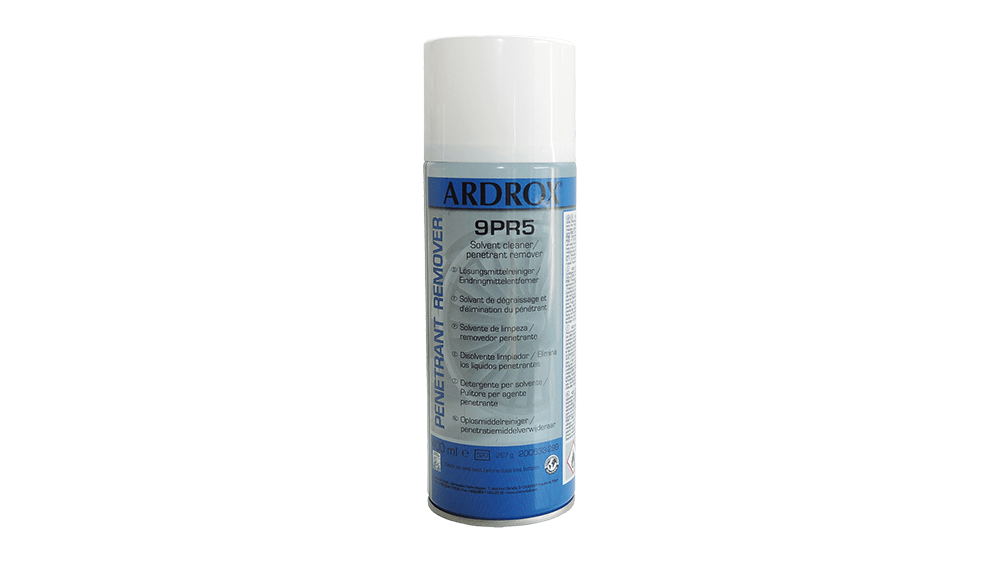

311051 Crack detection cleaner (Ardrox 9PR5): For the complete removal of test fluids and developer residues from the surface.
Note: The IM 240-i USA version (Item No: 341291) is supplied with a cable but without a plug.
