This high-quality, 4 kg slide hammer set, offered by Wieländer+Schill, is an essential tool for professional body repair work, especially for pulling and leveling tasks in dent removal. The tool is designed to ensure maximum efficiency and durability even in the most demanding workshop environments.
The 4 kg weight creates an ideal balance between providing the necessary momentum and easy handling, enabling precise and controlled work. The included suction hook (draw hook) allows for versatile use with various pulling points.
This slide hammer represents the reliable quality of Wieländer+Schill, ensuring a long service life and dependable performance:
Robust Design: Made entirely of steel, guaranteeing resistance to heavy use.
Corrosion Protection: Features a nickel-plated coating that provides excellent protection against rust, extending the tool's lifespan.
Optimized Dimensions: Its 600 mm length allows for optimal force exertion, while the 75 mm diameter ensures a comfortable grip.
Universal Connection: Equipped with an M14 thread, ensuring a standard connection for various pulling elements and adapters.
Complete Set: The set includes the slide hammer and the corresponding suction hook, ready for immediate use.
The detailed specifications of the product ensure that it precisely meets professional expectations:
| Property | Value | Note |
|---|---|---|
| Part number | 501005 | Product Identifier |
| Material | Steel | High-strength structural material |
| Surface Treatment | nickel-plated | Excellent corrosion protection |
| Weight | 4.726 kg | Weight of the complete set |
| Length | 600 mm | Operating length of the hammer |
| Diameter (Ø) | 75 mm | Body diameter |
| Overall Dimensions (L x W x H) | 605 x 75 x 75 mm | External dimensions |
| Thread | M14 | Standard connection thread |
| Content | 1 set | Includes the hammer and the suction hook |
This slide hammer belongs to the Dent Removal Technology and Metal Processing category, and is ideal for the following tasks:
Dent Pulling: Removal of minor and medium-sized external damage and dents from body panels.
Application of Pulling Force: Straightening using various pulling elements (e.g., screws, rivets, or special adapters).
Moving Structural Components: Careful movement of hard-to-reach or rigidly fixed components during the repair process.
For maximum flexibility, Wieländer+Schill offers a number of accessories that can be perfectly integrated with this slide hammer. These elements enable the adaptation of the tool for special pulling techniques:
| Add-on | Part number | Description |
|---|---|---|
| Slide hammer adapter for Bi-Puller | 508021 | Special adapter for use with the Bi-Puller system, expanding the range of pulling options. |
| Suction cup for slide hammer | 504011 | An alternative or replacement suction cup that ensures proper adhesion. |

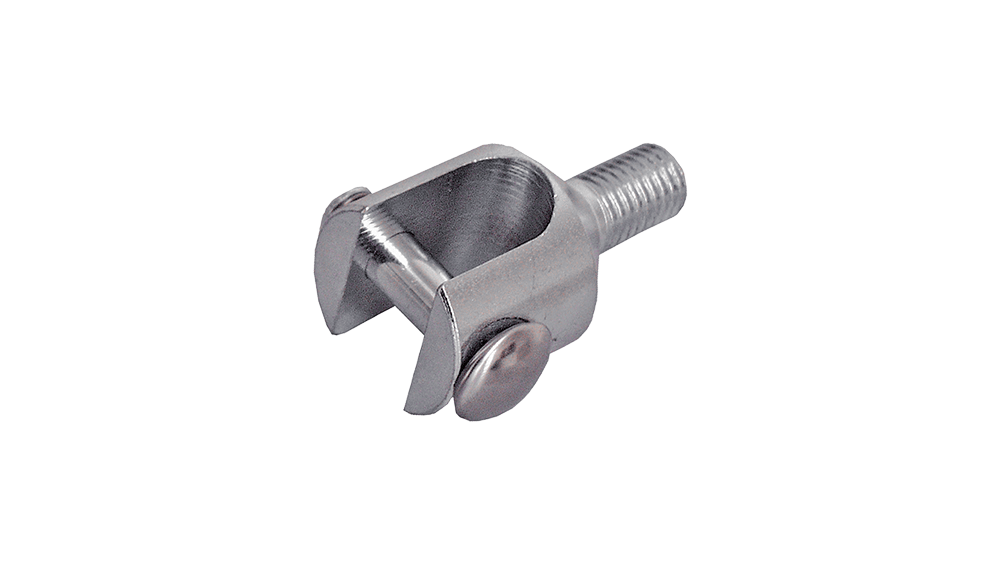

| Connecting nut for slide hammer | 504012 | Threaded connector element that enables the mounting of other pulling heads or adapters via the M14 thread. |
These accessories (whose prices are available after logging in) further expand the functionality of the slide hammer with article number 501005, thus making the tool a truly modular, professional system.
Wieländer+Schill is committed to the highest quality standards. Manufacturing processes are carried out under strict quality control, which is also certified by the following certificates:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
This slide hammer is part of the Wieländer+Schill „Dent Removal Technology & Metalworking” product range, which also meets the highest level of OEM (manufacturer) recommendations. The tool guarantees damage-free, efficient repair of body parts.
