The Wielander + Schill Tool Box RS-03 | BMW A professional tool set, specially optimized for BMW vehicles, including the necessary precision tools for the most modern riveting technologies (SPR – Self Piercing Rivet) and for removing rivets. This set is essential for every technician who intends to carry out body repairs, especially on high-strength steel and aluminum structures, in accordance with manufacturer specifications.
This tool box is part of the XSeries professional riveting technology product family, ensuring reliable and durable joints, as well as damage-free repairs.
This tool box prioritizes efficiency and precision, ensuring that BMW-specific repair procedures can be executed professionally.
BMW Specific Application: The set is specifically compiled for the riveting and rivet removal procedures prescribed by BMW, guaranteeing factory-quality repairs.
Comprehensive Functionality: Contains the tools necessary for both installing (SPR) and professionally removing existing rivets.
Quality Construction: The tools are made from durable plastic (case) and steel (tool inserts), ensuring a long service life and reliable performance.
Compact Storage: The tools are supplied in a robust, clearly organized plastic box, which facilitates transportation and storage in the workshop.
Important Note: The application areas and specific workflows of the tools must always be derived from the repair instructions of the vehicle manufacturer (in this case, BMW).
The Tool Box RS-03 | BMW is a carefully compiled set containing the most important tools for BMW body repair tasks.
| Property | Value |
|---|---|
| Part number | 700200 |
| Content | 1 set |
| Length × Width × Height | 270 x 84 x 56 mm |
| Material | Plastic, Steel (kunststoff) |
| Weight | 0.550 kg |

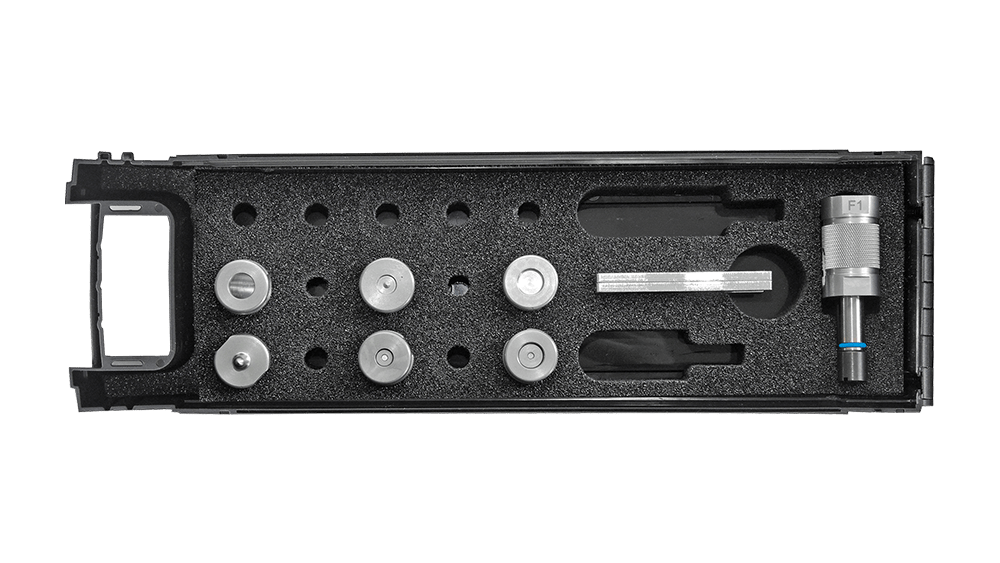

The set contains the following key elements, each precisely matched to BMW repair processes:
| Part number | Designation | Function | Diameter/Size |
|---|---|---|---|
| 700221 | Tool Set A1 + A2 | Rivet extraction set (Rivet extraction) | Ø 5.2 mm |
| 700227 | Tool Set D1 + D2 | SPR setting set (Setting of SPR) | Ø 3 mm |
| 700226 | Tool Set E1 + E2 | SPR setting set (Setting of SPR) | Ø 5 mm |
| 700220 | F1 | With extended threaded sleeve | M6, 32 mm |
| 700299 | Z4 | Setting tool (PU: 2 pcs) | N/A |
The tool box is not just a collection, but an integrated system where every element fulfills a specific function in the repair process.
This set is for the professional removal of existing, damaged, or worn-out rivets, minimizing the risk of damage to surrounding body panels.
Part number: 700221
Function: Removal of Self-Piercing Rivets (SPR).
Accessories:
1 pc 700250 Pull Rod A1

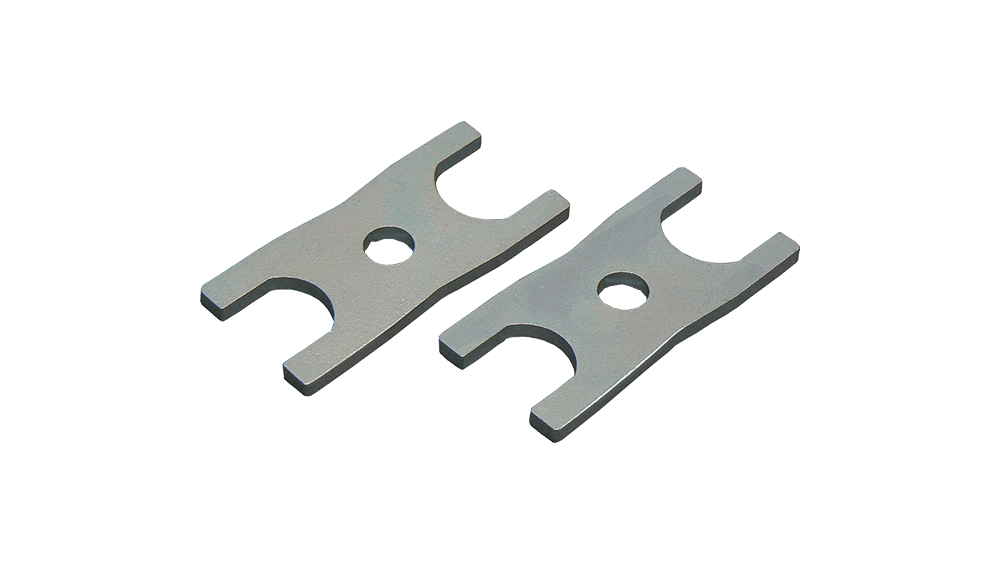

1 pc 700251 Pull Plate A2
Applicable Diameter: Ø 5.2 mm
This set is required for the correct setting of self-piercing rivets (SPR) of a specific diameter.
Part number: 700227
Function: Setting of SPR rivets.
Accessories:

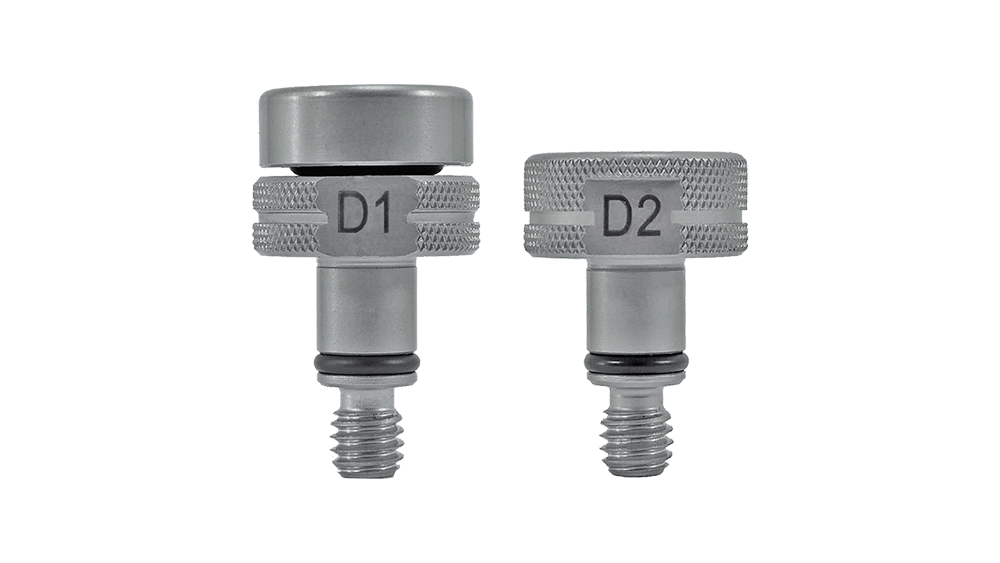

1 pc 700332 D1 | Setting Tool for SPR
1 pc 700262 D2 | Closing Tool for SPR
Applicable Diameter: Ø 3.5 mm (The description also mentions Ø 3 mm, but the specific part number D1/D2 relates to 3.5 mm based on detailed data.)
Another setting set, ideal for SPR rivets of a larger diameter.
Part number: 700226
Function: Setting of SPR rivets.
Accessories:

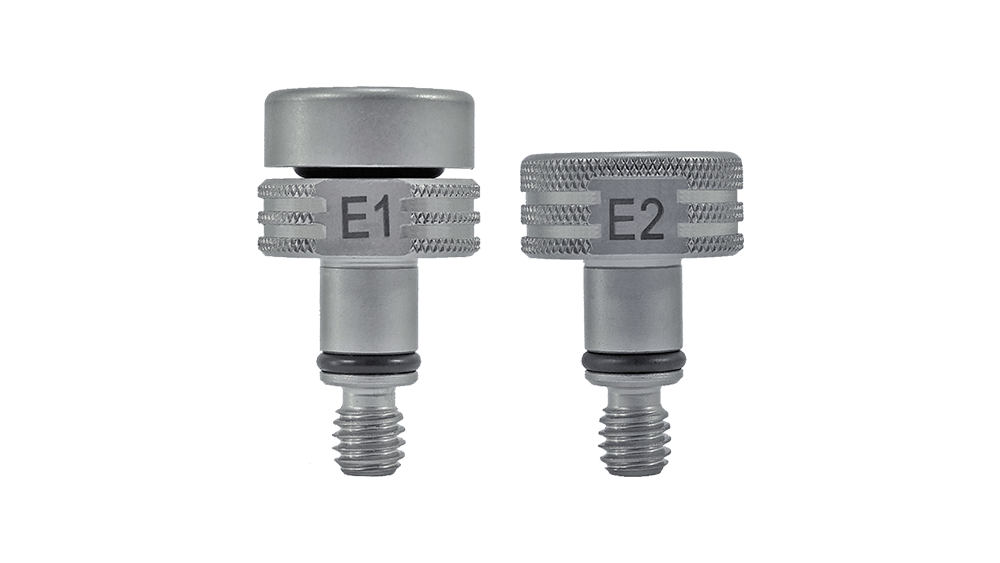

1 pc 700260 E1 | Setting Tool for SPR
1 pc 700261 E2 | Closing Tool for SPR
Applicable Diameter: Ø 5 mm
This accessory ensures that the tools can reach hard-to-access fastening points inside the vehicle structure.
Part number: 700220

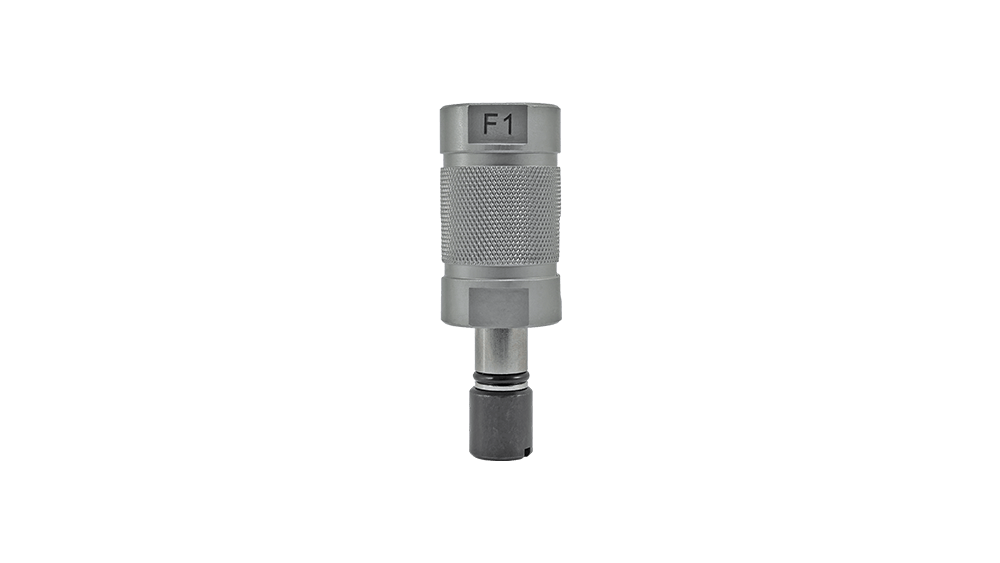

Designation: F1 | Extension with threaded sleeve
Size: 32 mm length
Connection: M6 threaded sleeve
This special tool assists in the maintenance of the tool set and the replacement of the tools.
Part number: 700299
Designation: Z4 | Assembly Tool (Disassembly: 2-piece unit)
Important Warning: FORBIDDEN to use for tightening! Exclusively for loosening and removing tools (rivet bits, punches, ejector pins, and extensions).
The Tool Box RS-03 | BMW is an integral part of Wielander + Schill's XSeries professional riveting technology. Modern vehicles, especially premium category models like the BMW, increasingly use self-piercing rivets (SPR) to join body elements, particularly where different materials (e.g., steel and aluminum) meet.
These joints provide extremely high strength, but professional repair requires special tools approved by the manufacturer. The 700200 set ensures that workshops have the precision tools needed to remove existing SPR rivets without deforming the surrounding panels, and to correctly install new rivets with the required torque and profile. Using the set is essential for maintaining the structural integrity of the body and complying with safety regulations after repair.
