This detailed product description presents the V1 and V2 tool set developed for the Wieländer+Schill XSeries professional riveting technology, specifically designed for the expert installation of solid self-piercing rivets. This set is an indispensable tool for every professional requiring high-precision and durable connections in the field of body repair and metal processing.
A Part number 700350 The tool set contains two essential components that work together to ensure the optimal forming and setting of solid self-piercing rivets. The set is part of the Wieländer+Schill professional riveting technology (XSeries), guaranteeing compliance with strict OEM (Original Equipment Manufacturer) specifications.
The purpose of the tool set is to press the rivet head to the desired size and shape using the tool set, thereby ensuring maximum joint strength and structural integrity of the bodywork.

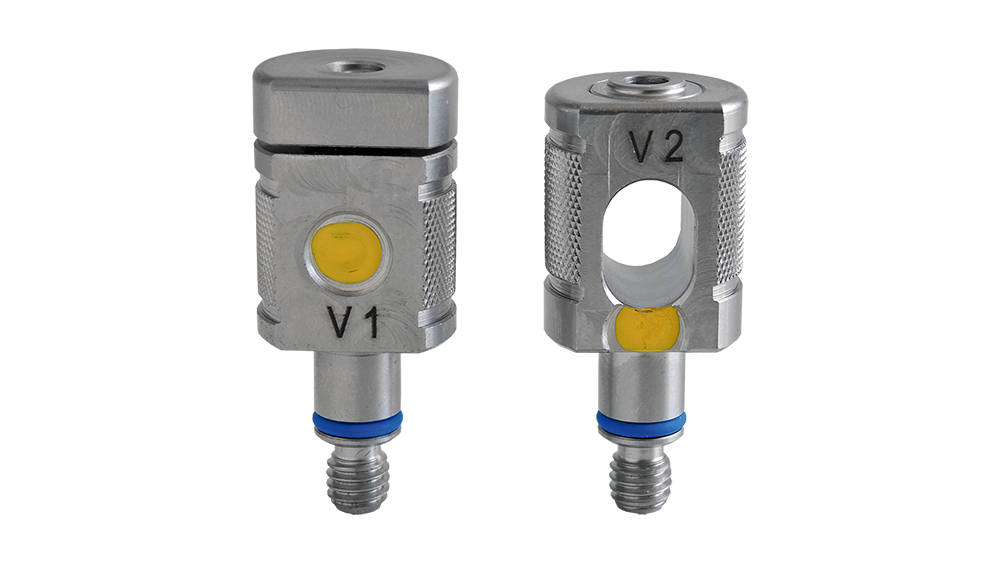

The tool set with part number 700350 includes the following precision components:
| Item | Part number | Description | Application |
|---|---|---|---|
| Setting Tool (V1) | 700333 | Setting tool for solid self-piercing rivets | Rivet Head Forming (V1 function) |
| Setting Tool (V2) | 700277 | Setting tool for solid self-piercing rivets | Rivet Head Forming (V2 function) |
More detailed information about the components:

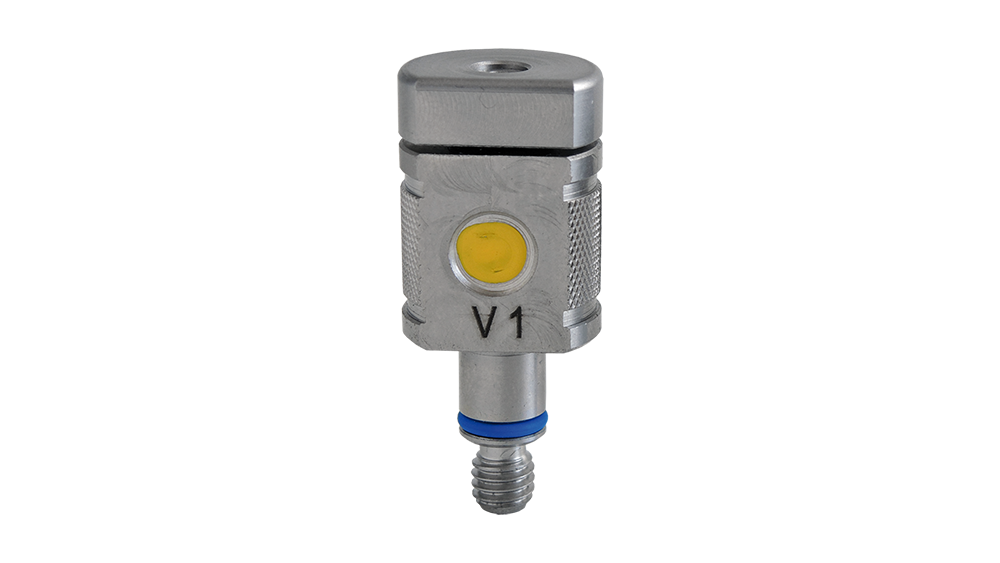

This tool is required for a critical step in the riveting process. The V1 tool is responsible for the preliminary or primary forming of the rivet head, which is essential for achieving a stable and uniform final result.
Part number: 700333
Type: Closing Die (Closing Die)
Compatibility: Solid self-piercing rivets
Key Features: It takes effect in the first phase of rivet insertion, preparing for the final setting.

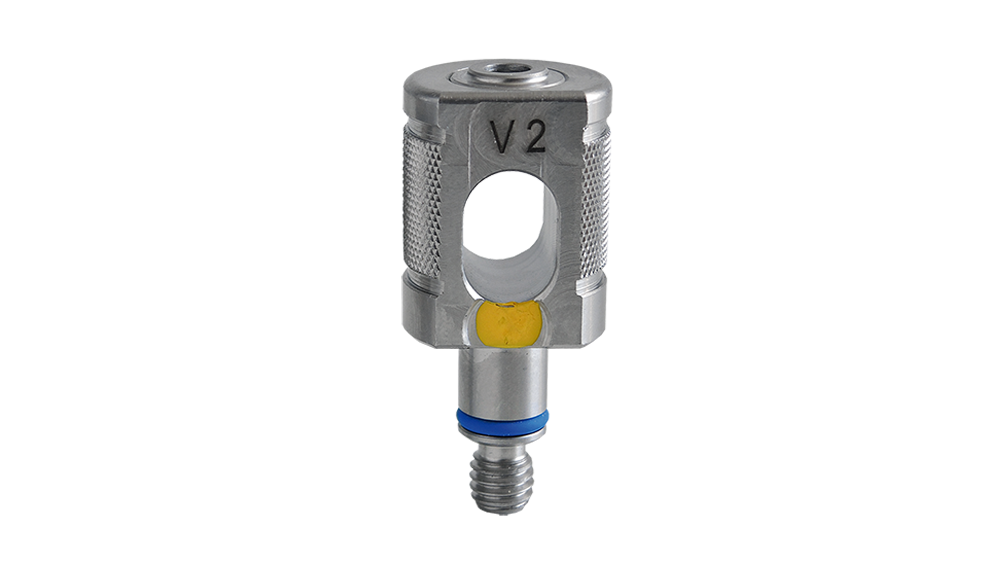

The V2 tool is the finishing element of the riveting process. This tool is responsible for creating the final, durable shape of the rivet between the materials to be fastened.
Part number: 700277
Type: Closing Die (Closing Die)
Compatibility: Solid self-piercing rivets
Dimension specification: Kifejezetten 4.0 mm diameter designed for solid self-piercing rivets.
Key Features: Ensures proper setting, which guarantees the mechanical strength and durability of the joint in the vehicle structure.
This tool set is intended for use with Wieländer+Schill professional riveting systems and strictly follows industry standards.
| Parameter | Value | Note |
|---|---|---|
| Product Name | Die set V1 + V2 | Tool set |
| Part number | 700350 | Identifier of the complete kit |
| Field of application | Installation of solid self-piercing rivets | Special fastening technology |
| System Compatibility | XSeries – Professional Riveting Technology | For Wieländer+Schill machines |
| V1 Tool Part Number | 700333 | Locking tool |
| V2 Tool Part Number | 700277 | Locking tool |
| V2 Tool Rivet Diameter | 4.0 mm | Precise Fit |
| Material Quality | High-strength tool steel (assumed) | For durability and precision |
The use of the V1 + V2 tool set brings several advantages in body repair processes:
OEM Compliance: During the development of Wieländer+Schill tools, they work in close cooperation with car manufacturers, so the work done with set 700350 guarantees that the repair meets the latest safety and structural requirements.
Two-stage Precision Forming: The sequential use of V1 and V2 tools ensures that the rivet is optimally deformed from both sides, creating a symmetric and extremely strong connection that resists vibration and load.
Durability: The tools are made from high-quality materials that withstand high pressure and continuous use, minimizing wear and the need for replacement.
Simple Integration: The set can be directly integrated into existing XSeries riveting machines, ensuring fast and efficient work.
This tool set is the ideal choice:
For body repair shops.
For repairing aluminum and high-strength steel structures.
For all applications where the use of solid self-piercing rivets is mandatory.
The product is part of Wieländer+Schill's broader product range, which also includes welding technology, separation tools, and dent removal technologies, strengthening the company's position as a leading supplier of professional bodyshop specialist tools.
