Part number: 700243
This detailed product description presents the D5 and D12 tool set, belonging to the Wieländer+Schill XSeries professional riveting technology product family, specifically designed for hole punching tasks. This set is an essential tool for any professional requiring precise and reliable hole punching during body repair or metalworking operations.
The tool set with article number 700243 contains two crucial components that work together to ensure the clean and accurate punching of 8 mm diameter holes. The set represents the professional quality of Wieländer+Schill, guaranteeing long service life and consistent performance even under high demand.
The set is the ideal choice for:
Body repair operations where precise fitting is required.
Punching through metal sheets where clean edge formation is critical.
Applications where the hole punching process needs to be fast and efficient.
The D5 + D12 tool set consists of the following precision components, each of which can also be identified and replaced individually:
| Component | Part number | Function | Diameter (Ø) |
|---|---|---|---|
| D5 | 700816 | Punching & extraction die | 8 mm |
| D12 | 700820 | Punch | 8 mm |
Part number: 700816

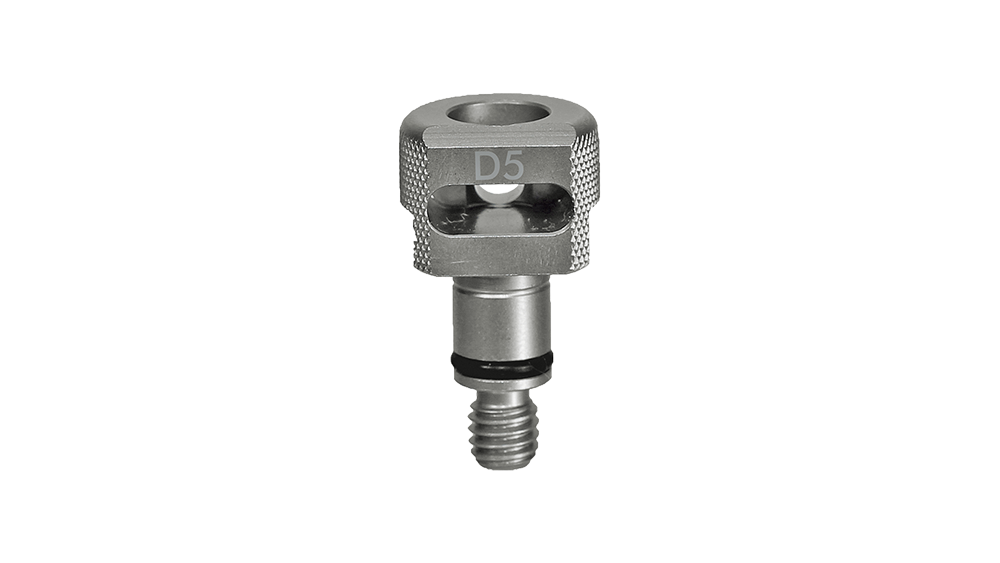

Function: This tool is responsible for forming the hole and removing the punched material (scrap) from the die. The extraction function minimizes the risk of jamming and ensures continuous operation.
Diameter: 8 mm
Előnyök: Optimized design for clean hole edges, reducing burr formation.
Part number: 700820

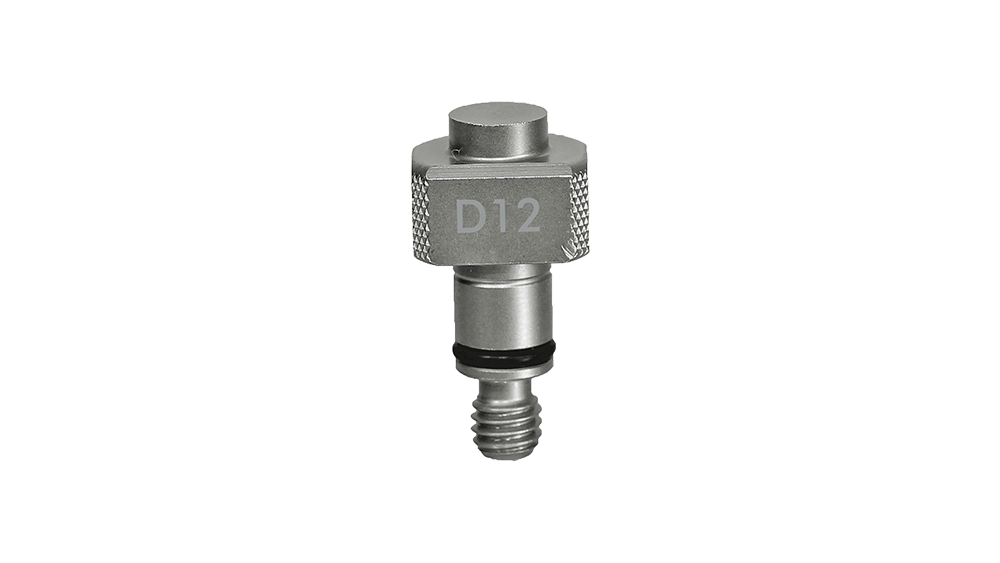

Function: The D12 component performs the punching function, pressing the material through the workpiece in conjunction with the D5 die.
Diameter: 8 mm
Előnyök: Made from high-strength material that withstands high compressive forces, ensuring a long service life.
As part of the Wieländer+Schill XSeries technology, this tool set delivers excellent performance:
Precise Hole Sizing: The nominal diameter of 8 mm guarantees precisely sized holes, which is essential for fitting body parts.
Excellent Material Quality: The tools are made of high-quality, hardened steel, which resists wear and fatigue, significantly extending the service life of the tools.
Optimized Punching Process: The synergy between the D5 and D12 components ensures efficient material removal, minimizing the required force and working time.
System Compatibility: The set is optimized for use with XSeries professional riveting and hole punching systems, ensuring seamless integration with existing workshop equipment.
Easy Maintenance: The design of the tools allows for quick and easy cleaning and replacement.
| Parameter | Value | Note |
|---|---|---|
| Product Family | XSeries – Professional Riveting Technology | |
| Product Type | Tool set for hole punching | |
| Main Part Number | 700243 | Set Identifier |
| Hole Diameter (Nominal) | Ø 8 mm | |
| D5 Part Number | 700816 | Drilling and extracting tool |
| D12 Part Number | 700820 | Hole puncher |
| Field of application | Body repair, metal processing |
Wieländer+Schill is committed to providing the highest quality tools, which is supported by our ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications.
Accessories (Zubehör):
Components with part numbers 700816 and 700820 are also available as spare parts, ensuring continuous operation. Please refer to the list of related products for a complete supply.
This D5 + D12 tool set combines reliability and precision, making it the ideal choice for professional bodywork and sheet metal applications.
